MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 203 MZ-3 20 1 630 096 7470 AIR CLEAN EQPT 1 782MZ-1 10-201 20 2 630 096 7494 MECH P ARTS 2 782MZ-1 10-202 20 3 630 009 3551 PIPE FITTINGS(BAND) …
MODEL TPM-200F/R
0207-001
202
ブロアユニット部 BLOWER UNIT SECTION

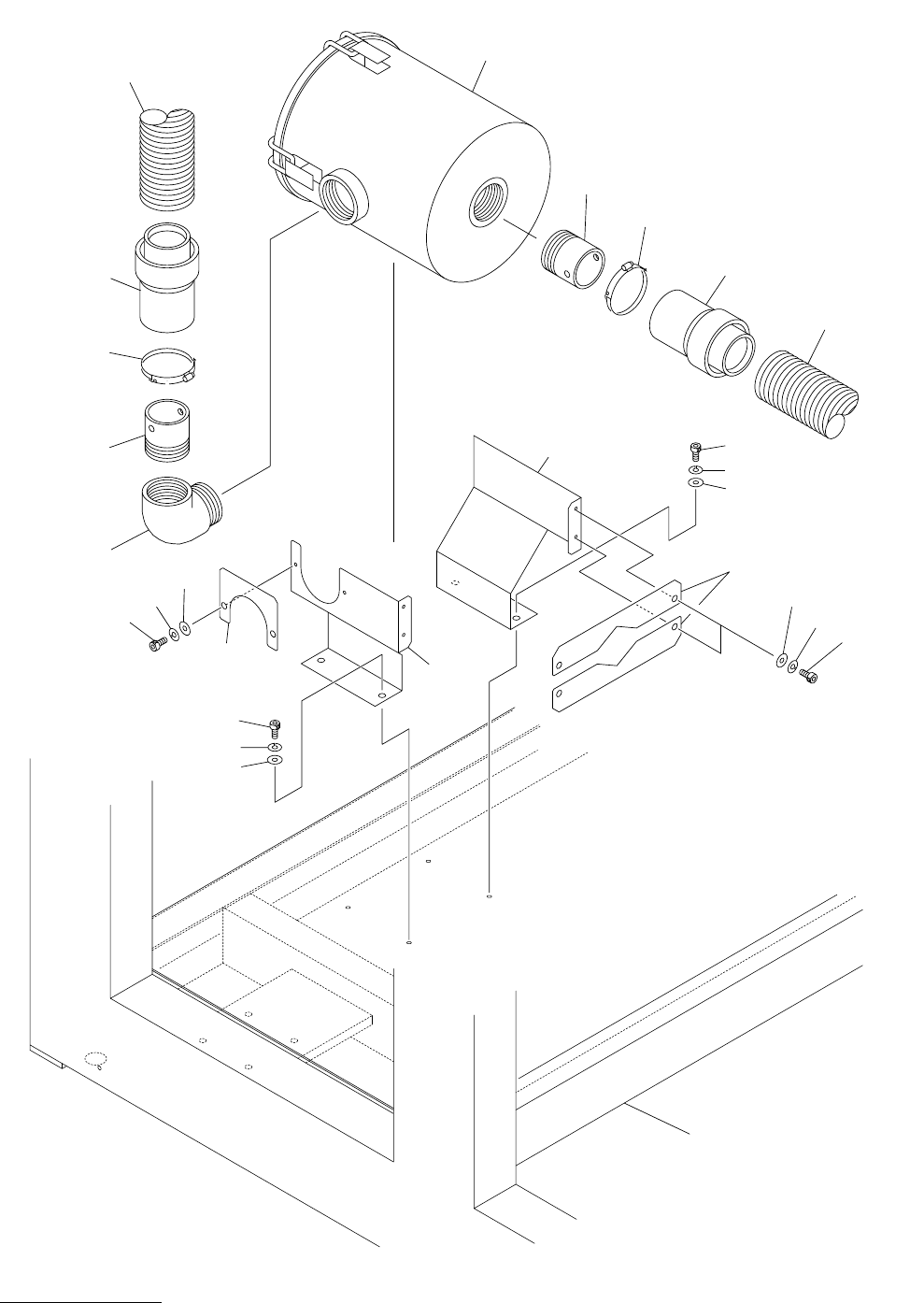

Fig. MZ-3 フィルタ Filter
Fig.MZ-3
TPM-200F/R
209
201
203
202
See Fig MZ-1
Key No.18
See Fig MZ-1
Key No.7
261
202
205
206
207
266
265
264
261
262
263
203
209
204
262
263
208
266
265
264
See Fig K-1
Key No.1
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
203
MZ-3
201 630 096 7470 AIR CLEAN EQPT 1 782MZ-110-201
202 630 096 7494 MECH PARTS 2 782MZ-110-202
203 630 009 3551 PIPE FITTINGS(BAND) 2 782MZ-110-203
204 630 092 8327 PIPE FITTINGS 1 782MZ-110-204
205 630 103 0203 BRACKET 1 782MZ-110-205
206 630 103 0210 BRACKET 1 782MZ-110-206
207 630 103 0227 PLATE 1 782MZ-110-207
208 630 103 0234 PLATE 2 782MZ-110-208
209 630 109 4571 PIPE 2 782MZ-110-209
261 630 000 7749 BOLT,HEX-SCT 4 782MZ-110-261
262 411 141 6705 WASHER SPR 5 4 782MZ-110-262
263 411 141 4107 WASHER V 5X10X1 4 782MZ-110-263
264 630 000 7619 BOLT,HEX-SCT 6 782MZ-110-264
265 411 141 2905 WASHER SPR 4 6 782MZ-110-265
266 630 001 0213 WASHER 6 782MZ-110-266
MODEL TPM-200F/R
0207-001
204
ブロアユニット部 BLOWER UNIT SECTION
Fig. MZ-4 エア配管 Air Piping
See Fig.MZ-1
Key No.10
363
302
301
303
303
304
305
362
361
301-02
301-01
Fig.MZ-4
