P-0221-001.pdf - 第278页
MEMO
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
275
RH-1
1 630 049 1098 SWITCH,TOGGLE 1 S101 782RH-110-001
2 630 091 1817 NAME PLATE,INDEX 1 782RH-110-002
3 402 061 5206 WIRE WOUND 100 JB 80W 1 R101 782RH-110-003
4 630 000 4243 SOCKET 1 X001 782RH-110-004
5 630 091 1824 NAME PLATE,INDEX 1 782RH-110-005
6 630 112 5145 CORD 1 782RH-110-006
61 411 043 5004 SCR PAN 4X8 4 782RH-110-061
62 411 008 1706 WASHER SPR 4 4 782RH-110-062
63 411 119 2104 WASHER V 4X9X0.8 4 782RH-110-063
64 411 087 0508 WASHER IN TW 4 2 782RH-110-064
65 411 113 6009 SCR TRS 3X10 2 782RH-110-065
66 411 140 9905 NUT HEX 3 2 782RH-110-066
67 411 086 4408 WASHER SPR 3 2 782RH-110-067
68 411 119 1909 WASHER V 3X7X0.5 2 782RH-110-068
MEMO
MODEL TPM-200F/R
0207-001
277

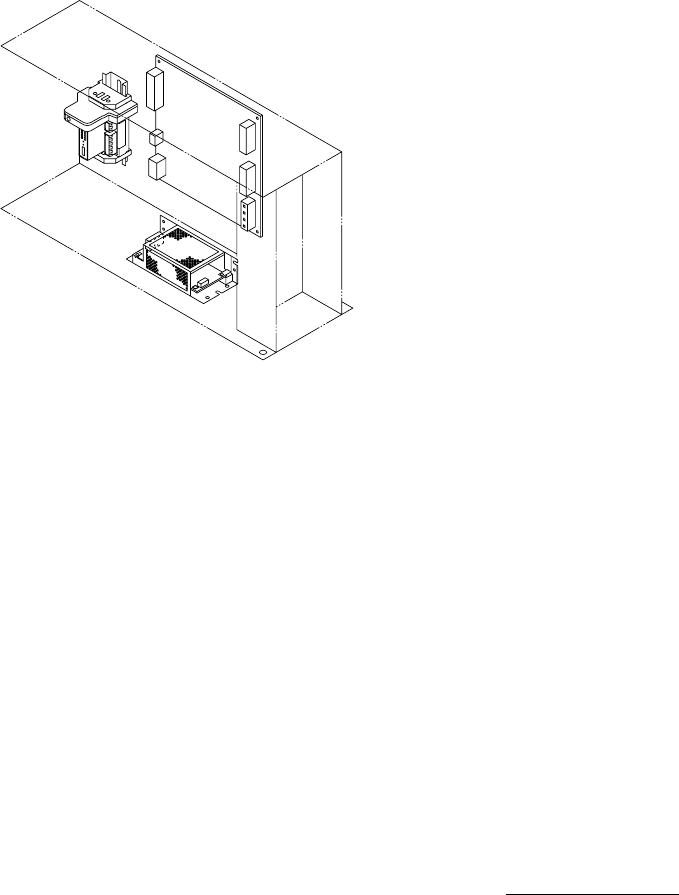

Fig. RJ 前後インターフェース部
INPUT/OUTPUT MACHINE INTERFACE SECTION
