MODEL TPM-200F 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 155 HR-4 30 1 630 086 4946 SENSOR,PELEC 1 BPH044 782HR-1 10-301 30 2 630 108 8020 SENSOR,PELEC 2 BPH046,047 782HR-1 10-302 30 3 630 071 7716 SENSO…
MODEL TPM-200F
0207-001
154
R コンベア部（手前基準）
R CONVEYOR SECTION（Front Reference）

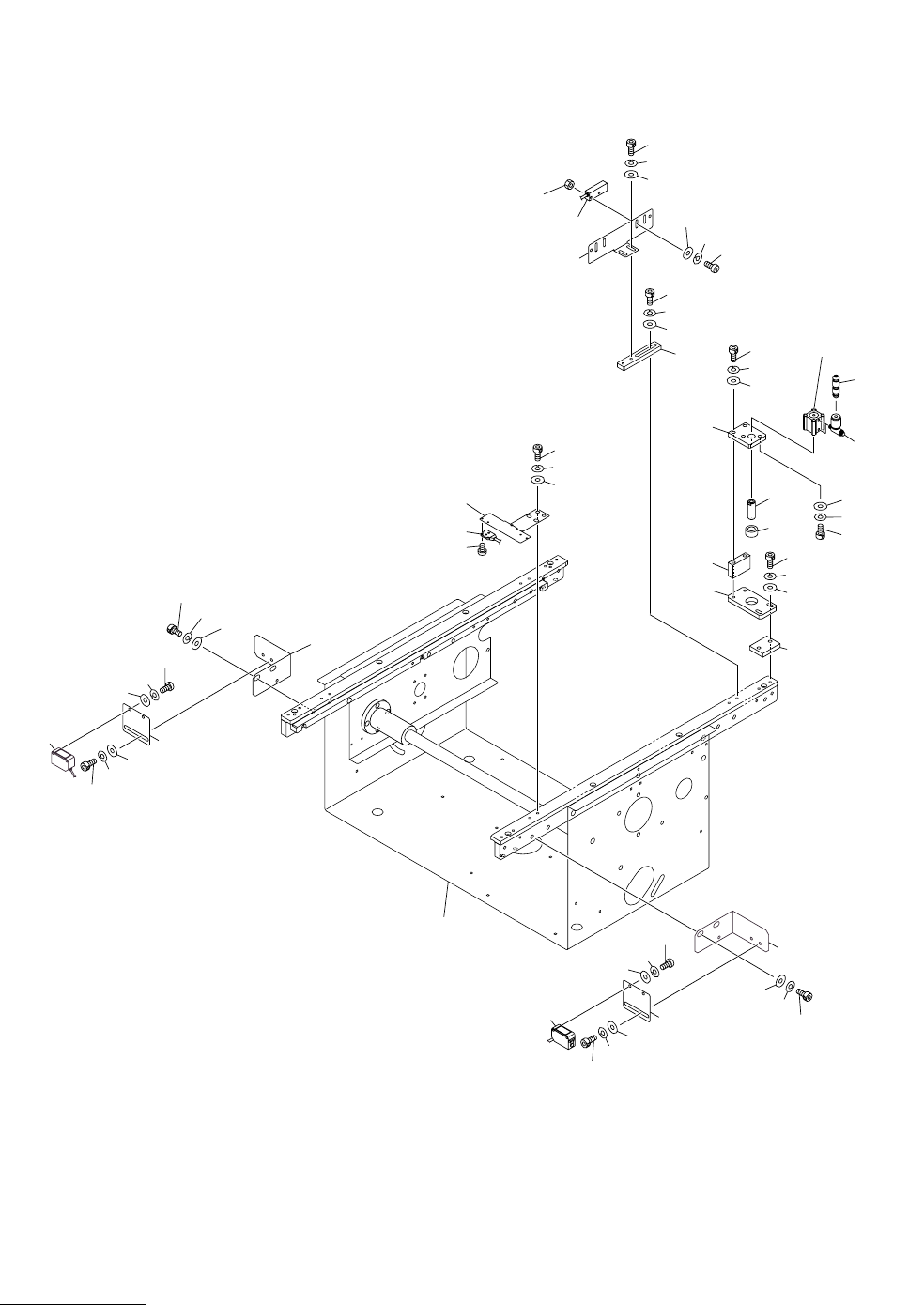

Fig. HR-4 基板検出部、基板ストッパ P.C.B. Detector , P.C.B. Stopper
373
365
366
367
363
362
361
375
374
316
306
365
366
367
316
373
374
375
317
Fig.HR-4
TPM-200F
365
305
366
368
304
361
362
363
365
366
367
365
366
378
365
311
380
366
365
366
379
315
312
365
366
380
See Fig HR-1
Key No.19
377
303
308
302
363
362
361
302
314
313
319
318
309
310
301
364
MODEL TPM-200F
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
155
HR-4
301 630 086 4946 SENSOR,PELEC 1 BPH044 782HR-110-301
302 630 108 8020 SENSOR,PELEC 2 BPH046,047 782HR-110-302
303 630 071 7716 SENSOR,PELEC 1 BPH045 782HR-110-303
304 630 107 7970 PLATE 1 782HR-110-304
305 630 115 9669 BRACKET 1 782HR-110-305
306 630 112 4438 BRACKET 1 782HR-110-306
308 630 107 8212 BRACKET 1 782HR-110-308
309 630 112 4476 PLATE 1 782HR-110-309
310 630 108 9324 PLATE 1 782HR-110-310
311 630 108 9317 PLATE 1 782HR-110-311
312 630 109 0528 SHAFT 1 782HR-110-312
313 630 110 5376 CYLINDER 1 782HR-110-313
314 630 098 7744 AIR LINE EQPT 2 782HR-110-314
315 630 109 1105 BUSH,BEARING 1 782HR-110-315
316 630 112 4452 PLATE 2 782HR-110-316
317 630 112 4445 BRACKET 1 782HR-110-317
318 630 112 4483 PLATE 1 782HR-110-318
319 630 076 8916 PIPE FITTINGS 2 782HR-110-319
361 411 119 1909 WASHER V 3X7X0.5 5 782HR-110-361
362 411 086 4408 WASHER SPR 3 5 782HR-110-362
363 411 040 6202 SCR PAN 3X10 5 782HR-110-363
364 411 054 6809 NUT HEX 3 1 782HR-110-364
365 411 141 4008 WASHER V 4X9X0.8 16 782HR-110-365
366 411 141 2905 WASHER SPR 4 16 782HR-110-366
367 630 000 7619 BOLT,HEX-SCT 6 782HR-110-367
368 630 000 7633 BOLT,HEX-SCT 2 782HR-110-368
373 411 141 4305 WASHER V 6X12.5X1.6 4 782HR-110-373
374 411 141 3001 WASHER SPR 6 4 782HR-110-374
375 630 000 7879 BOLT,HEX-SCT 4 782HR-110-375
377 411 125 5403 SCR PAN 2X4 2 782HR-110-377
378 630 000 7626 BOLT,HEX-SCT 2 782HR-110-378
379 630 000 7664 BOLT,HEX-SCT 2 782HR-110-379
380 630 000 7657 BOLT,HEX-SCT 4 782HR-110-380
MODEL TPM-200F
0207-001
156
R コンベア部（手前基準）
R CONVEYOR SECTION（Front Reference）

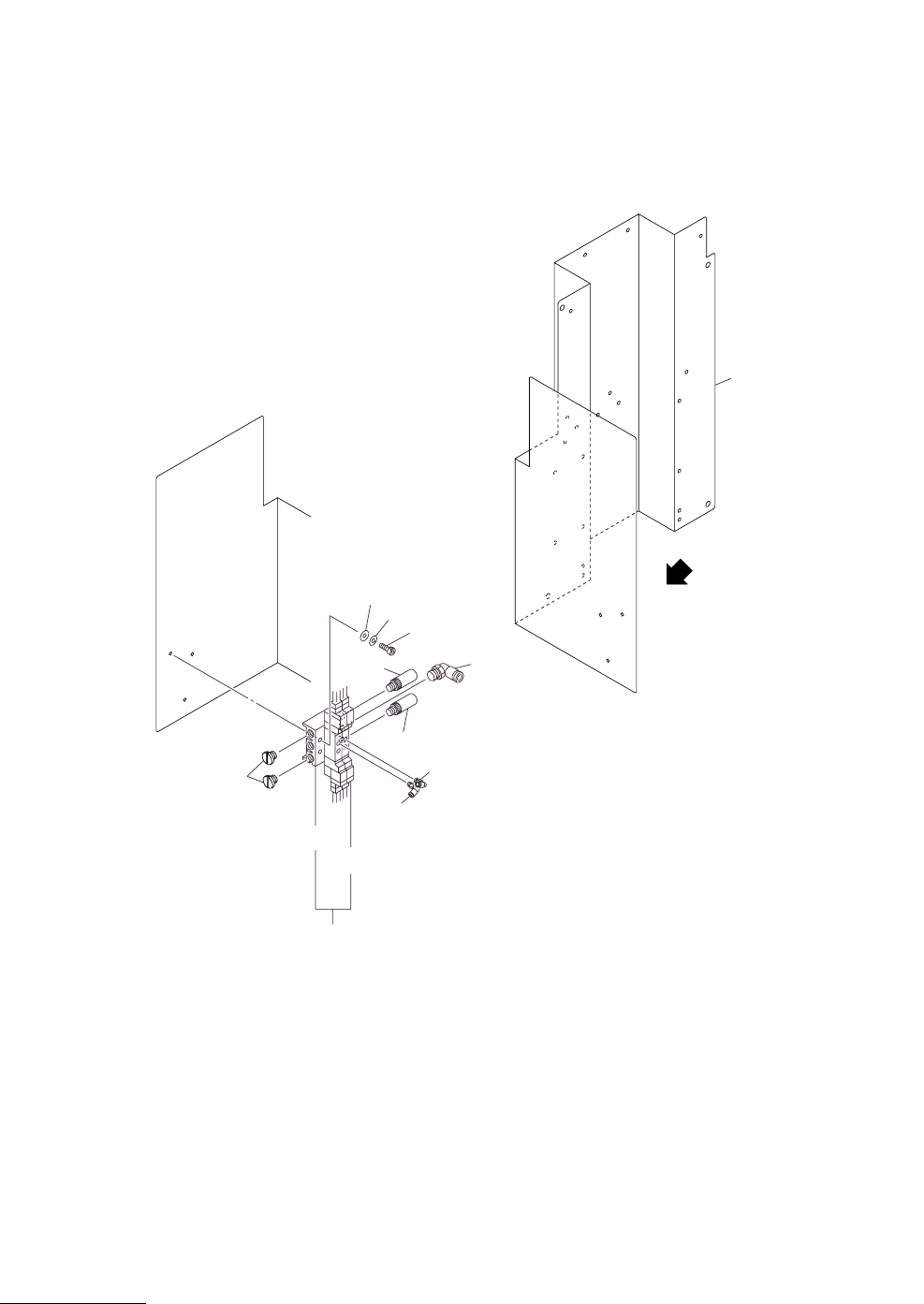

Fig. HR-5 エア配管 Air Piping
Fig.HR-5
TPM-200F/R
See Fig.K-4
Key No.311
402
402
403
463
405
462
461
404
401-01
401-02
401
404
A
VIEW"A"
