MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 295 KA-1 1 630 1 16 8166 UNIT 1 782KA-1 10-001 2 630 1 13 2761 TUBE 1 782KA-1 10-002 3 630 054 4091 PIPE FITTINGS 2 782KA-1 10-003 4 630 1 15559…
MODEL TPM-200F/R
0207-001
294
温調ユニット Temperature Indicating Controller
P-S052-10（オプション） P-S052-10(Option)

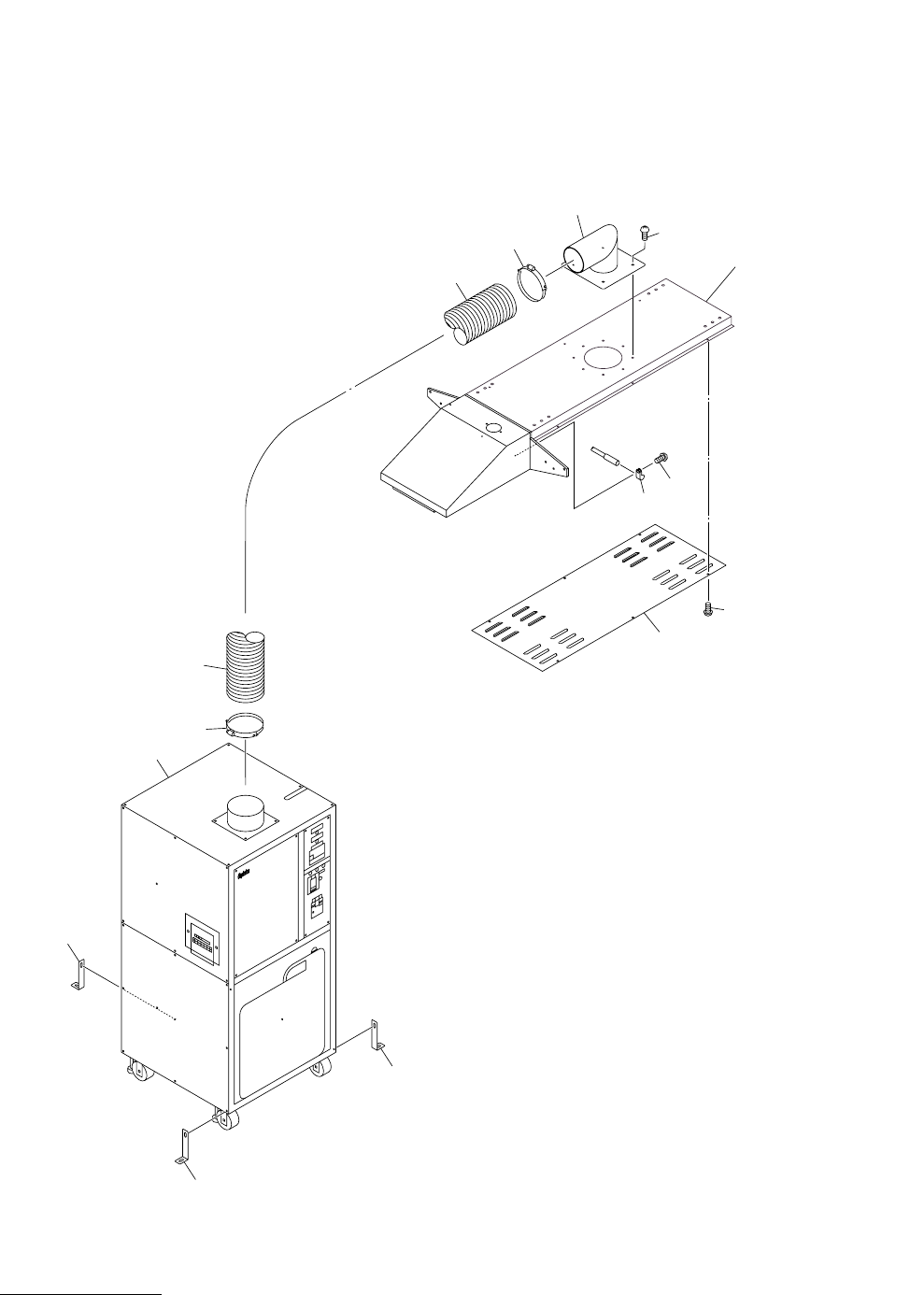

Fig. KA-1
5
2
3
4
62
61
1
3
2
See Fig.P-2
Key No.113
7
61
6
6
6
Fig.KA-1
TPM-200F/R
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
295
KA-1
1 630 116 8166 UNIT 1 782KA-110-001
2 630 113 2761 TUBE 1 782KA-110-002
3 630 054 4091 PIPE FITTINGS 2 782KA-110-003
4 630 1155593 PIPE 1 782KA-110-004
5 630 115 5586 COVER 1 782KA-110-005
6 630 115 5685 STAY 3 782KA-110-006
7 630 097 8032 MECH PARTS 1 782KA-110-007
61 411 051 1708 SCR TRS 4X6 7 782KA-110-061
62 411 051 2804 SCR TRS 4X8 4 782KA-110-062
