MEMO
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
267
RF-1
59 630 112 5848 CORD 1 XCNA02-XCNA09,B09-XCNA12,B012-
XCNA08,B08-XNC1A11-
782RF-110-059
61 411 043 5004 SCR PAN 4X8 26 782RF-110-061
62 411 008 1706 WASHER SPR 4 26 782RF-110-062
63 411 119 2104 WASHER V 4X9X0.8 26 782RF-110-063
64 411 087 0508 WASHER IN TW 4 26 782RF-110-064
MEMO
MODEL TPM-200F/R
0207-001
269

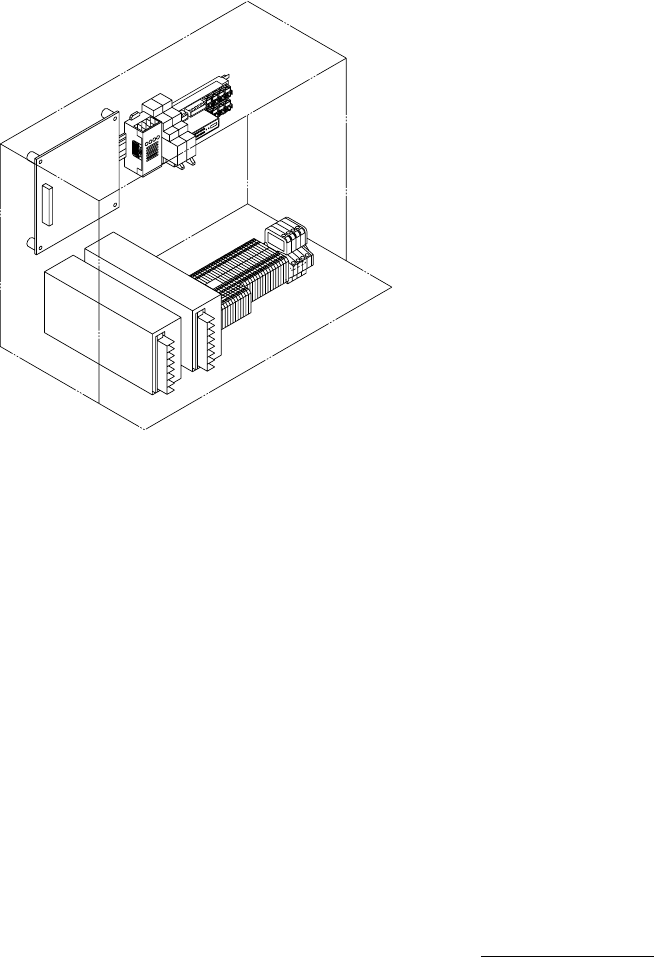

Fig. RG リレーシーケンス部 RELAY SEQUENCE SECTION
