MODEL TPM-200F/R 0207-001 286 標準付属品 ST ANDARD ACCESSORIES Fig. ZS-2 バックアップテーブル部 Back-Up T able Section Fig.ZS-2 TPM-200F/R (1) Use. of BACK-UP PIN See Fig.E-2 Key No.104 103 161 101 102 (2) Use. of BACK-UP JIG ( ) 1. (No…
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
285
ZS-1
1 630 000 1983 LAMP 2 782ZS-110-001
2 423 025 2000 FUSE 250V 0.4A 2 782ZS-110-002
3 423 025 2208 FUSE 250V 0.8A 2 782ZS-110-003
4 423 022 8005 FUSE 250V 1A 2 782ZS-110-004
5 423 022 8104 FUSE 250V 2A 2 782ZS-110-005
6 423 022 8203 FUSE 250V 3.15A 2 782ZS-110-006
7 423 022 8302 FUSE 250V 5A 2 782ZS-110-007
8 423 025 2109 FUSE 250V 6.3A 2 782ZS-110-008
9 630 088 7259 CORD 1 782ZS-110-009
MODEL TPM-200F/R
0207-001
286
標準付属品 STANDARD ACCESSORIES

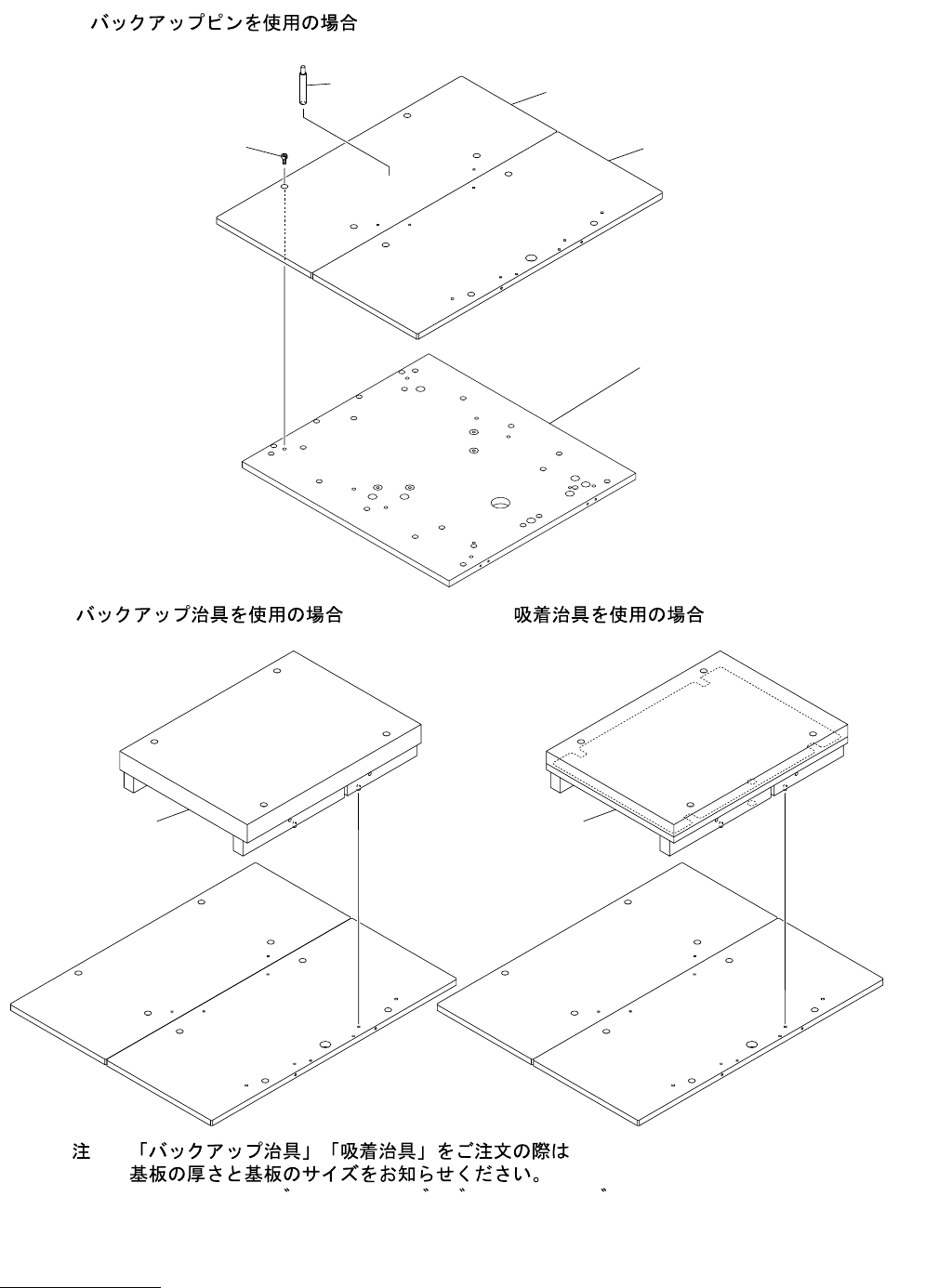

Fig. ZS-2 バックアップテーブル部 Back-Up Table Section
Fig.ZS-2
TPM-200F/R
(1)
Use. of BACK-UP PIN
See Fig.E-2
Key No.104
103
161
101
102
(2)
Use. of BACK-UP JIG
(
) 1.
(Note) 1.When ordering for BACK-UP JIG or HOLDING JIG ,
notify the P.C.B. thickness and the P.C.B. size
(3)
Use. of HOLDING JIG
BUCK-UP JIG
(VARIANT)
HOLDING JIG
(VARIANT)
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
287
ZS-2
101 630 113 0316 PLATE 1 782ZS-110-101
102 630 113 0323 PLATE 1 782ZS-110-102
103 630 091 1466 ROD 40 782ZS-110-103
105 630 116 1501 CAP 1 782ZS-110-105
161 630 000 7749 BOLT,HEX-SCT 8 782ZS-110-161
