MODEL TPM-200F/R 0209-001 92 スキージヘッド部 SQUEEGEE HEAD SECTION Fig. F A-3 スキージ上下駆動部 Squeegee Leveller Driver 265 202 201 206 205 261 208 212 207 265 201 270 269 271 210 202 See Fig.F A-1 Key No.40 See Fig.F A-3 Key No.1 17 …
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
91
FA-2
101 630 007 2303 PLUNGER 2 782FA-110-101
102 630 088 4364 CYLINDER 2 782FA-110-102
103 630 088 4463 PIPE FITTINGS 4 782FA-110-103
104 630 001 1425 BEARING,RADIAL 4 782FA-110-104
106 630 002 3657 SPRING,COMP 4 782FA-110-106
107 630 088 3411 BUSH,BEARING 2 782FA-110-107
109 630 001 0220 WASHER 2 782FA-110-109
110 630 109 0092 BLOCK 2 782FA-110-110
111 630 090 7681 BOSS(PIN) 2 782FA-110-111
112 630 115 5005 PLATE 2 782FA-110-112
113 630 115 4992 HOLDER 2 782FA-110-113
114 630 088 0236 STAY 2 782FA-110-114
115 630 088 0250 PLATE 4 782FA-110-115
116 630 109 0122 SHAFT 2 782FA-110-116
117 630 088 0298 BLOCK 2 782FA-110-117
118 630 091 4832 SPACER 4 782FA-110-118
161 630 000 7572 BOLT,HEX-SCT 4 782FA-110-161
162 630 000 8937 SET SCREW 2 782FA-110-162
163 411 141 0307 NUT HEX 4 2 782FA-110-163
165 630 000 7749 BOLT,HEX-SCT 2 782FA-110-165
166 630 000 7763 BOLT,HEX-SCT 8 782FA-110-166
167 411 141 6705 WASHER SPR 5 2 782FA-110-167
168 630 000 8692 BOLT,HEX 4 782FA-110-168
169 630 000 7909 BOLT,HEX-SCT 8 782FA-110-169
170 630 000 7947 BOLT,HEX-SCT 4 782FA-110-170
171 411 141 3001 WASHER SPR 6 8 782FA-110-171
172 411 141 4305 WASHER V 6X12.5X1.6 12 782FA-110-172
173 411 141 0703 NUT HEX 6 8 782FA-110-173
MODEL TPM-200F/R
0209-001
92
スキージヘッド部 SQUEEGEE HEAD SECTION

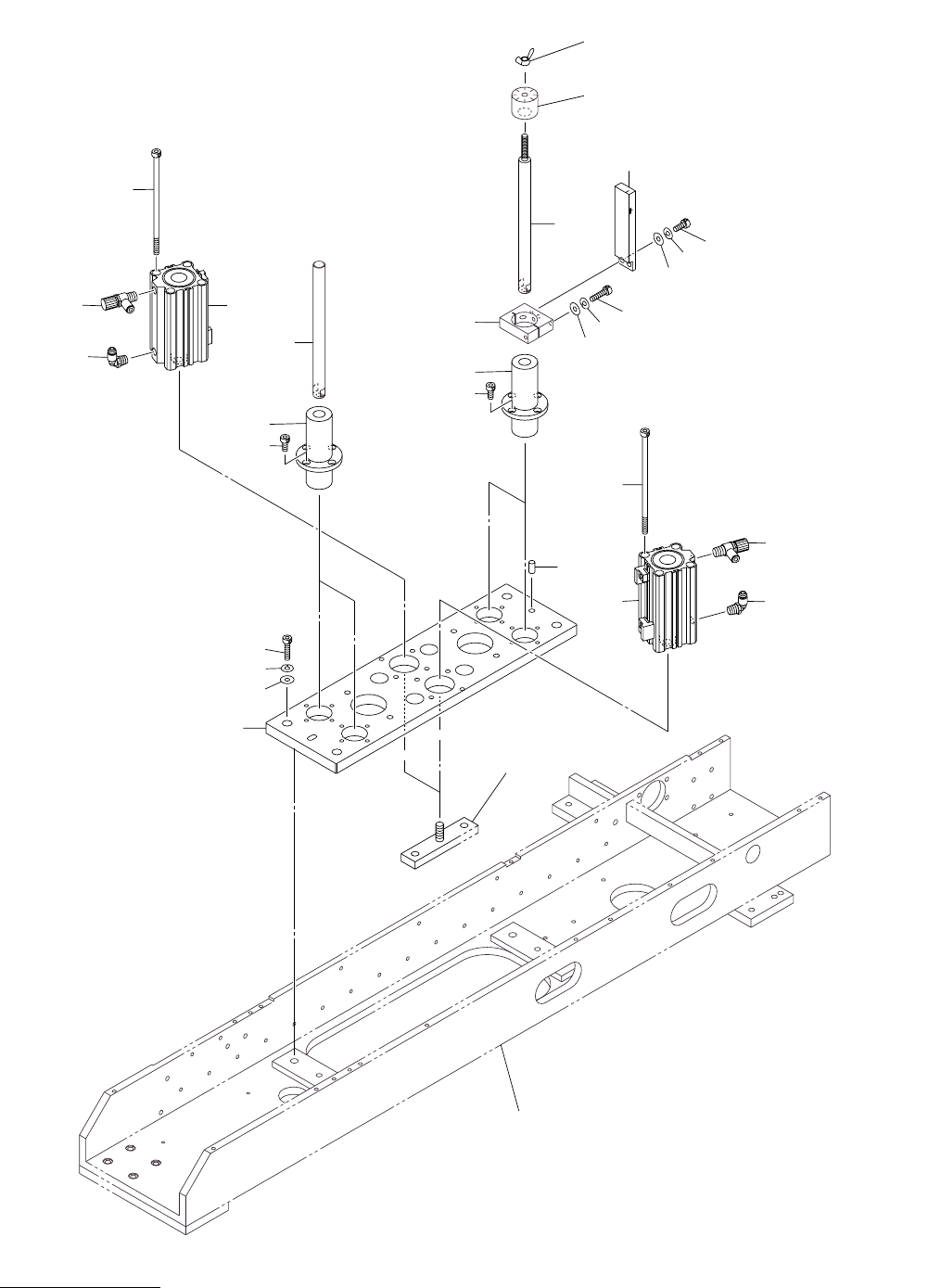

Fig. FA-3 スキージ上下駆動部 Squeegee Leveller Driver
265
202
201
206
205
261
208
212
207
265
201
270
269
271
210
202
See Fig.FA-1
Key No.40
See Fig.FA-3
Key No.117
203
205
261
214
213
203
209
Fig.FA-3
TPM-200F/R
261
263
264
262
263
264
MODEL TPM-200F/R
0209-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
93
FA-3
201 630 117 2484 CYLINDER 2 BPS060,061, BPS062,063
782FA-110-201
202 630 088 4432 PIPE FITTINGS 2 782FA-110-202
203 630 115 0802 AIR LINE EQPT 2 782FA-110-203
205 630 088 3978 BUSH,BALL 4 782FA-110-205
206 630 109 0856 SHAFT,LINEAR 2 782FA-110-206
207 411 155 7903 NUT WING 6 2 782FA-110-207
208 630 109 0863 SHAFT,LINEAR 2 782FA-110-208
209 630 109 0108 PIN,LOCATE 2 782FA-110-209
210 630 108 6743 STAY 1 782FA-110-210
212 630 096 9634 BUSH,LOCATE 2 782FA-110-212
213 630 096 9641 BLOCK 2 782FA-110-213
214 630 096 9658 BLOCK 2 782FA-110-214
261 630 000 7626 BOLT,HEX-SCT 20 782FA-110-261
262 630 000 7688 BOLT,HEX-SCT 2 782FA-110-262
263 411 141 2905 WASHER SPR 4 6 782FA-110-263
264 411 141 4008 WASHER V 4X9X0.8 6 782FA-110-264
265 630 091 5426 BOLT,HEX-SCT 8 782FA-110-265
269 630 000 8012 BOLT,HEX-SCT 4 782FA-110-269
270 411 141 3100 WASHER SPR 8 4 782FA-110-270
271 411 141 4503 WASHER V 8X17X1.6 4 782FA-110-271
