MODEL TPM-200F/R 0209-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 93 F A-3 20 1 630 1 17 2484 CYLINDER 2 BPS060,061, BPS062,063 782F A-1 10-201 20 2 630 088 4432 PIPE FITTINGS 2 782F A-1 10-202 20 3 630 1 15 08…
MODEL TPM-200F/R
0209-001
92
スキージヘッド部 SQUEEGEE HEAD SECTION
Fig. FA-3 スキージ上下駆動部 Squeegee Leveller Driver
265
202
201
206
205
261
208
212
207
265
201
270
269
271
210
202
See Fig.FA-1
Key No.40
See Fig.FA-3
Key No.117
203
205
261
214
213
203
209
Fig.FA-3
TPM-200F/R
261
263
264
262
263
264
MODEL TPM-200F/R
0209-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
93
FA-3
201 630 117 2484 CYLINDER 2 BPS060,061, BPS062,063
782FA-110-201
202 630 088 4432 PIPE FITTINGS 2 782FA-110-202
203 630 115 0802 AIR LINE EQPT 2 782FA-110-203
205 630 088 3978 BUSH,BALL 4 782FA-110-205
206 630 109 0856 SHAFT,LINEAR 2 782FA-110-206
207 411 155 7903 NUT WING 6 2 782FA-110-207
208 630 109 0863 SHAFT,LINEAR 2 782FA-110-208
209 630 109 0108 PIN,LOCATE 2 782FA-110-209
210 630 108 6743 STAY 1 782FA-110-210
212 630 096 9634 BUSH,LOCATE 2 782FA-110-212
213 630 096 9641 BLOCK 2 782FA-110-213
214 630 096 9658 BLOCK 2 782FA-110-214
261 630 000 7626 BOLT,HEX-SCT 20 782FA-110-261
262 630 000 7688 BOLT,HEX-SCT 2 782FA-110-262
263 411 141 2905 WASHER SPR 4 6 782FA-110-263
264 411 141 4008 WASHER V 4X9X0.8 6 782FA-110-264
265 630 091 5426 BOLT,HEX-SCT 8 782FA-110-265
269 630 000 8012 BOLT,HEX-SCT 4 782FA-110-269
270 411 141 3100 WASHER SPR 8 4 782FA-110-270
271 411 141 4503 WASHER V 8X17X1.6 4 782FA-110-271
MODEL TPM-200F/R
0207-001
94
スキージヘッド部 SQUEEGEE HEAD SECTION

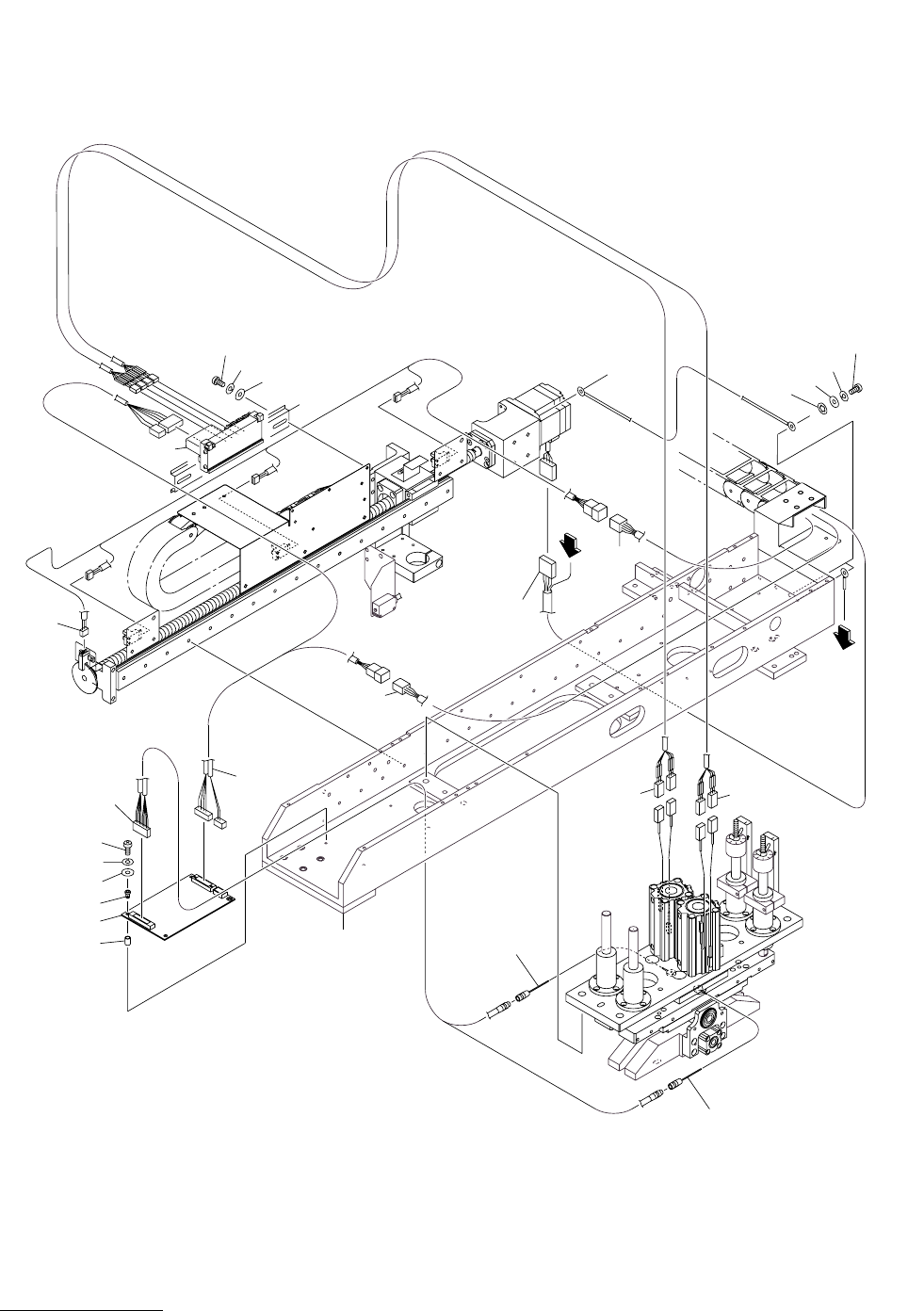

Fig. FA-4 ケーブル Cable
Fig.FA-4
TPM-200F/R
See Fig.FA-1
Key No.40
321
361
362
363
301
302
303
307
304
305
320
365
364
366
364
365
366
367
306
310
308
309
311
312
A
A
301-10
301-10
