MODEL TPM-200F/R 0207-001 200 ブロアユニット部 BLOWER UNIT SECTION Fig. MZ-2 ブロア Blower 110 168 112 168 113 116 114 115 116 103 111 107 106 108 Fig.MZ-2 TPM-200F/R 161 101 102 163 164 162 169 170 171 120 11 8 104 105 104 11 8 11…
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
199
MZ-1
1 630 096 7371 CYLINDER 2 BPS090,091, BPS092,093
782MZ-110-001
2 630 093 9293 AIR LINE EQPT 4 782MZ-110-002
3 630 096 6763 MECH PARTS 2 782MZ-110-003
4 630 096 7494 MECH PARTS 3 782MZ-110-004
5 630 009 3551 PIPE FITTINGS(BAND) 3 782MZ-110-005
6 630 109 3758 TUBE 1 782MZ-110-006
7 630 096 7432 TUBE 1 782MZ-110-007
8 630 008 0940 TUBE(BAND) 1 782MZ-110-008
9 630 096 6770 MECH PARTS 2 782MZ-110-009
10 630 108 0581 BRACKET 1 782MZ-110-010
11 630 108 0567 SHEET 1 782MZ-110-011
12 630 108 0598 BOX 1 782MZ-110-012
13 630 108 0550 SHEET 2 782MZ-110-013
14 630 108 0543 PLATE 2 782MZ-110-014
15 630 108 0529 BLOCK 2 782MZ-110-015
16 630 108 0536 SHEET 2 782MZ-110-016
17 630 109 3727 BOX 2 782MZ-110-017
18 630 112 4636 TUBE 1 782MZ-110-018
61 411 141 4008 WASHER V 4X9X0.8 26 782MZ-110-061
62 411 141 2905 WASHER SPR 4 26 782MZ-110-062
63 630 000 7626 BOLT,HEX-SCT 14 782MZ-110-063
64 411 141 4305 WASHER V 6X12.5X1.6 2 782MZ-110-064
65 411 141 3001 WASHER SPR 6 2 782MZ-110-065
66 630 000 7886 BOLT,HEX-SCT 2 782MZ-110-066
67 630 000 7633 BOLT,HEX-SCT 8 782MZ-110-067
68 630 000 7657 BOLT,HEX-SCT 4 782MZ-110-068
69 411 141 0307 NUT HEX 4 4 782MZ-110-069
MODEL TPM-200F/R
0207-001
200

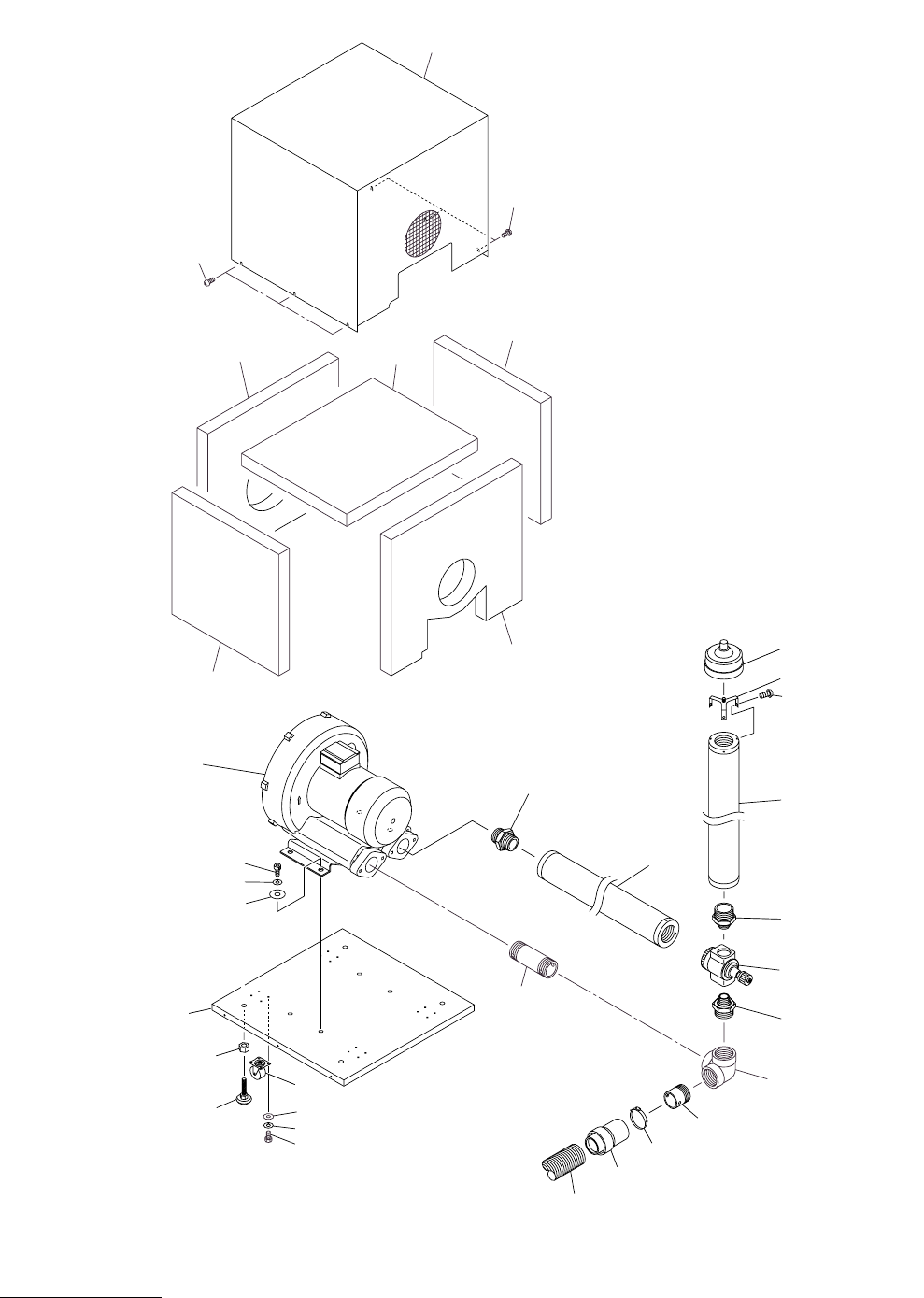

ブロアユニット部 BLOWER UNIT SECTION
Fig. MZ-2 ブロア Blower
110
168
112
168
113
116
114
115
116
103
111
107
106
108
Fig.MZ-2
TPM-200F/R
161
101
102
163
164
162
169
170
171
120
118
104
105
104
118
118
117
119
121
109
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
201
MZ-2
101 630 049 3405 MECH PARTS(LEVEL ADJUSTER 4 782MZ-110-101
102 630 049 3443 CASTER 4 782MZ-110-102
103 630 109 3765 PIPE FITTINGS 1 782MZ-110-103
104 630 092 8396 PIPE FITTINGS 2 782MZ-110-104
105 630 008 9738 AIR LINE EQPT 1 782MZ-110-105
106 630 096 7494 MECH PARTS 1 782MZ-110-106
107 630 009 3551 PIPE FITTINGS(BAND) 1 782MZ-110-107
108 630 040 7679 TUBE 1 782MZ-110-108
109 630 108 0468 BASE 1 782MZ-110-109
110 630 109 3741 PIPE 1 782MZ-110-110
111 630 109 4571 PIPE 1 782MZ-110-111
112 630 108 0475 COVER 1 782MZ-110-112
113 630 108 0499 SHEET 1 782MZ-110-113
114 630 108 0505 SHEET 1 782MZ-110-114
115 630 108 0482 SHEET 1 782MZ-110-115
116 630 108 0512 SHEET 2 782MZ-110-116
117 630 092 1939 BRACKET 1 782MZ-110-117
118 630 096 7500 AIR LINE EQPT 2 782MZ-110-118
119 630 096 7449 MECH PARTS 1 782MZ-110-119
120 630 092 8372 PIPE FITTINGS 1 782MZ-110-120
121 630 110 1347 MOTOR,AC 1 M001,#2BH1-500-7AH21-G33
782MZ-110-121
161 411 141 1106 NUT HEX 10 4 782MZ-110-161
162 411 141 4107 WASHER V 5X10X1 16 782MZ-110-162
163 411 141 6705 WASHER SPR 5 16 782MZ-110-163
164 630 000 7749 BOLT,HEX-SCT 16 782MZ-110-164
168 411 113 9109 SCR TRS 5X10 6 782MZ-110-168
169 630 000 8227 BOLT,HEX-SCT 4 782MZ-110-169
170 411 141 3308 WASHER SPR 12 4 782MZ-110-170
171 411 141 4800 WASHER V 12X24X2.5 4 782MZ-110-171
