MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 73 F-1 1 630 108 1694 GUIDE,LINEAR 1 782F--1 10-001 2 630 108 1687 GUIDE,LINEAR 1 782F--1 10-002 3 630 088 3893 PIN,LOCA TE 3 782F--1 10-003 4 6…
MODEL TPM-200F/R
0207-001
72

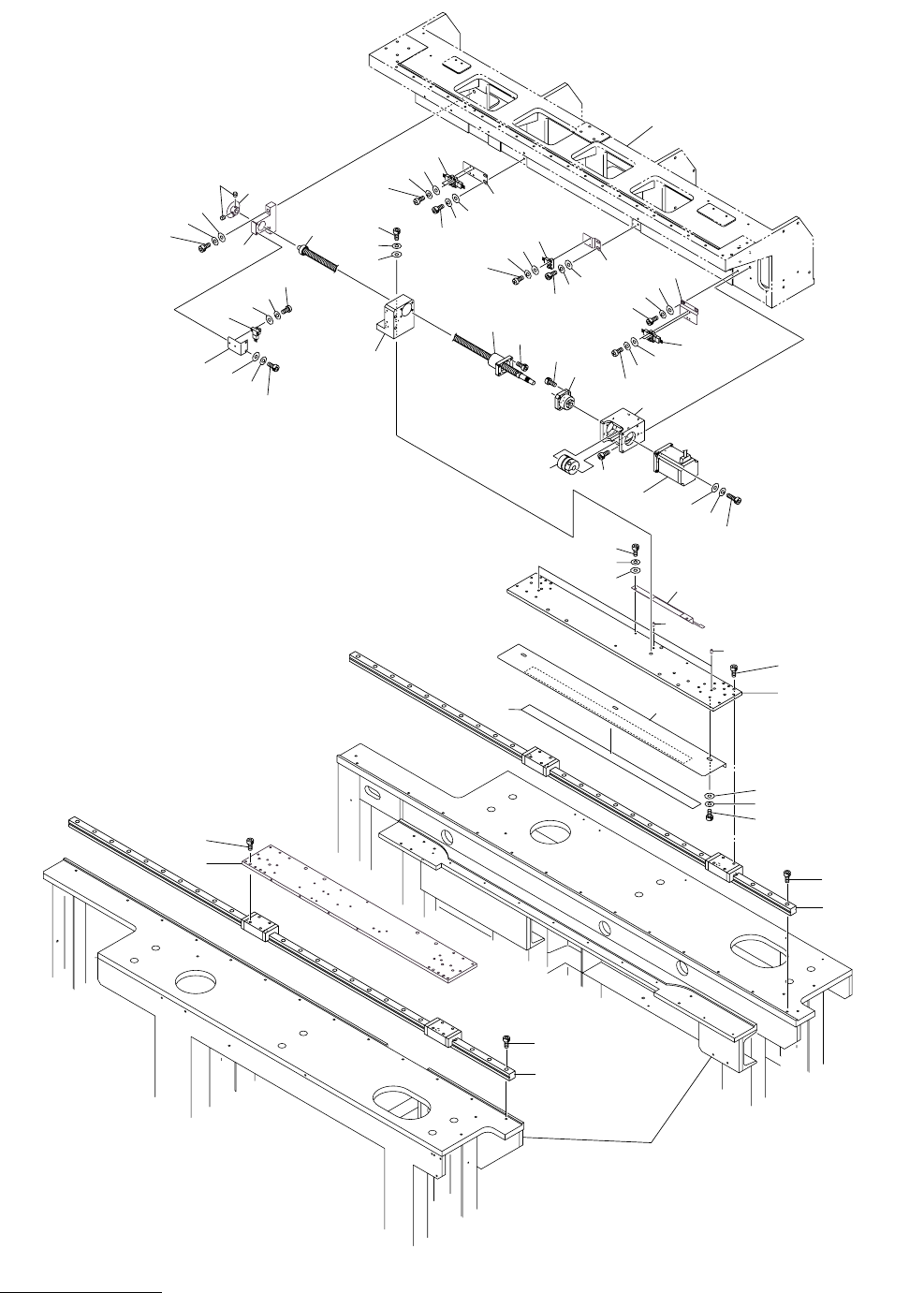

スクリーンホルダ部 SCREEN HOLDER SECTION
Fig. F-1
スクリーンホルダ Y 軸駆動部
Screen Holder Y Axis Driver
Fig.F-1
TPM-200F/R
61
1
61
2
76
75
20
77
61
16
64
66
79
5
3
65
8
4
62
12
6
72
73
74
17
69
70
71
8
8
72
73
74
18
69
70
71
74
67
70
69
21
73
72
8
7
64
63
70
71
69
61
10
11
9
63
80
72
73
74
19
69
70
71
5
13
14
15
68
78
70
69
See Fig.FA-1
Key No.29
See Fig.K-1
Key No.1
3
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
73
F-1
1 630 108 1694 GUIDE,LINEAR 1 782F--110-001
2 630 108 1687 GUIDE,LINEAR 1 782F--110-002
3 630 088 3893 PIN,LOCATE 3 782F--110-003
4 630 108 1601 BALL SCREW 1 782F--110-004
5 630 013 6241 BEARING,UNIT 1 782F--110-005
6 630 108 3735 MOTOR,STEPPING 1 MPM029,ASM69AA 782F--110-006
7 630 088 3572 COUPLING 1 782F--110-007
8 630 000 0252 SENSOR,PHOTO 6 BPH027,BPH097,BPH291-294
782F--110-008
9 630 108 3773 SEAL 1 782F--110-009
10 630 107 4825 PLATE 1 782F--110-010
11 630 107 4818 PLATE 1 782F--110-011
12 630 107 4672 BRACKET 1 782F--110-012
13 630 107 4917 BRACKET 1 782F--110-013
14 630 107 4665 HOLDER 1 782F--110-014
15 630 107 4726 PLATE 1 782F--110-015
16 630 107 4900 BRACKET 1 782F--110-016
17 630 107 4696 BRACKET 1 782F--110-017
18 630 107 4702 BRACKET 1 782F--110-018
19 630 107 4719 PLATE 1 782F--110-019
20 630 116 3024 BRACKET 1 782F--110-020
21 630 107 5198 BRACKET 1 782F--110-021
61 630 000 7770 BOLT,HEX-SCT 42 782F--110-061
62 630 000 7664 BOLT,HEX-SCT 4 782F--110-062
63 411 141 4503 WASHER V 8X17X1.6 4 782F--110-063
64 411 141 3100 WASHER SPR 8 4 782F--110-064
65 630 000 8029 BOLT,HEX-SCT 2 782F--110-065
66 630 000 8043 BOLT,HEX-SCT 2 782F--110-066
67 630 000 7602 BOLT,HEX-SCT 2 782F--110-067
68 630 000 8920 SET SCREW 2 782F--110-068
69 411 141 4008 WASHER V 4X9X0.8 14 782F--110-069
70 411 141 2905 WASHER SPR 4 14 782F--110-070
71 630 000 7626 BOLT,HEX-SCT 8 782F--110-071
72 411 119 1909 WASHER V 3X7X0.5 12 782F--110-072
73 411 086 4408 WASHER SPR 3 12 782F--110-073
74 411 040 7803 SCR PAN 3X12 12 782F--110-074
75 411 141 4107 WASHER V 5X10X1 3 782F--110-075
76 411 141 6705 WASHER SPR 5 3 782F--110-076
77 630 000 7732 BOLT,HEX-SCT 3 782F--110-077
78 630 000 7886 BOLT,HEX-SCT 4 782F--110-078
79 630 000 7756 BOLT,HEX-SCT 4 782F--110-079
80 630 000 7886 BOLT,HEX-SCT 4 782F--110-080
MODEL TPM-200F/R
0209-001
74

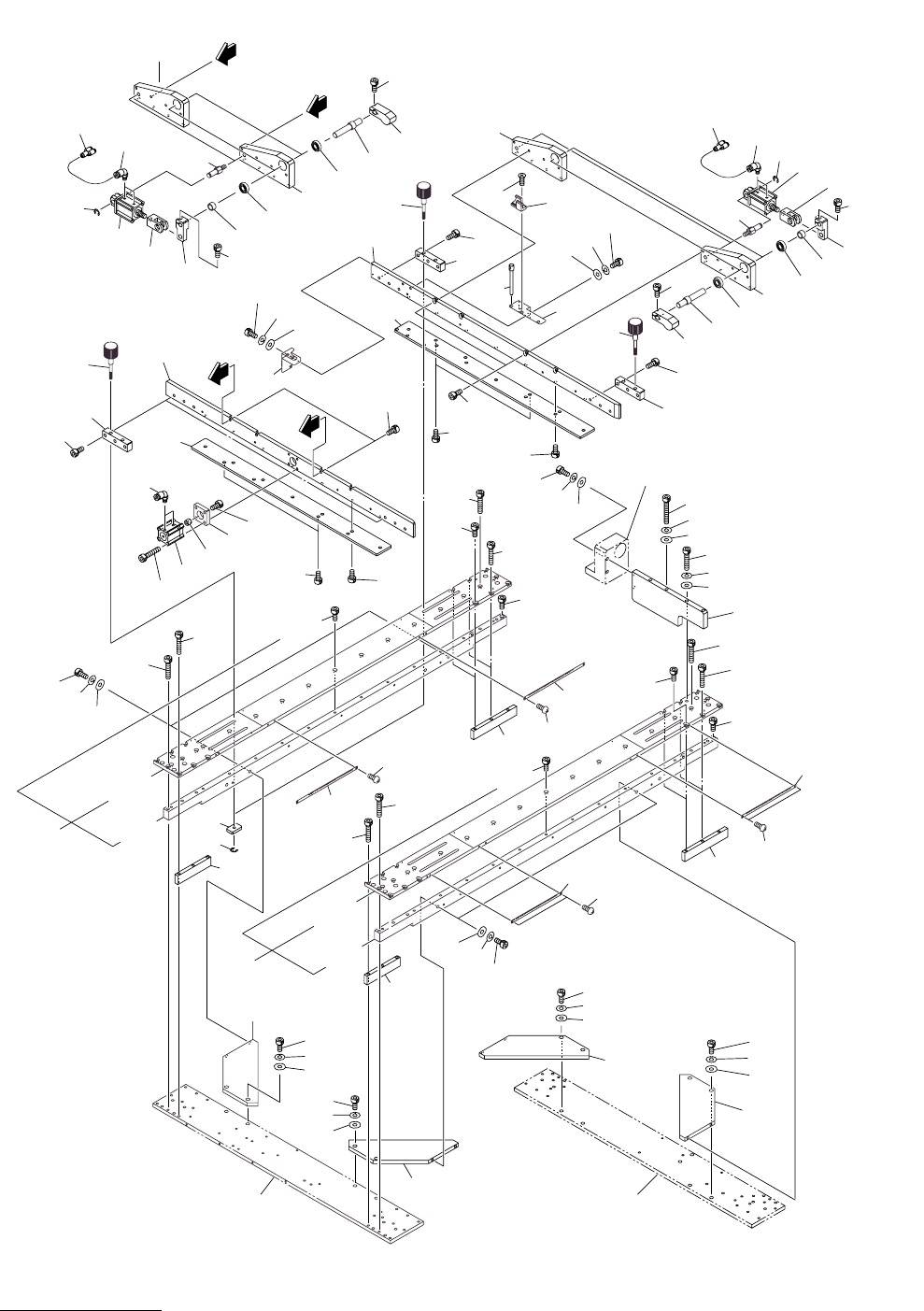

スクリーンホルダ部 SCREEN HOLDER SECTION
