MODEL TPM-200F/R 0207-001 104 基板認識部 P .C.B. RECOGNITION SECTION Fig. G-1 基板認識 X 軸駆動部 P .C.B. Recognition X Axis Driver 88 67 68 18 17 83 84 13 29 3 4 76 64 See Fig G-5 Key No.410 See Fig G-5 Key No.412 21 66 6 64 63 64 5…
MODEL TPM-200F/R
0207-001
103

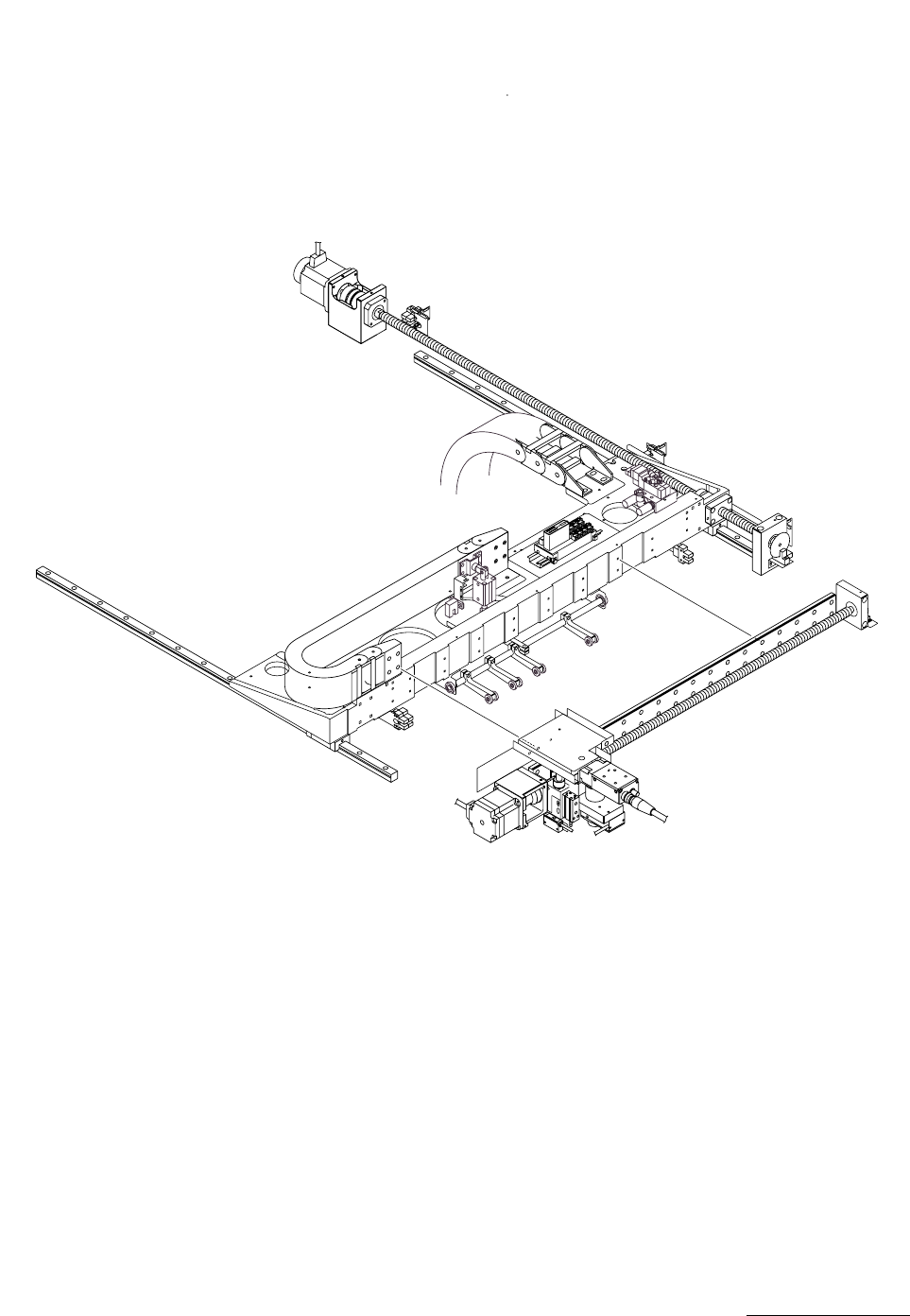

Fig. G 基板認識部 P.C.B. RECOGNITION SECTION
MODEL TPM-200F/R
0207-001
104
基板認識部 P.C.B. RECOGNITION SECTION

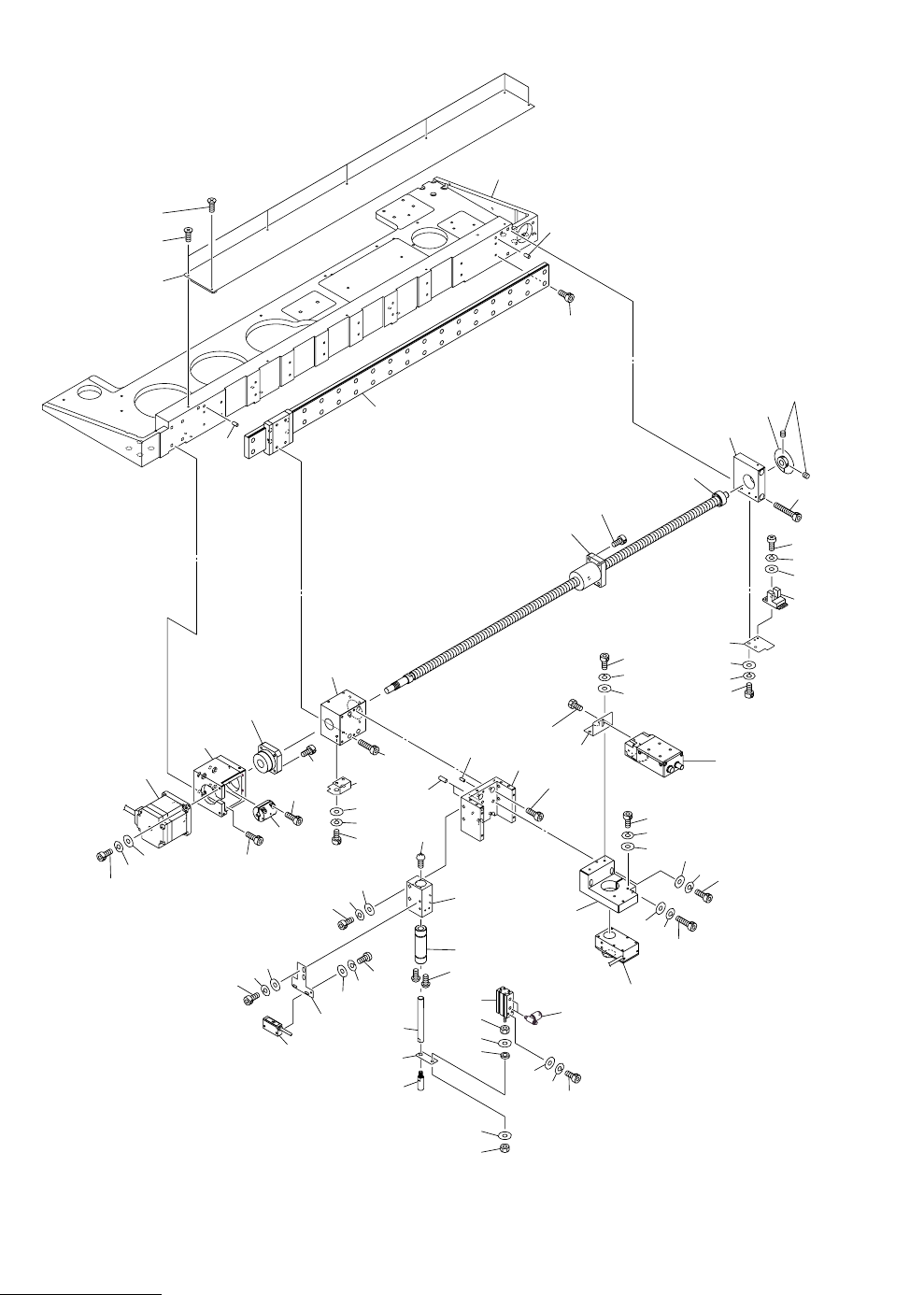

Fig. G-1 基板認識 X 軸駆動部 P.C.B. Recognition X Axis Driver
88
67
68
18
17
83
84
13
29
3
4
76
64
See Fig G-5
Key No.410
See Fig G-5
Key No.412
21
66
6
64
63
64
5
16
4
15
90
30
63
77
65
28
87
2
2
14
89
1
81
26
73
79
74
65
7
62
19
65
62
65
64
86
71
69
20
73
74
75
91
92
72
70
77
64
86
83
85
84
12
27
22
78
10
10
64
25
64
10
11
80
70
69
9
23
24
8
65
82
78
Fig.G-1
TPM-200F/R
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
105
G-1
1 630 108 1717 GUIDE,LINEAR 1 782G--110-001
2 630 088 3893 PIN,LOCATE 2 782G--110-002
3 630 108 5104 BALL SCREW 1 782G--110-003
4 630 013 6241 BEARING,UNIT 1 782G--110-004
5 630 091 2432 MOTOR,STEPPING 1 MPM035,B2083-D21ASM
782G--110-005
6 630 054 8631 PIN,LOCATE 2 782G--110-006
7 630 088 3886 PIN,LOCATE 2 782G--110-007
8 630 088 3930 BUSH,BALL 1 782G--110-008
9 630 108 5388 SHAFT,LINEAR 1 782G--110-009
10 630 108 5326 CYLINDER 1 BPS070,071 782G--110-010
11 630 098 7744 AIR LINE EQPT 2 782G--110-011
12 630 045 6608 SENSOR,PELEC 1 BPH072 782G--110-012
13 630 069 0545 SENSOR,PHOTO 1 BPH354 782G--110-013
14 630 107 8243 BASE 1 782G--110-014
15 630 107 8298 BLOCK 1 782G--110-015
16 630 112 4407 BRACKET 1 782G--110-016
17 630 107 8380 PLATE 1 782G--110-017
18 630 107 8250 PLATE 1 782G--110-018
19 630 107 8304 BRACKET 1 782G--110-019
20 630 107 8311 BRACKET 1 782G--110-020
21 630 107 8540 BRACKET 1 782G--110-021
22 630 107 8328 BLOCK 1 782G--110-022
23 630 107 8335 PLATE 1 782G--110-023
24 630 107 8342 SHAFT 1 782G--110-024
25 630 107 8649 SPACER 1 782G--110-025
26 630 107 8526 COVER 1 782G--110-026
27 630 107 8359 PLATE 1 782G--110-027
28 630 107 8496 BRACKET 1 782G--110-028
29 630 107 8533 PLATE 1 782G--110-029
30 630 108 7030 HOLDER 1 782G--110-030
62 630 000 7763 BOLT,HEX-SCT 8 782G--110-062
63 630 000 7657 BOLT,HEX-SCT 8 782G--110-063
64 411 141 4008 WASHER V 4X9X0.8 12 782G--110-064
65 411 141 2905 WASHER SPR 4 12 782G--110-065
66 630 000 7688 BOLT,HEX-SCT 4 782G--110-066
67 630 000 7978 BOLT,HEX-SCT 2 782G--110-067
68 630 000 8920 SET SCREW 2 782G--110-068
69 411 141 3902 WASHER V 3X7X0.5 5 782G--110-069
70 411 141 2806 WASHER SPR 3 5 782G--110-070
71 630 000 7565 BOLT,HEX-SCT 3 782G--110-071
72 630 000 7824 BOLT,HEX-SCT 1 782G--110-072
73 411 141 4305 WASHER V 6X12.5X1.6 4 782G--110-073
74 411 141 3001 WASHER SPR 6 4 782G--110-074
75 630 000 7916 BOLT,HEX-SCT 2 782G--110-075
76 630 000 7626 BOLT,HEX-SCT 2 782G--110-076
77 630 000 7510 BOLT,HEX-SCT 5 782G--110-077
78 411 050 5004 SCR TRS 3X6 4 782G--110-078
79 630 000 7923 BOLT,HEX-SCT 2 782G--110-079
80 630 000 7589 BOLT,HEX-SCT 2 782G--110-080
