MODEL TPM-200F/R 0207-001 212 メカ廻り MECHANICAL DISTRIBUTION SECTION Fig. K-2 エア配管１ Air Piping-1 162 163 161 101 103 104 105 102 See Fig.K-1 Key No.1 106 Fig.K-2 TPM-200F/R
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
211
K-1
1 630 115 2486 BASE 1 782K--110-001
2 630 029 8178 BLOCK,LOCATE 6 782K--110-002
3 630 003 0570 FEED SCREW 6 782K--110-003
4 630 090 8459 PLATE 6 782K--110-004
5 630 114 7826 PLATE 6 782K--110-005
6 630 006 6500 CASTER 4 782K--110-006
61 411 136 1104 NUT HEX 24 6 782K--110-061
62 411 141 4503 WASHER V 8X17X1.6 16 782K--110-062
63 411 141 3100 WASHER SPR 8 16 782K--110-063
64 630 000 8012 BOLT,HEX-SCT 16 782K--110-064
MODEL TPM-200F/R
0207-001
212
メカ廻り
MECHANICAL DISTRIBUTION SECTION

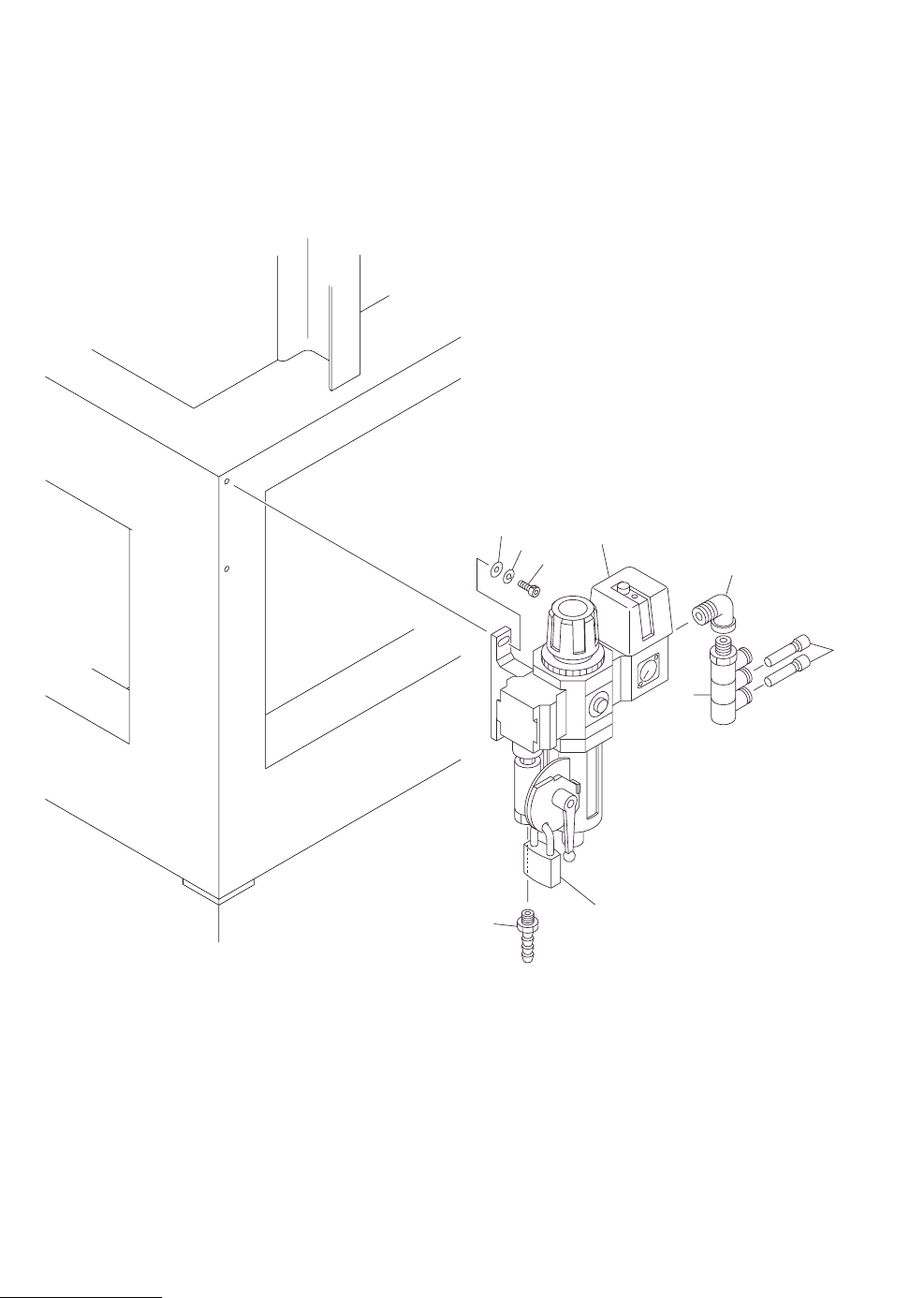

Fig. K-2 エア配管１ Air Piping-1
162
163
161
101
103
104
105
102
See Fig.K-1
Key No.1
106
Fig.K-2
TPM-200F/R
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
213
K-2
101 630 057 9383 AIR LINE EQPT 1 SP001 782K--110-101
102 630 096 8163 MECH PARTS 1 782K--110-102
103 630 003 7890 PIPE FITTINGS 1 782K--110-103
104 630 110 9800 PIPE FITTINGS 1 782K--110-104
105 630 003 7814 PIPE FITTINGS 2 782K--110-105
106 630 061 9737 MECH PARTS (PADLOCK) 1 782K--110-106
161 630 000 7893 BOLT,HEX-SCT 2 782K--110-161
162 411 141 4305 WASHER V 6X12.5X1.6 2 782K--110-162
163 411 141 3001 WASHER SPR 6 2 782K--110-163
