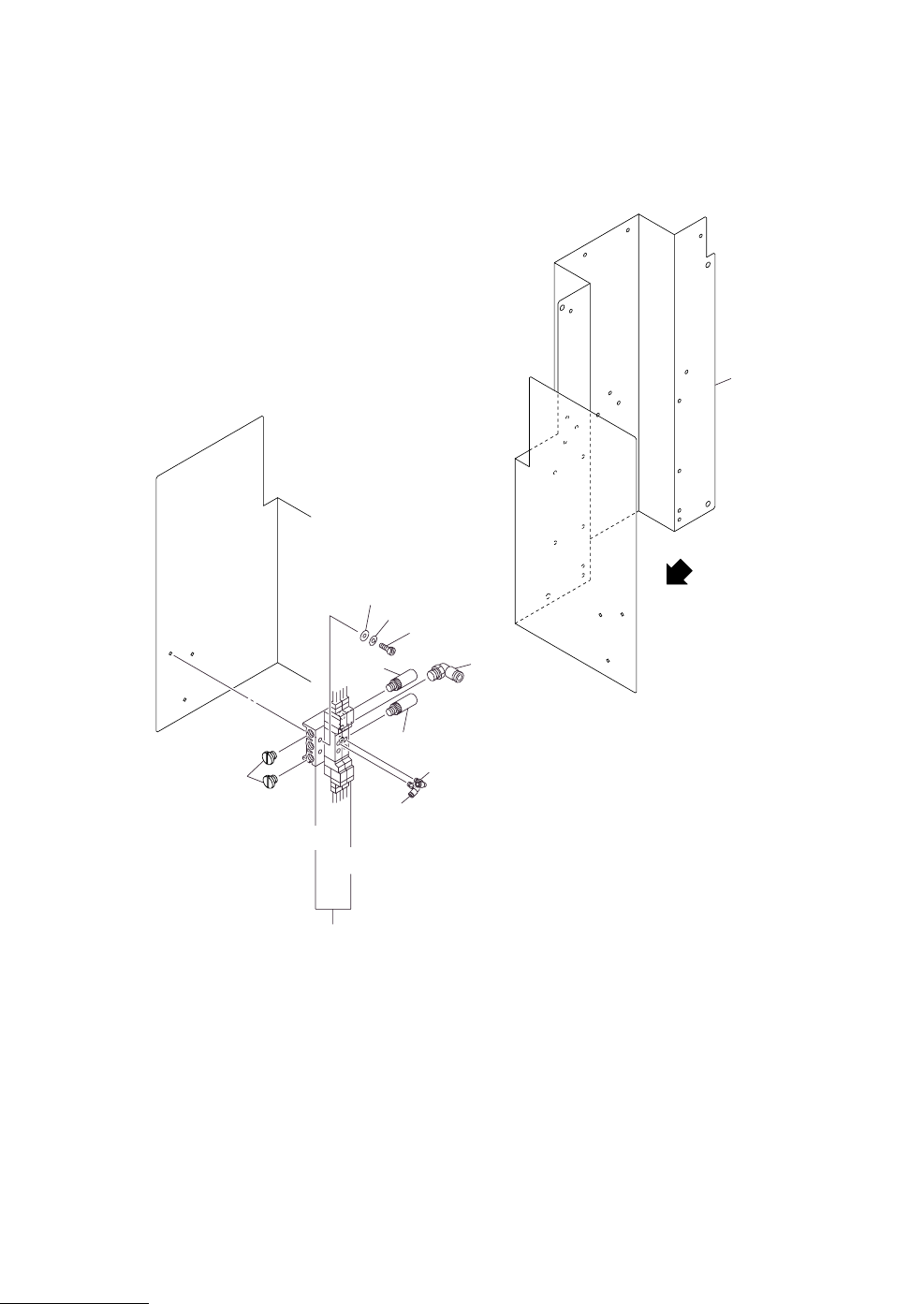

MODEL TPM-200R 0207-001 172 R コンベア部（奥基準） R CONVEYOR SECTION （ Rear Reference ） Fig. HR-5 エア配管 Air Piping Fig.HR-5 TPM-200F/R See Fig.K-4 Key No.311 402 402 403 463 405 462 461 404 401-01 401-02 401 404 A VIEW"A"…
MODEL TPM-200R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
171
HR-4
301 630 086 4946 SENSOR,PELEC 1 BPH044 782HR-110-301
302 630 108 8020 SENSOR,PELEC 2 BPH046,047 782HR-110-302
303 630 071 7716 SENSOR,PELEC 1 BPH045 782HR-110-303
304 630 107 7970 PLATE 1 782HR-110-304
305 630 115 9669 BRACKET 1 782HR-110-305
306 630 112 4438 BRACKET 1 782HR-110-306
308 630 107 8212 BRACKET 1 782HR-110-308
309 630 112 4476 PLATE 1 782HR-110-309
310 630 108 9324 PLATE 1 782HR-110-310
311 630 108 9317 PLATE 1 782HR-110-311
312 630 109 0528 SHAFT 1 782HR-110-312
313 630 110 5376 CYLINDER 1 782HR-110-313
314 630 098 7744 AIR LINE EQPT 2 782HR-110-314
315 630 109 1105 BUSH,BEARING 1 782HR-110-315
316 630 112 4452 PLATE 2 782HR-110-316
317 630 112 4445 BRACKET 1 782HR-110-317
318 630 112 4483 PLATE 1 782HR-110-318
319 630 076 8916 PIPE FITTINGS 2 782HR-110-319
361 411 119 1909 WASHER V 3X7X0.5 5 782HR-110-361
362 411 086 4408 WASHER SPR 3 5 782HR-110-362
363 411 040 6202 SCR PAN 3X10 5 782HR-110-363
364 411 054 6809 NUT HEX 3 1 782HR-110-364
365 411 141 4008 WASHER V 4X9X0.8 16 782HR-110-365
366 411 141 2905 WASHER SPR 4 16 782HR-110-366
367 630 000 7619 BOLT,HEX-SCT 6 782HR-110-367
368 630 000 7633 BOLT,HEX-SCT 2 782HR-110-368
373 411 141 4305 WASHER V 6X12.5X1.6 4 782HR-110-373
374 411 141 3001 WASHER SPR 6 4 782HR-110-374
375 630 000 7879 BOLT,HEX-SCT 4 782HR-110-375
377 411 125 5403 SCR PAN 2X4 2 782HR-110-377
378 630 000 7626 BOLT,HEX-SCT 2 782HR-110-378
379 630 000 7664 BOLT,HEX-SCT 2 782HR-110-379
380 630 000 7657 BOLT,HEX-SCT 4 782HR-110-380
MODEL TPM-200R
0207-001
172
R コンベア部（奥基準）
R CONVEYOR SECTION（Rear Reference）
Fig. HR-5 エア配管 Air Piping
Fig.HR-5
TPM-200F/R
See Fig.K-4
Key No.311
402
402
403
463
405
462
461
404
401-01
401-02
401
404
A
VIEW"A"
MODEL TPM-200R
0209-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
173
HR-5
401 630 115 1038 SOLENOID VALVE 1 #SS5Y3-X1173 782HR-110-401
401 -01 630 091 2234 AIR LINE EQPT 1
401 -02 630 108 8235 SOLENOID VALVE 2
402 630 080 5420 PIPE FITTINGS 4 782HR-110-402
403 630 069 0538 PIPE FITTINGS 1 782HR-110-403
404 630 003 6541 AIR LINE EQPT 2 782HR-110-404
405 630 088 4470 PIPE FITTINGS 2 782HR-110-405
461 411 141 4008 WASHER V 4X9X0.8 2 782HR-110-461
462 411 141 2905 WASHER SPR 4 2 782HR-110-462
463 630 000 7671 BOLT,HEX-SCT 2 782HR-110-463
