MODEL TPM-200F/R 0207-001 114 基板認識部 P .C.B. RECOGNITION SECTION Fig. G-5 電装部 Electrical Parts Fig.G-5 TPM-200F/R See Fig.G-1 Key No.14 461 462 463 401 414 405 407 408 402 413 404 412 41 1 410 409 403 406
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
113
G-4
301 630 112 7217 MECH PARTS(GUIDE CABLE) 1 782G--110-301
302 630 089 2123 SOLENOID VALVE 1 YSV078,079, #SS5Y3-X917
782G--110-302
302 -01 630 091 2227 SOLENOID VALVE 2
302 -02 630 091 2234 AIR LINE EQPT 1
304 630 088 4470 PIPE FITTINGS 2 782G--110-304
305 630 003 8309 PIPE FITTINGS 1 782G--110-305
306 630 003 6541 AIR LINE EQPT 2 782G--110-306
307 630 069 0538 PIPE FITTINGS 1 782G--110-307
308 630 035 0272 AIR LINE EQPT 1 782G--110-308
309 630 080 5420 PIPE FITTINGS 3 782G--110-309
310 630 107 8410 BRACKET 1 782G--110-310
361 411 141 4107 WASHER V 5X10X1 8 782G--110-361
362 411 141 6705 WASHER SPR 5 8 782G--110-362
363 630 000 7756 BOLT,HEX-SCT 4 782G--110-363
364 630 000 7749 BOLT,HEX-SCT 4 782G--110-364
365 411 141 4305 WASHER V 6X12.5X1.6 3 782G--110-365
366 411 141 3001 WASHER SPR 6 3 782G--110-366
367 630 000 7862 BOLT,HEX-SCT 3 782G--110-367
368 411 141 4008 WASHER V 4X9X0.8 2 782G--110-368
369 411 141 2905 WASHER SPR 4 2 782G--110-369
370 630 000 7688 BOLT,HEX-SCT 2 782G--110-370
MODEL TPM-200F/R
0207-001
114

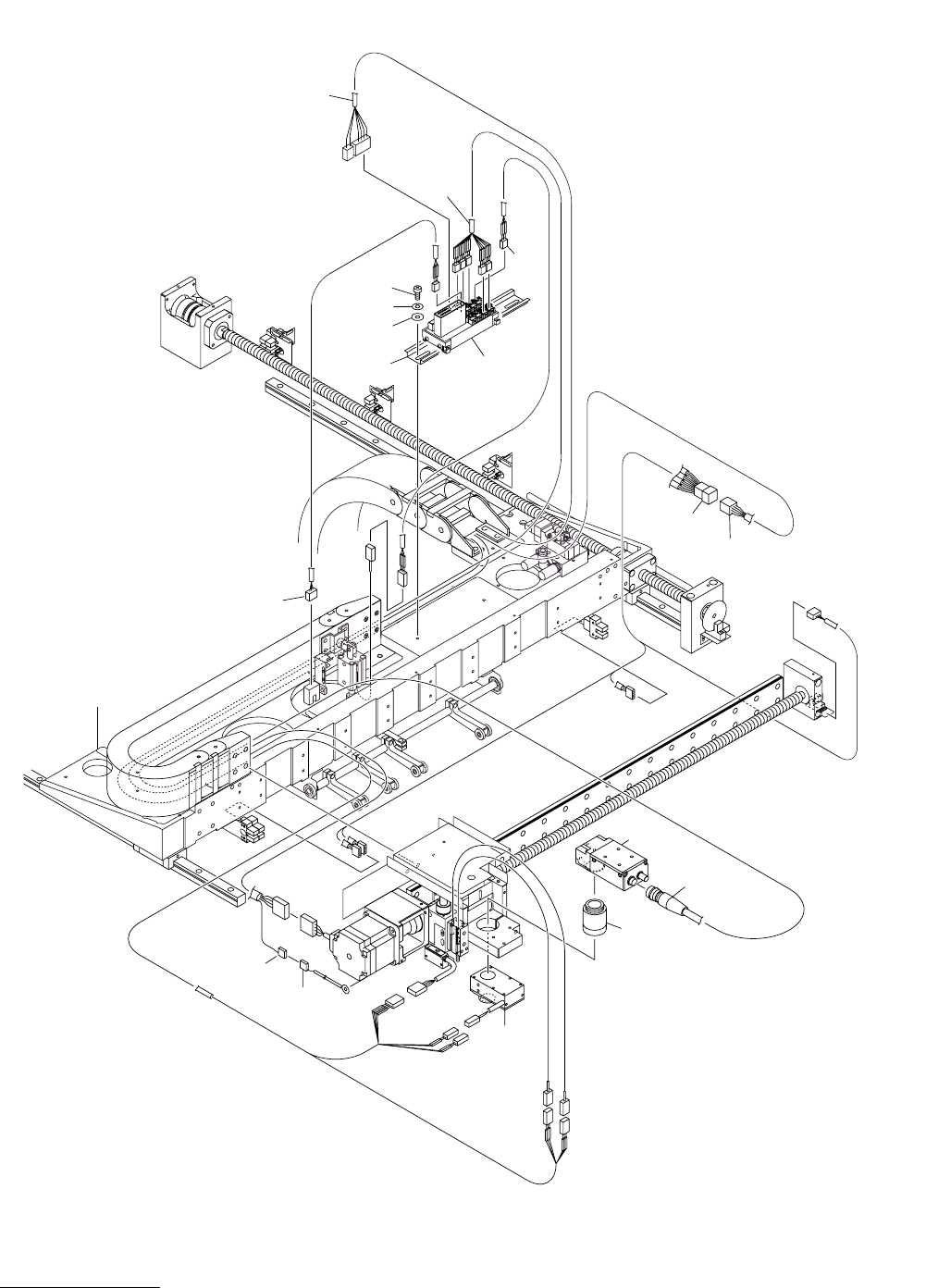

基板認識部 P.C.B. RECOGNITION SECTION
Fig. G-5 電装部 Electrical Parts
Fig.G-5
TPM-200F/R
See Fig.G-1
Key No.14
461
462
463
401
414
405
407
408
402
413
404
412
411
410
409
403
406
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
115
G-5
401 630 091 1718 ACCESSORY,WIRING 1 782G--110-401
402 630 106 4611 UNIT,I/O 1 N007,SAB10-TM16H43A
782G--110-402
403 630 112 5534 CORD 1 XNC1A07-XCNA07,B07
782G--110-403
404 630 112 5473 CORD 1 XNC073-XNC1073 782G--110-404
405 630 112 5466 CORD 1 XNC074- 782G--110-405
406 630 112 5459 CORD 1 XNC070,071,072,07E,07F-
XNC1070,1071,1072,107E,107F
782G--110-406
407 630 112 5497 CORD 1 XNC357- 782G--110-407
408 630 112 5510 CORD 1 XNC350,357-XNC1350,1357
782G--110-408
409 630 112 5527 CORD 1 XCN07H-XCN107H 782G--110-409
410 630 107 3149 UNIT,CAMERA 1 B004,#KP-MC2-S4 782G--110-410
411 630 107 3156 SCOPE UNIT 1 #LA-003-16-20-L3 782G--110-411
412 630 091 1800 LIGHTING UNIT 1 E07E,#8S150 782G--110-412
413 630 112 5503 CORD 1 XNC351-XNC1351 782G--110-413
414 630 112 5480 CORD 1 XNC351- 782G--110-414
461 411 043 5004 SCR PAN 4X8 2 782G--110-461
462 411 008 1706 WASHER SPR 4 2 782G--110-462
463 411 119 2104 WASHER V 4X9X0.8 2 782G--110-463
