MODEL TPM-200F 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 159 HR-6 50 1 630 1 12 5701 CORD 1 XNC1391- 782HR-1 10-501 50 2 630 1 12 5725 CORD 1 XNC1047-XNC2047 782HR-1 10-502 50 3 630 1 12 5626 CORD 2 782H…
MODEL TPM-200F
0207-001
158
R コンベア部（手前基準）
R CONVEYOR SECTION（Front Reference）

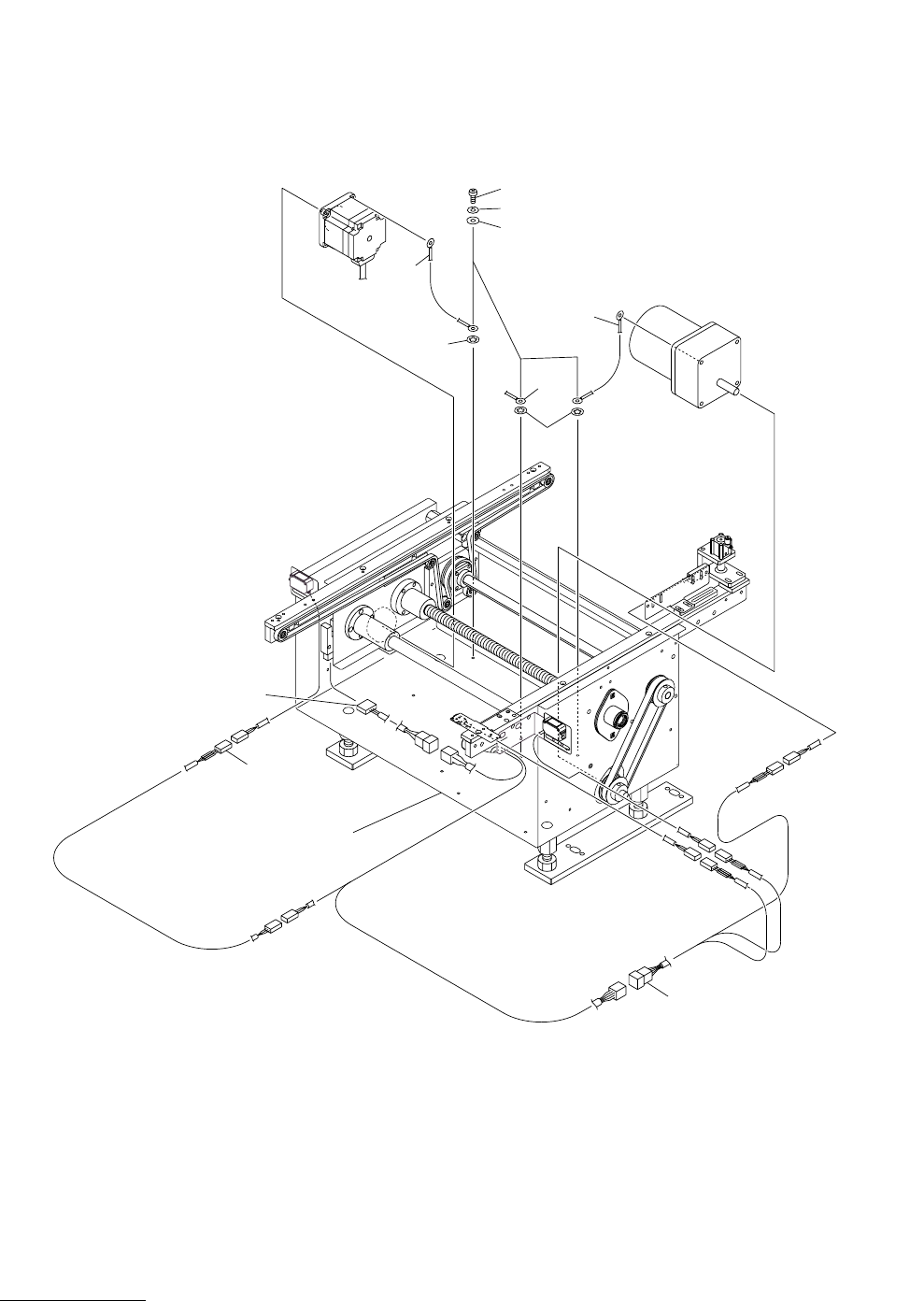

Fig. HR-6 ケーブル Cable
Fig.HR-6
TPM-200F
561
562
563
505
503
503
504
502
See Fig HR-1
Key No.19
501
564
564
MODEL TPM-200F
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
159
HR-6
501 630 112 5701 CORD 1 XNC1391- 782HR-110-501
502 630 112 5725 CORD 1 XNC1047-XNC2047 782HR-110-502
503 630 112 5626 CORD 2 782HR-110-503
504 630 112 5718 CORD 1 XNC1044-XNC1045,1046,2044
782HR-110-504
505 630 112 5671 CORD 1 782HR-110-505
561 411 043 5004 SCR PAN 4X8 3 782HR-110-561
562 411 008 1706 WASHER SPR 4 3 782HR-110-562
563 411 119 2104 WASHER V 4X9X0.8 3 782HR-110-563
564 411 087 0508 WASHER IN TW 4 3 782HR-110-564
