MODEL TPM-200F/R 0207-001 242 基板搬送部 P .C.B. TRANSFER SECTION Fig. HH-1 基板搬送部 P .C.B. T ransfer Section Fig.HH-1 TPM-200F/R See Fig.K-4 Key No.31 1 6 7 9 61 62 63 8 61 62 63 3 4 61 62 63 61 62 63 64 1 1 65 62 63 18 17 62 …
MODEL TPM-200F/R
0207-001
241
Fig. HH 基板搬送部 P.C.B. TRANSFER SECTION
MODEL TPM-200F/R
0207-001
242

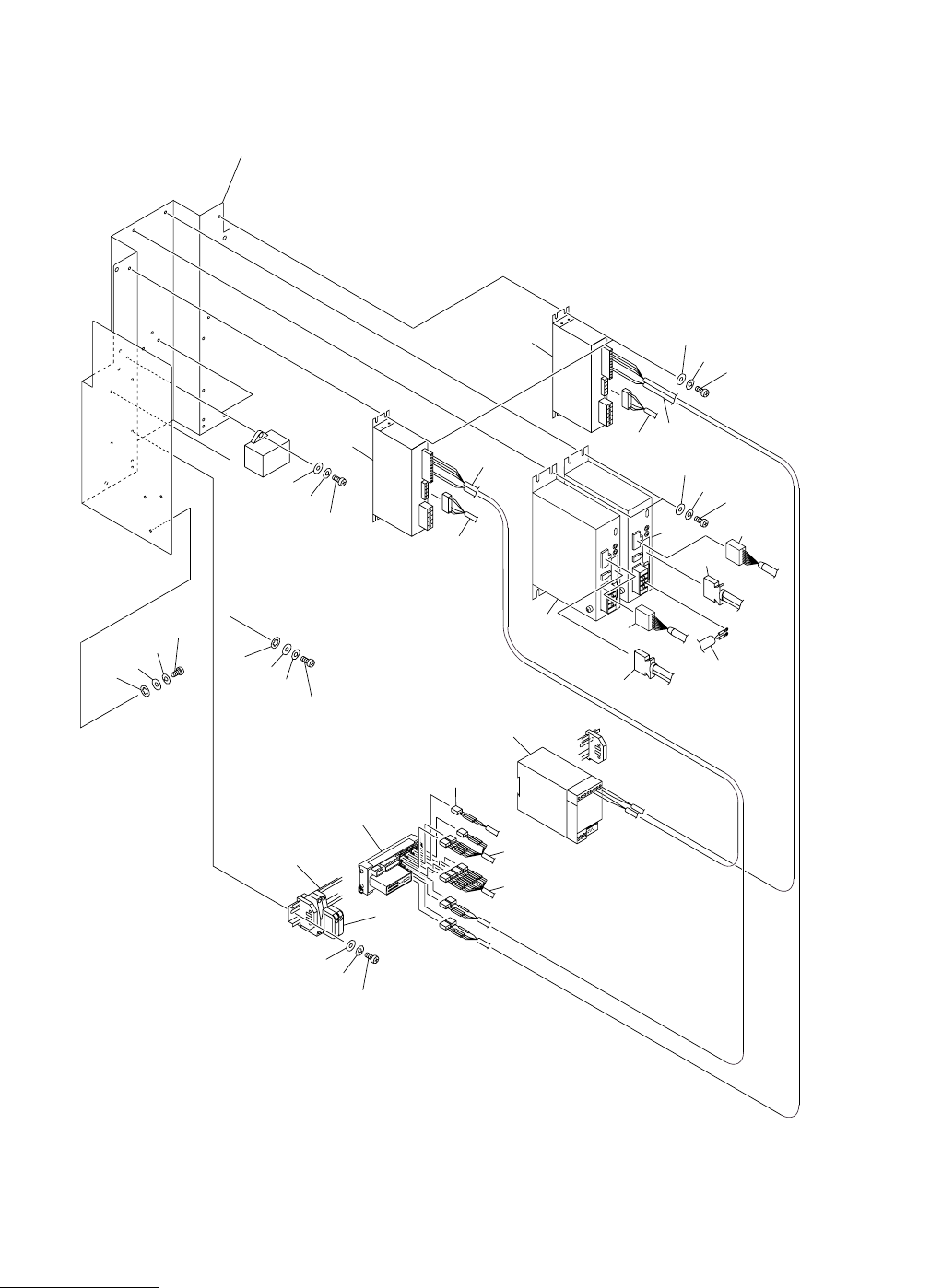

基板搬送部 P.C.B. TRANSFER SECTION

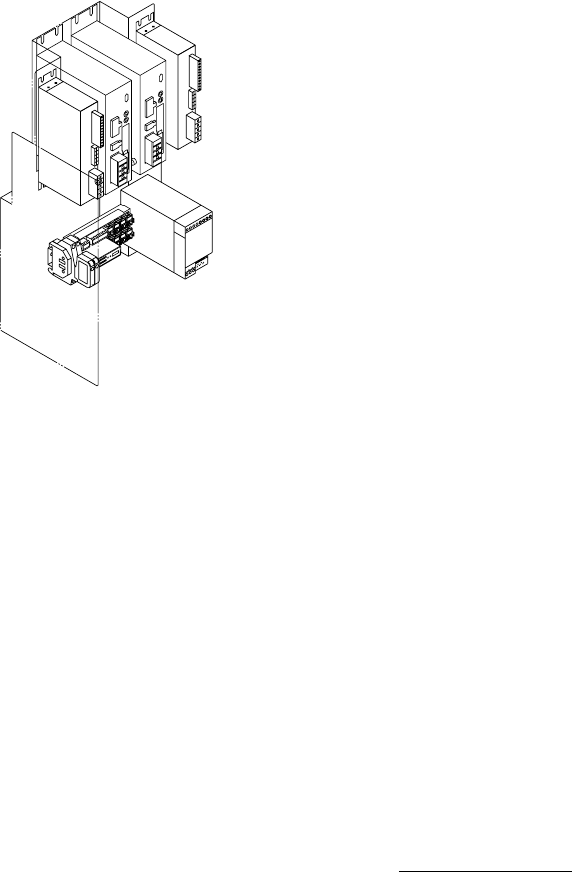

Fig. HH-1 基板搬送部 P.C.B. Transfer Section
Fig.HH-1
TPM-200F/R
See Fig.K-4
Key No.311
6
7
9
61
62
63
8
61
62
63
3
4
61
62
63
61
62
63
64
1
1
65
62
63
18
17
62
61
64
63
16
2
2
13
15
5
11
10
14
12
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
243
HH-1
1 630 107 2630 UNIT,DRIVER 2 APMD037,039, ASD24A-ASD
782HH-110-001
2 630 091 1701 UNIT,DRIVER 2 ASCP002,003, MSP-1W
782HH-110-002
3 630 112 4988 CORD 1 XNC048,049- 782HH-110-003
4 630 088 5682 CORD 1 XNC380-XNC130 782HH-110-004
5 630 112 5008 CORD 1 XNC370-XNC375 782HH-110-005
6 630 106 4611 UNIT,I/O 1 N004,SAB10-TM16H43A
782HH-110-006
7 630 085 3308 UNIT,I/O 1 N049,SAB10-TC04C1
782HH-110-007
8 423 022 8302 FUSE 250V 5A 2 F115,116 782HH-110-008
9 630 112 4117 TERMINAL 1 782HH-110-009
10 630 112 4995 CORD 1 XNC04C,04D 782HH-110-010
11 630 088 5682 CORD 1 XNC400-XNC1400 782HH-110-011
12 630 112 5046 CORD 1 XCN396-XNC1391 782HH-110-012
13 630 112 5015 CORD 1 XCN376-XNC1371 782HH-110-013
14 630 112 5039 CORD 1 XNC390-XNC395 782HH-110-014
15 630 112 5053 CORD 1 782HH-110-015
16 630 112 5091 CORD 1 XNC042- 782HH-110-016
17 630 112 5084 CORD 1 XNC044,045,046,047-XNC1044,1047
782HH-110-017
18 630 112 5077 CORD 1 XNC040,041,043-XNC1040
782HH-110-018
61 411 043 5004 SCR PAN 4X8 16 782HH-110-061
62 411 008 1706 WASHER SPR 4 18 782HH-110-062
63 411 119 2104 WASHER V 4X9X0.8 18 782HH-110-063
64 411 087 0508 WASHER IN TW 4 6 782HH-110-064
65 411 042 3001 SCR PAN 4X10 2 782HH-110-065
