スクリーンホルダ部 SCREEN HOLDER SECTION

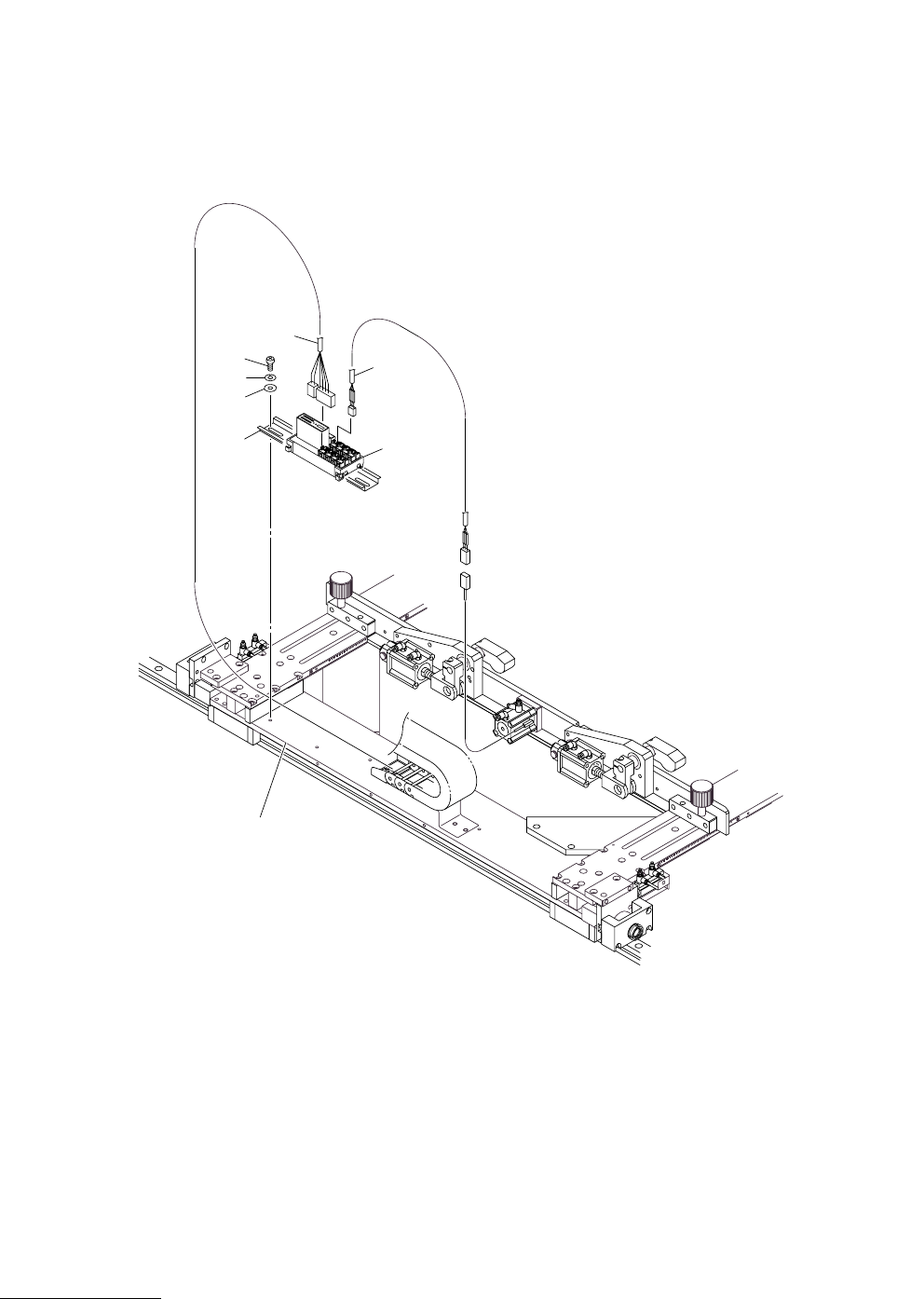

Fig. F-5 電装部 Electrical Parts
Fig.F-5
TPM-200F/R
See Fig.F-1
Key No.10
461
401
462
463
403
404
402
7
0
0
67
5
6
5
0
7
3
6
7
5
0
7
0
0
67
5
625
57
5
6
5
06
0
0
5
5
0
5
0
0
7
3
6
7
5
0
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
83
F-5
401 630 106 4611 UNIT,I/O 1 N011,SAB10-TM16H43A
782F--110-401
402 630 112 5558 CORD 1 XNC1A11-XCNA11,B11
782F--110-402
403 630 112 5541 CORD 1 XNC110-XNC1110 782F--110-403
404 630 091 1688 ACCESSORY,WIRING 1 782F--110-404
461 411 043 5004 SCR PAN 4X8 2 782F--110-461
462 411 008 1706 WASHER SPR 4 2 782F--110-462
463 411 119 2104 WASHER V 4X9X0.8 2 782F--110-463
