P-0221-001.pdf - 第306页
MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 304 MA-1 1 630 003 5124 AIR LINE EQPT 2 782MA-1 10-001 2 630 1 10 2870 PIPE FITTINGS 1 0 782MA-1 10-002 3 630 088 4470 PIPE FITTINGS 1 0 782MA-1…
MODEL TPM-200F/R
0207-001
303
14
13
11
12
4
33
65
62
61
See Fig.M-5
Key No.401
38
Fig.MA-1
TPM-200F/R
Sheet-2
クリーニングエアブロー CLEANING AIR BLOW
P-S105-03（オプション） P-S105-03(Option)

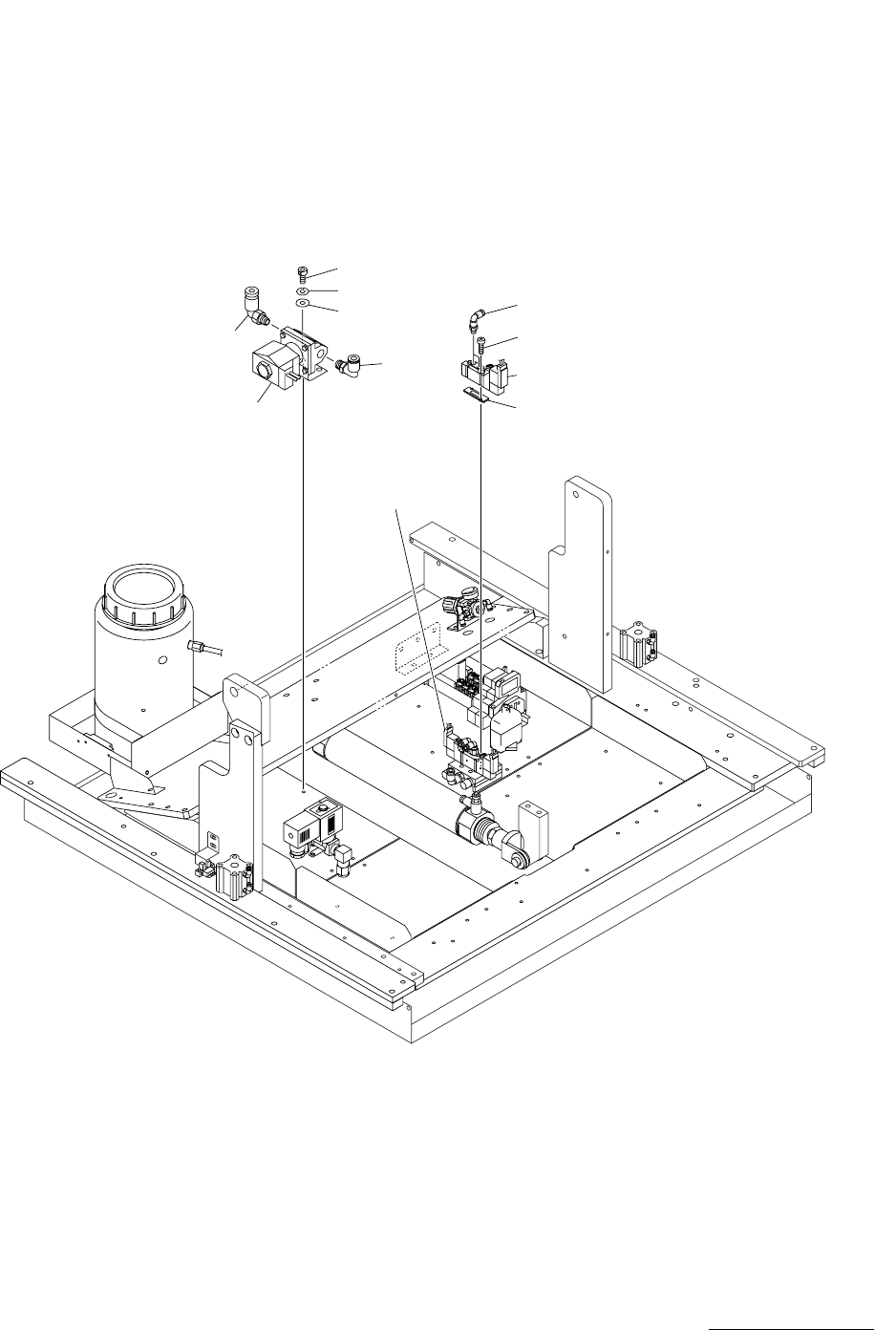

Fig. MA-1 エアブローユニット Air Blow Unit
Sheet-2
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
304
MA-1
1 630 003 5124 AIR LINE EQPT 2 782MA-110-001
2 630 110 2870 PIPE FITTINGS 10 782MA-110-002
3 630 088 4470 PIPE FITTINGS 10 782MA-110-003
4 630 003 7364 PIPE FITTINGS 1 782MA-110-004
6 630 003 7265 PIPE FITTINGS 5 782MA-110-006
7 630 110 1552 BUSH,BALL 4 782MA-110-007
8 630 110 1569 CYLINDER 1 BPS120,121 782MA-110-008
9 630 110 1576 BUSH,BEARING 1 782MA-110-009
10 411 000 7300 RING C 12 8 782MA-110-010
11 630 110 2856 SOLENOID VALVE 1 YSV128,SY3120-5MZE-M5-Q
782MA-110-011
12 630 082 1789 SEAL 1 782MA-110-012
13 630 110 1583 BOLT 2 782MA-110-013
14 630 003 7241 PIPE FITTINGS 2 782MA-110-014
15 630 110 0920 SHAFT 2 782MA-110-015
16 630 111 6860 BLOCK 1 782MA-110-016
17 630 110 0913 HOLDER 1 782MA-110-017
18 630 110 0876 BLOCK 1 782MA-110-018
19 630 110 0869 BLOCK 1 782MA-110-019
20 630 110 0944 PLATE 1 782MA-110-020
21 630 110 0852 BLOCK 5 782MA-110-021
22 630 110 0883 BLOCK 1 782MA-110-022
23 630 110 0890 BLOCK 1 782MA-110-023
24 630 110 0906 BLOCK 1 782MA-110-024
25 630 110 0951 PLATE 1 782MA-110-025
26 630 110 0968 PLATE 1 782MA-110-026
27 630 110 0937 SHAFT 1 782MA-110-027
28 630 110 0975 PIN,LOCATE 1 782MA-110-028
30 630 116 1358 BRACKET(BRACKET) 2 782MA-110-030
31 630 110 2054 BRACKET 2 782MA-110-031
32 630 116 1365 PLATE(PLATE) 1 782MA-110-032
33 630 110 2863 SOLENOID VALVE 1 YSV129,ADK11-8A-03ABS-DC24V
782MA-110-033
34 630 115 7450 PLATE 2 782MA-110-034
35 630 069 0538 PIPE FITTINGS 4 782MA-110-035
36 630 111 6976 PIPE FITTINGS 1 782MA-110-036
37 630 111 6983 PIPE FITTINGS 1 782MA-110-037
38 630 111 6990 PIPE FITTINGS 1 782MA-110-038
61 411 141 4008 WASHER V 4X9X0.8 27 782MA-110-061
62 411 141 2905 WASHER SPR 4 27 782MA-110-062
63 630 000 7671 BOLT,HEX-SCT 2 782MA-110-063
64 630 000 7626 BOLT,HEX-SCT 20 782MA-110-064
65 630 000 7619 BOLT,HEX-SCT 4 782MA-110-065
66 411 141 3902 WASHER V 3X7X0.5 2 782MA-110-066
67 411 141 2806 WASHER SPR 3 2 782MA-110-067
68 630 000 7503 BOLT,HEX-SCT 2 782MA-110-068
69 630 000 7602 BOLT,HEX-SCT 2 782MA-110-069
70 630 000 7633 BOLT,HEX-SCT 1 782MA-110-070
71 630 008 2296 SET SCREW 5 782MA-110-071
MEMO
