SIPLACE Axis Tester Handbuch für das Achsprüfgerät / Axis Tester Manual
Ausgabe 08/2003 Edition 8 Using the menus
65

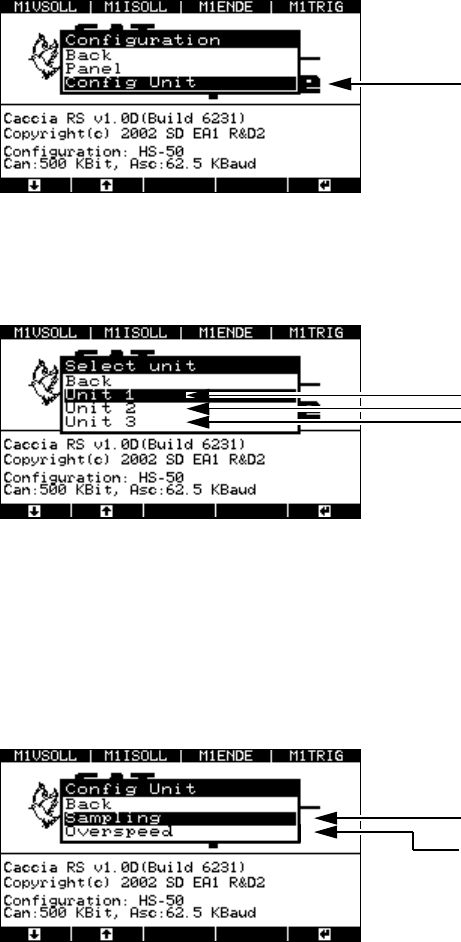

Fig. 8 - 12 “Configuration” menu, “Config unit”
The “Select unit” menu appears.
Fig. 8 - 13 “Select unit” menu
8.3.2.1 “Sampling” menu
Æ Select the required axis controller
The menu for setting the sampling frequency or maximum sampling frequency appears.
Fig. 8 - 14 “Config unit” menu, “Sampling”
Æ Select the “Sampling” menu.
The window for setting the sampling frequency appears.
“Config unit” menu
Sets the sampling values for axis controlle
r
1 (top),
2 (middle) or
3 (bottom)
Menu for setting the sampling frequency
Menu for setting the maximum sampling fr
e-
quency for the minimum time between the
corresponding edges of two successive
pulses.
Handbuch für das Achsprüfgerät / Axis Tester Manual SIPLACE Axis Tester
8 Using the menus Ausgabe 08/2003 Edition
66

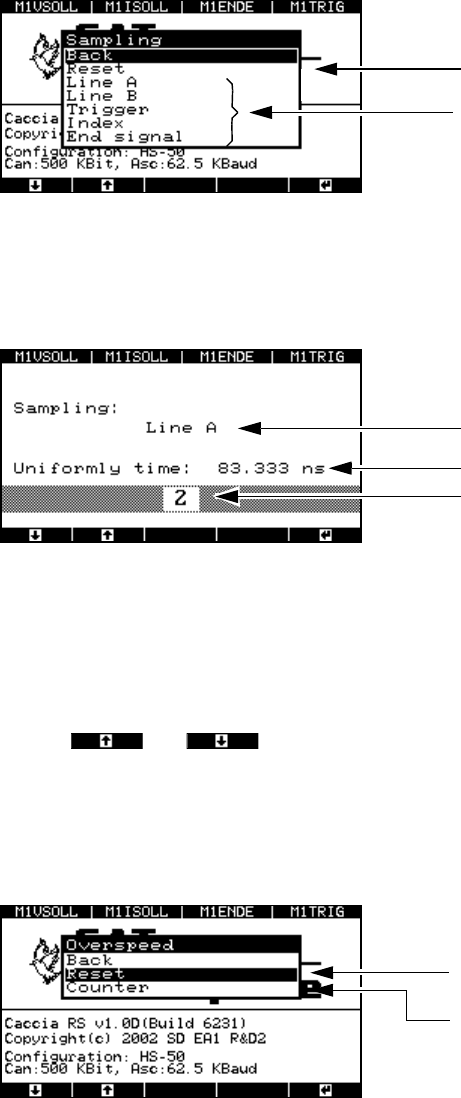

Fig. 8 - 15 “Sampling” menu
Æ Select “Reset” to set the sampling frequency to 12 MHz for all the signals. This corresponds to
a time base of 83.333 nsec.
Fig. 8 - 16 Sampling frequency
To calculate the time base:
Time base = Multiplier x 41.667 nsec.
This gives a range for the time base of 41.667 nsec to 10.625 µsec.
Use the and buttons to reduce or increase the time base. The smallest pos-
sible time base is 41.667 nsec, which corresponds to a sampling frequency of 24 MHz.
8.3.2.2 “Overspeed” menu
Æ Select the “Overspeed” option from the “Config unit” menu.
Fig. 8 - 17 “Overspeed” menu
Æ Select the “Counter” menu option in order to set the time base.
Sets the sampling frequency to the default
value of 12 MHz.
Sampling frequency for track signals
Selected line
Time base
Multiplier 1 ... 255
The minimum time between two pulse edges
is set to 83.333 nsec.
This menu allows the time to be set to a
multiple of 41.667 nsec.
SIPLACE Axis Tester Handbuch für das Achsprüfgerät / Axis Tester Manual
Ausgabe 08/2003 Edition 8 Using the menus
67

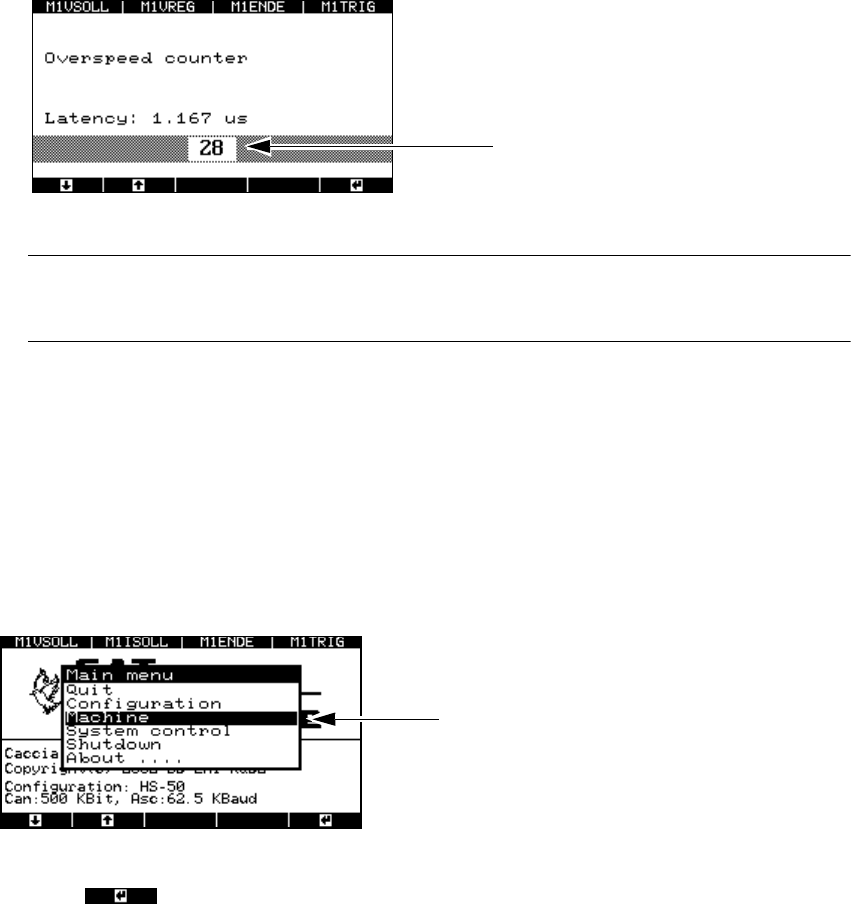

Fig. 8 - 18 Setting the time base for the overspeed
PLEASE NOTE: 8
We recommend that you keep the default value of 83.333. 8
If you have changed any values, then you must save them.
Æ Select from the main menu
- the “System control” menu
→ "Settings" → "Save" or
- the “Shutdown” menu
→ "Shutdown computer: Yes”.
8.4 “Machine” menu
The “Machine” menu is accessed from the main menu.
Fig. 8 - 19 Main menu, selecting the “Machine” menu
Æ Press to select the menu.
The menu for selecting the placement machine appears.
Multiplier
Example: 28 x 41.667 nsec = 1.167 µsec
“Machine” menu
