completely cover the conductor. A more precise registration
is necessary because of the tight tolerance needed to cover
the conductors without encroaching on the land area. PCB
manufacturers are required to keep the soldermask material
off the land. Clearance conditions can vary from 0.0 mm
[0.0 in] to 0.1 mm [0.0040 in].
3.5.3 Land Pattern Surface Finishes The soldermask
openings expose the land patterns for attachment of surface
mount components. These are usually copper-based and
therefore need protection in order to prevent the copper
from oxidizing, thus resulting in poor solderability of the
surface land patterns. The protection of the land patterns
may be accomplished by organic solderability protective
(OSP) coatings or metallic finishes such as solder coating,
gold, silver, or palladium platings.
The choice of coatings or plating is dependent on the
assembler’s preference or the type of components being
assembled. A single coating or plating finish is preferred
for the entire board. Mixing the surface finish types is not
recommended due to the different process steps required.
Selective finishes may be necessary based on the mix of
component types, lead pitch and attachment process or lead
termination finish characteristics.
4 COMPONENT QUALITY VALIDATION
4.1 Validation Techniques
Because of the variety of
component tolerances, and the possibility that tolerances
may vary on components, users are encouraged to establish
validation of the land pattern and component geometry. In
addition, components should be selected and qualified to
meet the end products maximum operating temperature
limits. Figure 4-1 shows a chart referencing the upper and
lower limits of various components.
Validations of parts and circuits may be accomplished
through the use of standard test patterns. These patterns
may be used not only to evaluate a particular part to a land
pattern, but may also be used to evaluate component prod-
ucts’ capability to stand up to various processes being used
in assembling surface mounted parts.
IPC-7351-3-21

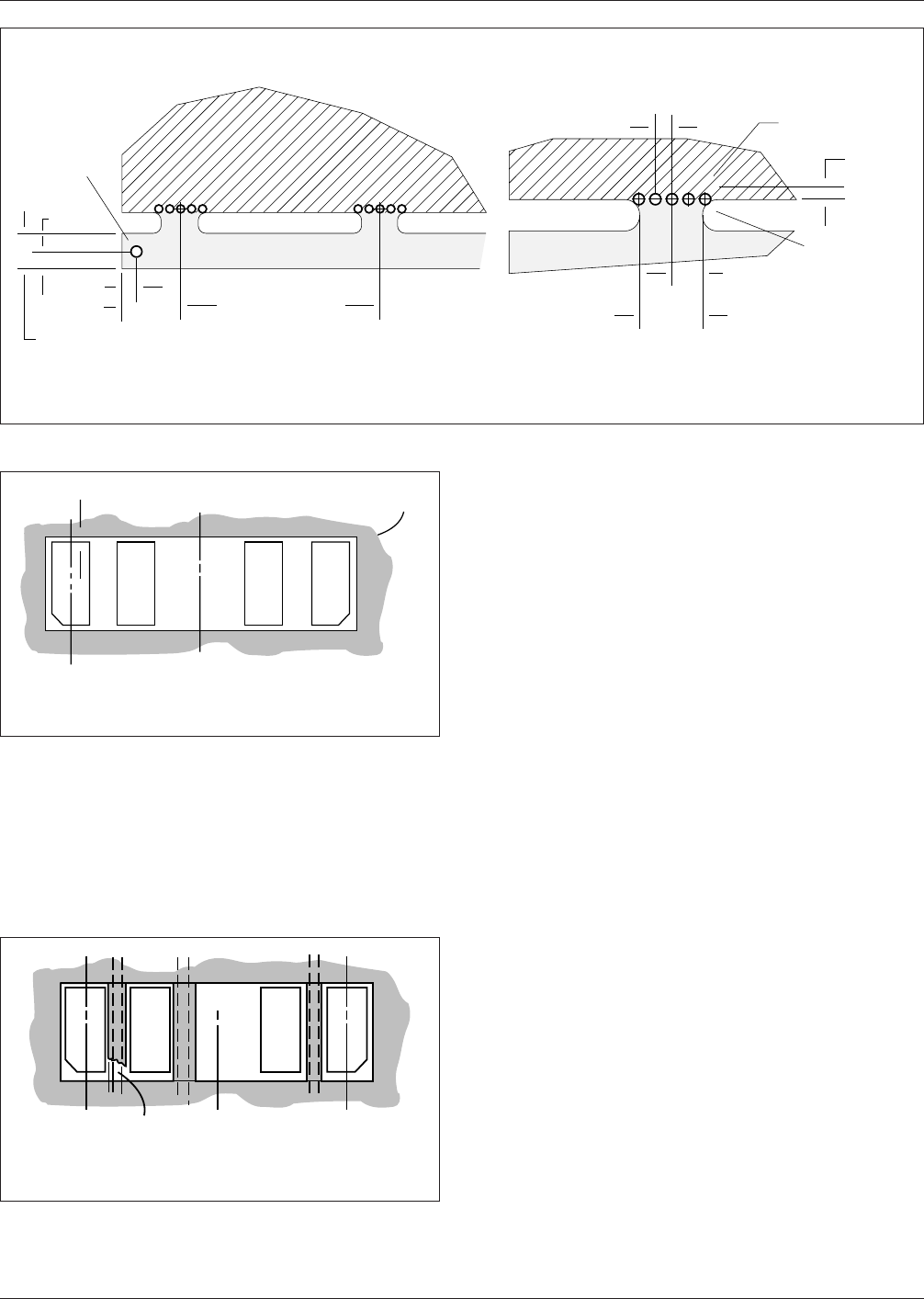

Figure 3-21 Breakaway (Routed Pattern) with Routed Slots
IPC-7351-3-22
Figure 3-22 Gang Solder Mask Window
Solder Mask
Land
Gang
▼
▼
▼
C
L
IPC-7351-3-23
Figure 3-23 Pocket Solder Mask Window
Land
Conductor
▼
C
L
Pocket
February 2005 IPC-7351
31
5 TESTABILITY
5.1 Board and Assembly Test
There are five basic types
of tests which can be performed on SMT boards. These
are:
a) Bare-board test which checks the unpopulated board for
shorts and opens
b) Manufacturing defect analysis which checks the popu-
lated board for soldering shorts
c) In-circuit test operational verification of each individual
component
d) Functional test operational verification of functional
block of circuits
e) Combinational test limited integration of in-circuit and
functional test
The first test type is a bare-board test performed by the
board fabricator. The remaining four test types are loaded
on assembled board tests and performed after assembly.
The bare-board test should be mandatory, while the loaded
board may be tested using any one or a combination of the
four loaded board tests.
5.1.1 Bare-Board Test In testing printed boards using
through-hole technology, the defect rate and the test meth-
ods chosen are the principle determiners of overall test
cost. Real-estate considerations (specifically the percentage
of nodes that are available for bed-of-nails probing) are not
a concern, since the holes provide 100% nodal access. In
testing surface mount boards, however, real-estate consid-
erations (in addition to defect rates) have an impact on test
costs, since nodal access determines which test methods
are possible and effective.
The use of design concepts with grid-based 100% nodal
access from either side of the board may be the most eco-
nomical approach from the total process perspective. If the
grid-based test land concept is used, the test fixtures for
bare and assembled board tests will not become obsolete
through later board connectivity revisions if the test nodes
are not moved. Also, if the printed board uses buried vias,
the grid-based test land concept with 100% nodal access
may provide access to buried nets from the ends of the
nets; this is a benefit realized during the bare-board test.
5.1.2 Assembled Board Test The method of test must
be determined prior to design layout. If the defect rate is
relatively high, most boards will require diagnosis, and the
economics of automatic in-circuit test (ICT) will demand
that full nodal access be provided within the board layout.
If the defect rate is low, ICT may be omitted and rely on a
functional test. Extremely low defect levels would theoreti-
cally allow 0 % nodal access (no bed-of-nails test at all),
applying only a simple pass/no-pass test through a common
interface connector.
The major considerations in determining nodal access are:
• Defect rate.
• Diagnostic capability.
• Real-estate impact.
• Board area.
• Layer count.
• Cost impact.
IPC-7351-4-01
Figure 4-1 Component Operating Temperature Limits
125
85
125
120
0˚C
–40–40
–10
–55
Ceramic ICs
Plastic ICs
Capacitors
Resistors
▼ ▼
▼
▼
IPC-7351 February 2005
32
