8.10.1 Basic Construction The dimensional characteris- tics are designed to meet the needs of the surface mount industry . The clearance between the body of the component and the packaging and interconnect structure is s…

order to provide an adequate heat transfer path, there is no

clearance between the body of the component and the

packaging and interconnect structure. This design may

accommodate the reﬂow or wave soldering processes.

8.7.2 Marking Parts are available with or without

marked values.

8.7.3 Carrier Package Format Carrier package format

shall be according to the following: body type TO-243,

12 mm tape/8 mm pitch.

8.7.4 Resistance to Soldering Parts should be capable

of withstanding ten cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

8.8 SOD123 IPC-7352 SOD123 component outlines are

derived from outline DO-214 ‘‘Issue B’’ within JEDEC

Publication 95.

8.8.1 Basic Construction The small outline diode comes

in two conﬁgurations. One is a gullwing-leaded (SOD123)

conﬁguration as shown in Figure 8-10. The other is a

molded conﬁguration with terminations (DIOSMB).

8.8.2 Marking Parts are available with or without

marked values.

8.8.3 Carrier Package Format Carrier package formats

are tape and reel; 12 mm tape/8 mm pitch.

8.8.4 Resistance to Soldering Parts should be capable

of withstanding 10 cycles through a standard reﬂow system

operating at 215 °C [419 °F]. Each cycle shall consist of 60

seconds exposure at 215 °C [419 °F]. Parts must also be

capable of withstanding a minimum of 10 seconds immer-

sion in molten solder at 260 °C [500 °F]. See IPC/JEDEC

J-STD-020 for appropriate reﬂow cycles and proﬁles when

using lead free solders.

8.9 SOT143 These parts are for dual diodes and Darling-

ton transistors. IPC-7352 SOT143 component outlines are

derived from outline TO-253 ‘‘Issue C’’ within JEDEC

Publication 95.

8.9.1 Basic Construction The dimensional characteris-

tics are designed to meet the needs of the surface mount

industry. The clearance between the body of the component

and the packaging and interconnect structure is speciﬁed at

0.05 mm to 0.13 mm [0.002 in to 0.005 in] to accommo-

date reﬂow or wave soldering processes (see Figure 8-11).

8.9.2 Marking Parts are available with or without

marked values.

8.9.3 Carrier Package Format Carrier package format

shall be according to the following: body type TO-253,

8 mm tape/4 mm pitch.

8.9.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

8.10 SOT223 These parts are for dual diodes and Dar-

lington transistors. IPC-7352 SOT223 component outlines

are derived from outline TO-261 ‘‘Issue C’’ within JEDEC

Publication 95.

IPC-7351-8-09

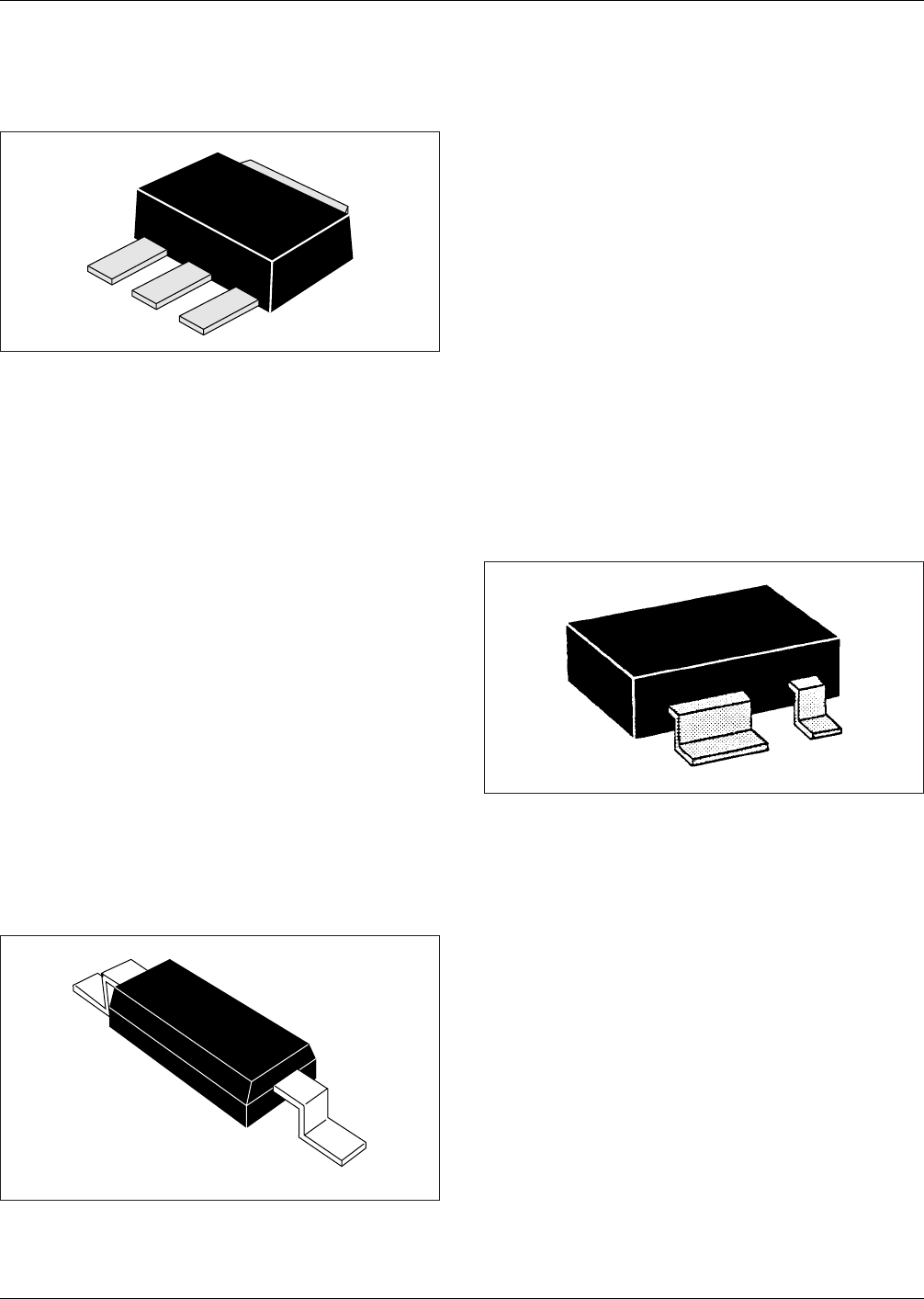

Figure 8-9 SOT 89 Construction

IPC-7351-8-10

Figure 8-10 SOD 123 Construction

IPC-7351-8-11

Figure 8-11 SOT143 Construction

IPC-7351 February 2005

标准分享网 www.bzfxw.com 免费下载

8.10.1 Basic Construction The dimensional characteris-

tics are designed to meet the needs of the surface mount

industry. The clearance between the body of the component

and the packaging and interconnect structure is speciﬁed at

0.06 mm [0.00236 in] (basic) to accommodate reﬂow or

wave soldering processes (see Figure 8-12).

8.10.2 Marking Parts are available with or without

marked values.

8.10.3 Carrier Package Format Carrier package format

shall be according to the following: body type TO-261,

12 mm tape/8 mm pitch.

8.10.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

8.11 TO252 (DPAK Type) These parts are for dual diodes

and Darlington transistors. IPC-7352 TO252 component

outlines are derived from outline TO-252 ‘‘Issue B’’ within

JEDEC Publication 95.

8.11.1 Basic Construction See Figure 8-13.

8.11.2 Marking Parts are available with or without

marked values.

8.11.3 Carrier Package Format Carrier package format

shall be according to the following: body type TO-252,

12 mm tape/8 mm pitch.

8.11.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

8.12 Molded Body Diode (DIOSMB)

9 IPC-7353 GULLWING LEADED COMPONENTS, TWO

SIDES

The two-sided gullwing family has a number of generic

package sizes in the family. The body sizes are varied, but

the basic family is characterized by 1.27 mm or 0.63 mm

lead centers with leads on the long side of a rectangular

body. The family has been expanded to include a limited

number of 0.80 mm, 0.65 mm, 0. 50 mm, 0.40 mm, and

0.30 mm pitch devices.

Within the component families, body width and lead span

are constant, while body length changes as the lead count

changes.

A major advantage of this package style is that it can be

pretested prior to substrate assembly while still offering

relatively high density. Its small area, low height, and mini-

mal weight are its major advantages over DIPs. The pack-

age has orientation features on the edge of the package to

aid in handling and identiﬁcation.

Coplanarity is an issue for all components with gullwings

on two sides. In general, the leads must be coplanar within

0.1 mm. That is, when the component is placed on a ﬂat

surface, (e.g., a granite block), no lead may be more than

0.1 mm off the ﬂat surface.

Note: Some members of the SOIC family are processed on

the secondary side and wave soldered. When parts are pro-

cessed by wave solder, correct part orientation must be

observed. Consult your manufacturer before placing SOICs

on the wave solder side of the board.

High lead count packages and ﬁne pitch parts, 0.63 mm or

less, should be processed by infrared reﬂow, conduction

reﬂow, or hot bar soldering, and should not be wave sol-

dered.

End terminations should be solder coated with a tin/lead

alloy or a lead free equivalent. The solder should contain

between 58 to 68% tin. Solder may be applied to the ter-

mination by hot dipping or by plating from solution. Plated

solder terminations should be subjected to a postplating

IPC-7351-8-12

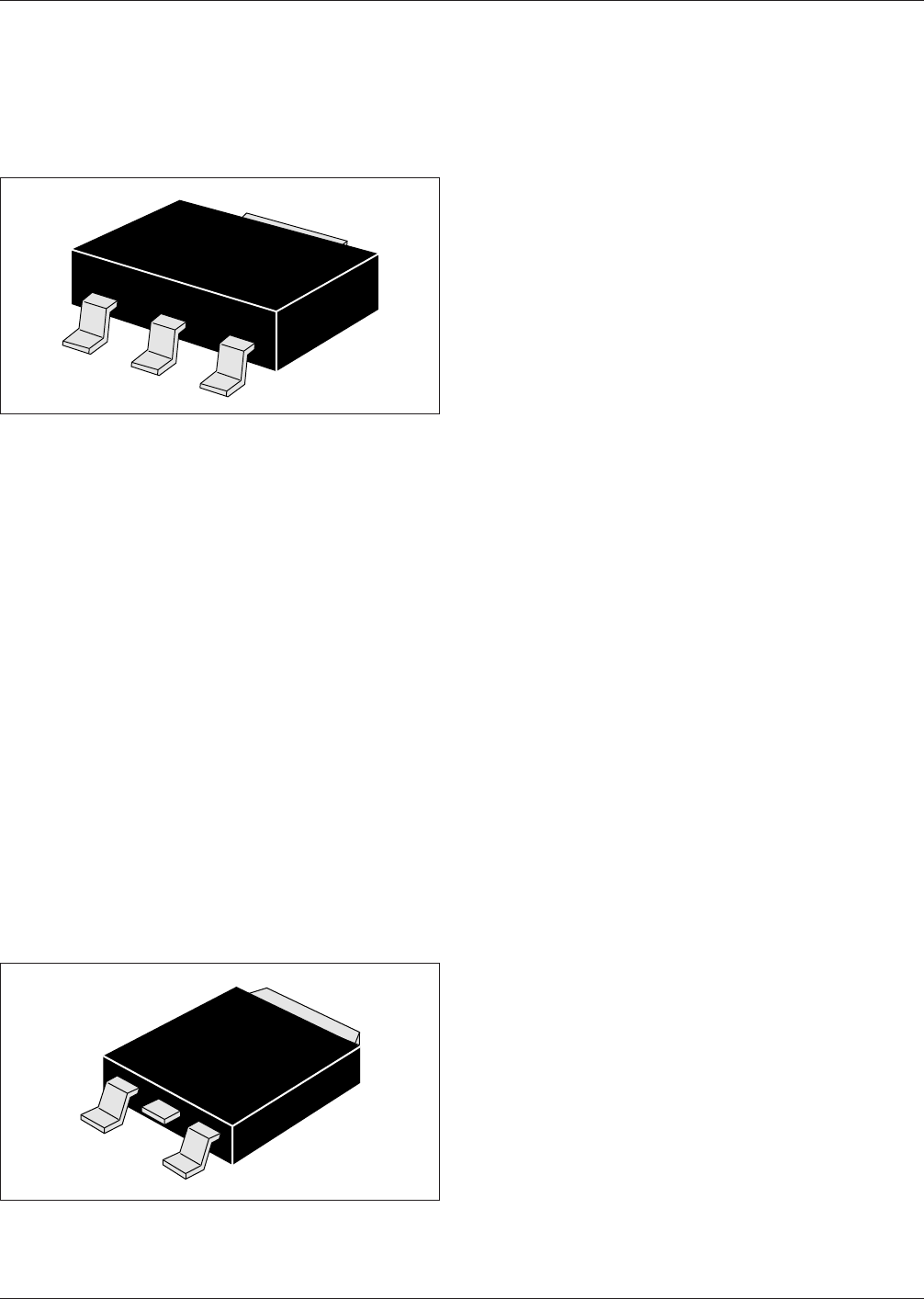

Figure 8-12 SOT 223 Construction

IPC-7351-8-13

Figure 8-13 TO252 (DPAK Type) Construction

February 2005 IPC-7351

reﬂow operation to fuse the solder. The tin/lead ﬁnish

should be at least 0.0075 mm [0.0003 in] thick.

The termination shall be symmetrical, and shall not have

nodules lumps, protrusions, etc., that compromise the sym-

metry or dimensional tolerances of the part. The end termi-

nation shall cover the ends of the components, and shall

extend out to the top and bottom of the component.

Solder ﬁnish applied over precious metal electrodes shall

have a diffusion-barrier layer between the electrode metal-

lization and the solder ﬁnish. The barrier layer should be

nickel or an equivalent diffusion barrier, and should be at

least 0.00125 mm [0.00005 in] thick.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

9.1 SOIC These small outline integrated circuits (SOIC)

are all on 1.27 mm pitch, and are available in 4.0 mm nar-

row body, 7.50 mm or 7.60 mm wide body and 9.02 mm

extra wide body sizes, ranging from 8 to 36 pins. IPC-7353

SOIC component outlines are derived from outlines

MS-012, MS-013, MO-110 and MO-120 within JEDEC

Publication 95.

9.1.1 Basic Construction Basic construction consists of

a plastic body and metallic leads (see Figure 9-1).

9.1.2 Marking All parts shall be marked with a part

number and ‘‘Pin 1’’ location. ‘‘Pin 1’’ location may be

molded into the plastic body.

9.1.3 Carrier Package Format Carrier packaging format

may be provided in a tray carrier, but tape and reel carriers

are preferred for best handling and high volume applica-

tions. Bulk packaging is not preferred because of lead

coplanarity required for placement and soldering.

9.1.4 Resistance to Soldering Parts should be capable

of withstanding ten cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

9.2 SOP8/SOP63 (SSOIC) These shrink small outline

integrated circuits (SSOIC) are on either 0.635 mm or

0.80 mm pitch, and are available in 7.59 mm wide body

and 12.10 mm extra wide body sizes, ranging from 48 to

64 pins. IPC-7353 SOP8/SOP63 component outlines are

derived from outlines MO-117 Issue ‘‘A’’ and MO-118

Issue ‘‘A’’ within JEDEC Publication 95.

9.2.1 Basic Construction Basic construction consists of

a plastic body and metallic leads (see Figure 9-2).

9.2.2 Marking All parts shall be marked with a part

number and ‘‘Pin 1’’ location. ‘‘Pin 1’’ location may be

molded into the plastic body.

9.2.3 Carrier Package Format Carrier packaging format

may be provided in a tray carrier, but tape and reel carriers

are preferred for best handling and high volume applica-

tions. Bulk packaging is not preferred because of lead

coplanarity required for placement and soldering.

9.2.4 Resistance to Soldering Parts should be capable

of withstanding ten cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

9.3 SOP127 (SOP-IPC-782) IPC-7351 has deﬁned

center-to-center spacing for these land patterns slightly dif-

ferently than is indicated in the EIAJ speciﬁcation EIAJ-

7402-1.

IPC-7351-9-01

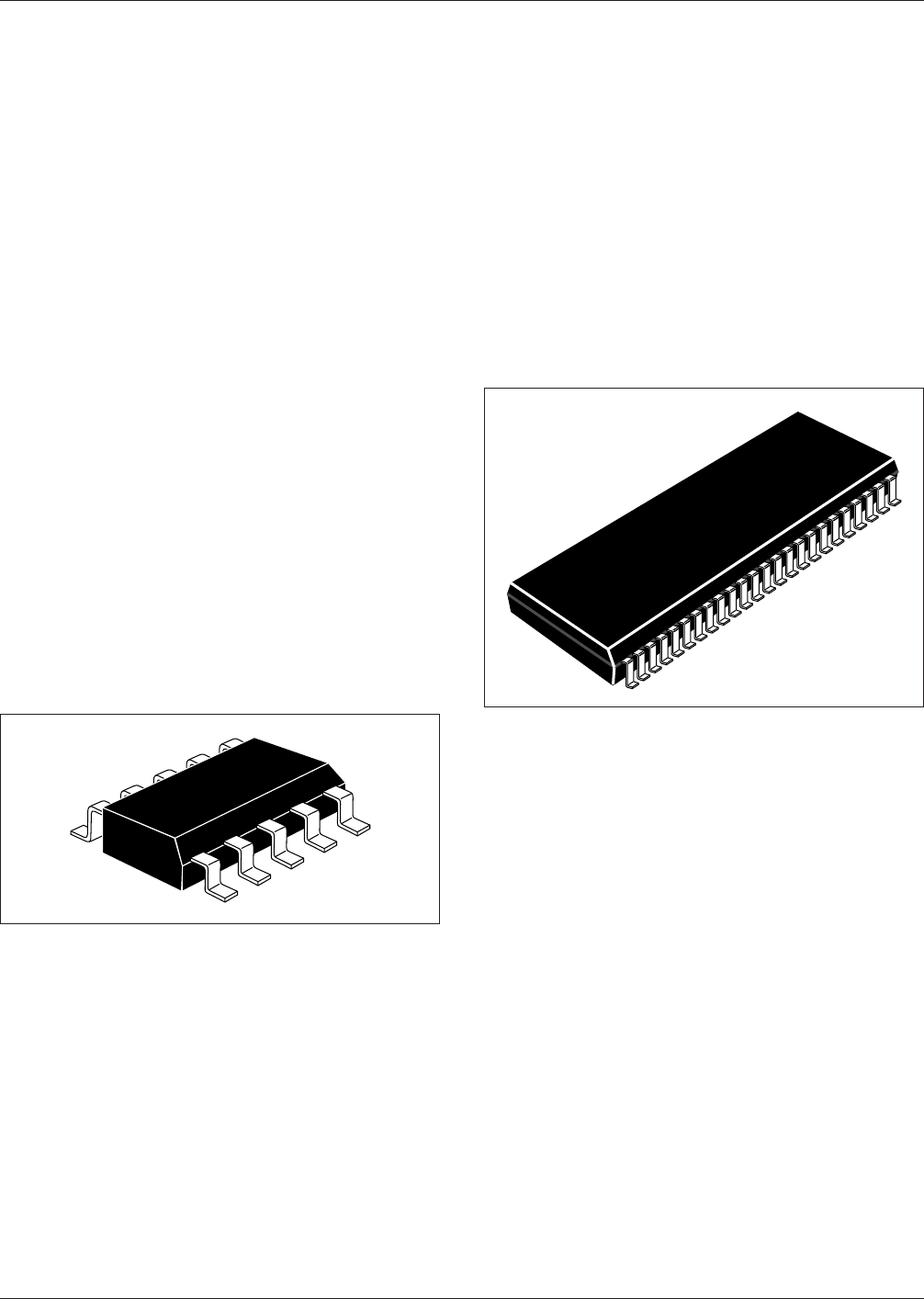

Figure 9-1 SOIC Construction

IPC-7351-9-02

Figure 9-2 SOP8/SOP63 Construction

IPC-7351 February 2005
