Pin 1 on Upper Left Small Outline Gullwing Components Small Outline J-Lead Components Land P attern Pin 1 on Upper Left SOIC, SOP & SOIC TSSOP Pin 1 on Upper Left Land P attern P acka ge Outline Component Examples Ze…
Package Outline Component Examples
Zero Rotation
Pin 1 on Left Side
Land Pattern
Note: Pin 1 is always
the ''Positive Pin''
Chip
Components
Chip Capacitor
Chip Resistor Chip Inductor
Molded
Capacitors
Pin 1 on Left Side
Land Pattern
Note: Pin 1 is always
the ''Positive Pin''
Pin 1 on Left Side
Land Pattern
Note: Pin 1 is always
the ''Positive Pin''
Precision Wire
Wound
Components
Pin 1 on Left Side
Land Pattern
Note: Pin 1 is
always the
Cathode
MELF
Diodes
Molded
Inductors
Pin 1 on Left Side
Land Pattern
Note: Pin 1 is always
the ''Positive Pin''
Molded
Diodes
Pin 1 on Left Side
Land Pattern
Note: Pin 1 is always
the Cathode

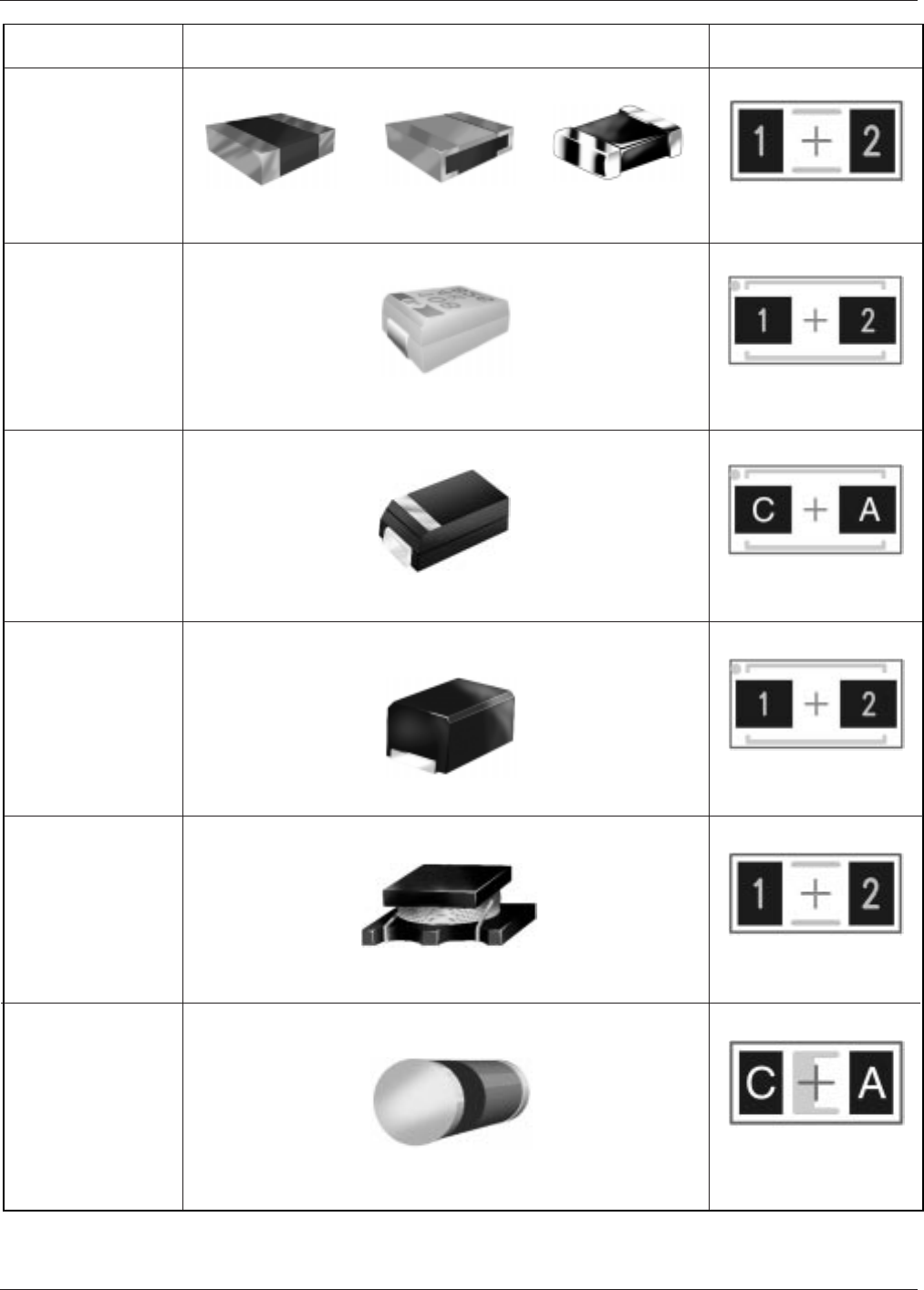

Figure 16-1 Zero Component Rotations for Common Package Outlines
IPC-7351 February 2005
66
标准分享网 www.bzfxw.com 免费下载
Pin 1 on Upper Left
Small Outline
Gullwing
Components
Small Outline
J-Lead
Components
Land Pattern
Pin 1 on Upper Left
SOIC, SOP & SOIC
TSSOP
Pin 1 on Upper Left
Land Pattern
Package Outline Component Examples
Zero Rotation
Land Pattern
SOIC J-Lead
Pin 1 on Upper Left
Land Pattern
SOT
Components
Pin 1 on Upper Left
Land Pattern
TO
Components
SOT23-3
SOT23-5
SOT343 SOT223
TO252 (DPAK)

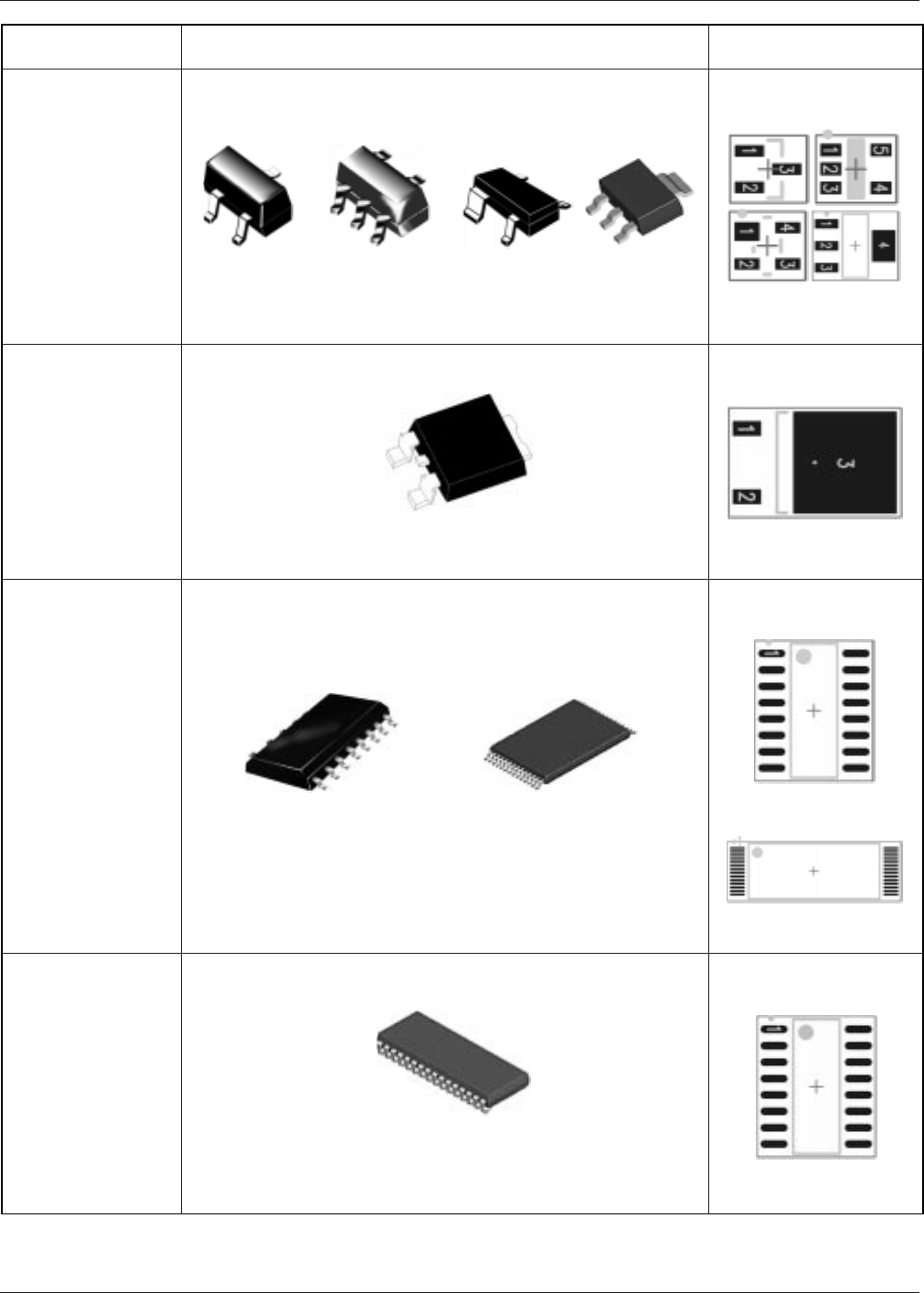

Figure 16-1 Zero Component Rotations for Common Package Outlines (continued)
February 2005 IPC-7351
67
Pin 1 on Top Center
Bumper Quad
Flat Packages
Land Pattern
Package Outline Component Examples
Zero Rotation
Bump QFP (Pin 1 on Side or Center)
Pin 1 on Upper Left
Land Pattern
Quad Flat
Packages
Pin 1 on Upper Left
Land Pattern
Land Pattern
Pin 1 on Upper Left
Ceramic Flat
Packages
CFP
Pin 1 on Upper Left
Land Pattern
Square QFP
Rectangular QFP

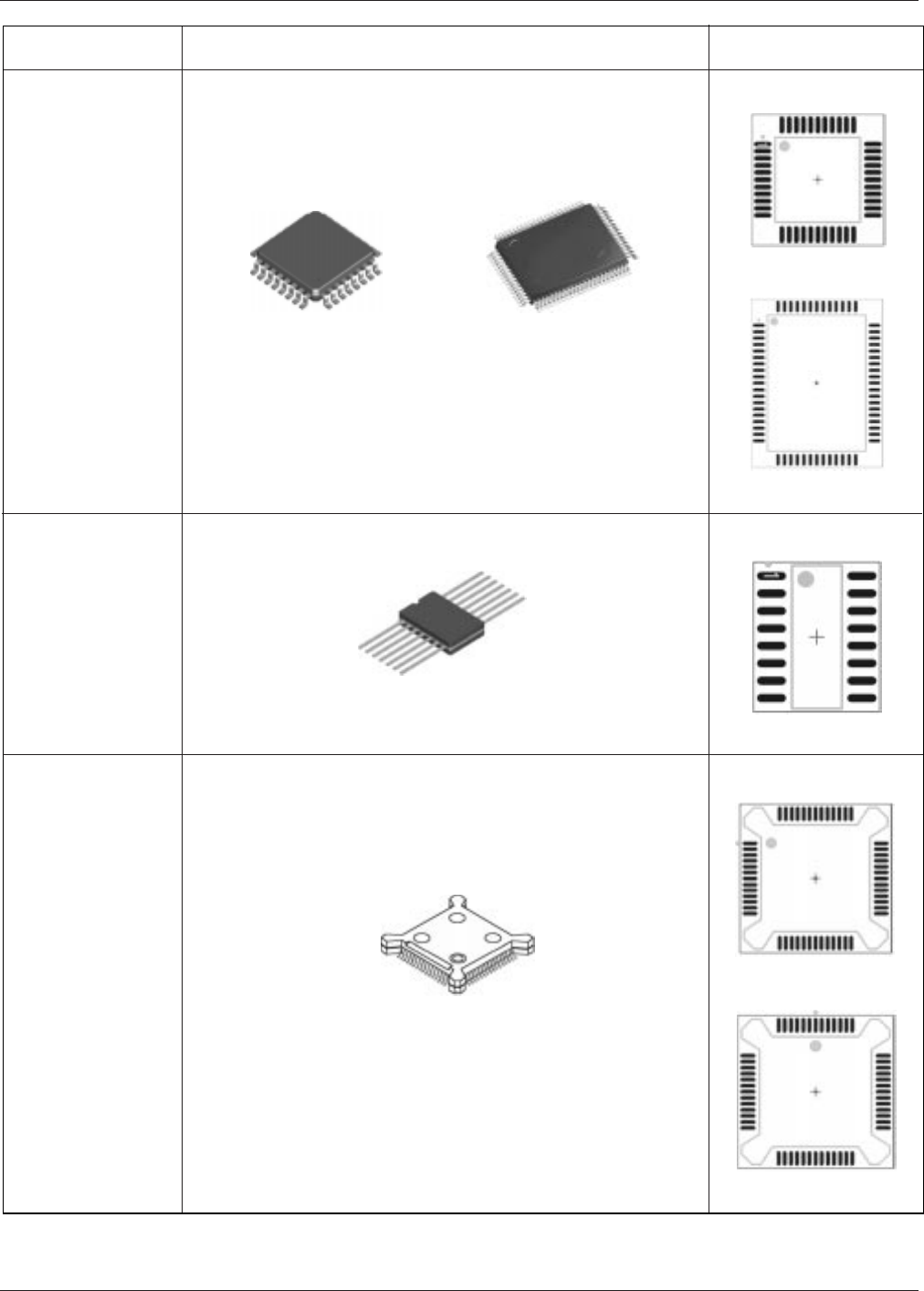

Figure 16-1 Zero Component Rotations for Common Package Outlines (continued)
IPC-7351 February 2005
68
