11.3 QFPR The quad ﬂat pack, rectangular (QFPR) has been developed for applications requiring low height and high density . The QFPR, along with the TSOP components, are frequently used in memory card applications. The Q…

There are several lead pitches within the family from

1.27 mm down to 0.30 mm. High lead-count packages are

available in this family that accommodate complex, high

lead-count chips.

The four sided gull-wing families of parts are generally

marked with manufacturer part numbers, manufacturer

name or symbol, and a pin 1 indicator. Some parts may

have a pin 1 feature in the case shape instead of pin 1

marking. Additional markings may include date code/

manufacturing lot and/or manufacturing location.

End terminations should be solder coated with a tin/lead

alloy or a lead free equivalent. The solder should contain

between 58 to 68% tin. Solder may be applied to the ter-

mination by hot dipping or by plating from solution. Plated

solder terminations should be subjected to a postplating

reﬂow operation to fuse the solder. The tin/lead ﬁnish

should be at least 0.0075 mm [0.0003 in] thick.

The termination shall be symmetrical, and shall not have

nodules lumps, protrusions, etc., that compromise the sym-

metry or dimensional tolerances of the part. The end termi-

nation shall cover the ends of the components, and shall

extend out to the top and bottom of the component.

Solder ﬁnish applied over precious metal electrodes shall

have a diffusion-barrier layer between the electrode metal-

lization and the solder ﬁnish. The barrier layer should be

nickel or an equivalent diffusion barrier, and should be at

least 0.00125 mm [0.00005 in] thick.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

Four-sided gull-wing families are usually processed using

standard solder reﬂow processes. Parts should be capable

of withstanding ten cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. High lead-

count ﬁne pitch parts may require special processing out-

side the normal pick/place and reﬂow manufacturing opera-

tions. See IPC/JEDEC J-STD-020 for appropriate reﬂow

cycles and proﬁles when using lead free solders.

All parts shall be marked with a part number and an index

area. The index area shall identify the location of pin 1.

Note: Four sided gull-wing packages are normally pro-

cessed by solder reﬂow operations. High lead-count ﬁne

pitch parts may require special processing outside the nor-

mal pick/place and reﬂow manufacturing operations.

Separate pick/place, excise, and reﬂow processes are some-

times used as an alternate to normal SMT processes.

11.1 BQFP (PQFP) See Figure 11-1. BQFPs have leads

on a 0.635 mm pitch. IPC-7355 BQFP component outlines

are derived from outlines MO-069 and MO-086 within

JEDEC Publication 95.

11.1.1 Carrier Package Format The carrier package for-

mat for BQFPs is the tube format; however, packaging

trays provide the best handling capability.

11.2 SQFP/QFP The shrink quad ﬂat pack (SQFP) has

been developed for applications requiring low height and

high density. The SQFP, along with the TSOP components,

are frequently used in memory card applications. The

square SQFP/QFP family has leads on a 0.80 mm,

0.65 mm, 0.63 mm, 0.50 mm, 0.40 mm, or 0.30 mm pitch.

IPC-7355 SQFP/QFP component outlines are derived from

outline MO-108 within JEDEC Publication 95.

Two different pin counts are allowed for each package and

the component will still meet the standard (e.g., a 5x5

package with a 0.3 mm pitch can have either 56 or 48 pins,

and still meet EIAJ-7404-1). QFPs are also square and

come in larger pitches (see Figure 11-2).

11.2.1 Carrier Package Format The carrier package for-

mat for ﬂatpacks may be tube format; but, in most

instances, ﬂatpacks are delivered in a carrier tray.

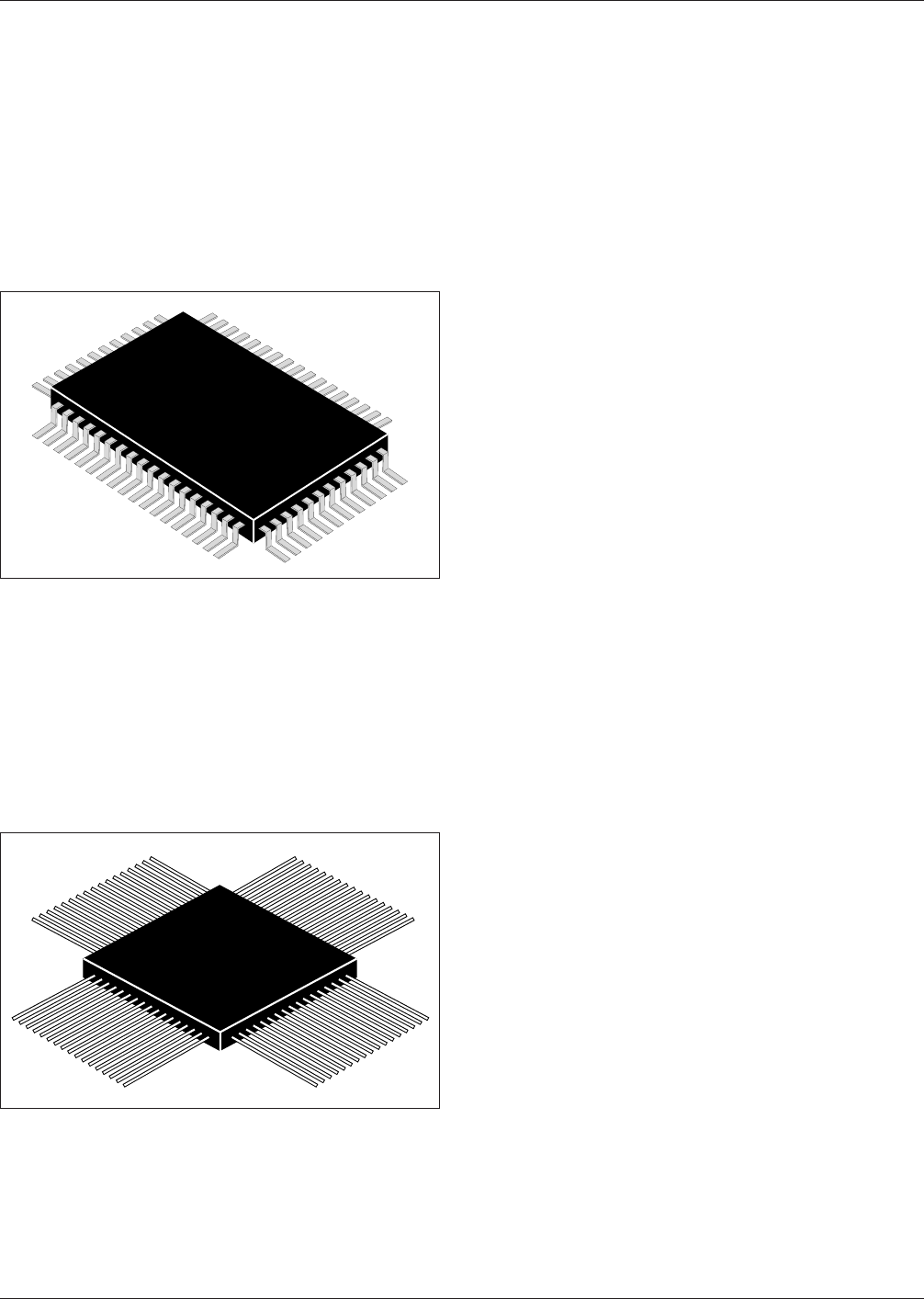

IPC-7351-11-01

Figure 11-1 BQFP Construction

IPC-7351-11-02

Figure 11-2 SQFP and QFP Construction

February 2005 IPC-7351

11.3 QFPR The quad ﬂat pack, rectangular (QFPR) has

been developed for applications requiring low height and

high density. The QFPR, along with the TSOP components,

are frequently used in memory card applications. The

QFPR family has leads on a 0.80 mm, 0.60 mm, 0.50 mm,

0.40 mm, or 0.30 mm pitch. IPC-7355 QFPR component

outlines are derived from outline MO-108 within JEDEC

Publication 95 (see Figure 11-3). Two different pin counts

are allowed for each package and the component will still

meet the standard (e.g., a 5x5 package with a 0.3 mm pitch

can have either 56 or 48 pins, and still meet EIAJ-7404-1).

11.3.1 Carrier Package Format The carrier package for-

mat for ﬂat packs may be tube format; but, in most

instances, ﬂat packs are delivered in a carrier tray.

11.4 CQFP See Figure 11-4 for ceramic quad ﬂat pack

(CQFP) construction. Leaded ceramic chip carriers are

typically supplied with an open cavity for chip placement.

Ceramic or metal lids are soldered, epoxied, or attached

with glass frit around the cavity to provide a hermetic seal.

An exception to this construction is the JEDEC standard

outline MS-044, which has the chip bonded to a lead

frame, which is then sealed between two ceramic bodies

with glass frit, similar to CERDIP fabrication. The ceramic

packages are available in 28- through 196-lead conﬁgura-

tions, with 1.27 mm, 0.80 mm, and 0.63 mm center spac-

ing. Aside from the MS-044 exception, IPC-7355 CQFP

component outlines are derived from outlines MO-084,

MO-104 and MO-114 within JEDEC Publication 95.

Preleaded ceramic chip carriers typically have copper alloy

or Kovar leads that are attached by the manufacturer. Leads

are typically bonded to metallization on the top surface of

the chip carrier. However, leads can be attached to the

package castellations as well. Brazing or thermo-

compression bonding is usually the attachment means. Pre-

leaded packages using lead-frame construction are also

available. These chip carriers have ceramic bodies with two

opposing halves which mate above and below a lead frame

to which the chip has been previously bonded. The seal is

preformed with glass frit.

Leads can be formed to different shapes, such as ‘‘J,’’ ‘‘L,’’

or ‘‘C’’ conﬁgurations. Leads bent in the ‘‘L’’ conﬁguration

are known as ‘‘gullwings.’’

Preleaded chip carriers may be supplied with leads straight

and attached to a common strip. The user must detach the

common strip and form the leads to the desired conﬁgura-

tion. This is done to minimize lead bending during ship-

ping and handling. Leads may be supplied pretinned or

with gold plating, as is often done for packages intended

for a high reliability user.

11.4.1 Carrier Package Format Tube carriers are pre-

ferred for best handling.

12 IPC-7356 J LEADED COMPONENTS, FOUR SIDES

Four-sided J-Lead components, also known as Leaded

Chip Carriers, are either ceramic or plastic packages with

terminations which extend beyond the package outlines.

These terminations typically space the body of the package

from the packaging and interconnect structure for reasons

of cleaning, inspecting, or accommodating differences in

thermal expansion. The leads may be attached to the pack-

age body either before or after chip attachment.

In plastic leaded chip carriers, the primary packaging dis-

tinction concerns the point in which a chip is incorporated

into the package. A premolded package is supplied as a

leaded body with an open cavity for chip attachment. A

postmolded body part typically has the chip attached to a

lead frame with an insulating plastic body molded around

the assembly. It is supplied from the manufacturer without

apertures.

Leaded ceramic chip carriers may be similarly classiﬁed,

but with a difference in category. The distinction concerns

the point at which leads, if desired, are attached to the

ceramic body. A preleaded ceramic chip carrier is supplied

with copper or Kovar leads brazed to metallization integral

with the ceramic package. Typically, the package is sup-

plied with an open cavity for chip attach. A metal or

ceramic lid is epoxied, soldered, or attached with glass frit

IPC-7351-11-03

Figure 11-3 QFPR Construction

IPC-7351-11-04

Figure 11-4 CQFP Construction

IPC-7351 February 2005

标准分享网 www.bzfxw.com 免费下载

to provide a hermetic seal around the chip. After these

steps, the leaded assembly is attached to the printed board.

A postleaded ceramic chip carrier typically has leads sol-

dered to metallization on the ceramic package after chip

attachment. These leads may take the form of edge clips or

solder columns. Incorporation of leads into the assembly

typically occurs immediately prior to board attachment.

High lead-end coplanarity in surface-mounted lead chip

carriers is an important factor in reliable solder attachment

to the printed board. Planarity may be measured from the

lowest three leads of a leaded package. Coplanarity of

0.1 mm [0.004 in] maximum is recommended with 0.05

mm [0.002 in] preferred.

End terminations should be solder coated with a tin/lead

alloy or a lead free equivalent. The solder should contain

between 58 to 68% tin. Solder may be applied to the ter-

mination by hot dipping or by plating from solution. Plated

solder terminations should be subjected to a postplating

reﬂow operation to fuse the solder. The tin/lead ﬁnish

should be at least 0.0075 mm [0.0003 in] thick.

The termination shall be symmetrical, and shall not have

nodules lumps, protrusions, etc., that compromise the sym-

metry or dimensional tolerances of the part. The end termi-

nation shall cover the ends of the components, and shall

extend out to the top and bottom of the component.

Solder ﬁnish applied over precious metal electrodes shall

have a diffusion-barrier layer between the electrode metal-

lization and the solder ﬁnish. The barrier layer should be

nickel or an equivalent diffusion barrier, and should be at

least 0.00125 mm [0.00005 in] thick.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

For marking, all parts shall be marked with a part number

and ‘‘Pin 1’’ location. ‘‘Pin 1’’ location may be molded into

the plastic body.

A carrier package format consisting of bulk rods, 24 mm

tape/8-12 mm pitch is preferred for best handling. Tube

carriers are also used.

Parts should be capable of withstanding ten cycles through

a standard reﬂow system operating at 215 °C [419 °F].

Each cycle shall consist of 60 seconds exposure at 215 °C

[419 °F]. Parts must also be capable of withstanding a

minimum of 10 seconds immersion in molten solder at

260 °C [500 °F]. See IPC/JEDEC J-STD-020 for appropri-

ate reﬂow cycles and proﬁles when using lead free solders.

12.1 PLCC Plastic leaded chip carriers (PLCC) are

employed where a hermetic seal is not required. Other con-

straints include limited temperature range (typically 0 °C

[32 °F] or 70 °C [158 °F]) and nominal environmental pro-

tection. As with plastic DIPs, they have the advantage of

low cost as compared to ceramic packages (see Figure

12-1).

12.1.1 Premolded Plastic Chip Carriers The premolded

plastic chip carrier was designed to be connected to the

P&I substrate by means of a socket. Spring pressure on

both sides of the package is intended to constrain move-

ment as well as allow for substrate warpage as high as

0.5%. Solder attach to the P&I substrate is also possible.

The design is also intended to make use of silicone encap-

sulant technology for chip coverage and protection.

12.1.2 Postmolded Plastic Chip Carriers The post-

molded plastic leaded chip carrier is composed of a com-

posite metal/dielectric assembly that includes a conductor

lead frame and a molded insulating body. Compared to the

premolded package which has an aperture for mounting

microelectronic components, the postmolded package

comes complete with no apertures. In both types of plastic

chip carriers, all necessary plating operations are per-

formed by the package manufacturer to eliminate tinning or

plating by the user.

The Joint Device Engineering Council (JEDEC) deﬁnes the

Type A Leaded Chip Carrier as a plastic package with leads

wrapped down and around the body on all four sides. This

package can be either directly mounted to a printed wiring

board or used with a socket. It is available with 28, 44, 52,

68, 84, 100, or 124 leads. This family is based on 1.27 mm

lead pitch. The original mechanical outline drawing of this

package was deﬁned based on a premolded package. How-

ever, actual construction is not speciﬁed and the package

could be of postmolded construction.

Postmolded packages which have J-lead conﬁgurations and

whose outlines are derived from outline MO-047 in JEDEC

Publication are available in 20-, 28-, 44-, 52-, 68-, 84-,

100- and 124-lead counts with the same spacing.

12.2 PLCCR Plastic leaded chip carriers, rectangular

(PLCCR) are employed where a hermetic seal is not

required. Other constraints include limited temperature

IPC-7351-12-01

Figure 12-1 PLCC Construction

February 2005 IPC-7351
