range (typically 0 °C [32 °F] or 70 °C [158 °F]) and nomi- nal environmental protection. As with plastic DIPs, they have the advantage of low cost as compared to ceramic packages (see Figure 12-2). 12.2.1 Premolded Plast…

to provide a hermetic seal around the chip. After these

steps, the leaded assembly is attached to the printed board.

A postleaded ceramic chip carrier typically has leads sol-

dered to metallization on the ceramic package after chip

attachment. These leads may take the form of edge clips or

solder columns. Incorporation of leads into the assembly

typically occurs immediately prior to board attachment.

High lead-end coplanarity in surface-mounted lead chip

carriers is an important factor in reliable solder attachment

to the printed board. Planarity may be measured from the

lowest three leads of a leaded package. Coplanarity of

0.1 mm [0.004 in] maximum is recommended with 0.05

mm [0.002 in] preferred.

End terminations should be solder coated with a tin/lead

alloy or a lead free equivalent. The solder should contain

between 58 to 68% tin. Solder may be applied to the ter-

mination by hot dipping or by plating from solution. Plated

solder terminations should be subjected to a postplating

reﬂow operation to fuse the solder. The tin/lead ﬁnish

should be at least 0.0075 mm [0.0003 in] thick.

The termination shall be symmetrical, and shall not have

nodules lumps, protrusions, etc., that compromise the sym-

metry or dimensional tolerances of the part. The end termi-

nation shall cover the ends of the components, and shall

extend out to the top and bottom of the component.

Solder ﬁnish applied over precious metal electrodes shall

have a diffusion-barrier layer between the electrode metal-

lization and the solder ﬁnish. The barrier layer should be

nickel or an equivalent diffusion barrier, and should be at

least 0.00125 mm [0.00005 in] thick.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

For marking, all parts shall be marked with a part number

and ‘‘Pin 1’’ location. ‘‘Pin 1’’ location may be molded into

the plastic body.

A carrier package format consisting of bulk rods, 24 mm

tape/8-12 mm pitch is preferred for best handling. Tube

carriers are also used.

Parts should be capable of withstanding ten cycles through

a standard reﬂow system operating at 215 °C [419 °F].

Each cycle shall consist of 60 seconds exposure at 215 °C

[419 °F]. Parts must also be capable of withstanding a

minimum of 10 seconds immersion in molten solder at

260 °C [500 °F]. See IPC/JEDEC J-STD-020 for appropri-

ate reﬂow cycles and proﬁles when using lead free solders.

12.1 PLCC Plastic leaded chip carriers (PLCC) are

employed where a hermetic seal is not required. Other con-

straints include limited temperature range (typically 0 °C

[32 °F] or 70 °C [158 °F]) and nominal environmental pro-

tection. As with plastic DIPs, they have the advantage of

low cost as compared to ceramic packages (see Figure

12-1).

12.1.1 Premolded Plastic Chip Carriers The premolded

plastic chip carrier was designed to be connected to the

P&I substrate by means of a socket. Spring pressure on

both sides of the package is intended to constrain move-

ment as well as allow for substrate warpage as high as

0.5%. Solder attach to the P&I substrate is also possible.

The design is also intended to make use of silicone encap-

sulant technology for chip coverage and protection.

12.1.2 Postmolded Plastic Chip Carriers The post-

molded plastic leaded chip carrier is composed of a com-

posite metal/dielectric assembly that includes a conductor

lead frame and a molded insulating body. Compared to the

premolded package which has an aperture for mounting

microelectronic components, the postmolded package

comes complete with no apertures. In both types of plastic

chip carriers, all necessary plating operations are per-

formed by the package manufacturer to eliminate tinning or

plating by the user.

The Joint Device Engineering Council (JEDEC) deﬁnes the

Type A Leaded Chip Carrier as a plastic package with leads

wrapped down and around the body on all four sides. This

package can be either directly mounted to a printed wiring

board or used with a socket. It is available with 28, 44, 52,

68, 84, 100, or 124 leads. This family is based on 1.27 mm

lead pitch. The original mechanical outline drawing of this

package was deﬁned based on a premolded package. How-

ever, actual construction is not speciﬁed and the package

could be of postmolded construction.

Postmolded packages which have J-lead conﬁgurations and

whose outlines are derived from outline MO-047 in JEDEC

Publication are available in 20-, 28-, 44-, 52-, 68-, 84-,

100- and 124-lead counts with the same spacing.

12.2 PLCCR Plastic leaded chip carriers, rectangular

(PLCCR) are employed where a hermetic seal is not

required. Other constraints include limited temperature

IPC-7351-12-01

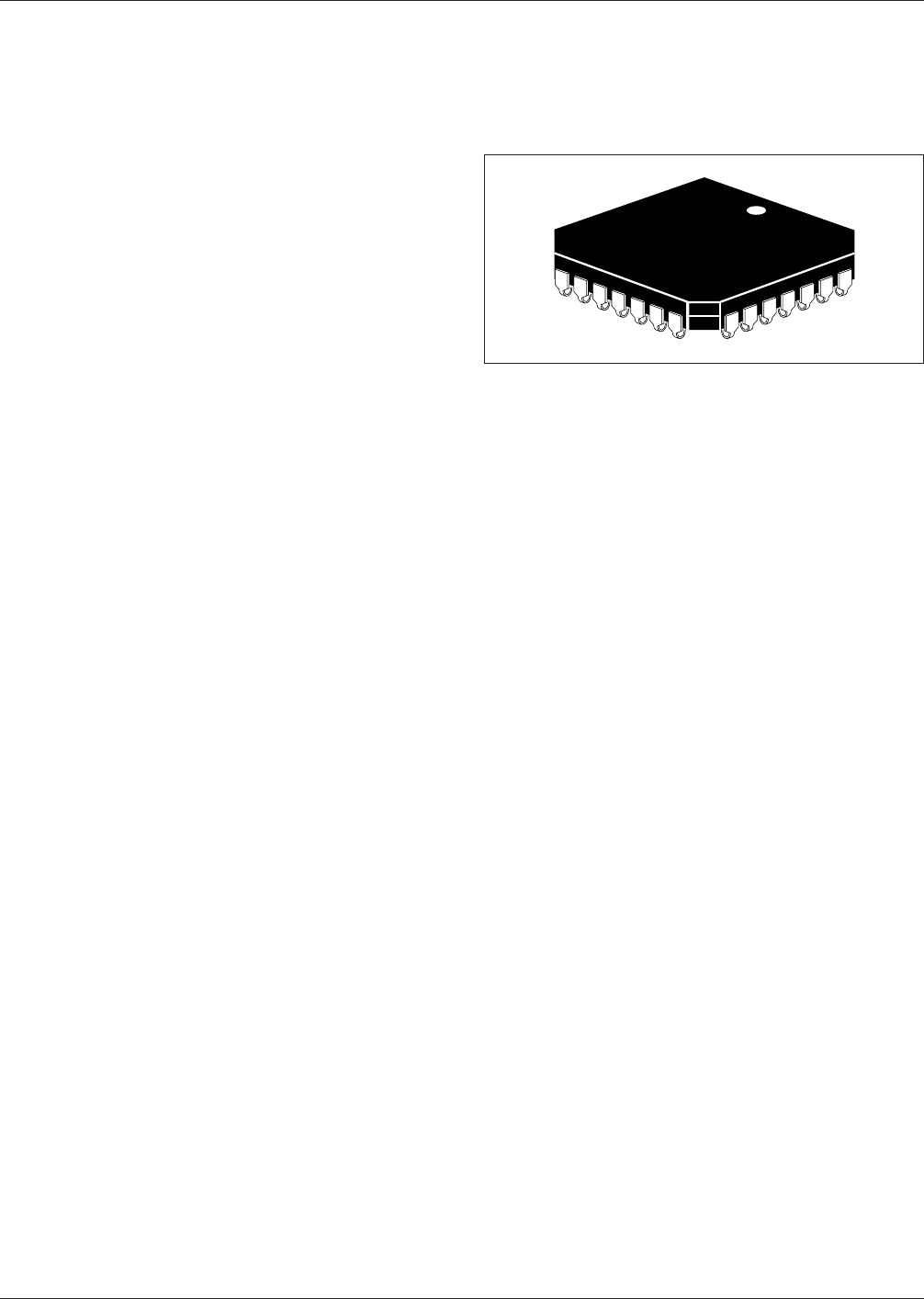

Figure 12-1 PLCC Construction

February 2005 IPC-7351

range (typically 0 °C [32 °F] or 70 °C [158 °F]) and nomi-

nal environmental protection. As with plastic DIPs, they

have the advantage of low cost as compared to ceramic

packages (see Figure 12-2).

12.2.1 Premolded Plastic Chip Carriers The premolded

plastic chip carrier was designed to be connected to the

P&I substrate by means of a socket. Spring pressure on

both sides of the package is intended to constrain move-

ment as well as allow for substrate warpage as high as

0.5%. Solder attach to the P&I substrate is also possible.

The design is also intended to make use of silicone encap-

sulant technology for chip coverage and protection.

12.2.2 Postmolded Plastic Chip Carriers The post-

molded plastic leaded chip carrier is composed of a com-

posite metal/dielectric assembly that includes a conductor

lead frame and a molded insulating body. Compared to the

premolded package which has an aperture for mounting

microelectronic components, the postmolded package

comes complete with no apertures. In both types of plastic

chip carriers, all necessary plating operations are per-

formed by the package manufacturer to eliminate tinning or

plating by the user.

The Joint Electron Device Engineering Council (JEDEC)

deﬁnes the Type A Leaded Chip Carrier as a plastic pack-

age with leads wrapped down and around the body on all

four sides. This package can be either directly mounted to

a printed wiring board or used with a socket. It is available

with 28, 44, 52, 68, 84, 100, or 124 leads. This family is

based on 1.27 mm lead pitch. The original mechanical out-

line drawing of this package was deﬁned based on a pre-

molded package. However, actual construction is not speci-

ﬁed and the package could be of postmolded construction.

Postmolded packages which have J-lead conﬁgurations and

whose outlines are derived from outline MO-047 in JEDEC

Publication are available in 20-, 28-, 44-, 52-, 68-, 84-,

100- and 124-lead counts with the same spacing.

13 IPC-7357 POST (DIP) LEADS, TWO SIDES

A method of modifying DIPs for surface mounting is the

‘‘I’’ mounting technique. This involves simply cutting the

DIP leads to a short length and placing the device on a pat-

tern of lands to be soldered along with the other surface

mounted devices. Construction is usually made of plastic

or ceramics (see Figure 13-1).

13.1 Termination Materials End terminations should be

solder coated with a tin/lead alloy or a lead free equivalent.

The solder should contain between 58 to 68% tin. Solder

may be applied to the termination by hot dipping or by

plating from solution. Plated solder terminations should be

subjected to a postplating reﬂow operation to fuse the sol-

der. The tin/lead ﬁnish should be at least 0.0075 mm

[0.0003 in] thick.

The termination shall be symmetrical, and shall not have

nodules lumps, protrusions, etc., that compromise the sym-

metry or dimensional tolerances of the part. The end termi-

nation shall cover the ends of the components, and shall

extend out to the top and bottom of the component.

Solder ﬁnish applied over precious metal electrodes shall

have a diffusion-barrier layer between the electrode metal-

lization and the solder ﬁnish. The barrier layer should be

nickel or an equivalent diffusion barrier, and should be at

least 0.00125 mm [0.00005 in] thick.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

13.2 Marking Parts shall be marked with the part num-

ber and a date code. In addition, pin 1 shall be identiﬁed.

13.3 Carrier Package Format Carrier format may be

tubes or as agreed to between user and vendor.

13.4 Resistance to Soldering The parts should be

capable of withstanding ten cycles through a standard

reﬂow system operating at 215 °C [419 °F]. Each cycle

shall consist of a minimum of 60 seconds exposure at

215T°C [419 °F]. See IPC/JEDEC J-STD-020 for appropri-

ate reﬂow cycles and proﬁles when using lead free solders.

IPC-7351-12-02

Figure 12-2 PLCCR Construction

IPC-7351-13-01

Figure 13-1 DIP Construction

IPC-7351 February 2005

标准分享网 www.bzfxw.com 免费下载

14 IPC-7358 AREA ARRAY COMPONENTS (BGA, FBGA,

CGA)

The area array device family includes square and rectangu-

lar package conﬁgurations and is furnished in a variety of

base materials. This device family includes Ball Grid Array

(BGA) parts (rigid, ﬂexible or ceramic substrate); Fine

Pitch Ball Grid Array (FBGA) parts (rigid or ﬂexible sub-

strate); and Column Grid Array (CGA) parts (ceramic sub-

strates).

The area array device families are generally marked with

the manufacturer’s name or symbol, part number, date code

and orientation mark in the corner near contact location A1.

Area array devices may be furnished in matrix tray or tape

and reel packaging formats. Tape and reel packaging is

generally preferred for high volume assembly. Plastic trays

and reels must be transported and stored in moisture proof

containers. When plastic array devices are exposed to the

environment for an extended period of time, moisture may

absorb into the device. The absorbed moisture, if excessive,

may expand (when exposed to higher temperatures typical

of reﬂow solder process), causing cracking and other

physical damage.

Area array devices are typically attached to the host inter-

face structure using eutectic solder alloy, however, optional

methods of attachment may include electrically conductive

epoxy or polymer. There is also a process difference

between the solder application for those terminations that

collapse slightly during soldering and those terminations

that do not collapse where a signiﬁcant amount of addi-

tional solder paste is required. Array package assembly

should not require specialized equipment or processes

beyond that used for vision assisted SMT pick and place.

In conjunction with the proper land size, the volume of

solder paste application is a fundamental parameter to keep

under control in order to have a good reﬂow quality yield

and a reliable solder joint. Paste volume deposition may be

a matter of SPC adoption at print process step.

14.1 Area Array Configurations For additional detail on

package variations, mechanical feature dimensions and

allowable physical tolerances beyond the following sec-

tional descriptions, refer to the JEDEC Publication JEP95

and IPC-7095.

14.1.1 BGA Packages Figure 14-1 shows the elements

of a BGA. JEDEC Publication JEP95, Section 4.14, deﬁnes

a Ball Grid Array Package family. A Ball Grid Package

(BGA) is a square or rectangular 1.50 mm, 1.27 mm, &

1.00 mm pitch package with an array of metallic balls or

columns on the underside of the package. The main body

of the package has a metallized circuit pattern applied to a

dielectric structure. To this package body, the semiconduc-

tor die(s) is attached to either the top or bottom surface. On

the underside of the dielectric is an array pattern of metal-

lized balls/columns which form the mechanical and electri-

cal connection from the package body to a mating feature

such as a printed circuit board. The array contact material

will allow conventional reﬂow solder or other attachment

processes. The surface that contains the die may be encap-

sulated by various techniques to protect the semiconductor.

Figure 14-2 compares the top surface attached die to the

cavity down conﬁguration.

14.1.1.1 Termination Materials The BGA ball termina-

tion may consist of a variety of metal alloys. Some of these

include balls with some lead content such as 37Pb63Sn,

90Pb10Sn, 95Pb5Sn, while others do not contain lead such

as Sn96.5Ag3.0Cu0.5, Sn96.5Ag3.5, Sn-9Zn-0.003Al. It is

a good recommendation to use the same alloy, in a paste

form, to attach the BGA balls to the mounting substrate;

however some of the balls that do not collapse require a

paste that is more conducive to reﬂow temperatures.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

14.1.1.2 Process Considerations BGAs are usually

processed using standard reﬂow solder processes. Parts

should be capable of withstanding three cycles through a

IPC-7351-14-01

Figure 14-1 Ball Grid Array (BGA) IC Package Example

IPC-7351-14-02

Figure 14-2 Example of Plastic BGA Package

Conﬁgurations

February 2005 IPC-7351
