8.1.1 Basic Construction The resistive material is applied to a ceramic substrate and terminated symmetri- cally at both ends with a ‘ ‘wrap around’ ’ metal U-shaped band. The resistive material is face-up, thus trimming…

perhaps for longer periods, is then required which, in turn,

can lead to damage to components or the board. The fact

that the solder joints may not reach reﬂow temperature is

no guarantee that the component or the board have not

been overheated. Heatsinking effects is a design problem

which must be tackled at the printed board layout stage.

Whenever possible, any component termination which may

not rework, including leaded-through hole type, should be

thermally isolated from any ground plane or integral heat-

sink by a short length of copper conductor.

7.6.2 Dependence on Printed Board Material Type To

ensure minimum damage to the printed board during

rework, base laminate should be a good quality resin and

reinforcement type from a high copper peel strength mate-

rial. High packing density is required. The use of inferior

laminates can easily lead to problems with lands peeling

away during rework. This may result in either scrapping of

complete assemblies or expensive repair of damaged cop-

per area. For boards having high thermal mass such as

middle-core types or those with large area ground planes,

to avoid employing a tool with high heat input rate, the use

of a hot plate to provide background heating is essential.

7.6.3 Dependence on Copper Land and Conductor Lay-

out

The space on a board is at a premium or single con-

ductors must be kept very short. Designers will often route

a conductor between adjacent device land space at a pitch

of the component device being placed. In such cases, con-

ductors should be covered with a soldermask to minimize

the risk of lifting conductors during rework operations.

Routing conductors between lands at 1.0 mm pitch and

below increases the risk of damage to the conductors dur-

ing the rework operation. For more detail regarding devel-

opment, planning and trouble shooting the steps involved

in the process of producing surface mount assemblies, refer

to IPC-S-816.

8 IPC-7352 DISCRETE COMPONENTS

Discrete components are generally purchased in 8 mm and

12 mm wide tape and reel (see Figure 8-1). EIA-481 is the

applicable speciﬁcation for tape and reel. Consult your

manufacturers guide for the packaging availability of your

component.

Parts susceptible to damage by electrostatic discharge shall

be supplied in a manner that prevents such damage. Tape

peel strength shall be 40 grams ± 30 grams. Peel from the

top for the top cover of the tape. Reel materials used in the

construction of the reel shall be easily disposable metal,

chip board, styrene plastic or equivalent. Reels shall not

cause deterioration of the components or their solderability.

Reels must be able to withstand high humidity conditions.

Parts must be capable of withstanding cleaning processes

currently used by board assembly manufacturers. This may

include as a minimum four-minute exposures to solvent

cleaning solutions at 40 °C [104 °F], plus a minimum of a

one-minute exposure to ultrasonic immersion at a fre-

quency of 40 kHz and a power of 100 watts per square

foot. Alkaline systems in use shall also not damage parts or

remove markings.

End terminations should be solder coated with a tin/lead

alloy or a lead free equivalent. The solder should contain

between 58 to 68% tin. Solder may be applied to the ter-

mination by hot dipping or by plating from solution. Plated

solder terminations should be subjected to a postplating

reﬂow operation to fuse the solder. The tin/lead ﬁnish

should be at least 0.0075 mm [0.0003 in] thick.

The termination shall be symmetrical, and shall not have

nodules, lumps, protrusions, etc., that compromise the sym-

metry or dimensional tolerances of the part. The end termi-

nation shall cover the ends of the components, and shall

extend out to the top and bottom of the component.

Solder ﬁnish applied over precious metal electrodes shall

have a diffusion-barrier layer between the electrode metal-

lization and the solder ﬁnish. The barrier layer should be

nickel or an equivalent diffusion barrier, and should be at

least 0.00125 mm [0.00005 in] thick.

For lead free ﬁnishes a combination of tin, silver and cop-

per is the prevalent replacement for the tin/lead ﬁnish. Sol-

derability testing should be applied per IPC-J-STD-002 to

determine attachment capability of the applicable compo-

nent type.

The following sections for each component family provide

information on basic component construction, termination

materials, marking, carrier package format and resistance

to soldering.

8.1 Chip Resistors (RESC) A variety of values exist for

resistors. This section describes the most common types.

IPC-7351-8-01

Figure 8-1 Packaging of Discrete Components

Top Cover

Tape

Sprocket

Hole

Component

Cavity

Embossed Carrier Tape

Sprocket Hole

Embossed

Carrier Tape

Component Cavity

▼

IPC-7351 February 2005

标准分享网 www.bzfxw.com 免费下载

8.1.1 Basic Construction The resistive material is

applied to a ceramic substrate and terminated symmetri-

cally at both ends with a ‘‘wrap around’’ metal U-shaped

band. The resistive material is face-up, thus trimming to

close tolerances is possible. Since most equipment uses a

vacuum-type pickup head, it is important that the surface of

the resistor is made ﬂat after trimming, otherwise vacuum

pickup might be difficult (see Figure 8-2).

8.1.2 Marking Resistors equal to or larger than 2012

[0805] are labeled. Resistors smaller than 1608 [0603] are

generally unlabeled.

8.1.3 Carrier Package Format Bulk rods, 8 mm tape/4

mm pitch is preferred for best handling. Tape and reel

speciﬁcations provide additional requirements.

8.1.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

8.2 Chip Capacitors (CAPC) A variety of values exist for

capacitors. This section describes the most common types.

8.2.1 Basic Construction Multilayer ceramic capacitors

use substrate materials such as alumina for hybrid circuits

and porcelainized metal. The monolithic construction used

in producing these chips results in a solid block of ceramic

with an enclosed electrode system and metallized ends for

circuit attachment. This solid block is rugged and capable

of withstanding the harsh environment and treatment asso-

ciated with manufacturing processes (see Figure 8-3). Elec-

trodes are given a common terminal by coating the chip

ends with a precious metal-glass formulation suspended in

an organic vehicle. Consecutive drying and ﬁring elimi-

nates the organic components and affects a bond between

the ceramic dielectric and glass constituent in the termina-

tion.

8.2.2 Marking Ceramic capacitors are typically

unmarked.

8.2.3 Carrier Package Format Bulk rods, 8 mm tape/4

mm pitch is preferred for best handling. Tape and reel

speciﬁcations provide additional requirements.

8.2.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F].

Caution should be exercised when using the 4564 [1825]

capacitor mounted on organic substrates due to CTE mis-

match if the assembly sees wide temperature swings in the

assembly process or end use. See IPC/JEDEC J-STD-020

for appropriate reﬂow cycles and proﬁles when using lead

free solders.

8.3 Inductors (INDC, INDM, INDP) A variety of values

exist for inductors. This section describes the most com-

mon types.

8.3.1 Basic Construction At the time of publication,

there was no industry standard document for leadless

inductors. The dimensions were taken from manufacturer’s

catalogs, but only when at least two component vendors

manufacture the same package. However, the same induc-

tor value may not be available in the same package from

the two manufacturers (see Figure 8-4).

8.3.2 Marking Parts are available with or without

marked inductance values.

8.3.3 Carrier Package Format Bulk rods, 8 mm tape/4

mm pitch is preferred for best handling. Tape and reel

speciﬁcations provide additional requirements.

8.3.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

8.4 Tantalum Capacitors (CAPT) A variety of values

exist for tantalum capacitors. This section describes the

most common types.

IPC-7351-8-02

Figure 8-2 Chip Resistor Construction

Resistor

Alumina Chip

Platinum-Silver

Wrap-Around

Termination

Wire Bond Construction

Glass

Passivation

February 2005 IPC-7351

8.4.1 Basic Construction See Figure 8-5.

8.4.2 Marking Parts are available with or without

marked capacitance values.

8.4.3 Carrier Package Format Bulk rods, 8 mm tape/4

mm pitch is preferred for best handling. Tape and reel

speciﬁcations provide additional requirements.

8.4.4 Resistance to Soldering Parts should be capable

of withstanding ﬁve cycles through a standard reﬂow sys-

tem operating at 215 °C [419 °F]. Each cycle shall consist

of 60 seconds exposure at 215 °C [419 °F]. Parts must also

be capable of withstanding a minimum of 10 seconds

immersion in molten solder at 260 °C [500 °F]. See IPC/

JEDEC J-STD-020 for appropriate reﬂow cycles and pro-

ﬁles when using lead free solders.

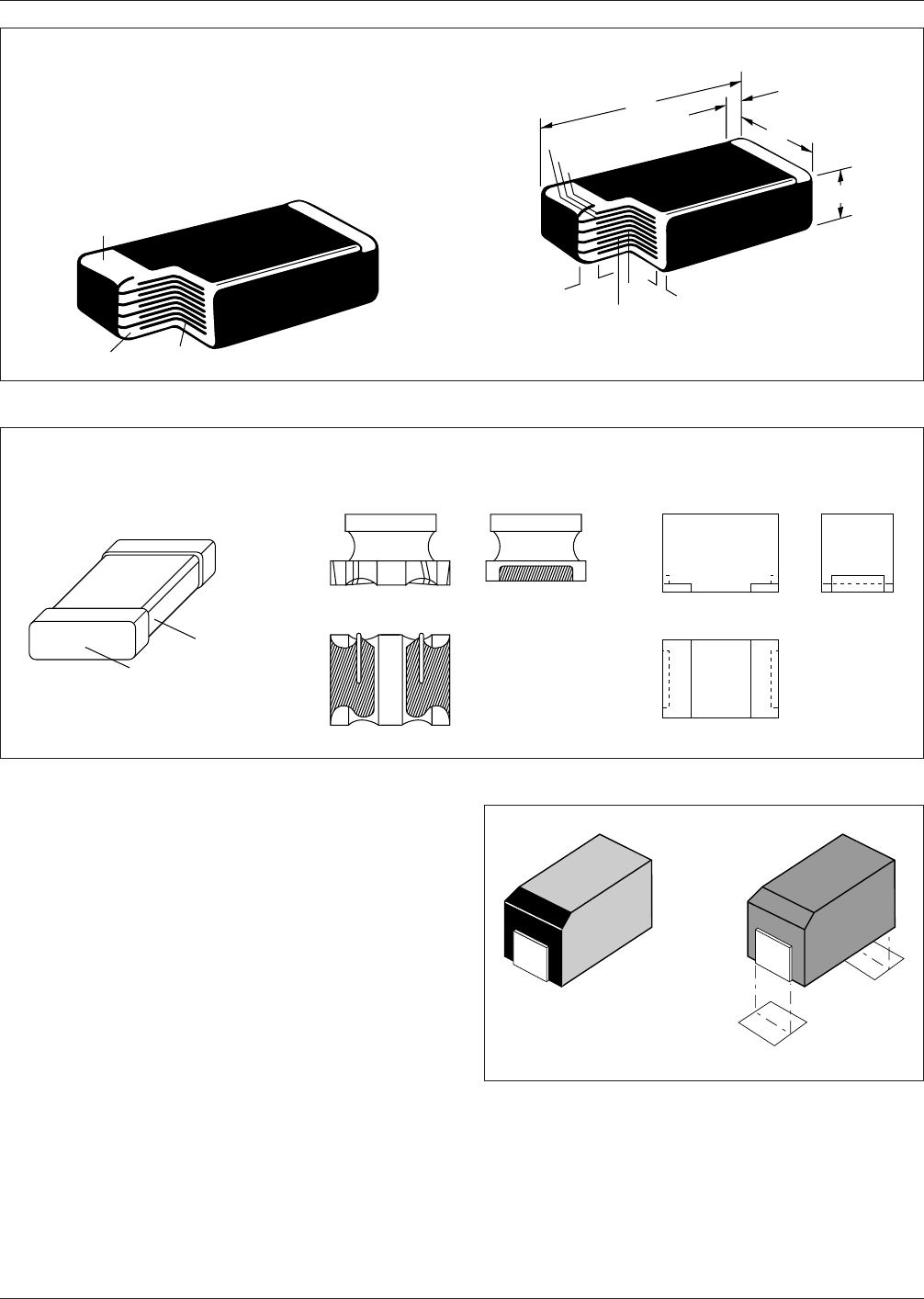

IPC-7351-8-03

Figure 8-3 Chip Capacitor Construction

1. Termination

2. Dielectric

3. Electrode

4. Chip Length

5."A" Electrode Print

6. Electrode Print

7. Cap (Topping Layer)

8. End Margin

9. Base Layer

10. Shim (Active Dielectric Layer)

11. Side Margin

12. Chip Thickness

13. Chip Width

14. Termination Width

2 3

IPC-7351-8-04

Figure 8-4 Inductor Construction

Ferrite

Chip

▼

Precision Wire—Wound Molded

External

Electrode

▼

IPC-7351-8-05

Figure 8-5 Tantalum Capacitor Construction

IPC-7351 February 2005
