21 Tg0742-PM-SO 0301-001 7. Component Library 7. Component Library • • • • • Sheet Layout When the [Control Data] tab is pressed, the "Control Data" tab sheet will appear . Fig. 7 Example of "Control Data&…
20 Tg0742-PM-SO0301-001
6. Operation Data
6. Operation Data
••
••
• Sheet Layout
When the [PCB Data] tab is pressed on the "Operation Data" tab
sheet, the following tab sheet appears.
Fig. 6 "PCB Data" Tab Sheet
••
••
• Sheet Composition
This tab sheet is used for indication or entry of each data.
Refer to "4.1 Basic Operations" in "Section 2"
(the instruction manual (Vol. 3) of the main machine) for the
detailed information on how to enter parameters.
*1 V Bend Detection
V. bend detection function is set.
Enable : V. bend detection function is used.
Disable : V. bend detection function is not used.
*1
21 Tg0742-PM-SO0301-001
7. Component Library
7. Component Library
••
••
• Sheet Layout
When the [Control Data] tab is pressed, the "Control Data" tab
sheet will appear.

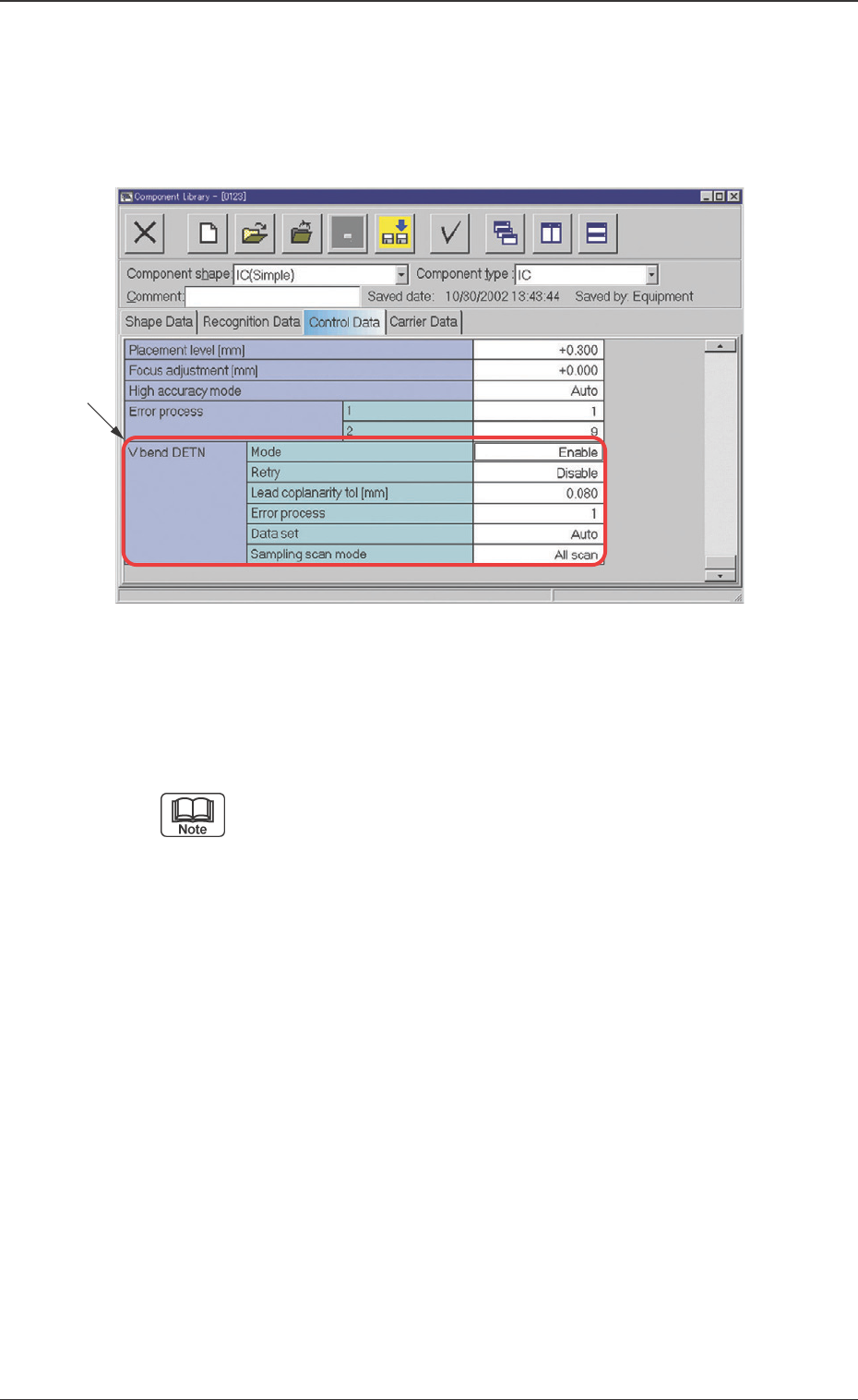

Fig. 7 Example of "Control Data" Tab Sheet (IC (Simple))
••
••
• Sheet Composition
This tab sheet is used for indication or entry of each data.
Refer to "4.1 Basic Operations" in "Section 2" (the instruc-
tion manual (Vol. 3) of the main machine) for the detaild
information on how to enter parameters.
*1 V. bend DETN
Mode
V. bend detection function is set.
Enable : V. bend detection function is used.
Disable : V. bend detection function is not used.
Retry
The retry function is set.
The retry function is to detect a V. bend again, with a different
setting; this when the height for scanning is deviated or the
detection result is NG (no good), due to incorrect setting in V.
bend detection operation.
Lead coplanarity tol [mm]
The tolerance of the height deviation for the Iead is set. If the
V. bend is larger than the set value, it is judged as NG (no
good).
*1
22 Tg0742-PM-SO0301-001
Fig. 8 Example of "Control Data" Tab Sheet (IC (Simple))
7. Component Library
Error process
This function is set so that, after the V. bend detection shows
NG continuously, then the machine should be stopped due to
the error.
Data Setting Range: 1 to 9
1 : When NG occurs once in V. bend detection, the ma-
chine is stopped.
2 : When NG continuously occurs twice, the machine is
stopped.
n : When NG continuously occurs "n" times, the machine
is stopped.
Data set
Auto : Detailed settings are automatically performed.
Manual : Detailed settings can be performed manually.
*2 Items for Detailed Setting
When the V. bend detection data setting is set to "Manual", the
detailed setting items will be displayed.
Slant virtual plane detn
Disable (Default) :
The virtual plane inclination is not to be decided on the basis
of the heights of all leads.
Enable (Manual) :
The virtual plane inclination is to be decided manually on the
basis of the heights of all leads.
*2
