40 Tg0742-PM-SO 0301-001 10.2 "V . Bend T est" Window Fig. 21 "V . Bend Result Graph" Window [File Save] Button The results are saved in the CSV file. CSV Format PGH, PDX, PDY , CNO : List of overall …
39 Tg0742-PM-SO0301-001
Each value for X, Y, Height, X Diff, Y Diff and Qty is
shown in µm. For X and Y, the direction is the same as
that of the X-axis and Y-axis, respectively. For Height
and Qty, when the terminal is at its upper position from
the reference, the value becomes a negative or minus
value. For the Qty, the reference plane is regarded as
"0". When the terminal is found at its lower position
from the reference plane, the value becomes positive.
When the terminal is found at the upper position from
the reference plane, the value becomes negative.
10.2 "V. Bend Test" Window
V. Bend Test Detailed Result Indication
Pin No. :
The terminal No. is indicated.
X (µm) :
The positional coordinate X (component center reference)
for each terminal is displayed.
Y (µm) :
The positional coordinate Y (component center reference)
for each terminal is displayed.
Height (µm) :
The measured value for the height of each terminal is
displayed.
X Diff (µm) :
Indicates the deviation amount in direction X away from the
ideal position of each terminal. This ideal position is de-
cided based on the component size.
Y Diff (µm) :
Indicates the deviation amount in direction Y away from the
ideal position for each terminal. This ideal position is de-
cided based on the component size.
Qty (µm) :
The deviation amount from the reference plane is found,
based on XY position and heights of all terminals.
40 Tg0742-PM-SO0301-001
10.2 "V. Bend Test" Window

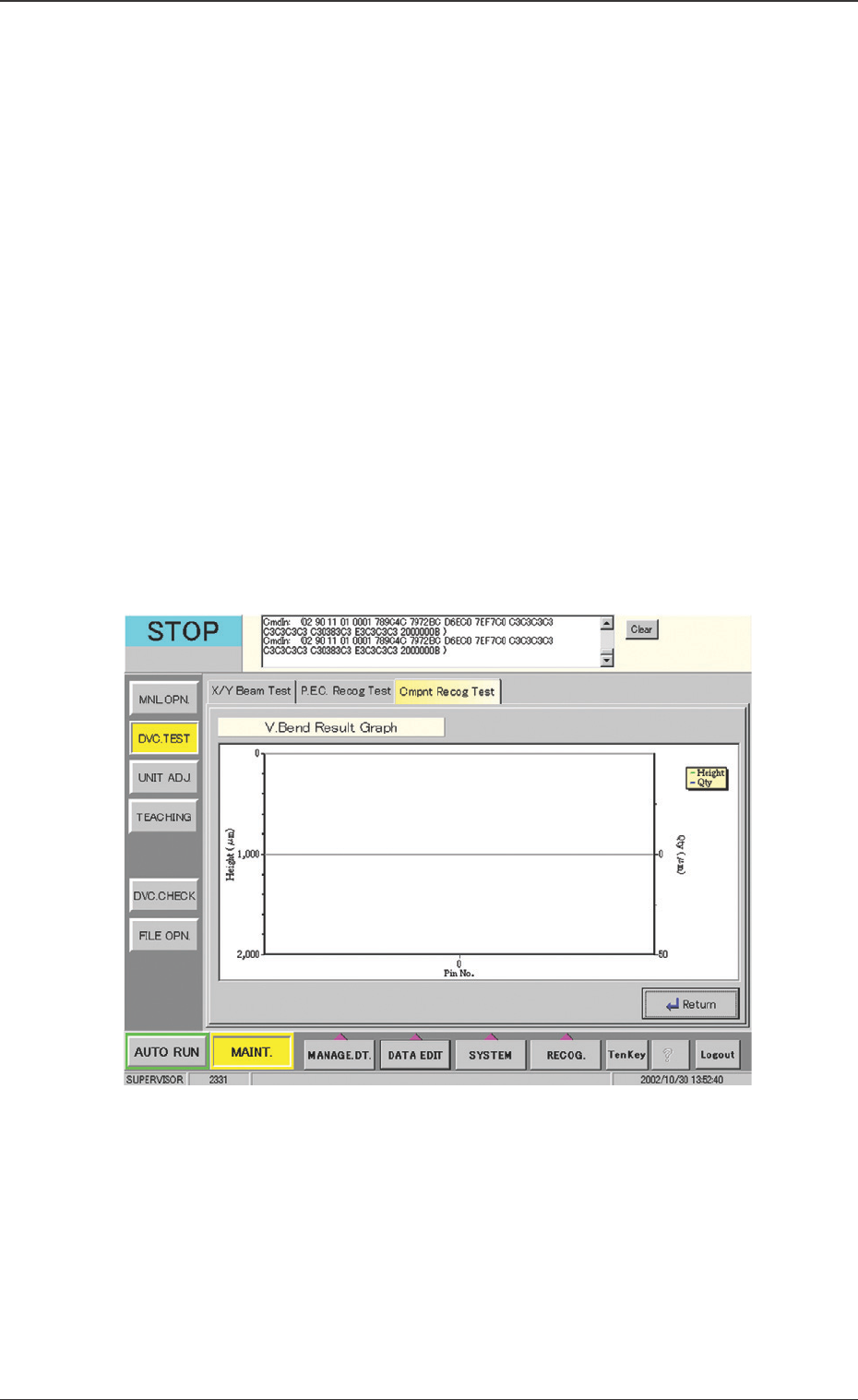

Fig. 21 "V. Bend Result Graph" Window
[File Save] Button
The results are saved in the CSV file.
CSV Format
PGH, PDX, PDY, CNO : List of overall results
889, 22, -56, 120 : Overall results
CX, CY, CZ, DX, DY, DZ, JG : List of results
5800, -8200, 930, -20, -3, -5, 0, : Results for 1 Pin
5400, -8178, 930, -20, 10, -5, 0, : Results for 2 Pin
5000, -8155, 927, -20, 23, -7, 0, : Results for 3 Pin
4600, -8145, 927, -20, 20, -6, 0, : Results for 4 Pin
4200, -8145, 929, -20, 10, -4, 0, : Results for 5 Pin
[V. Bend Result Graph] Button
The V. bend data for each terminal is graphically displayed.
The measured lead height and V. bend amount from the refer-
ence plane, are displayed.
When this button is pressed, the following window appears.
41 Tg0742-PM-SO0301-001
10.2 "V. Bend Test" Window
[Error Data] Button
When the detection result is decided as NG, the error data is
displayed.
When this button is pressed, the following window appears.

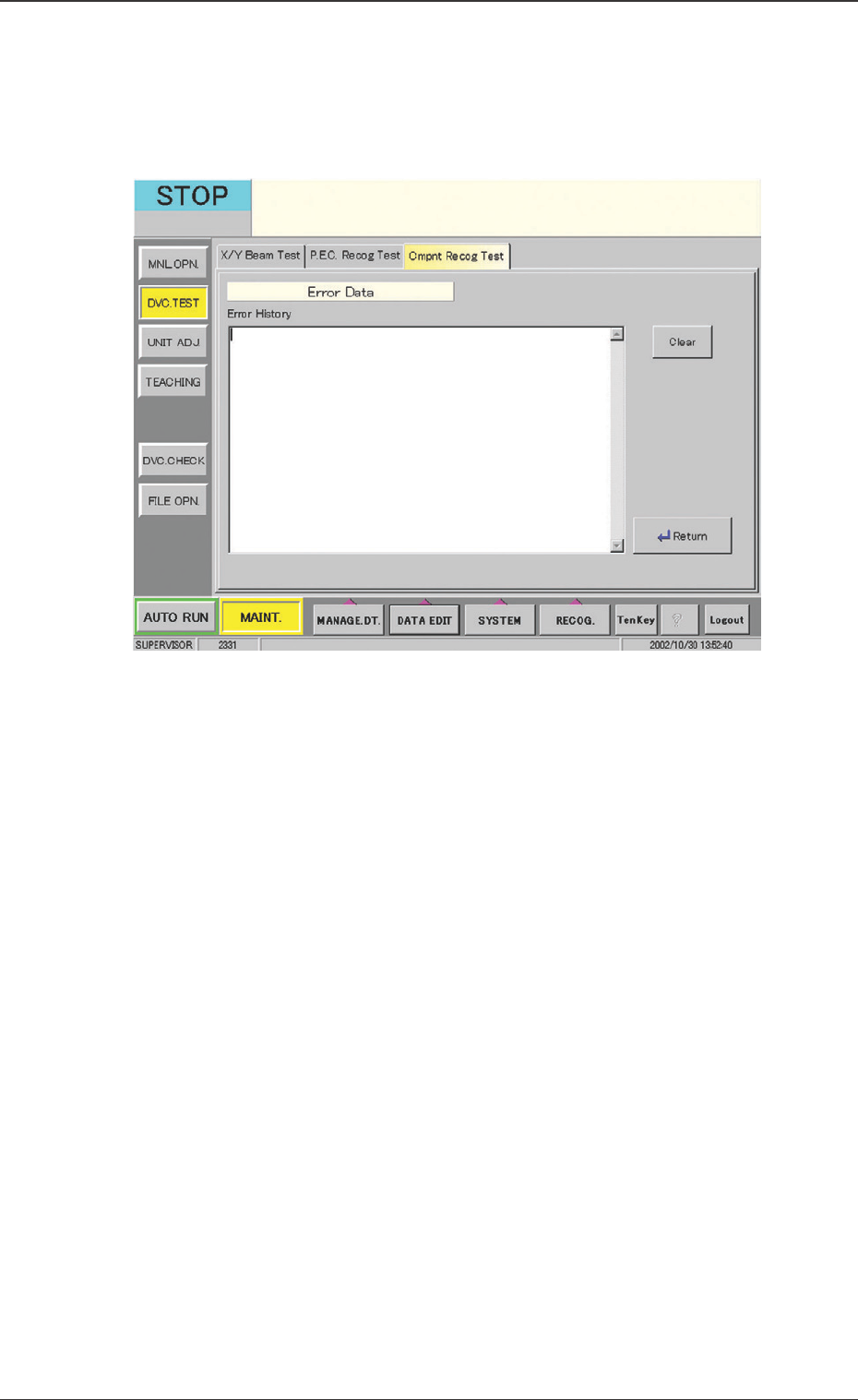

Fig. 22 "Error Data" Window
