[Scan Mode] Button

The scanning mode for measurement is set. When this button

is pressed, the following window appears.

10.2 "V. Bend Test" Window

Fig. 18 Scan Movement in Each Scan Mode

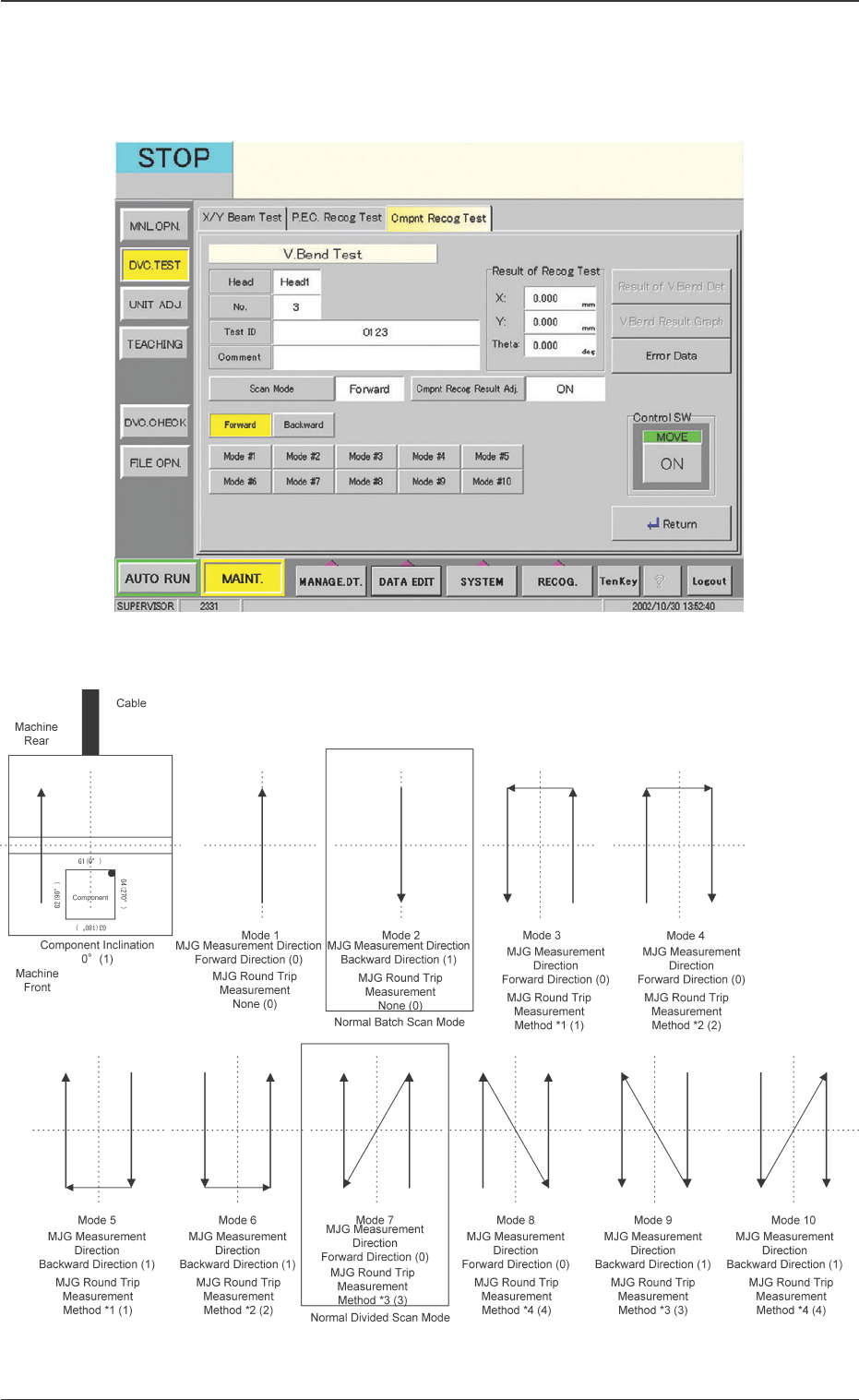

Fig. 17 "Scan Mode" Window

37 Tg0742-PM-SO

Fig. 19 "Component Recog Test" Window

[Cmpnt Recog Result Adj.] Button

Using the camera, the positional adjustment is set, based on

the component recognition results. When this button is

pressed, the following window appears.

Operation Procedure

(1) After pressing the [V. Bend Detection] button, press the

"Control SW" [ON] button.

(2) When the [MOVE] switch is pressed, the V. bend is

detected.

[Send Cmd of Dspl. Image] Button

When the [Send Cmd of Dspl. Image] button is pressed, the

command sends the detection’s resultant image to the monitor

in the V. bend detection unit.

Pressing [Ctrl] key twice switches the display to the

monitor display in the V. bend detection unit.

0301-001

10.2 "V. Bend Test" Window

38 Tg0742-PM-SO

[Result of V. Bend Detection] Button

The detection results for each lead are displayed. When this

button is pressed, the following window appears.

0301-001

10.2 "V. Bend Test" Window

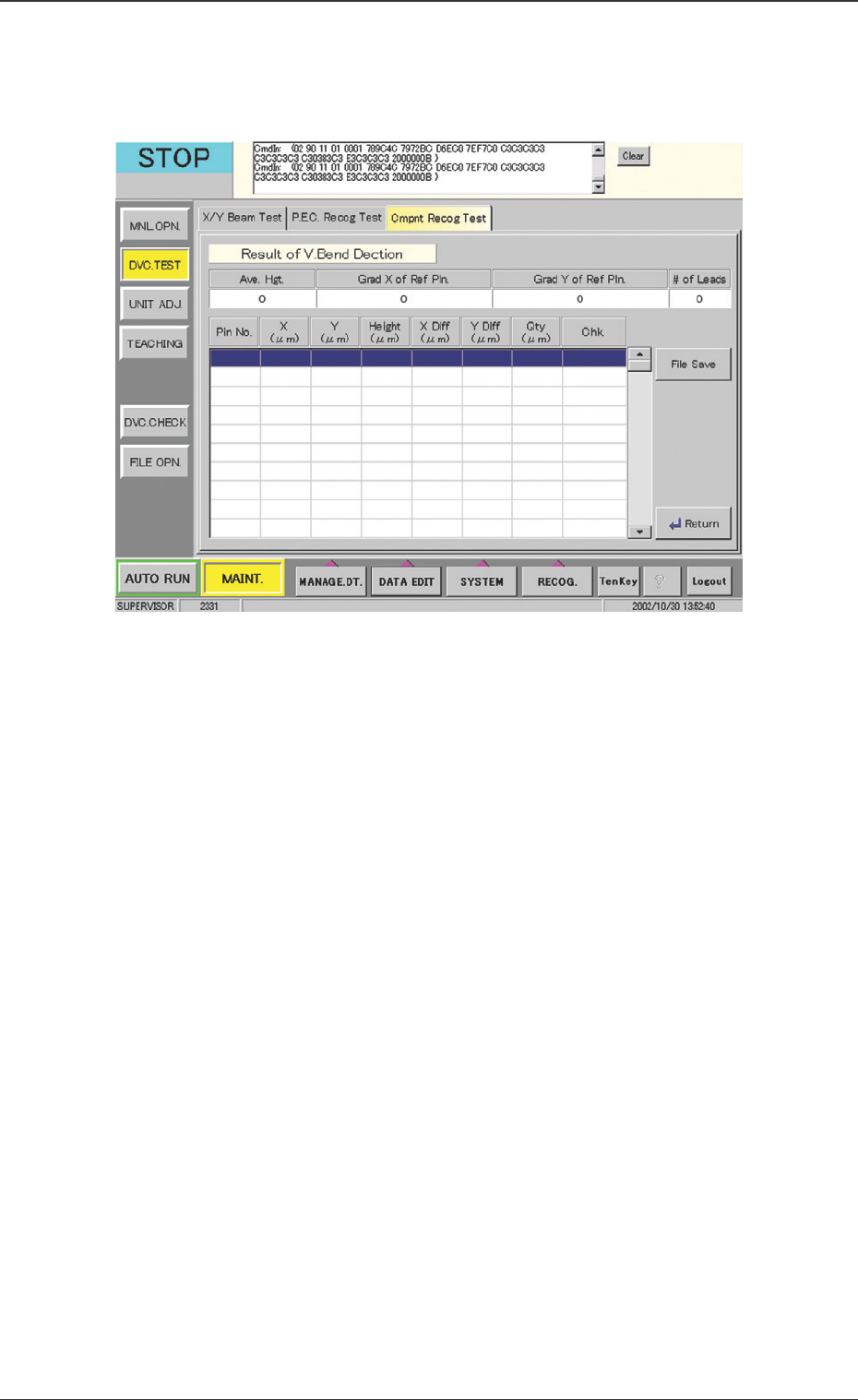

Fig. 20 "Result of V. Bend Detection" Window

V. Bend Test Result Indication

Ave. Hgt. :

The mean value of the heights of all lead is displayed.

Grad X of Ref Pin. :

The inclination in X direction is indicated as "x" which

satisfies the formula θ = Tan-1 (x/1024).

Grad Y of Ref Pin. :

The inclination in Y direction is indicated as "y" which

satisfies the formula θ = Tan-1 (x/1024).

# of Leads :

The number of leads detected is displayed.
