14. Circuit Diagrams

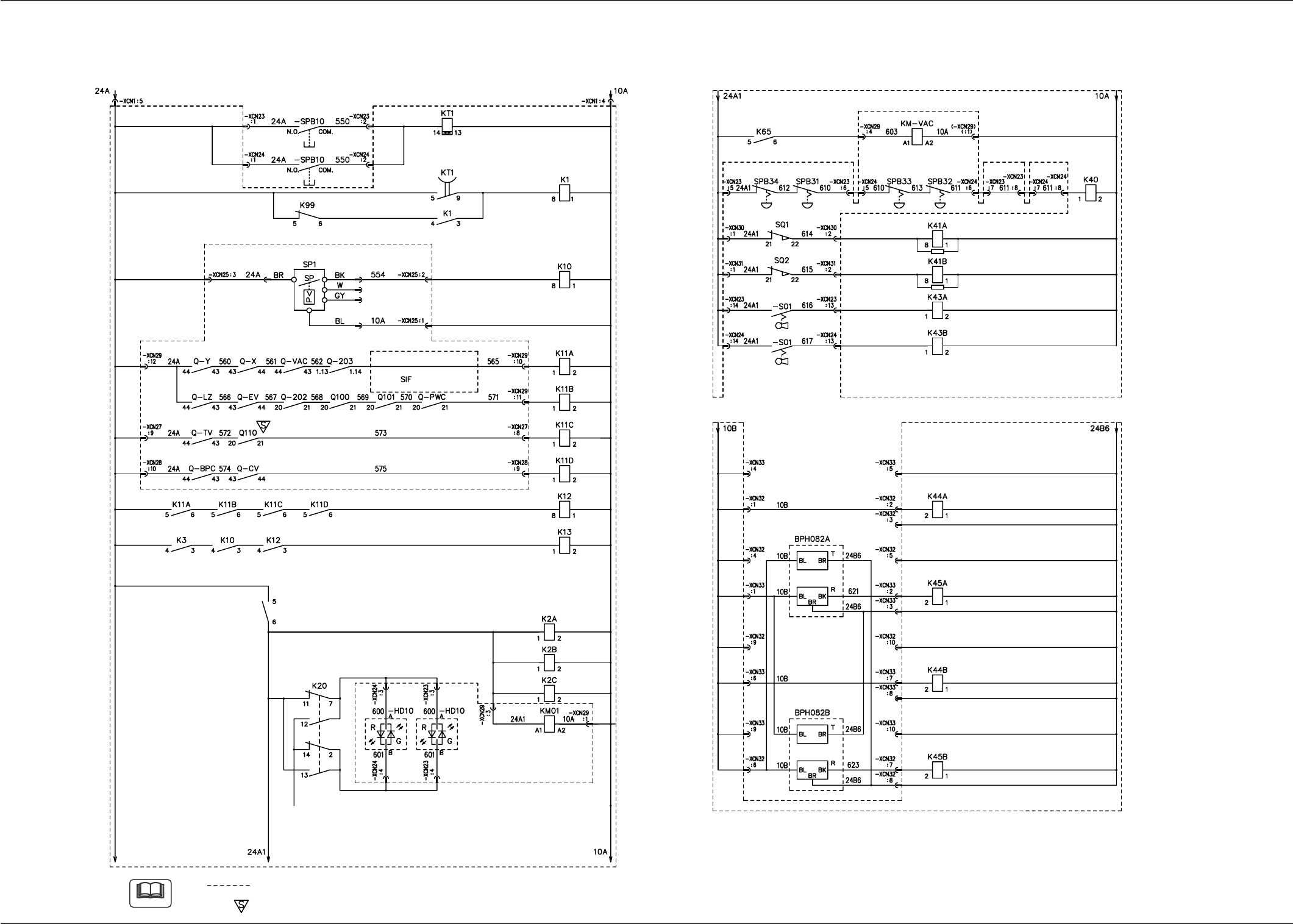

Power Circuit Diagram (2)
14. Circuit Diagrams
0307-002-(M750WB--A3101)
L1-Axis Brake OFF
Multi-Layer Tray (1)
Elevator and Brake OFF
(Option)
L2-Axis Brake OFF
BPC-Axis Brake OFF
Multi-Layer Tray (2)
Elevator and Brake OFF
(Option)
Power Supply for
Lead Coplanarity Detection
Power Supply for
Lead Coplanarity Detection
PWC-Axis Drive
Recycle Conveyor Motor
For Vertical Bend Detection
(Option)
Lighting for Operation
(Front Side)
Lighting for Operation
(Rear Side)
For Fan Motor
(Reserved)
For Fan Motor
(Reserved)
Console Power Supply
(Option)
Multi-Layer Tray (1)
Multi-Layer Tray (2)
(For HUB)
(For Main
Body)
To APMD-PWC
Brake
Brake
Brake
Note
The -marked area is specially specified.
72 Tg0742-PM-SO
14. Circuit Diagrams
Power Circuit Diagram (3)
0307-002-(M750WB--A3102)
Input/Output
Machine
I/F Board (UA53)
NC1-Axis
Motor Driver
NC2-Axis
Motor Driver
Liquid Crystal
Monitor
(Rear Side)
Liquid Crystal
Monitor
(Front Side)
Lighting Control
Board
(UA75)
Motor Relay
Board
(UA93)
Relay Board
(UA96)
Brake Control Relay
Wiring Section
I/O Main Board
(UB12)
Sensor-and
Indicator-Related
Items
For Beam
Sensor 2
For Sensor on
Frame Top
For Panel 1
For Panel 2
For Cover Top
For Electromagnetic
Valve
DC Load Supply 1 DC Load Supply 2
Feeder Power
Supply 1
Feeder Power
Supply 2
Feeder Base #1
Feeder Base #2
(Option)
Feeder Base #3
Feeder Base #4
(Multi-Layer Tray 1 (Option))
(Multi-Layer Tray 2 (Option))
(BCR Option)
(Option)
Sensor Head for
Chip Inspector
(Vertical Bend Detection (Option))
Right Side Fun Motor
Left Side Fun Motor
Frame Lower
R Side 1
Fan Motor
Frame Lower
R Side 2
Fan Motor
Frame Lower
R Side 3
Fan Motor
Frame Lower
Front Side
Fan Motor
Frame Lower
L Side 1
Fan Motor
Frame Lower
L Side 3
Fan Motor
Frame Lower
L Side 2
Fan Motor
Frame Lower
L Side 4
Fan Motor
Frame Top
Exhaust
Fan Motor 1
Frame Top
Exhaust
Fan Motor 2
Frame Top
Exhaust
Fan Motor 3
Frame Top
Exhaust
Fan Motor 4
I/O Main Board
(UB12)
Feeder Base #1
Feeder Base #2
Feeder Base #3
Feeder Base #4
Note (a)
Note
(a) The diagram within broken lines shows one within relay PCB (UA96).
(b) The -marked area is specially specified.
73 Tg0742-PM-SO
14. Circuit Diagrams
Power Circuit Diagram (4)
0307-002-(M750WB--A3103)
Vacuum Pump Mode
Emergency Stop Detection
Closed Safety Door
Detection A
SETUP (A)
Closed Safety Door
Detection B
SETUP (B)
Maintenance Opening
Detection A (Upper Side)
Maintenance Opening
Detection A (Lower Side)
Maintenance Opening
Detection B (Upper Side)
Maintenance Opening
Detection B (Lower Side)
OPERATION/SETUP
(Side A)
OPERATION/SETUP
(Side B)
(Middle Stage)
(Middle Stage)
Front Left Rear Left Front Right Rear Right
Power ON Detection
Air Pressure Drop
Detection
Power Supply
for Controls
CB Alarm 1
CB Alarm 2
CB Alarm 3
CB Alarm 4
Integrated CB Alarm
Error Detection
DC Power Supply
Remote 1 ON
DC Power Supply
Remote 2 ON
DC Power Supply
Remote 3 ON
100V AC
Power Supply
(Side A) (Side B)
Power ON Indication
K1 (For Power Loads) Power Supply for Controls
CB Alarm 1 CB Alarm 2 CB Alarm 3 CB Alarm 4
Servo C
Control Power
Shut-Off
Detection
Air Pressure
Drop Detection
Integrated
CB Alarm
Transformer 2
Option
Transformer 1
(Option)
Power Outlet
for Servicing
Power ON (A)
Power ON (B)
Power OFF Power Supply for Controls
Power Supply Detection
Pressure Switch
Note (a)
Note (a)
Note (a)
Note
(a) The diagram within broken lines shows one within relay PCB (UA96).
(b) The -marked area is specially specified.
