11. Operation Mode Setting
11.1 Display Mode of V. Bend Result
The settings are performed for displaying the V. bend detection
result image on the V. bend detection unit monitor.
••
••
• Sheet Layout
When the [Opn. Mode] tab in the "OPN. MODE" submenu window
and then the [Next] button are pressed, the following tab sheet
appears.
Display V. Bend Image
Disable : The V. bend image is not displayed on the monitor
in the V. bend detection unit.
Enable : The V. bend image is displayed on the monitor in
the V. bend detection unit.
Marking
Disable :The position of the detected lead is not displayed.
Enable :The position of the detected lead is displayed.
Marking Method
NG Lead : Only no good (NG) leads are marked in red.
All Lead : No good (NG) leads are marked in red and
good (OK) leads are marked in green.
11. Operation Mode Setting

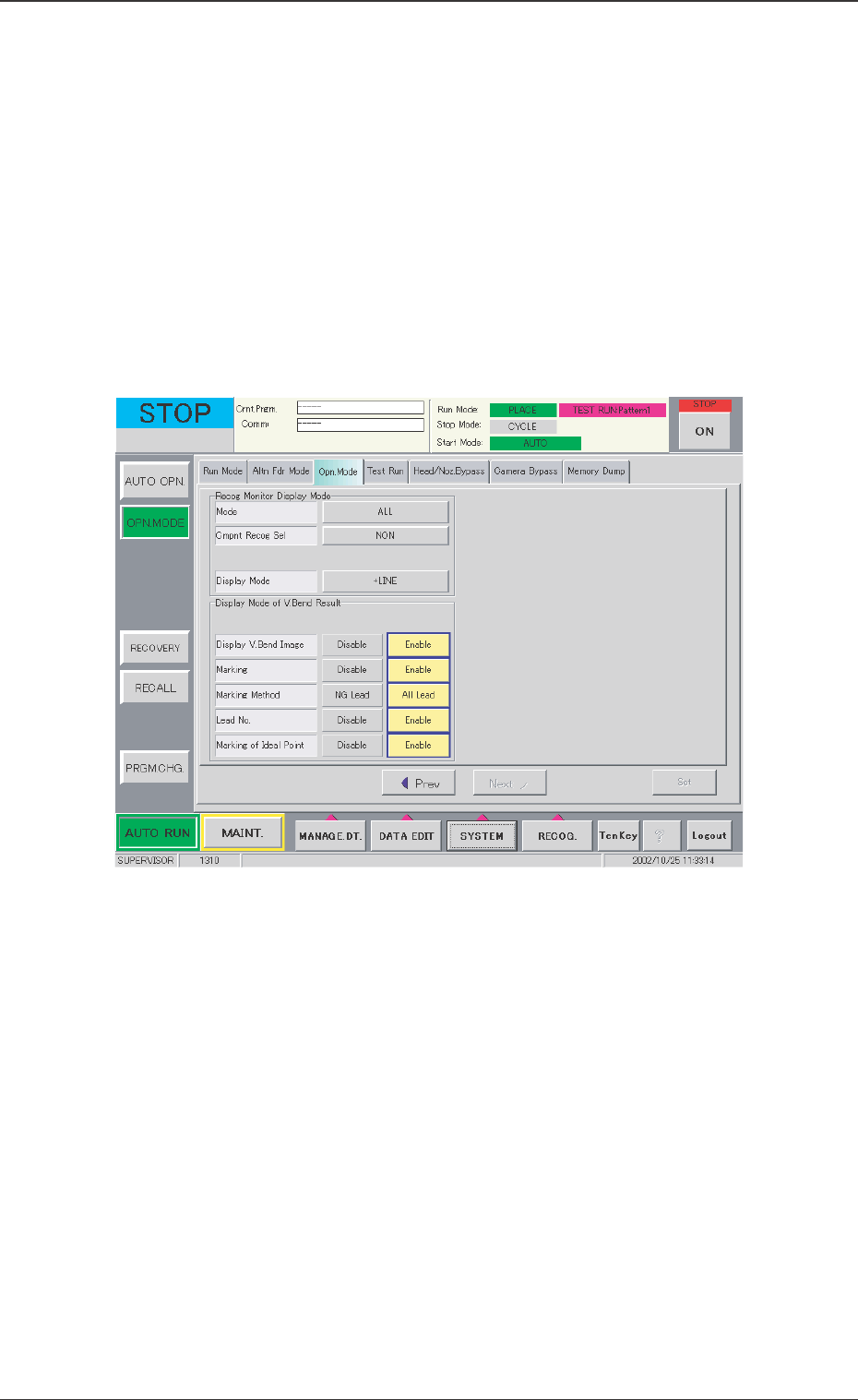

Fig. 23 "Opn. Mode" Tab Sheet
43 Tg0742-PM-SO
Lead No.
Disable : Lead No. is not indicated.
Enable : Lead No. is indicated in blue, close to the detected
lead.
Marking of Ideal Point
Disable : The ideal lead position is not marked.
Enable : The ideal lead position, decided based on the
component shape, is marked in yellow.
11.2 Test Run Setting
••
••
• Sheet Layout
When the [Test Run] button is pressed in the "OPN. MODE" submenu
window, the following tab sheet appears.

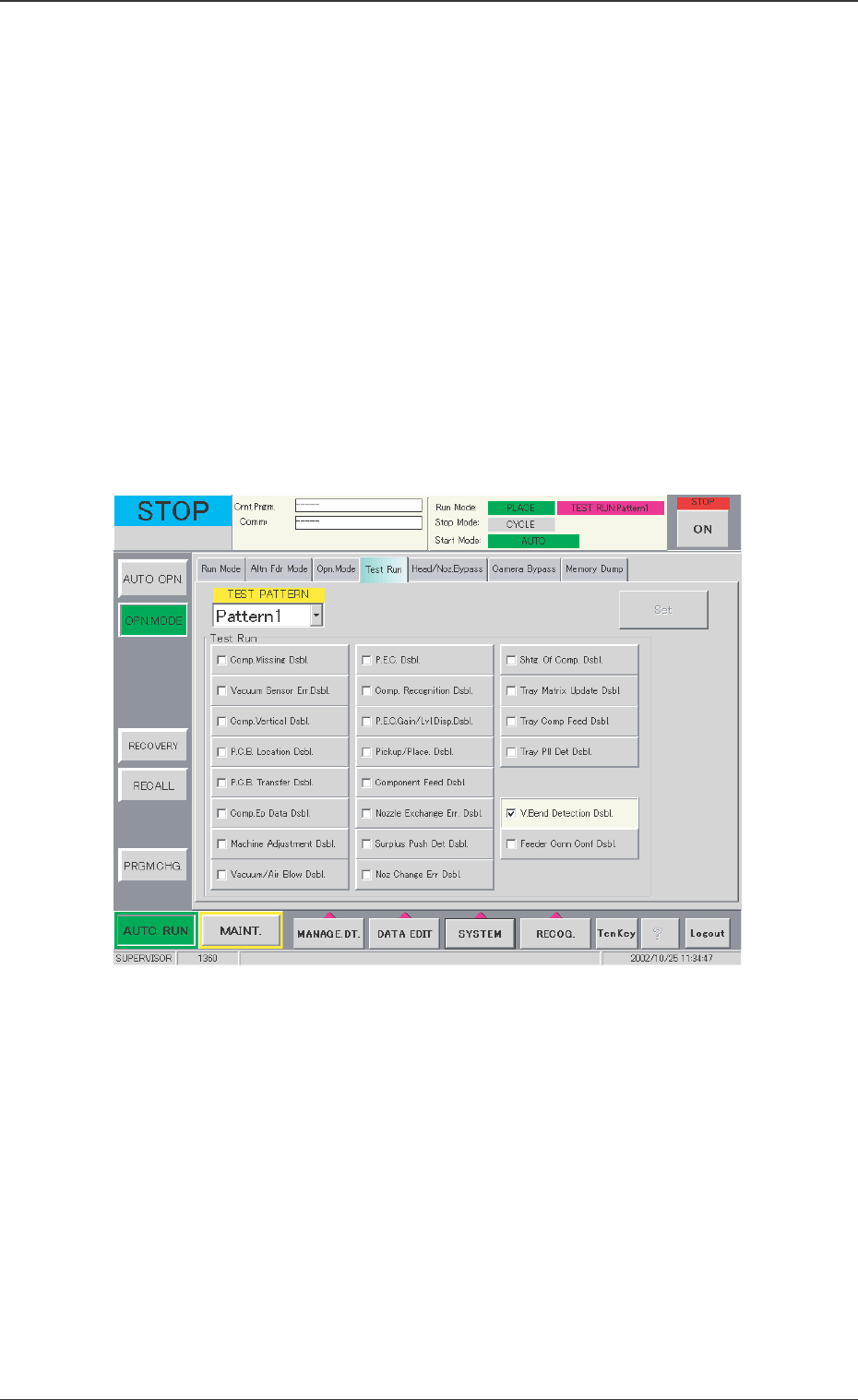

Fig. 24 "Test Run" Tab Sheet
When the "V. Bend Detection Dsbl." is check marked in the check
box, the scanning for V. bend is performed in the test run. Then, when
the result is OK, the recognition disable mode can be set.
0301-001
11.2 Test Run Setting
44 Tg0742-PM-SO
11.3 Comp Carriage Dt Edit
••
••
• Sheet Layout
Press the [Comp Carriage Dt Edit] tab in the "RECOVERY" submenu
window and press the appropriate tab to select the feeder to be used.
When the [Screens */5] key is pressed to change it to [Screens 5/5],
the following tab sheet appears.
0301-001
11.3 Comp Carriage Dt Edit
• •
• •
• Sheet Composition
*1 V. Bend DETN.
The V. bend detection function is set.
Enable : The V. bend detection function is used.
Disable : The V. bend detection function is not used.
*2 Sampling Scan Mode
The number of leads is set for V. bend detection.
Mode 1 (Sampling) :
The set number of leads in the component library is scanned
once.
All Check :
All the leads are scanned.

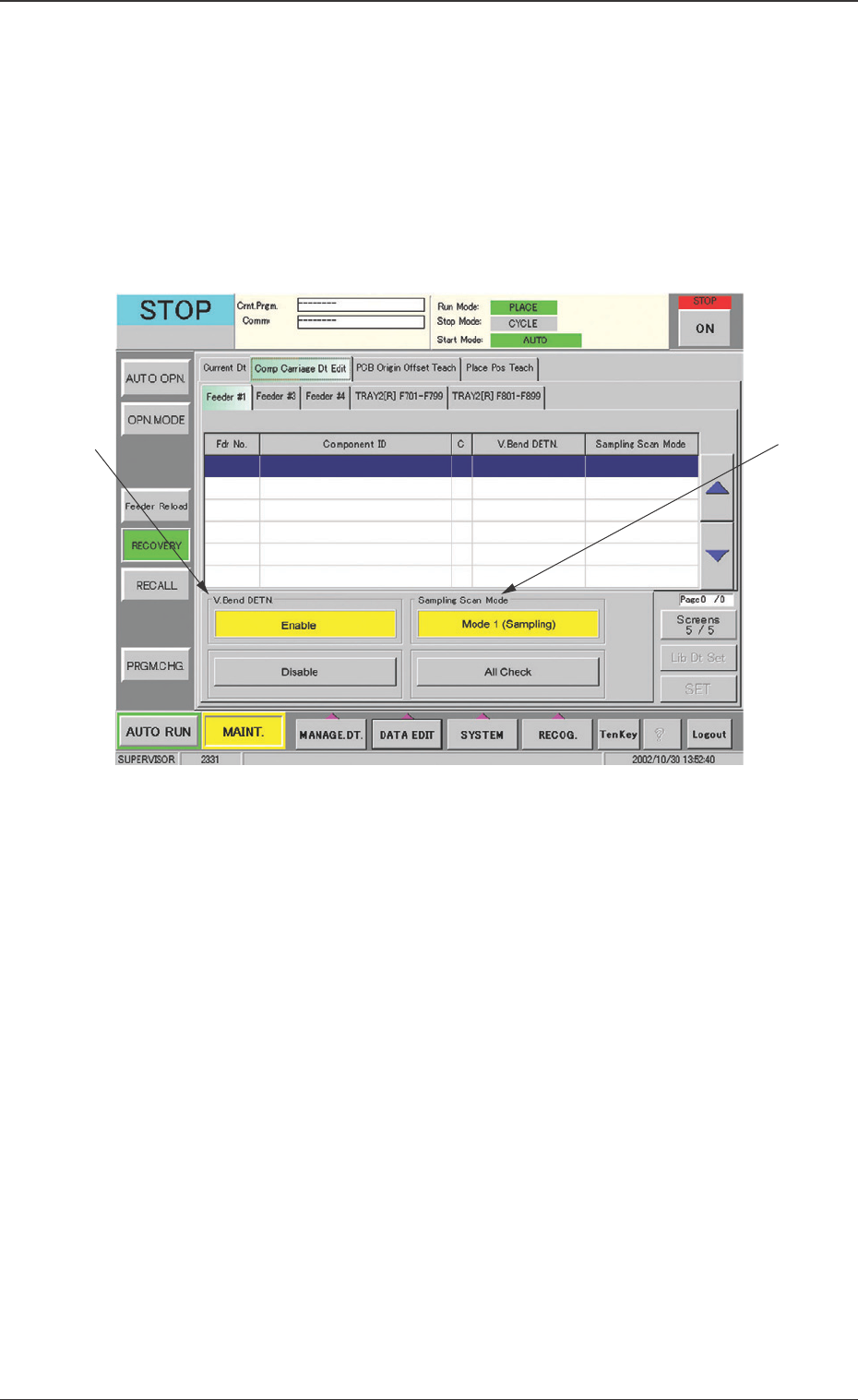

Fig. 25 "Comp Carriage Dt Edit" Tab Sheet
*2
*1
