69 Tg0742-PM-SO0307-002

13.2 Setting Procedure for Communication with Main Machine

13.2 Setting Procedure for Communication with Main

Machine

The parameters are set for the communication between the TIM-

X100 main machine and the V. bend detection unit.

••

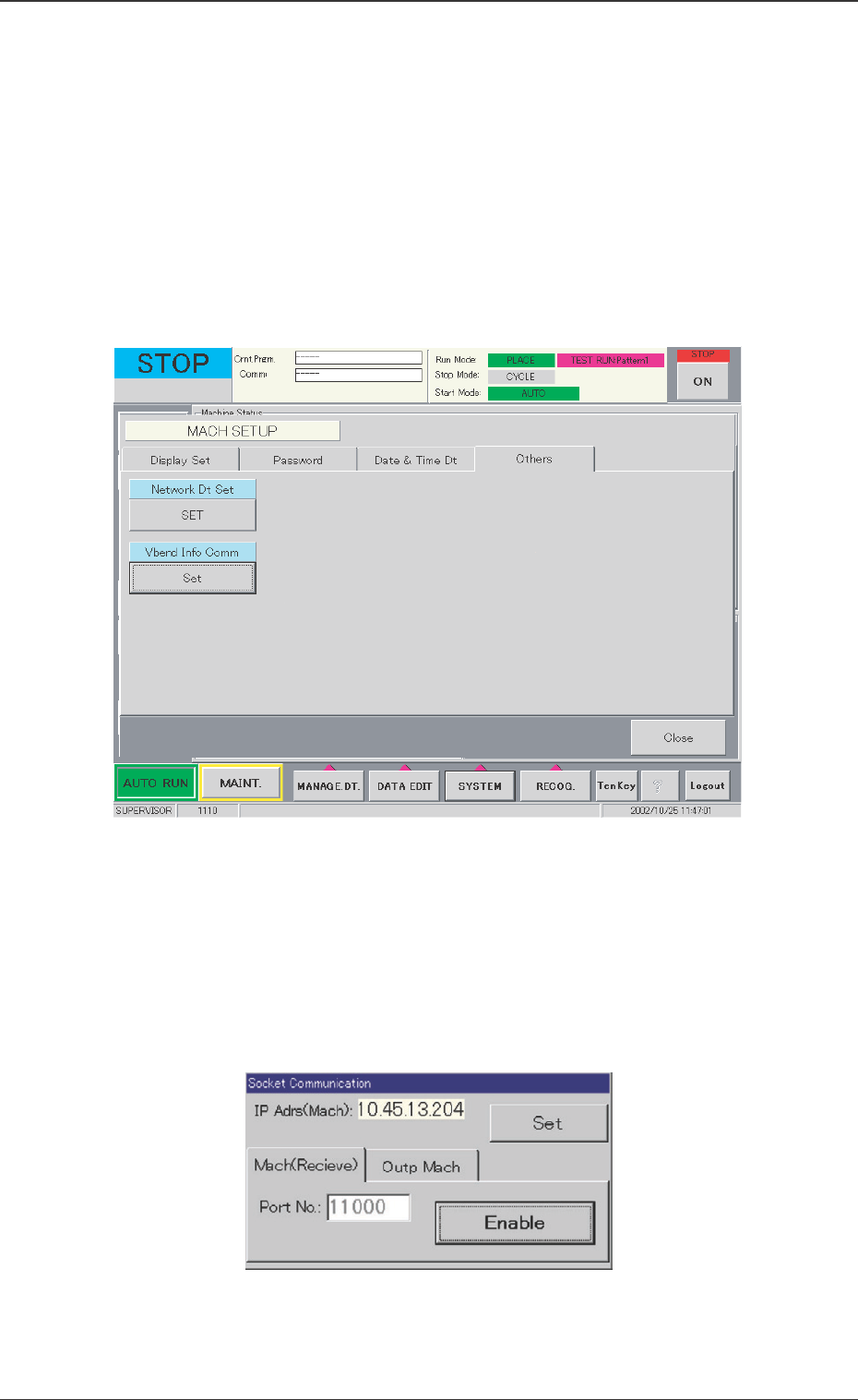

• Window Layout

When the [Others] tab is pressed in the "MACH SETUP" window, the

following window appears.

••

• Communication Setting Procedure

(1) When the [Set] button is pressed in the "Vbend Info Comm"

data box, the following "Socket Communication" window ap-

pears.

Fig. 47

Fig. 48

70 Tg0742-PM-SO0307-002

13.2 Setting Procedure for Communication with Main Machine

(2) Press the [Mach(Receive)] tab.

(3) Check the "Port No." and press the [Enable] button. Then, set

"11000" in the "Port No." data box.

(4) Press the [Disable] button.

(5) Press the [Outp Mach] tab.

(6) Set the IP address of the V. bend detection unit in the "IP

Address" data box.

(7) Set "11000" in the "Port No." data box.

(8) Press the [Set] button.

(9) Close the "Socket Communication" window.

(10) Turn off the TIM-X100 main machine and re-start.

Fig. 49

Fig. 50

71 Tg0742-PM-SO

14. Circuit Diagrams

Power Circuit Diagram (2)

14. Circuit Diagrams

0307-002-(M750WB--A3101)

L1-Axis Brake OFF

Multi-Layer Tray (1)

Elevator and Brake OFF

(Option)

L2-Axis Brake OFF

BPC-Axis Brake OFF

Multi-Layer Tray (2)

Elevator and Brake OFF

(Option)

Power Supply for

Lead Coplanarity Detection

Power Supply for

Lead Coplanarity Detection

PWC-Axis Drive

Recycle Conveyor Motor

For Vertical Bend Detection

(Option)

Lighting for Operation

(Front Side)

Lighting for Operation

(Rear Side)

For Fan Motor

(Reserved)

For Fan Motor

(Reserved)

Console Power Supply

(Option)

Multi-Layer Tray (1)

Multi-Layer Tray (2)

(For HUB)

(For Main

Body)

To APMD-PWC

Brake

Note

The -marked area is specially specified.
