48 Tg0742-PM-SO 0301-001 12.1 Adjustment for Sensor Head Installation [All Beam Zero] Button (The left of the window) Each of the X-, Y-, and L-axis are zeroed. For actual proceed, press the [ON] button and then start by…

47 Tg0742-PM-SO

12.1 Adjustment for Sensor Head Installation

0301-001

Select Head

The head to be detected is selected.

Select [X1 Head] or [X2 Head].

Select Nozzle

The nozzle clamp to be detected is selected.

Select [Noz. #1], [Noz. #2], [Noz. #3], [Noz. #4], [Noz. #5] or

[Noz. #6].

V. Bend Detection Unit Detected Value Display

The detected values are shown in the center of the display, and

are the result of the detections of the installation correction jigs

for the head and nozzle at the angles of 0 deg, 90 deg, 180 deg

and 270 deg, respectively, using the V. bend detection unit. X, Y,

L, W1, W2, W3, Xfr speed (Transfer Speed), and Incr. (Increment

Amount) are displayed as the detection results. The sensor head

position is adjusted on the basis of these detection results.

X : Detected Value for Deviation X

Y : Detected Value for Deviation Y

L : Detected Value for Deviation L (Height)

W1 : Inclination of Sensor Head X-axis from Vertical Line

W2 : Inclination of Sensor Head Y-axis from Vertical Line

W3 : Inclination of Sensor Head Y-axis from Horizontal

Line

Xfr Speed : Transfer Speed of Jig in the Detection

Incr. : Detected Jig Size

[Recognition Dsbl.] Button

When the background is colored red, the recognition using the

camera is not available. When the detection is performed without

positioning the jig, the installation is not performed correctly.

Cancel the "Recognition Dsbl." setting.

[All Beam Zero] Button (The right of the window)

When the background is colored red, the beam cannot be zeroed,

so the detection is not available.

[Align. Screen ON/OFF] Button

Indicates that the alignment screen is displayed (or not displayed)

on the V. bend detection unit.

When the alignment screen is ON, the detection is not available

in the V. bend detection unit.

48 Tg0742-PM-SO0301-001

12.1 Adjustment for Sensor Head Installation

[All Beam Zero] Button (The left of the window)

Each of the X-, Y-, and L-axis are zeroed.

For actual proceed, press the [ON] button and then start by

pressing the [ENABLE] button on the operation panel.

[Jig Comp. Pickup & Fxd Camera Move] Button

After picking up the correction jig by the specified nozzle on the

specified head, the nozzle is moved into position for the camera

A1 and recognized by the camera.

Before this operation, the vacuum nozzle has to be

attached onto the head.

[Component Collection] Button

The correction jig picked up by the specified nozzle on the speci-

fied head is returned to the jig stocker.

• If the head and the nozzle for picking up the jig are not cor-

rectly specified, the jig cannot be returned.

• When the sensor head position is moved, the jig stocker posi-

tion is also changed and the jig cannot be correctly returned. In

this case, remove the jig manually, and return the jig to the

stocker after the jig returning operation of the machine.

[Rough Positioning] Button

The jig is moved to the center of the detection area for rough

positioning of the sensor head.

Before this operation, the vacuum nozzle has to be

attached to the head.

49 Tg0742-PM-SO

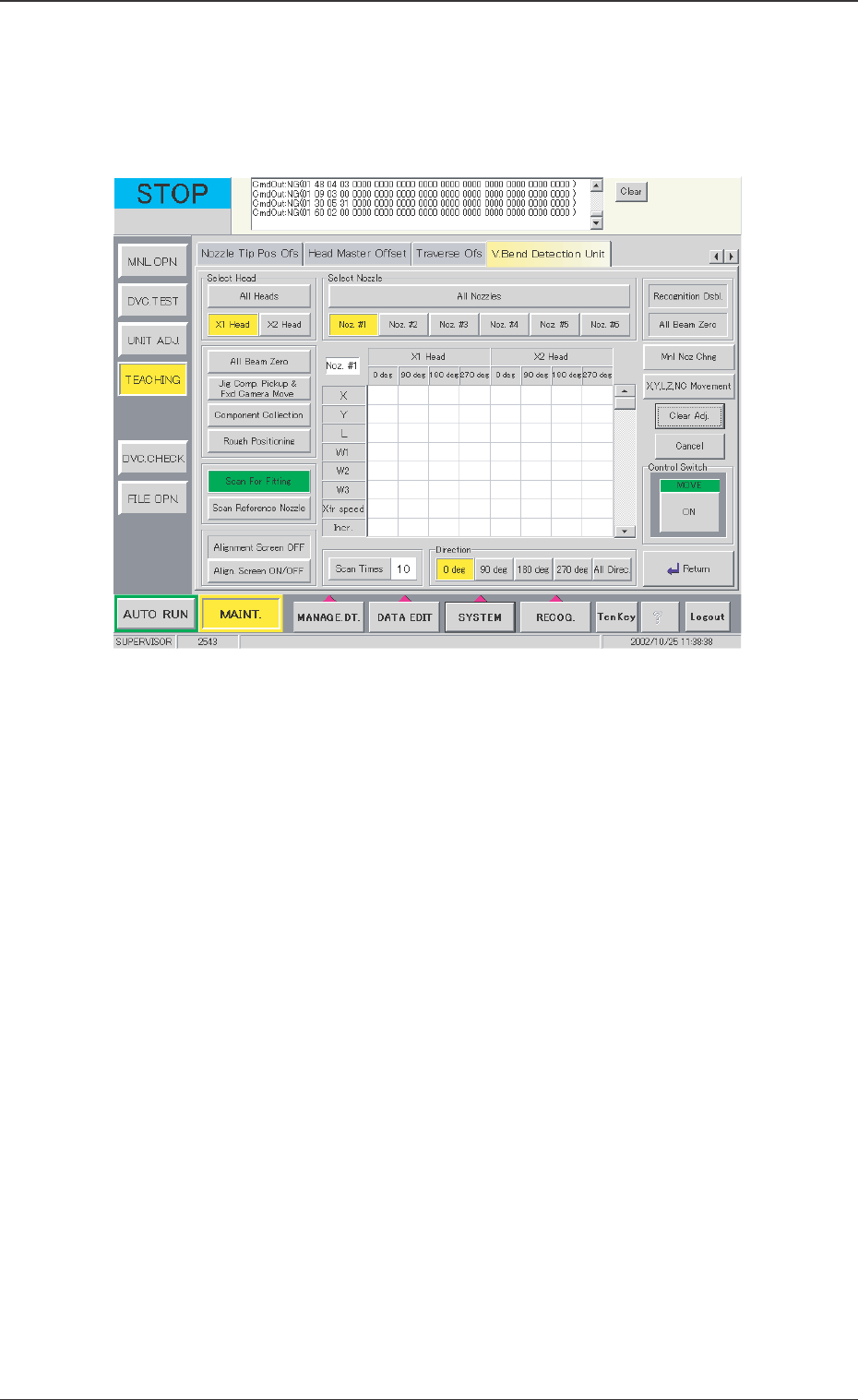

[Scan For Fitting] Button

When this button is pressed, the following window appears.

0301-001

12.1 Adjustment for Sensor Head Installation

Fig. 28 "Scan For Fitting" Window

Operation Procedure

(1) Select the head and nozzle to be detected. When the indi-

vidual head and nozzle are selected, this selected vacuum

nozzle operates as the nozzle of arrangement No. 1 (down-

ward).

When [All Heads] and [All Nozzles] are selected, before this

operation, reset the nozzle which has been already attached

to the head in the nozzle stocker, and put the nozzle for

picking up the correction jig in the No. 10 stocker in the

nozzle stocker B1.

(2) For "Scan Times", the number of detection operations is set.

Normally, set it to 6.

(3) For "Direction", the direction of the jig used for the detection

is set.

It is required to set "All Heads" and "All Nozzles" and detect

them at all specified angles.
