MAN MACHINE I NTERFACE PROGRAMMABLE BEACON 34.14 Technical Reference Manual Chapter Issue 11, Jan 17 where the beacon representation is the same for each category . Select Edit . Select the (categories) for the condition…

MAN MACHINE INTERFACE

PROGRAMMABLE BEACON

Chapter Issue 11, Jan 17 Technical Reference Manual 34.13

Edit Beacon

Attributes

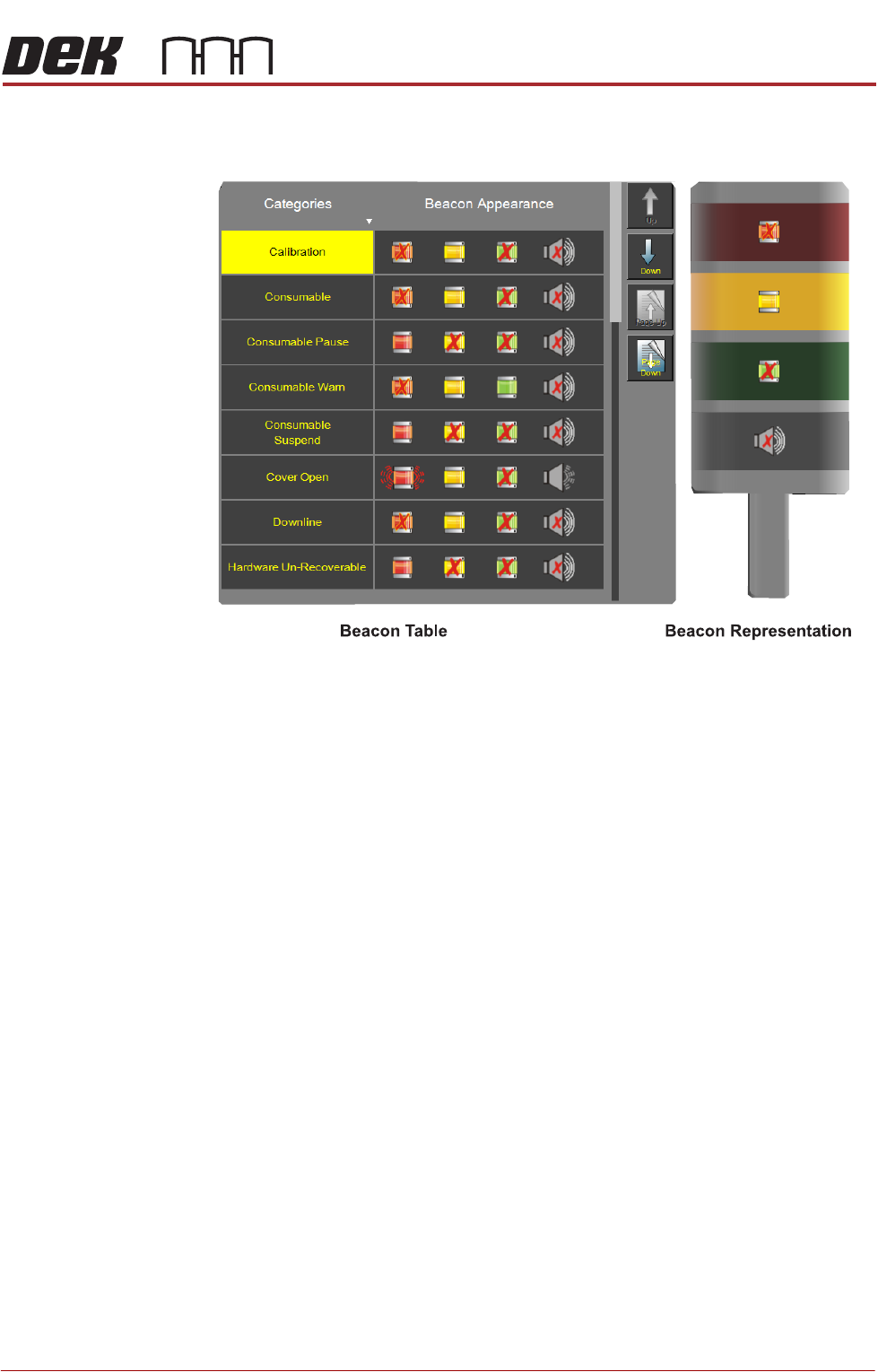

The three lights and the buzzer can be programmed. In each case, they can be

in a steady state, pulsing (shown radiated) or OFF (shown with a red cross).

Select the category from the table followed by the lights or buzzer on the beacon

representation (Calibration is shown selected above). When the indicators are

selected on the beacon representation they can be switched ON, OFF or

Pulsing. In the Open Cover category (table row 6) this has been set up as

follows: Red Indicator pulsing; Yellow indicator ON steady; Green indicator

OFF; Buzzer ON steady.

Select Assign Conditions.

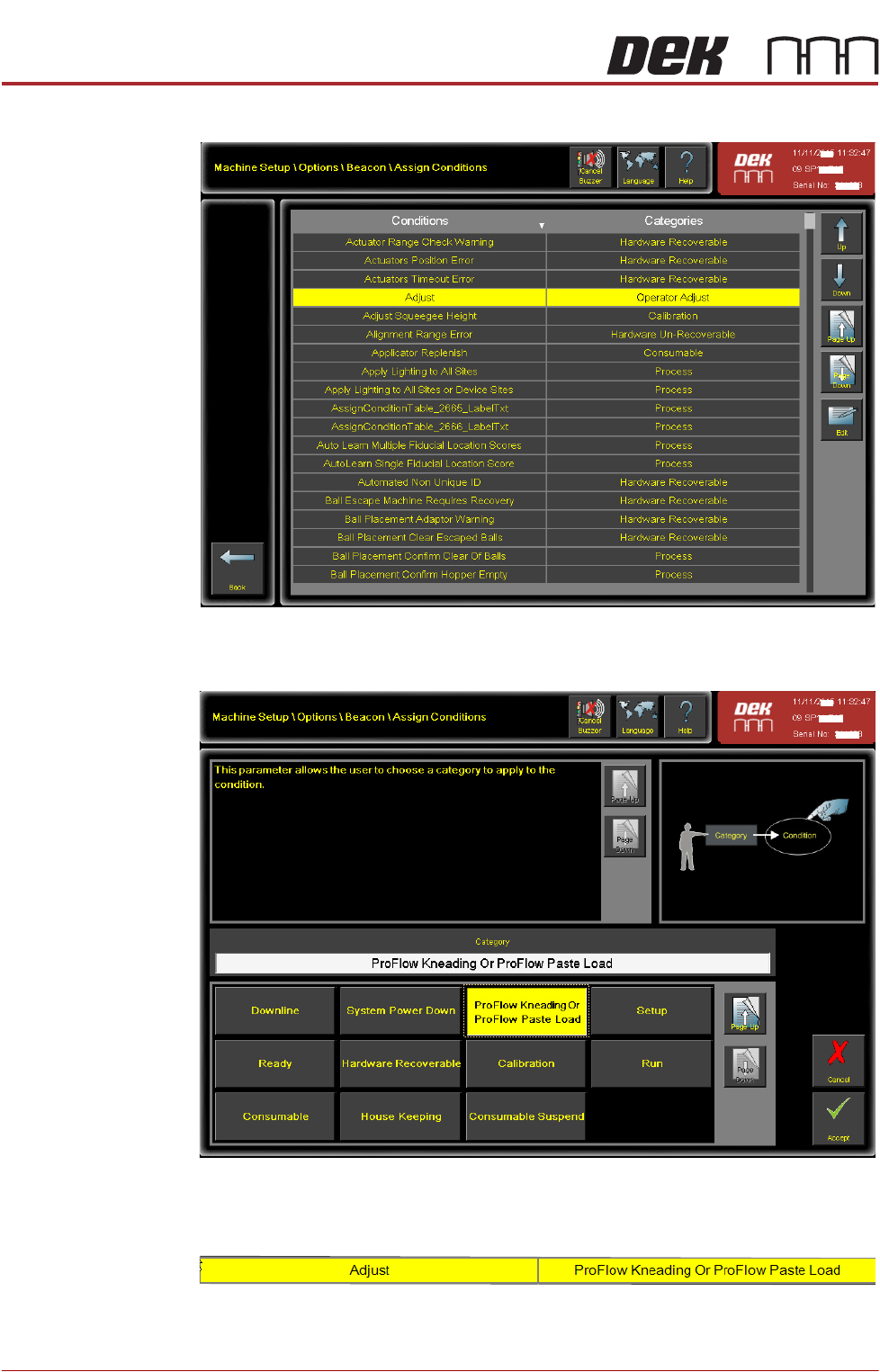

The user can assign conditions to a category; custom categories can be created

MAN MACHINE INTERFACE

PROGRAMMABLE BEACON

34.14 Technical Reference Manual Chapter Issue 11, Jan 17

where the beacon representation is the same for each category.

Select Edit.

Select the (categories) for the conditions to apply.

On the previous page the category has been chosen - Operator Adjust; in the

example above, the ProFlow Kneading or ProFlow Paste Load beacon condi-

tion has been applied to it.

Restore Category

Defaults

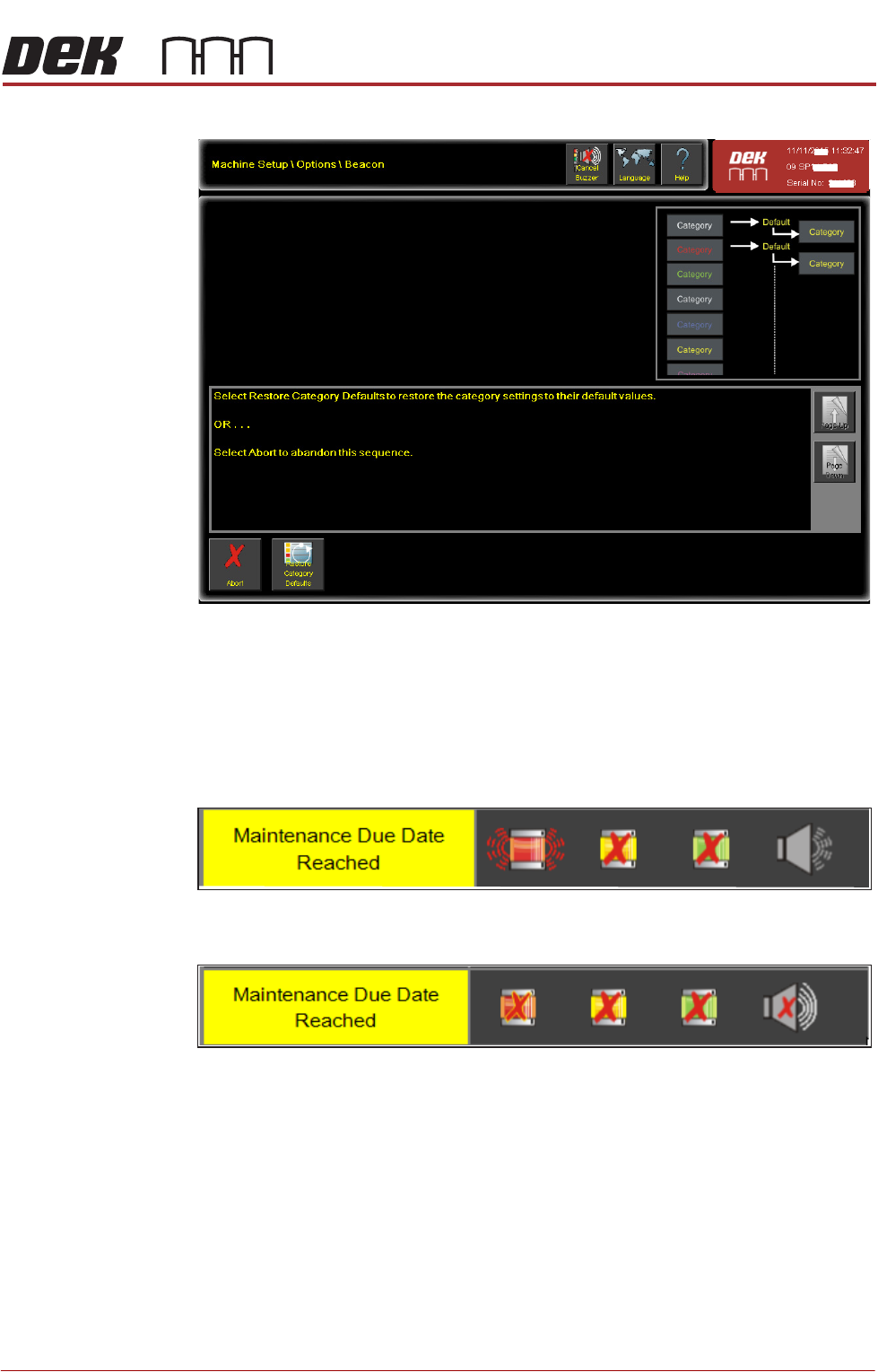

Selecting the restore category defaults button on the Beacon page opens the

MAN MACHINE INTERFACE

PROGRAMMABLE BEACON

Chapter Issue 11, Jan 17 Technical Reference Manual 34.15

action selection page below.

This action restores the default conditions to any category that is highlighted as

being selected on the Beacon page.

NOTE

The restore default for categories which have been created is as shown below;

all indicators are OFF. The default condition for categories which have not been

created by the user are reset to the factory default condition for the category.

Figure 34-9 Category as Created

Figure 34-10 Category Restored
