MAN MACHINE INTERFACE ADJUSTMENTS AND SETTINGS Chapter Issue 11, Jan 17 Technical Reference Manual 34.19 6. Using a small instrument screwdrive r or similar , press the ID-ACK button on the underside of the receiver unit…
MAN MACHINE INTERFACE
ADJUSTMENTS AND SETTINGS
34.18 Technical Reference Manual Chapter Issue 11, Jan 17
IR Keyboard/
Mouse Frequency
Setting (Type 1
Cover)
NOTE
The combination setting for each printer is factory set and logged onto the
printer Configuration and Despatch documentation. This combination is also
recorded onto a ASM database for each printer serial number. ASM must be
informed of any change to the set combination.
The IR keyboard and mouse has a combination of 16 settings which can be
changed for the following reasons:
• Adjacent machine frequency conflict.
• Keyboard/Mouse unit replacement.
Carry out the following procedure to change the frequency combination setting:
1. Turn the hand held IR keyboard/mouse upside down.
2. Unclip and remove the battery compartment panel. A four way bit switch is
located in the top left hand corner of the battery compartment, figure below
refers.
3. Using a suitable tool (eg instrument screwdriver) move the four bit switches
to any of the 16 configurations (each switch has two positions, the figure
above shows all four switches in the forward position).
4. When a switch setting is made the IR receiver unit has to be set to recognise
the new keyboard configuration.
5. Remove the IR receiver unit from above the monitor (held by velcro fastener)
for access to the ID_ACK button on the underside of the unit, figure overleaf
refers.
Underside of IR
Keyboard/Mouse
Battery
Compartment
1 2 3 4
ON
Bit Switches
MAN MACHINE INTERFACE
ADJUSTMENTS AND SETTINGS
Chapter Issue 11, Jan 17 Technical Reference Manual 34.19

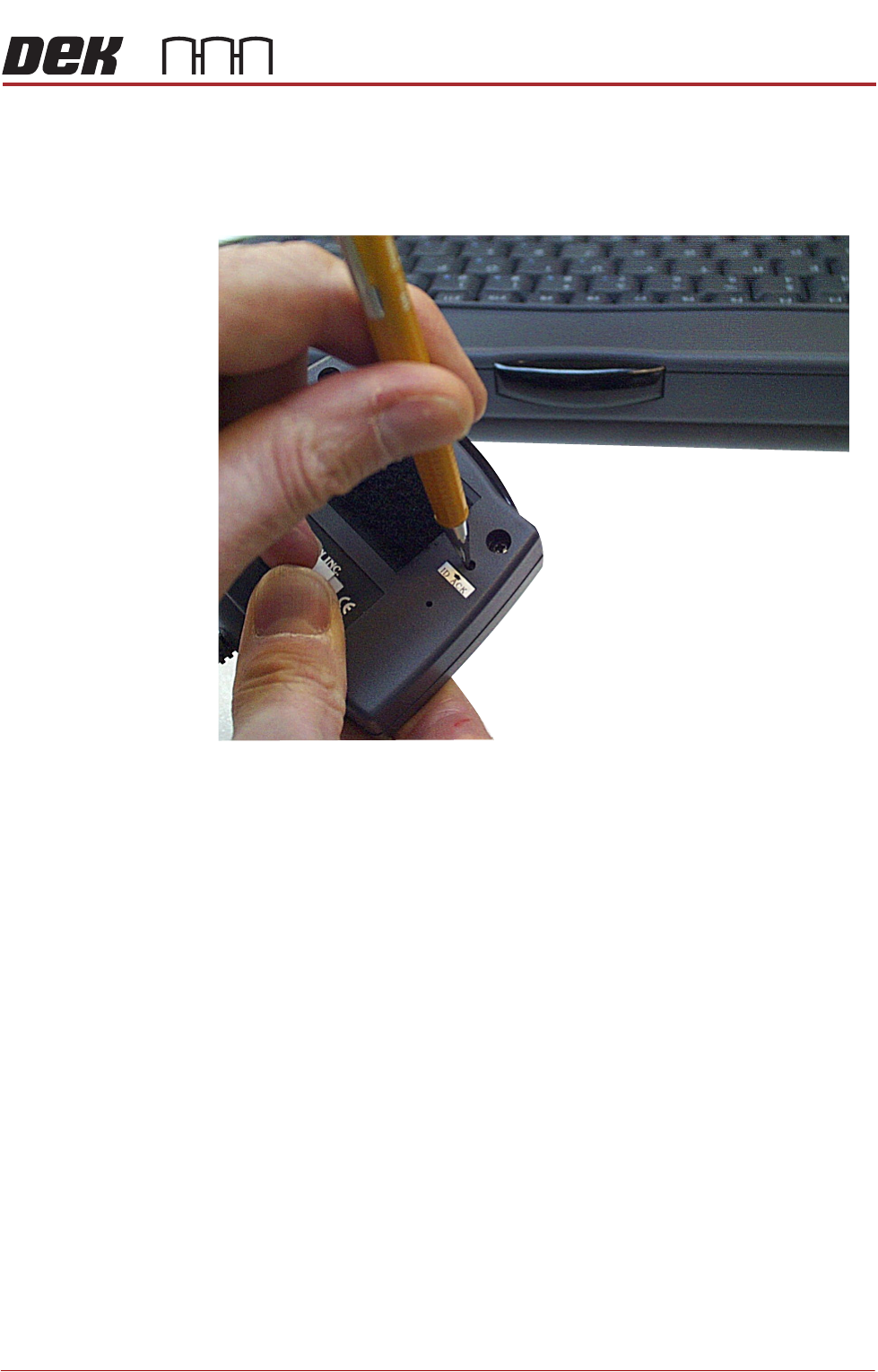

6. Using a small instrument screwdriver or similar, press the ID-ACK button on
the underside of the receiver unit. The receiver interrogates the host key-
board/mouse, (the frequency combination of the keyboard unit is dedicated
to the receiver unit).
NOTE
Ensure that the IR keyboard/mouse is aimed at the IR receiver and is within
five metre range.
7. Re-position the IR receiver above the monitor.
The keyboard/mouse is now ready for use.
MAN MACHINE INTERFACE
REPLACEMENT PROCEDURES
34.20 Technical Reference Manual Chapter Issue 11, Jan 17
REPLACEMENT PROCEDURES
IR Keyboard/
Mouse Battery
(Type 1 Cover)
The hand-held IR keyboard/mouse is powered by two AA type (or equivalent)
1.5 volt batteries.
For replacement of the IR keyboard/mouse batteries carry out the following
procedure:
1. Invert the keyboard/mouse to access the unit battery compartment panel.
2. Unclip the battery panel and remove.
3. Remove the used AA batteries and dispose of in accordance with national,
federal or local legislation.
4. Fit two replacement AA 1.5V (or equivalent) batteries in the correct config-
uration, figure above refers.
5. Refit the battery compartment panel.
6. When new batteries are fitted, the keyboard/mouse resets to default settings
and does not communicate with the IR receiver unit. Follow Steps 5 to 7 of
the IR Keyboard/Mouse Frequency Setting - Adjustments and Settings
section of this chapter.
The battery replacement procedure is now complete.

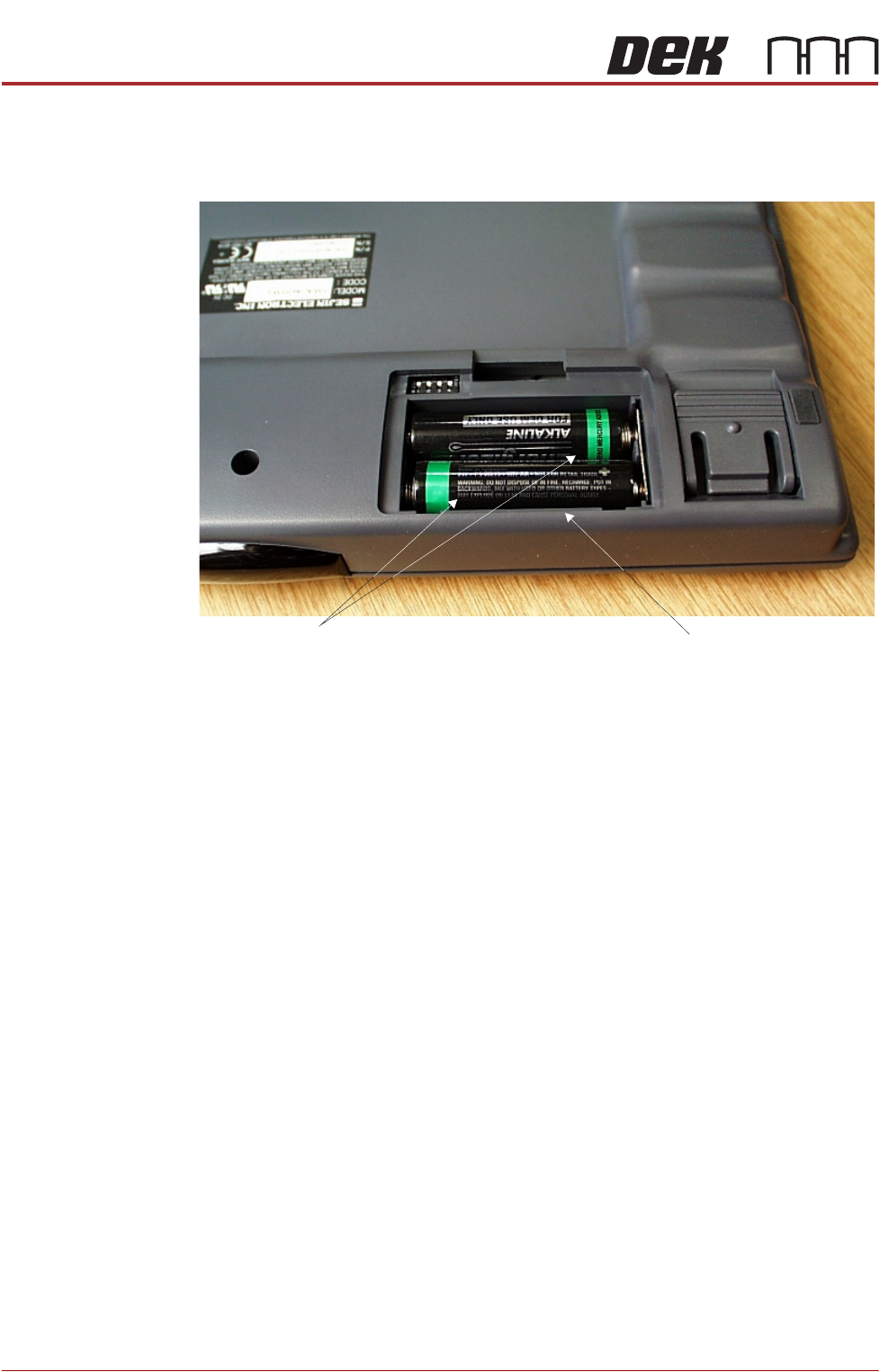

Underside of IR Keyboard/Mouse Unit
1.5V AA Batteries
(two in number)
Battery Compartment
(Panel Removed)
