1 Installation 1-3 How to Hoist the Machine Use the wires and the arm as follows. NOTE: Be sure to use the arm to preven t the wire from touching the machine. Front View Side View Arm Wire Wire Arm
1 Installation
1-2
Installation of Machine
Environmental Requirements
Install the machine at the place where the below conditions are met.
Do not do tasks, such as moving the machine or connecting the machine with the main switch ON to
prevent electric shock.
■ Ambient Temperature: Accuracy assurance 23 +/-2 degrees centigrade
Operation assurance +10 to +35 degrees centigrade
(The average over a period of 24 hours does not exceed 30 degrees C.)
■ Relative Humidity: 45 to 60 percent, non-condensing
■ Altitude : Altitude (elevation) below 1000m
■ Atmosphere: Dust and corrosive gas free
■ Floor: Floor must be flat and sturdy enough for freedom from vibration during
operation.
■ Power Requirements: 200 VAC +/- 10%, three phase, 50/60 Hz
* 200/208/220/240/380/400/416/440V VAC power transformer
Power consumption: 0.77KW
Capacity: 8.3KVA
Leakage current: 20mA or less
* Power and ground the machine independently of other machines which may be a
noise source, such as a compressor, welding machine, or reflow soldering machine
with magnetic contacts.
Warning
1 Installation
1-3

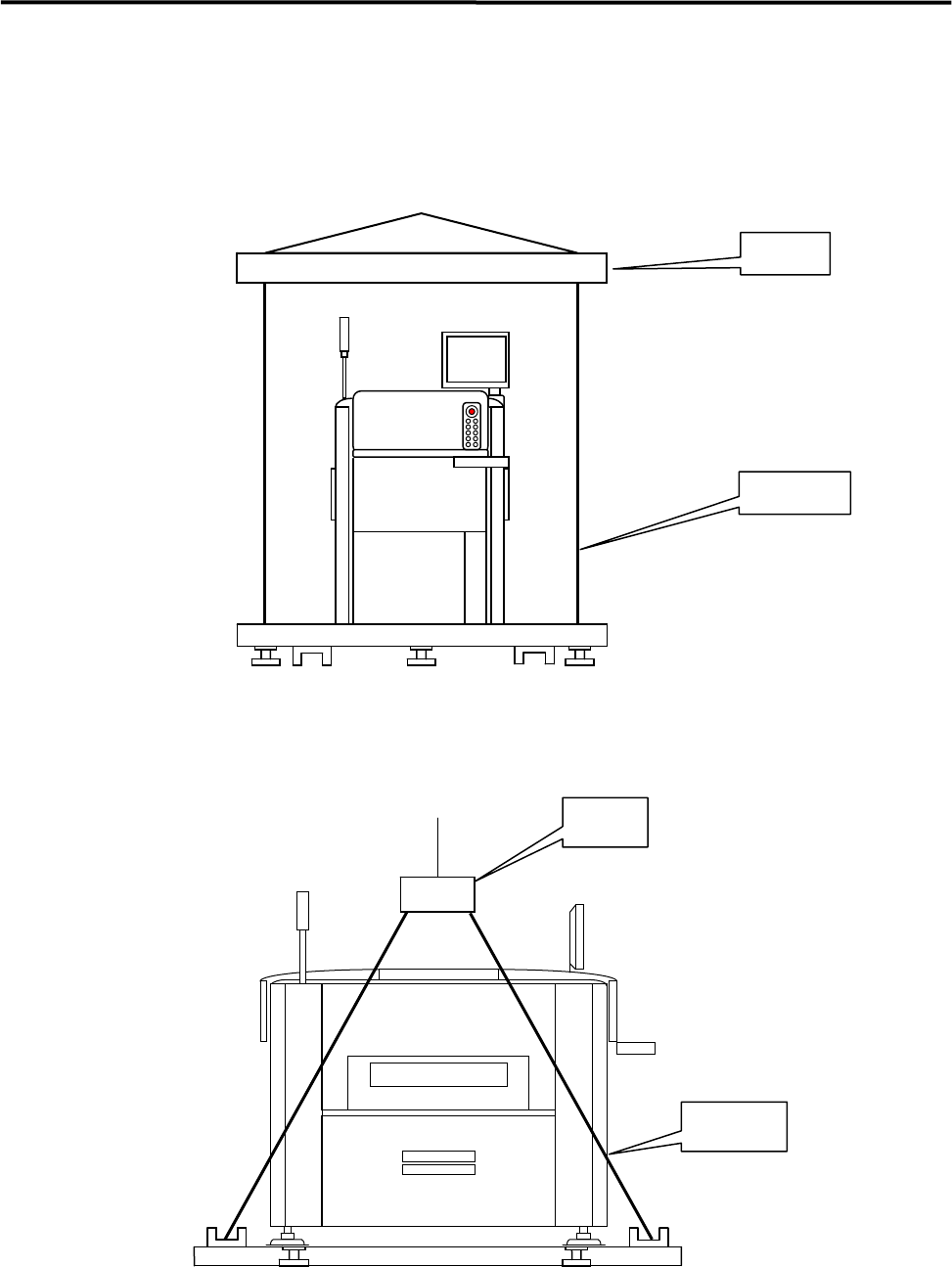

How to Hoist the Machine
Use the wires and the arm as follows.
NOTE: Be sure to use the arm to prevent the wire from touching the machine.
Front View
Side View
Arm
Wire
Wire
Arm
1 Installation
1-4

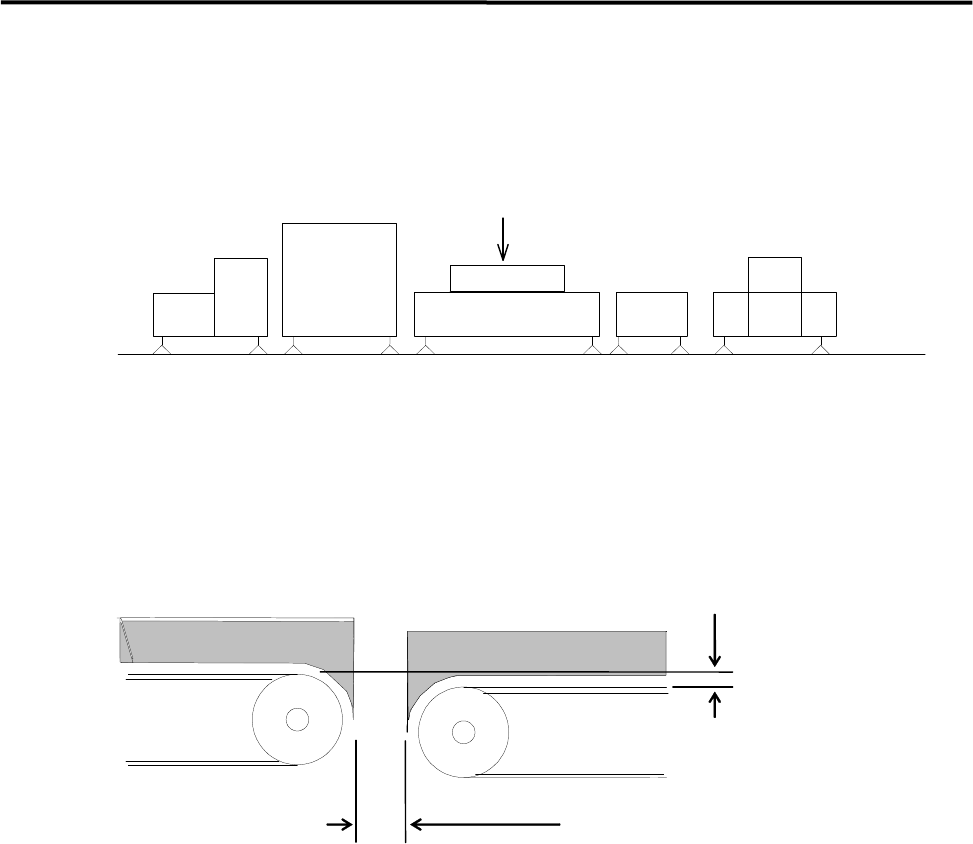

Production Line
To align your assembly line, first install the heaviest unit. Then install peripheral units using the first unit as
a reference.
Reference
Loader Mounter Reflow Oven Conveyor Unloader
To transfer the PCB (printed circuit board) smoothly, clearance between units are quite important. Be sure
that the clearance between units is 5 mm or less as below figure shows. Adjust the height of the downstream
unit a little lower (0-0.5 mm) so that the PCB is transferred smoothly.
0 - 0.5mm
5mm or less
Downstream Upstream
