1 Installation 1-8 ⑥ After the machine is posi tioned, make sure that a board runs sm oothly between upstream and downstream conveyors. ⑦ Place a leveler on the Y beam and make a fine adju stm ent so that the differe nce…
1 Installation
1-7
Lever
NOTE: The height must be 890 to 920mm in the case of CFB wagon spec.
NOTE: The adjust feet must be turned using a M30 single-head wrench (nominal: 46mm).
⑤ Place a leveler on the base of the machine. Set the position to the conveyor of the Pre-process finely
until the machine is leveled.
) Supplementary Explanation for Installation
900±20mm
Or
950±20mm (SMEMA)
Front
1 Installation
1-8
⑥ After the machine is positioned, make sure that a board runs smoothly between upstream and
downstream conveyors.

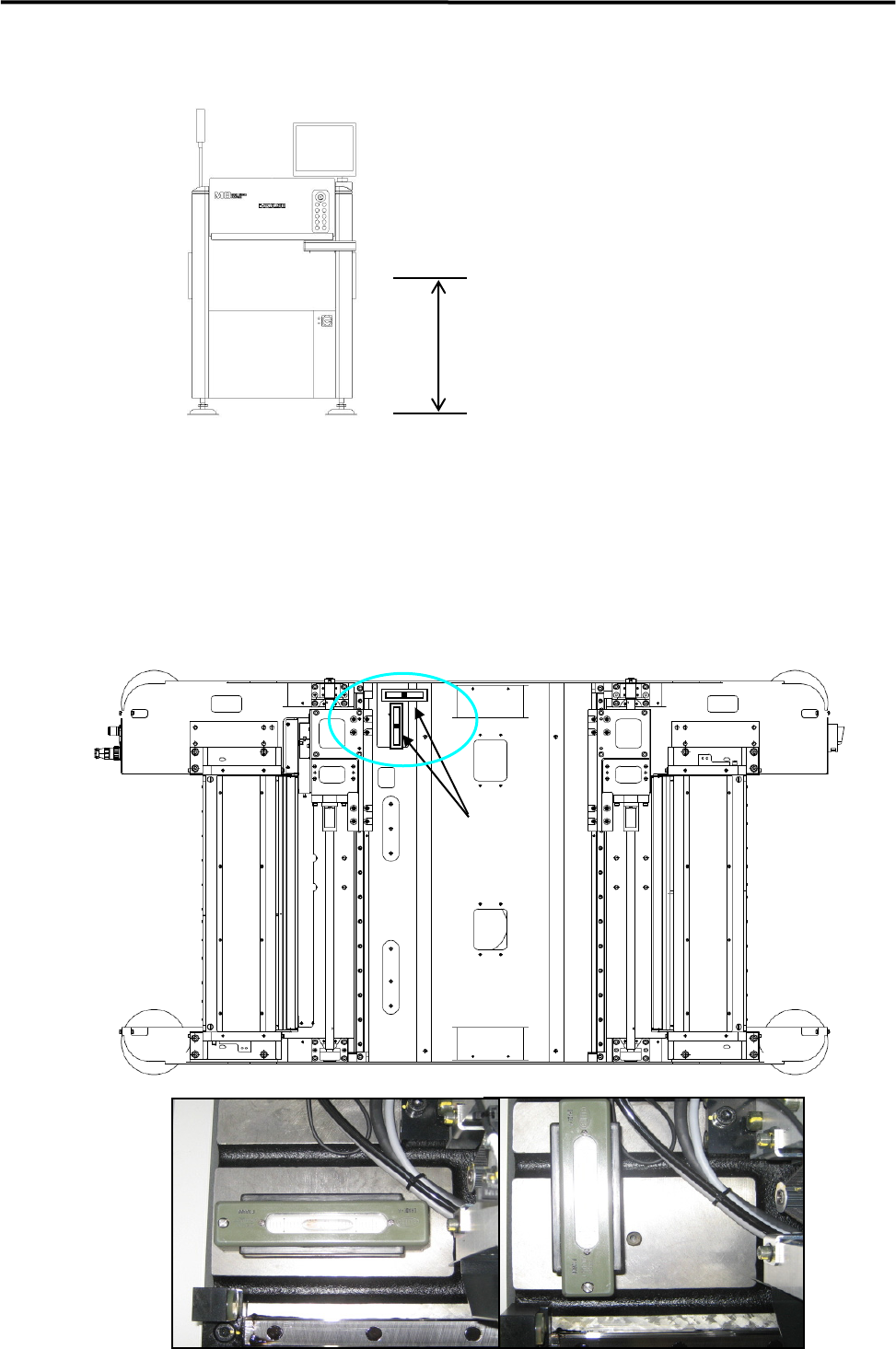

⑦ Place a leveler on the Y beam and make a fine adjustment so that the difference in leveler when the Y
beam moves rightward and leftward will be within 1 scale (1 scale is 0.02mm/m). (To prevent a Y
beam distortion.)
⑧ Lock the adjust foot nuts lastly.
NOTE: The adjust foot nuts must be locked with a closed wrench (nominal: 46mm) or a single-head wrench.
⑨ Connect the power cable and ground line independently of other machines which may be a noise
source, such as a compressor, welding machine.

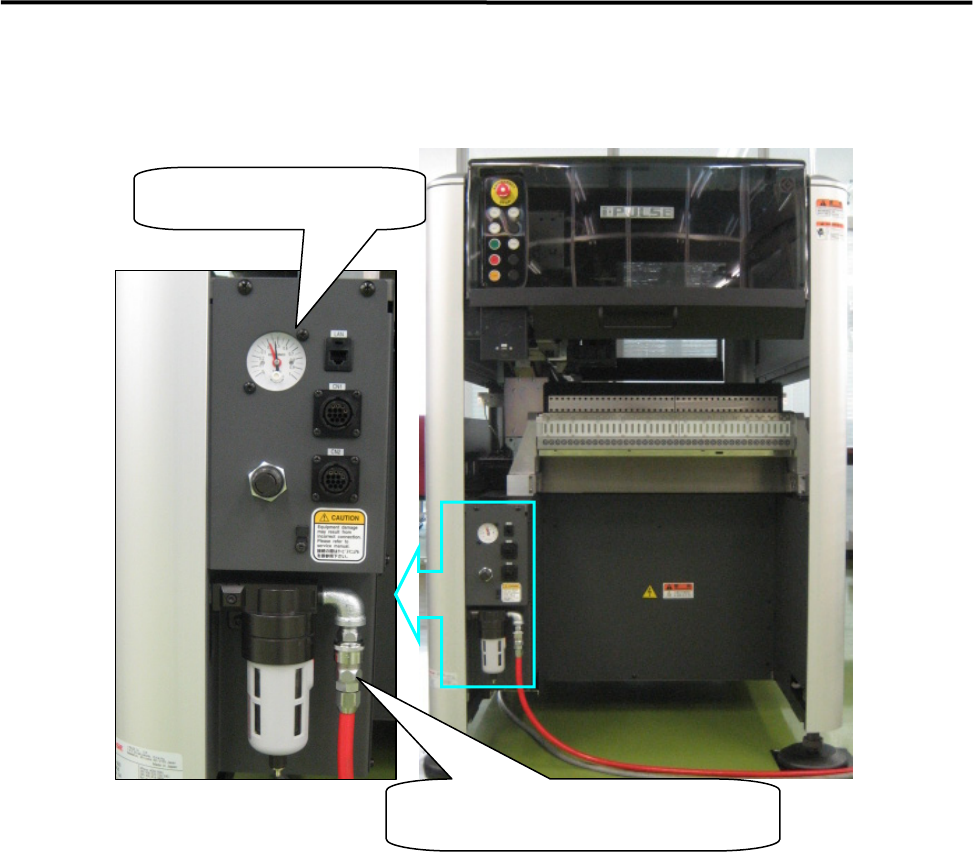

⑩ Connect an intake-side air coupler 65SN or 85SN (Nitto Kohki) or equivalent to the air regulator
coupler located on the rear of the machine. After the coupler is connected, make sure that the air
regulator’s reading is 0.45MPa
Lever

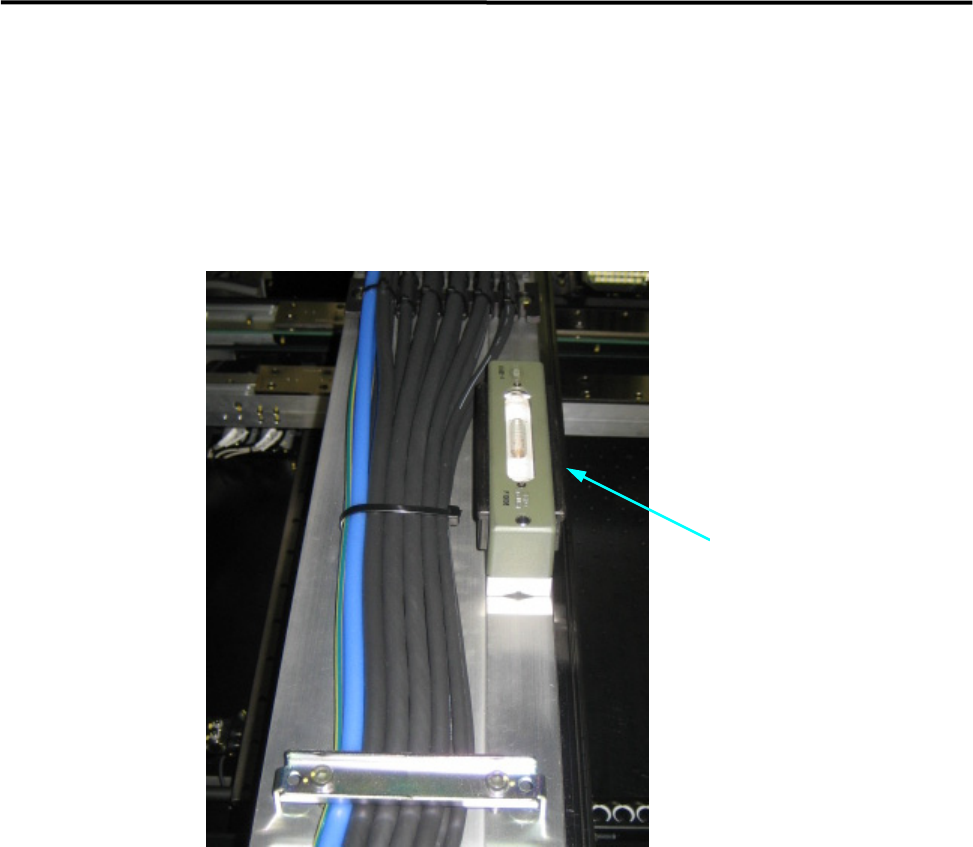

Put the lever at the middle of
Y Beam.
1 Installation
1-9
Air Regulator
Instruction Pressure; 0.45MPa
Intake-side air coupler
65SN/85SN (Nitto Kohki) or equivalent
