3 Mechanical Section

3-15

Nozzle Recognition Stickers

Labeling a Nozzle ID Sticker to a Nozzle

ACTION:

① From the surface to which the sticker is to be affixed, remove oil, dust and water content completely

using industrial alcohol.

② Pull out the shaft of the nozzle sticker tool approx. 3mm from the ring.

③ Peel the sticker from the paper using tweezers.

④ Place the sticker with its adhesive side up, and then put it in the jig (make sure that the D-cut on the

sticker is aligned with that on the ring). (The sticker must be angled so that the nozzle ID no. is

oriented as illustrated below.) Take care not to touch the adhesive surface with fingers.

⑤ Push the nozzle into the shaft. Make sure that the nozzle’s notch is aligned with the positioning slot on

the ring.

⑥ While pressing the nozzle’s rim, push the shaft into the ring so that the sticker is affixed onto the

nozzle.

⑦ Check that the sticker touches the bottom of the ring.

NOTE: If the shaft is pulled out of the ring too much, it may come off. If it comes off, align the shaft’s slot with the

ring’s positioning pin and then insert the shaft into the ring slowly.

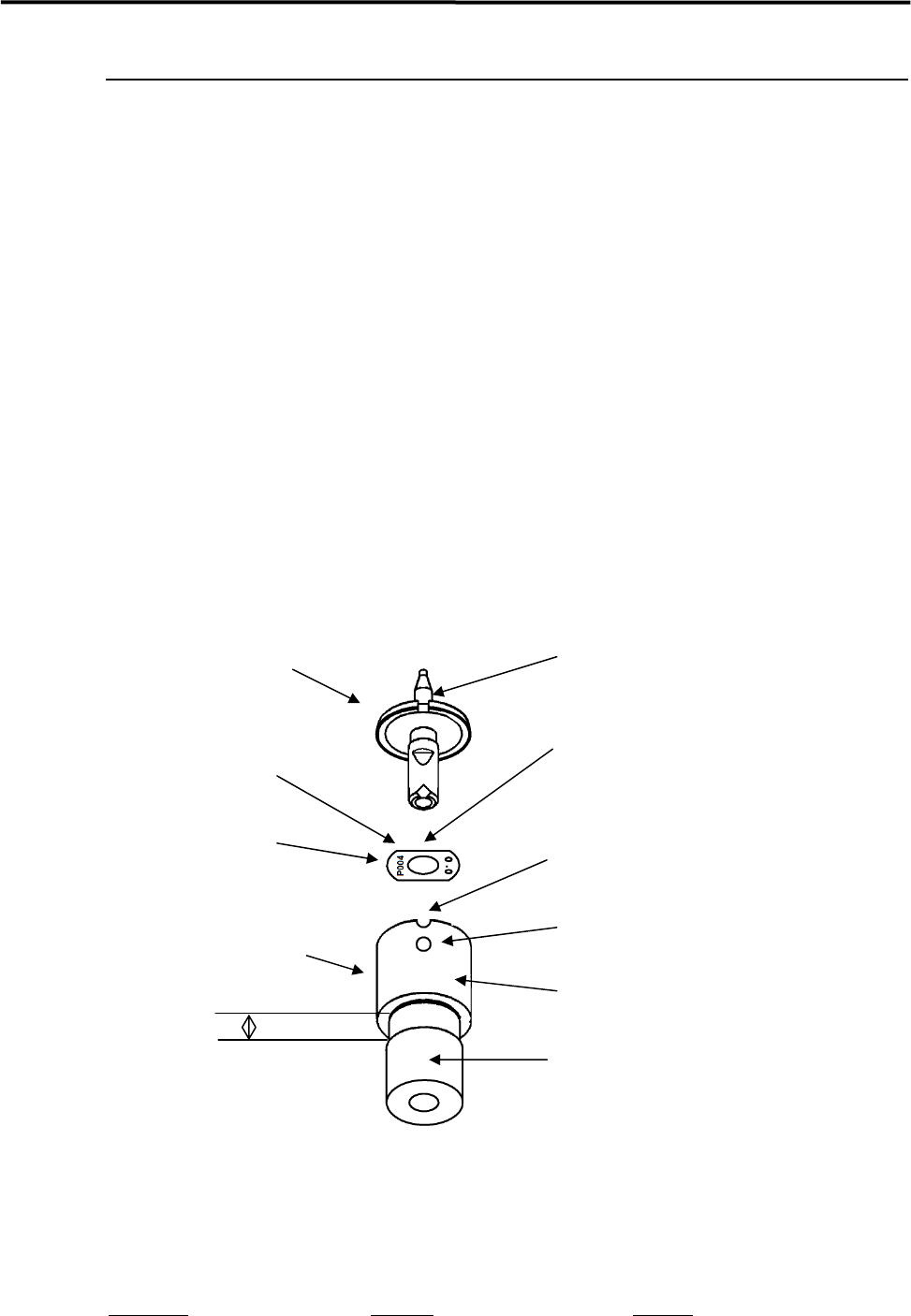

Part Name

Part No. Remark

ID SEAL TOOL, ASSY. LC1-M8903-00X ID sticker tool

Nozzle ID sticker tool

D-cut

Shaft

Positioning pin

Ring

Positioning slot

Nozzle ID sticker

Nozzle

Notch

ID No. (P***)

3mm

3 Mechanical Section

3-16

Cleaning Nozzle Recognition Stickers

Dirt on nozzle ID/presence stickers can be a cause of vision recognition failure. Regularly clean the nozzle

ID/presence stickers.

ACTION:

① Clean the sticker with cotton swab soaked with alcohol.

② Wipe off the remaining alcohol on the sticker with dry cotton swab.

NOTE: Particularly the nozzle ID stickers are liable to get dirty. If a nozzle ID sticker becomes too dirty to be

cleaned, replace it with new one.

For the part No. for the nozzle ID sticker, refer to “5. Materials”.

NOTE: The nozzle ID/presence stickers are easily peeled off when they get wet. Be sure to dry them with cotton

swab whenever they get wet.

3 Mechanical Section

3-17

Flange Seal

The Flange Seal is affixed to cover and protect the mat black film, which covers the back of the nozzle

flange to avoid Vision Process error, may caused by reflecting. This seal may cause a Vision Process error

when it is damaged with scratches or when it turns reflective after long term use with nozzle changes.

Follow the procedure below when it needs to be replaced.

ACTION:

① Peel off the old Flange Seal thoroughly and clean off the dirt, such as oil, dust and moisture, from the

back of the nozzle flange using industrial alcohol. Do not use tools, such as an edged tool and

tweezers, to peel off the seal or damage the black film.

② Slide up the ring of the Flange Seal Set Tool (Optional) and turn it clockwise.

③ Remove the Flange Seal off the exfoliative paper using tweezers.

④ Set the Flange Seal, the adhesive side up, onto the Flange Seal Set Tool. Do not touch the seal with

hand.

⑤ Confirm that the seal is set evenly flat onto the inside bottom of the ring.

⑥ Insert the nozzle, nozzle tip down, into the tool.

⑦ Turn the ring counterclockwise with the nozzle pressed onto the tool, and slides it down to attach the

nozzle flange and the Flange Seal.

NOTE: The Flange Seal comes off easily when it touches liquid, such as oil and water. Wipe them off quickly and

well using something like dry cotton-swab.

NOTE: There are 3 types of Flange seal. Please refer to the list below.

Flange Seal Parts Number Parts Name Supported nozzle types

LG0-M77A6-000 FLANGE SEAL 1 P005, P012, P013

LG0-M77A7-000 FLANGE SEAL 2 P031～ P034, P006, P017, P018, P019, P042

LG0-M77A8-000 FLANGE SEAL 3 P020

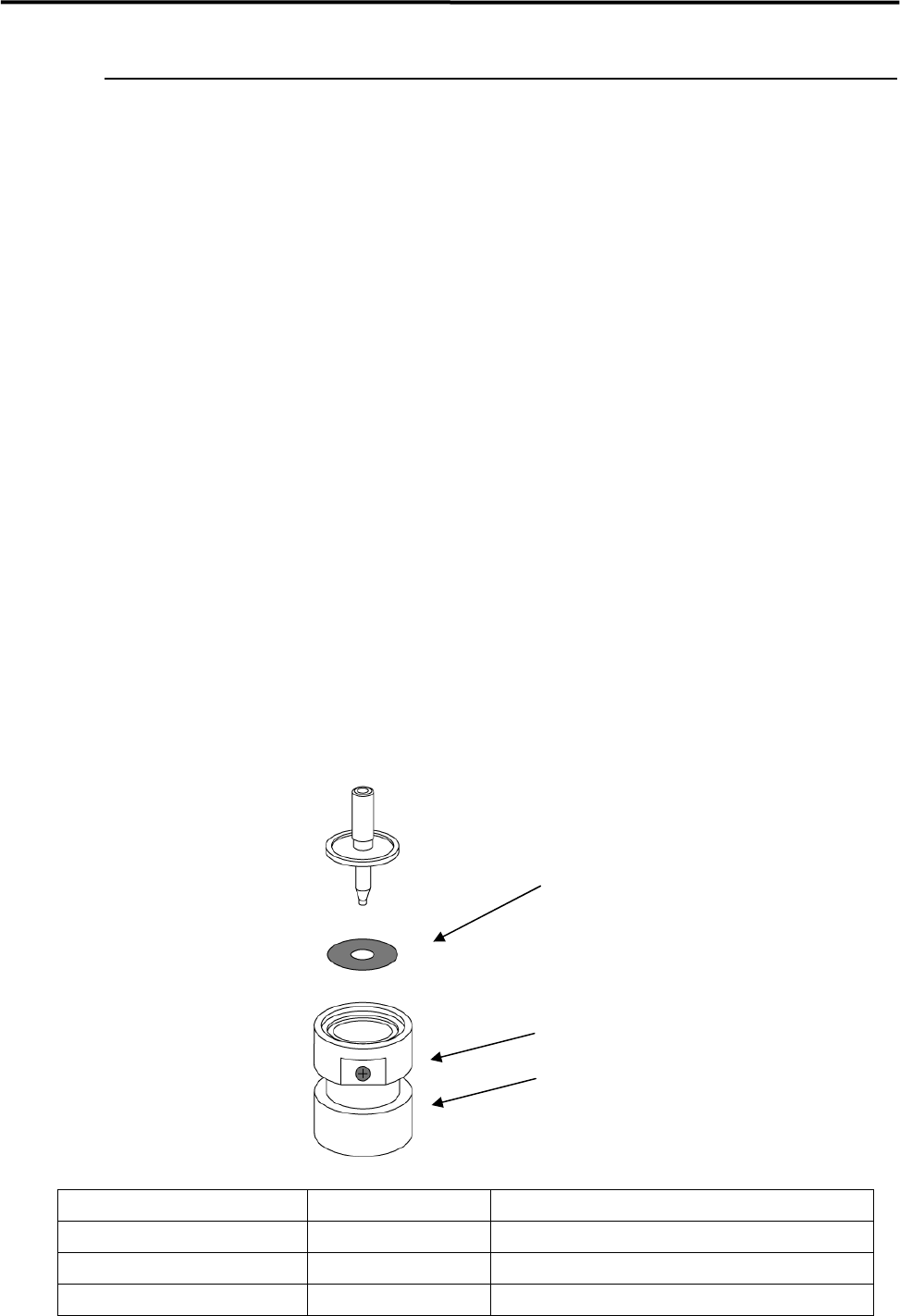

Flange Seal

Ring

Flange Seal Set Tool
