4 Electrical Section
4-6
Serial I/O
■ Serial I/O List
Device No. DO/DI Main Function Communication
Device 1 DO control Camera Illumination
Device 2 DI monitor Head Vacuum Measurement
Xio.Hi
Device 3 DO control Safety Circuit Operation
Device 4 DI monitor Safety Circuit Control
XiO.Mi8
Device 5 DO control Front Operation Switch LED Lighting
Device 6 DI monitor Front Operation Switch Key Input
XiO.Ui(F)
Device 7 DO control Rear Operation Switch LED Lighting
Device 8 DI monitor Rear Operation Switch Key Input
XiO.Ui(R)
Device 9 DO control Conveyor Actuator
Device10 DI monitor Conveyor Sensor
CIO7
Device11 DO control
Front Bank・CTF・CFB
Device12 DI monitor
Front Bank・CTF・CFB
XiO.Fi
XiO.Ti
Device13 DO control
Rear Bank・CTF・CFB
Device14 DI monitor
Rear Bank・CTF・CFB
XiO.Fi
XiO.Ti
Action:
① Click the cell corresponding to the desired actuator.
② At the same time you click the cell, the display changes 1(On) or 0(Off), and the actuator moves
accordingly.
Example:

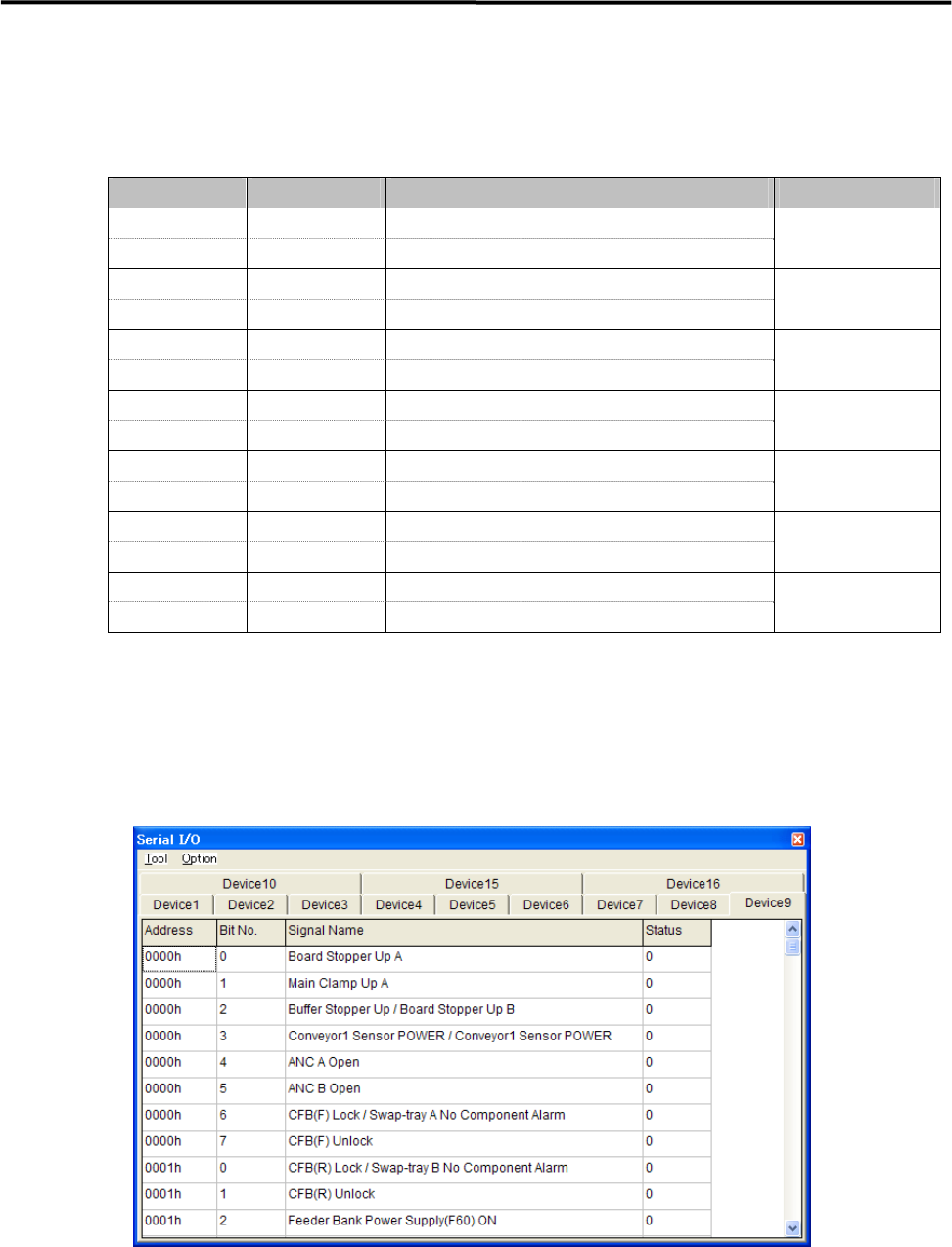

■ Moving Up and Down the Board Stopper
① Select Manual> Signal I/O to open [Serial I/O] window.
② Select [Device9] tab.
③ Click [State] of [Board Stopper Up A] cell, Status changes “0” to “1” and the board stopper lifts.
At this time, confirm that State of [Board Stopper Up A (0002h)] in [Device10] switches from “0” to “1”.
④To move down the board stopper, click [State] of [Board Stopper Up A] in [Device9]. And State changes
“1” to “0”. At this time, State of [Board Stopper Up A (0002h)] in [Device10] switches from “1” to “0”.
4 Electrical Section
4-7
DO Map
■ DO Operation
■ Device 80 (Motion Part)
Address Bit No. Signal Name Address Bit No. Signal Name
0000h
0 Head 1 Vacuum 4185h 0 Head 1 Vacuum Break
1 Head 2 Vacuum 1 Head 2 Vacuum Break
2 Head 3 Vacuum 2 Head 3 Vacuum Break
3 Head 4 Vacuum 3 Head 4 Vacuum Break
4 Head 5 Vacuum 4 Head 5 Vacuum Break
5 Head 6 Vacuum 5 Head 6 Vacuum Break
6 Head 7 Vacuum 6 Head 7 Vacuum Break
7 Head 8 Vacuum 7 Head 8 Vacuum Break
■ Device 1
Teach, Beam 1, Beam Camera Illumination Boards are controlled.
Address Bit No. Signal Name Address Bit No. Signal Name
0000h 0 Illumination Selection Bit 0 0005h 0 Beam 1 Lighting Start Delay Time Bit 8
1 Illumination Selection Bit 1 1 Beam 1 Lighting Start Delay Time Bit 9
2 2 Beam 1 Lighting Start Delay Time Bit 10
3 3 Beam 1 Lighting Start Delay Time Bit 11
4 4 Beam 1 Lighting Start Delay Time Bit 12
5 5 Beam 1 Lighting Start Delay Time Bit 13
6 6 Beam 1 Lighting Start Delay Time Bit 14
7 7 Beam 1 Lighting Start Delay Time Bit 15
0001h 0 Teach Lighting Start Delay Time Bit 0 0006h 0 Beam 2 Lighting Start Delay Time Bit 0
1 Teach Lighting Start Delay Time Bit 1 1 Beam 2 Lighting Start Delay Time Bit 1
2 Teach Lighting Start Delay Time Bit 2 2 Beam 2 Lighting Start Delay Time Bit 2
3 Teach Lighting Start Delay Time Bit 3 3 Beam 2 Lighting Start Delay Time Bit 3
4 Teach Lighting Start Delay Time Bit 4 4 Beam 2 Lighting Start Delay Time Bit 4
5 Teach Lighting Start Delay Time Bit 5 5 Beam 2 Lighting Start Delay Time Bit 5
6 Teach Lighting Start Delay Time Bit 6 6 Beam 2 Lighting Start Delay Time Bit 6
7 Teach Lighting Start Delay Time Bit 7 7 Beam 2 Lighting Start Delay Time Bit 7
0002h 0 Teach Lighting Start Delay Time Bit 8 0007h 0 Beam 2 Lighting Start Delay Time Bit 8
1 Teach Lighting Start Delay Time Bit 9 1 Beam 2 Lighting Start Delay Time Bit 9
2 Teach Lighting Start Delay Time Bit 10 2 Beam 2 Lighting Start Delay Time Bit 10
3 Teach Lighting Start Delay Time Bit 11 3 Beam 2 Lighting Start Delay Time Bit 11
4 Teach Lighting Start Delay Time Bit 12 4 Beam 2 Lighting Start Delay Time Bit 12
5 Teach Lighting Start Delay Time Bit 13 5 Beam 2 Lighting Start Delay Time Bit 13
6 Teach Lighting Start Delay Time Bit 14 6 Beam 2 Lighting Start Delay Time Bit 14
7 Teach Lighting Start Delay Time Bit 15 7 Beam 2 Lighting Start Delay Time Bit 15
0004h 0 Beam 1 Lighting Start Delay Time Bit 0 0008h 0 Teach Side Illumi. Lighting Time Bit 0
1 Beam 1 Lighting Start Delay Time Bit 1 1 Teach Side Illumi. Lighting Time Bit 1
2 Beam 1 Lighting Start Delay Time Bit 2 2 Teach Side Illumi. Lighting Time Bit 2
3 Beam 1 Lighting Start Delay Time Bit 3 3 Teach Side Illumi. Lighting Time Bit 3
4 Beam 1 Lighting Start Delay Time Bit 4 4 Teach Side Illumi. Lighting Time Bit 4
5 Beam 1 Lighting Start Delay Time Bit 5 5 Teach Side Illumi. Lighting Time Bit 5
6 Beam 1 Lighting Start Delay Time Bit 6 6 Teach Side Illumi. Lighting Time Bit 6
7 Beam 1 Lighting Start Delay Time Bit 7 7 Teach Side Illumi. Lighting Time Bit 7
4 Electrical Section
4-8
Address Bit No. Signal Name Address Bit No. Signal Name
0009h 0 Teach Side Illumi. Lighting Time Bit 8
0012h 0 Beam 1 Side Illumi. PWM Bit 0
1 Teach Side Illumi. Lighting Time Bit 9
1 Beam 1 Side Illumi. PWM Bit 1
2 Teach Side Illumi. Lighting Time Bit 10
2 Beam 1 Side Illumi. PWM Bit 2
3 Teach Side Illumi. Lighting Time Bit 11
3 Beam 1 Side Illumi. PWM Bit 3
4 Teach Side Illumi. Lighting Time Bit 12
4 Beam 1 Side Illumi. PWM Bit 4
5 Teach Side Illumi. Lighting Time Bit 13
5 Beam 1 Side Illumi. PWM Bit 5
6 Teach Side Illumi. Lighting Time Bit 14
6 Beam 1 Side Illumi. PWM Bit 6
7 Teach Side Illumi. Lighting Time Bit 15
7 Beam 1 Side Illumi. PWM Bit 7
000Ah 0 Teach Side Illumi. PWN Bit 0
0014h 0 Beam 1 Diffuse Illumi. Lighting Time Bit 0
1 Teach Side Illumi. PWN Bit 1
1 Beam 1 Diffuse Illumi. Lighting Time Bit 1
2 Teach Side Illumi. PWN Bit 2
2 Beam 1 Diffuse Illumi. Lighting Time Bit 2
3 Teach Side Illumi. PWN Bit 3
3 Beam 1 Diffuse Illumi. Lighting Time Bit 3
4 Teach Side Illumi. PWN Bit 4
4 Beam 1 Diffuse Illumi. Lighting Time Bit 4
5 Teach Side Illumi. PWN Bit 5
5 Beam 1 Diffuse Illumi. Lighting Time Bit 5
6 Teach Side Illumi. PWN Bit 6
6 Beam 1 Diffuse Illumi. Lighting Time Bit 6
7 Teach Side Illumi. PWN Bit 7
7 Beam 1 Diffuse Illumi. Lighting Time Bit 7
000Ch 0 Teach Coaxial Illumi. Lighting Time Bit 0 0015h 0 Beam 1 Diffuse Illumi. Lighting Time Bit 8
1 Teach Coaxial Illumi. Lighting Time Bit 1 1 Beam 1 Diffuse Illumi. Lighting Time Bit 9
2 Teach Coaxial Illumi. Lighting Time Bit 2 2 Beam 1 Diffuse Illumi. Lighting Time Bit 10
3 Teach Coaxial Illumi. Lighting Time Bit 3 3 Beam 1 Diffuse Illumi. Lighting Time Bit 11
4 Teach Coaxial Illumi. Lighting Time Bit 4 4 Beam 1 Diffuse Illumi. Lighting Time Bit 12
5 Teach Coaxial Illumi. Lighting Time Bit 5 5 Beam 1 Diffuse Illumi. Lighting Time Bit 13
6 Teach Coaxial Illumi. Lighting Time Bit 6 6 Beam 1 Diffuse Illumi. Lighting Time Bit 14
7 Teach Coaxial Illumi. Lighting Time Bit 7 7 Beam 1 Diffuse Illumi. Lighting Time Bit 15
000Dh 0 Teach Coaxial Illumi. Lighting Time Bit 8 0016h 0 Beam 1 Diffuse Illumination PWN Bit 0
1 Teach Coaxial Illumi. Lighting Time Bit 9 1 Beam 1 Diffuse Illumination PWN Bit 1
2 Teach Coaxial Illumi. Lighting Time Bit 10 2 Beam 1 Diffuse Illumination PWN Bit 2
3 Teach Coaxial Illumi. Lighting Time Bit 11 3 Beam 1 Diffuse Illumination PWN Bit 3
4 Teach Coaxial Illumi. Lighting Time Bit 12 4 Beam 1 Diffuse Illumination PWN Bit 4
5 Teach Coaxial Illumi. Lighting Time Bit 13 5 Beam 1 Diffuse Illumination PWN Bit 5
6 Teach Coaxial Illumi. Lighting Time Bit 14 6 Beam 1 Diffuse Illumination PWN Bit 6
7 Teach Coaxial Illumi. Lighting Time Bit 15 7 Beam 1 Diffuse Illumination PWN Bit 7
000Eh 0 Teach Coaxial Illumination PWM Bit 0 0018h 0 Beam 1 Coaxial Illumi. Lighting Time Bit 0
1 Teach Coaxial Illumination PWM Bit 1 1 Beam 1 Coaxial Illumi. Lighting Time Bit 1
2 Teach Coaxial Illumination PWM Bit 2 2 Beam 1 Coaxial Illumi. Lighting Time Bit 2
3 Teach Coaxial Illumination PWM Bit 3 3 Beam 1 Coaxial Illumi. Lighting Time Bit 3
4 Teach Coaxial Illumination PWM Bit 4 4 Beam 1 Coaxial Illumi. Lighting Time Bit 4
5 Teach Coaxial Illumination PWM Bit 5 5 Beam 1 Coaxial Illumi. Lighting Time Bit 5
6 Teach Coaxial Illumination PWM Bit 6 6 Beam 1 Coaxial Illumi. Lighting Time Bit 6
7 Teach Coaxial Illumination PWM Bit 7 7 Beam 1 Coaxial Illumi. Lighting Time Bit 7
0010h 0 Beam 1 Side Illumi. Lighting Time Bit 0 0019h 0 Beam 1 Coaxial Illumi. Lighting Time Bit 8
1 Beam 1 Side Illumi. Lighting Time Bit 1 1 Beam 1 Coaxial Illumi. Lighting Time Bit 9
2 Beam 1 Side Illumi. Lighting Time Bit 2 2 Beam 1 Coaxial Illumi. Lighting Time Bit 10
3 Beam 1 Side Illumi. Lighting Time Bit 3 3 Beam 1 Coaxial Illumi. Lighting Time Bit 11
4 Beam 1 Side Illumi. Lighting Time Bit 4 4 Beam 1 Coaxial Illumi. Lighting Time Bit 12
5 Beam 1 Side Illumi. Lighting Time Bit 5 5 Beam 1 Coaxial Illumi. Lighting Time Bit 13
6 Beam 1 Side Illumi. Lighting Time Bit 6 6 Beam 1 Coaxial Illumi. Lighting Time Bit 14
7 Beam 1 Side Illumi. Lighting Time Bit 7 7 Beam 1 Coaxial Illumi. Lighting Time Bit 15
0011h 0 Beam 1 Side Illumi. Lighting Time Bit 8 001Ah 0 Beam 1 Coaxial Illumination PWM Bit 0
1 Beam 1 Side Illumi. Lighting Time Bit 9 1 Beam 1 Coaxial Illumination PWM Bit 1
2 Beam 1 Side Illumi. Lighting Time Bit 10 2 Beam 1 Coaxial Illumination PWM Bit 2
3 Beam 1 Side Illumi. Lighting Time Bit 11 3 Beam 1 Coaxial Illumination PWM Bit 3
4 Beam 1 Side Illumi. Lighting Time Bit 12 4 Beam 1 Coaxial Illumination PWM Bit 4
5 Beam 1 Side Illumi. Lighting Time Bit 13 5 Beam 1 Coaxial Illumination PWM Bit 5
6 Beam 1 Side Illumi. Lighting Time Bit 14 6 Beam 1 Coaxial Illumination PWM Bit 6
7 Beam 1 Side Illumi. Lighting Time Bit 15 7 Beam 1 Coaxial Illumination PWM Bit 7
