3 Mechanical Section 3-20 Lubrication Lubrication Points Lubricate the specified p ortions listed b elow with cotton swab soaked with lubr icant. UNIT PORTION LUBRICANT FREQ. Ball Screw of X-axis Grease Every two weeks L…

3 Mechanical Section

3-19

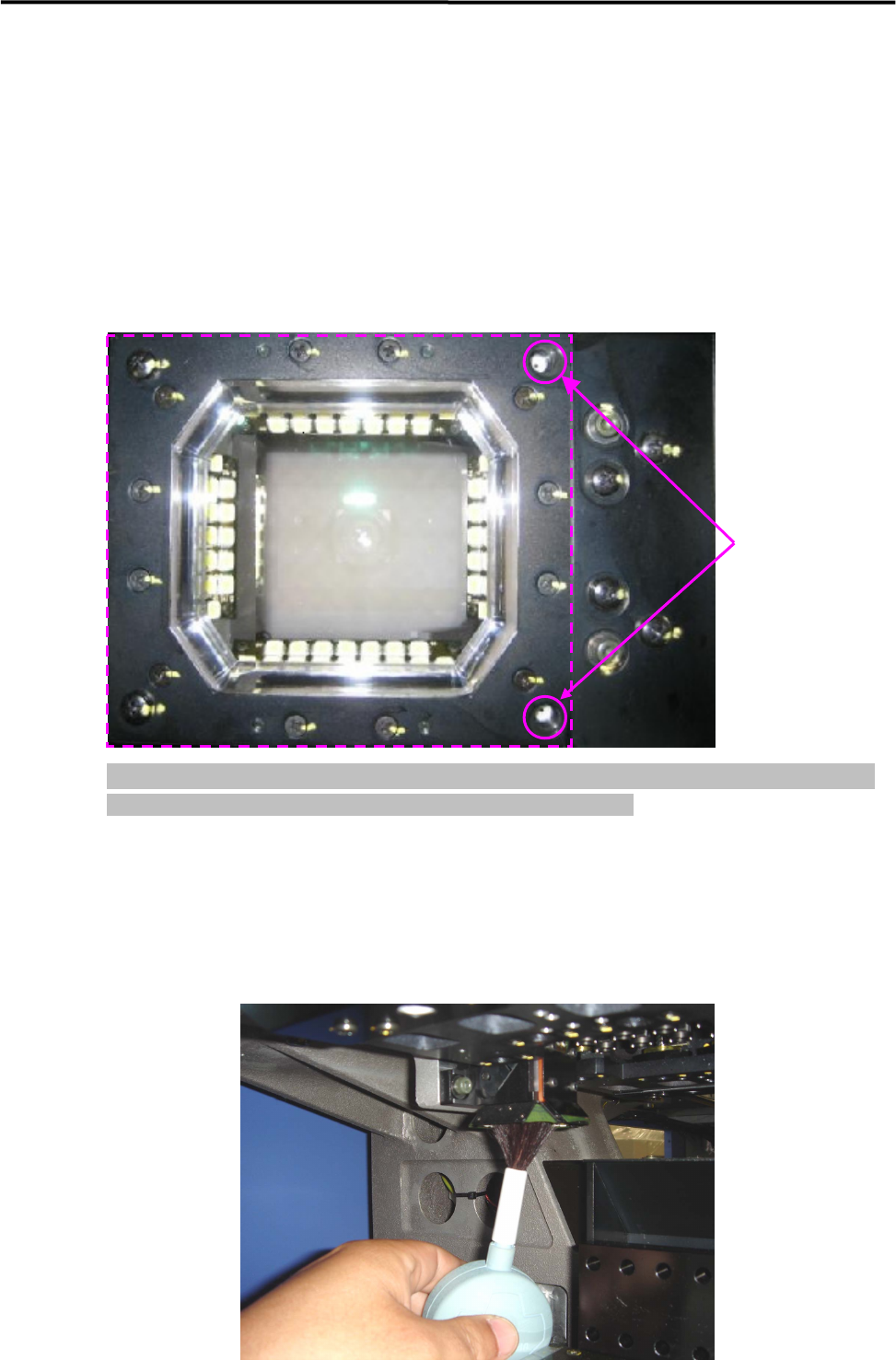

Cleaning Beam camera

Remove dirt/dropped obstacles (components or deposits) in a gentle way from the lens or lens filter of the

beam cameras, blowing air with a blower brush or wiping with a dry thing like a cotton swab. Avoid

applying your finger pressure directly to the lens and mirror through the use of such things as tissues.

For stubborn and sticky dirt such as grease, which cannot be cleaned away by air blow or wiping with dry

cotton swab, wipe it off with a moistened cotton swab with little amount of liquid cleaner, and finally with

dry one to remove the liquid cleaner and dirt completely. Do not apply the liquid cleaner directly on the lens

or lens filter.

NOTE: Be careful not to touch your finger or cotton swab directly to the LED lighting. The careless touch may

change the optical axis of lighting, causing vision recognition problem.

Cleaning Board Camera

The lens of teach camera faces downward, and usually it would not get any dirt/dust under the normal

operation. However, if it gets dirty, blow air using blower brush from the bottom of the teach camera in

order to remove the dust.

Wipe with a dry

cotton swab

3 Mechanical Section

3-20

Lubrication

Lubrication Points

Lubricate the specified portions listed below with cotton swab soaked with lubricant.

UNIT PORTION LUBRICANT FREQ.

Ball Screw of X-axis Grease Every two weeks

Linear Guide of X-axis (Upper and Lower) Grease Every two weeks

Ball Screw of Y-axis (Right and Left) Grease Every two weeks

Linear Guide of Y-axis (Right and Left) Grease Every two weeks

Feeder Bank Plates Grease Every two weeks

Conveyor Width Adjusting Screw Grease Monthly

M8 Conveyor Guide Shaft Grease Monthly

Ball Screw of Z-axis Grease Every two weeks

Spline Shaft of Z-axis Grease Every two weeks

Linear Way of Z-axis Grease Every two weeks

Nozzle Holder Silicone Grease Monthly

Nozzle Silicone Grease Weekly

NOTE: Do not apply excessive oil/grease. This may cause oil/grease scattering when the mounter is in operation.

■ Z Axis Ball Screw, Z Axis Linear Guide

① Wipe off grease fixed on the ball screw and linear guide. Please use nonwoven cloth that lint does not

remain.

③ Apply new grease on the ball screw and linear guide by finger. Please do not apply grease partially,

but overall and uniformly.

3 Mechanical Section

3-21

■ Lubrication Points for X/Y

Slider

Ball Screw

X Axis Slider, Ball Screw

Y Axis Slider, Ball Screw
