3 Mechanical Section
3-21

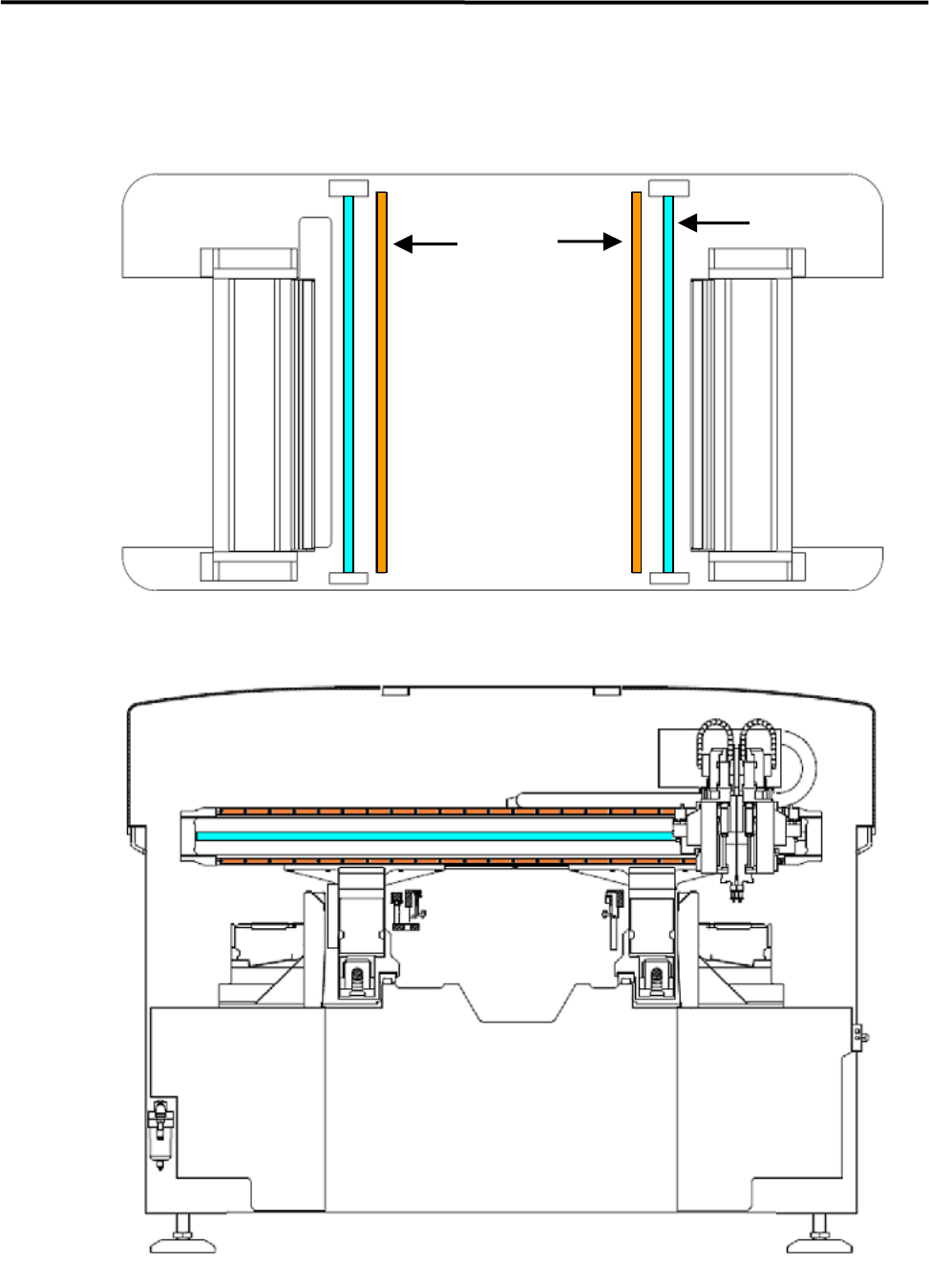

■ Lubrication Points for X/Y
M8
Slider
Ball Screw
X Axis Slider, Ball Screw
Y Axis Slider, Ball Screw
3 Mechanical Section
3-22
Lubrication
X Axis Ball Scew
Grease Injection

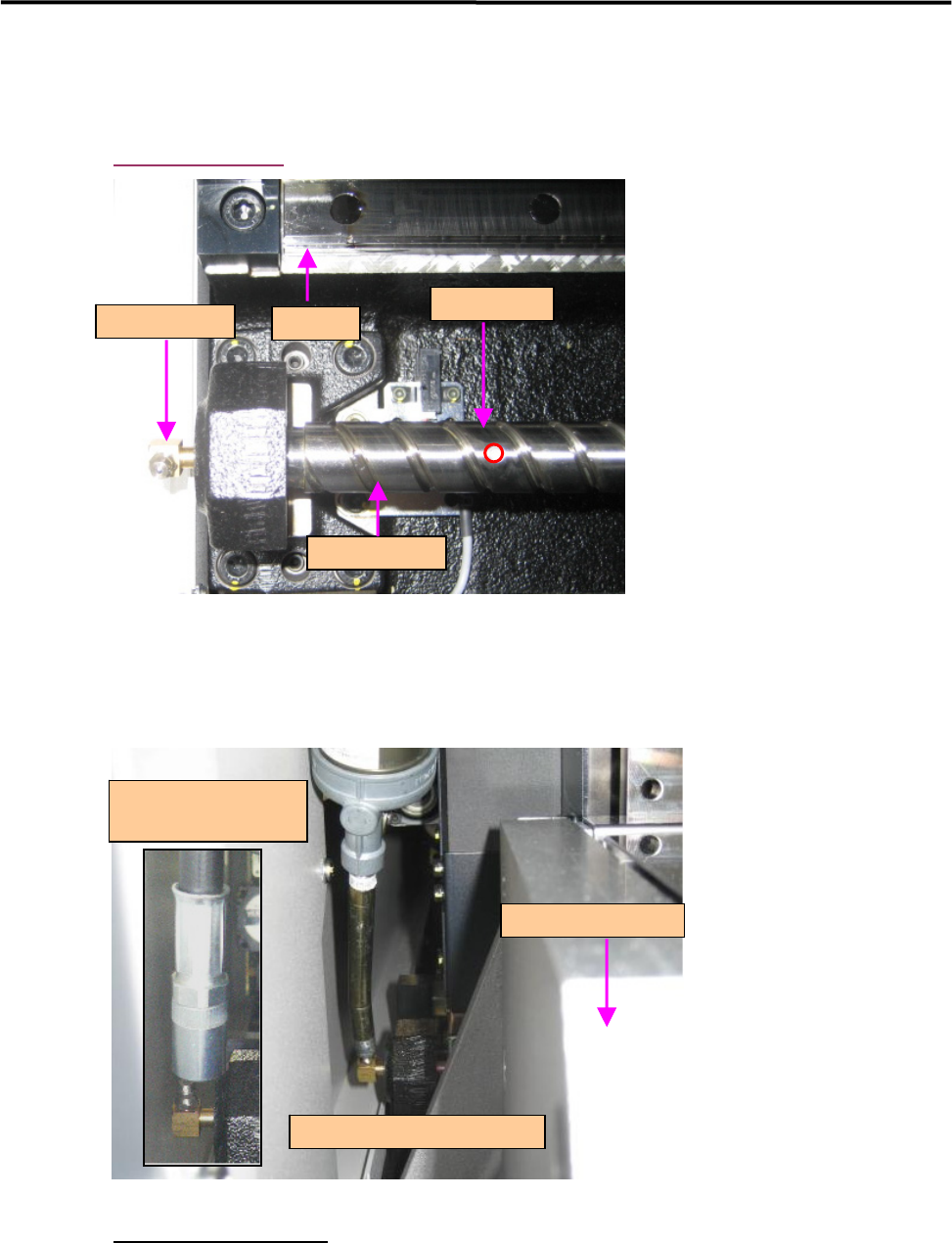

Grease Injection Method
① Move the head assembly to the middle of the axis.
② Move the Y Axis Beam Unit to the left side of the machine.
③ Attach the grease gun to the grease nipple as shown in the above picture.
④ Inject grease into the ball screw.
・
The grease will be injected from the grease slot through the grease nipple.
・
The beam unit has to be moved to the grease nipple side when injecting grease.
Grease Nipple
Grease Nipple
Grease Slot
Ball Screw
Slider
Grease Gun and Grease Nipple
Y Axis Beam Unit
Recommended Grease Gun
LE4-M86A1-00X
3 Mechanical Section
3-23
Y Axis Ball Screw
Grease Injection
注入の仕方
①ヘッドをビーム中央に移動します。
②ヘッドユニットを手前に当てつける。
③上図の様にグリスﾆｯﾌﾟﾙにグリスガンの口を着けます。
④レバー握り、グリスを注入してください。
Grease Injection Method
① Move the Y Axis Beam Unit to the middle of the machine.
② Move the head assembly to the front side of the machine.
③ Attach the grease gun to the grease nipple as shown in the above picture.
④ Inject the grease into the ball screw.
Grease Nipple
Grease Slot
Ball Screw
・
The grease will be injected from the grease slot through the grease nipple.
・
The beam unit has been moved to the grease nipple side when injecting grease.
Grease Gun and Grease Nipple
