3 Mechanical Section 3-8 ■ Inspection of Suction Pad (Nozzle No. P017, P018, P019, P020) Check that the rubber suction pad located at the nozzle t ip is free from scratches and cracks. If they are found on the pad, repla…
3 Mechanical Section
3-7

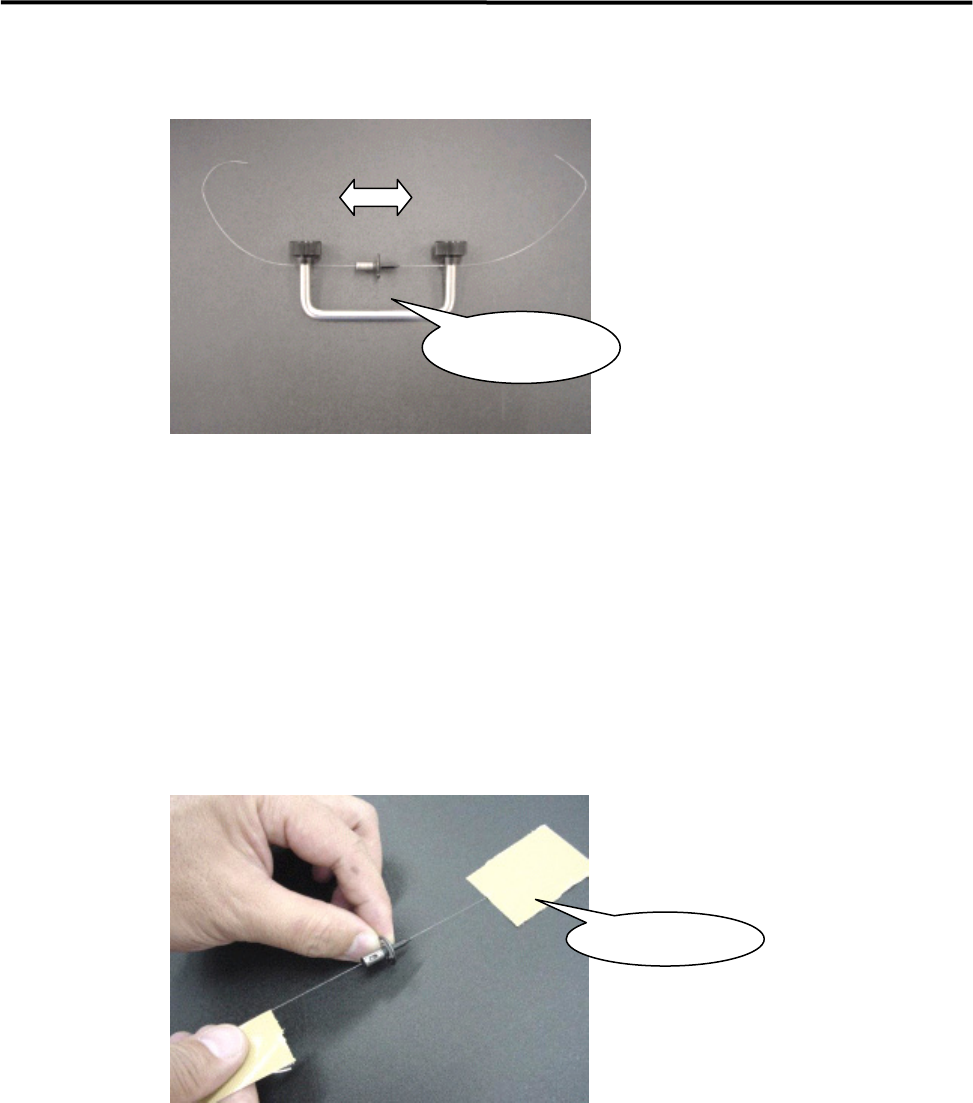

④ Wind to fasten the wire between both sides of the nozzle cleaner assy.
(Part No. KV8-M8881-A0X)
⑤ Move the nozzle back and forth to clean the nozzle hole.
⑥ Remove the wire and blow some air into the nozzle hole.
■ Nozzle Cleaning using Wire (2)
You can use the wire by fastening the wire ends with adhesive tape. In this case, adhesive may remain on
the wire. So be sure to clean the wire end before pulling out the wire from the nozzle.
Nozzle Cleaner
Assy.
Adhesive Tape
3 Mechanical Section
3-8
■ Inspection of Suction Pad (Nozzle No. P017, P018, P019, P020)
Check that the rubber suction pad located at the nozzle tip is free from scratches and cracks. If they are
found on the pad, replace the pad with a new one.
ACTION: Remove the old pad, apply silicon grease to the inner surface of a new pad, and then install it in the nozzle.
Part Name
Part No. Remark
RUBB.PAD17 LG0-M77A0-00X Suction pad for P017
RUBB.PAD18 LG0-M77A1-00X Suction pad for P018
RUBB.PAD19 LG0-M77A2-00X Suction pad for P019
RUBB.PAD20 LG0-M77A9-00X Suction pad for P020
GREASE SILICON LG0-M89AB-00X Silicone Grease
3 Mechanical Section
3-9
■ Applying Silicon Grease
After the nozzle is cleaned, it must be coated with silicon grease.
● Nozzle outer surface
Apply a slight amount of grease to the outer surface (indicated by dotted lines in the above illustration), and
then wipe it off with a dry cloth.
NOTE: Silicon grease must be applied so that it forms a thin film on the surface.
● Suction pad
Application of oil content is needed to prevent deterioration of the rubber. Apply a slight amount of grease
to the outer surface of the suction pad, and then wipe it off with a dry cloth.
NOTE: Silicon grease must be applied so that it forms a thin film on the surface.
Do not apply excessive amounts of grease. This may cause collection of dirt or dust in
the air passage and on placed components, resulting in component placement failure.
● Inspection interval
Approx. once a month
Suction pad
Nozzle ID sticker
Apply silicon grease.
