4 Electrical Section
4-23
Diagnostic
Code
Meaning
Diagnostic
Code
Meaning
80h Disable onboard Super I/O ports and IRQs B0h Check for errors
81h Late POST device initialization B1h Inform RomPilot about the end of POST.
82h Detect and install external RS232 ports B2h POST done - prepare to boot operating system
83h Configure non-MCD IDE controllers B4h One short beep before boot
84h Detect existence of parallel ports B5h Terminate QuietBoot
85h Checking for PnP ISA devices B6h Check password
86h Re-initialize onboard I/O ports B7h Initialize ACPI-BIOS
87h Configure Motherboard Configurable Devices B9h Clear Screen
88h Initialize BIOS Data Area BAh Initialize SMBIOS
89h Enable Non-Maskable Interrupts (NMIs) BCh Clear parity checkers
8Ah Initialize Extended BIOS Data Area BDh Display MultiBoot menu
8Bh Test and initialize PS/2 mouse BEh Clear screen
8Ch Initialize floppy controller BFh Check virus and backup reminders
8Fh Determine number of ATA drives C0h Try to boot with INT 19
90h Initialize hard-disk controllers C1h Initialize POST Error Manager (PEM)
91h Initialize local-bus hard-disk controllers C2h Initialize error logging
92h Jump to UserPatch2 C3h Initialize error display function
93h Build MPTABLE for multi-processor boards C4h Initialize system error handler
95h Install CD ROM for boot C5h PnP dual CMOS
96h Clear huge ES segment register C6h Initialize note dock
97h Fixup Multi Processor table C7h Initialize note dock rate
98h Search for option ROMs. One long, two short beeps on
checksum failure
C8h
Force check
99h Check for SMART Drive C9h Extended checksum
9Ch
Set up Power Management
CBh
Redirect Int 13h to Memory Technologies Devices
such as ROM, RAM,PCMCIA, and serial disk
9Dh Initialize security engine CCh Redirect Int 10h to enable remote serial video
9Eh Enable hardware interrupts CDh Redirect Int 15h to enable remote keyboard
9Fh Determine number of ATA and SCSI drives CEh Initialize digitizer and display message
A0h Test Real Time Clock interrupt D2h Unknown interrupt
A2h Check key lock E0h Check memory mounting
A4h Initialize Typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot flag
4 Electrical Section
4-24
Control Board
Handling Control Board
Note the followings when handling PC boards.
z Do not touch control boards by wet hands.
z Do not handle control boards where there are metal chips around.
z Do not touch soldering parts with bare hands when handling PC boards.
z Please discharge static electricity of your body by touching any accessible metallic things before
handling PC boards.
z Please remove connectors carefully as not to damage them.
z Please turn off the machine before removing or installing PC boards.
4 Electrical Section
4-25

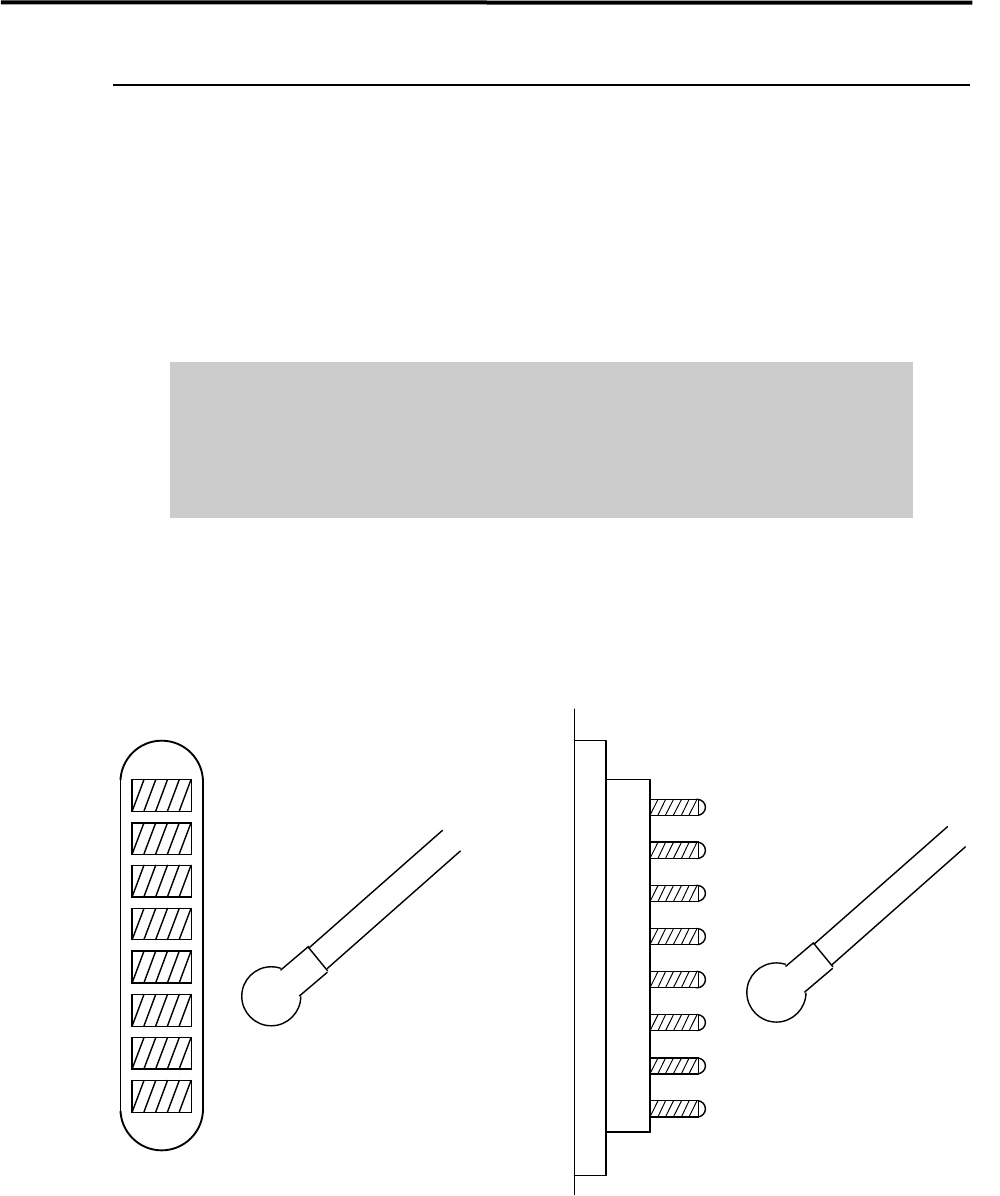

Electrodes on Feeder / Feeder Bank
When electrodes on the feeder bank and the tape feeder get dirty, clean them as follows:
NOTE: If the electrodes are touched by hand or have come into contact with foreign matter, cleaning is
recommended even if no dirt can be observed visually.
ACTION: Clean the electrodes by wiping off dust gently with a dry cotton swab or non-woven fabric. When cleaning
them, check that the pins are not bent. If they are bent excessively, contact i-PULSE for repair. Continuing
to use them if the pins are bent may scratch the contact surface of the feeder bank.
Do not use alcohol, water base detergents and organic solvent, such as
thinner, benzene and acetone.
Do not use sandpaper and tools with sharp blade or edge, such as a knife and
a screwdriver.
NOTE: If they get stubborn stains, try not to get rid of them forcedly. Please contact us.
Cotton swab
Pin Electrodes on feederElectrodes on feeder bank
Cotton swab
