3 Mechanical Section 3-24 X Axis Liner Guide Y Axis Liner Guide Grease Nipple Ball Screw Cove r Grease Gun & Nozzle Grease Ni pp le ( Lower ) Grease Gun & Nozzle
3 Mechanical Section
3-23

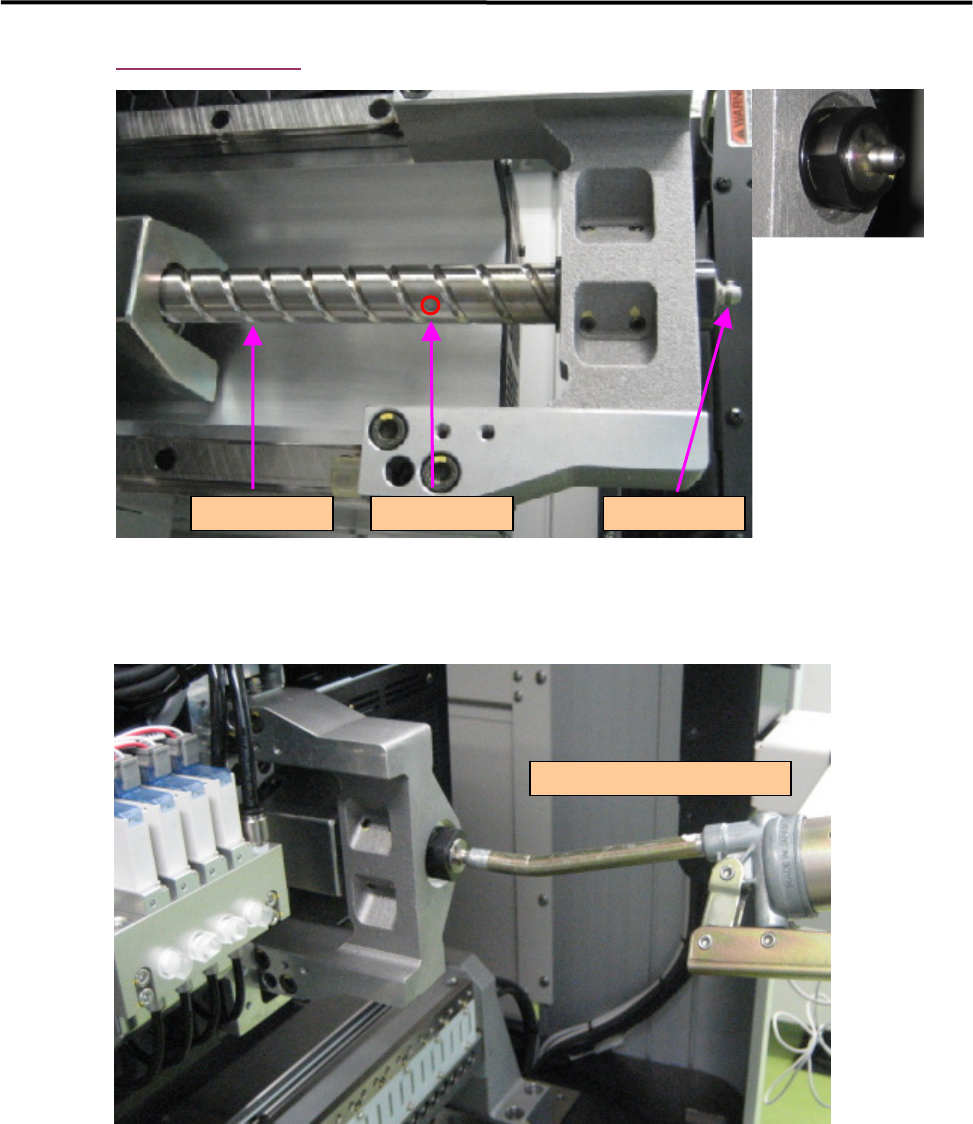

Y Axis Ball Screw
Grease Injection
注入の仕方
①ヘッドをビーム中央に移動します。
②ヘッドユニットを手前に当てつける。
③上図の様にグリスﾆｯﾌﾟﾙにグリスガンの口を着けます。
④レバー握り、グリスを注入してください。
Grease Injection Method
① Move the Y Axis Beam Unit to the middle of the machine.
② Move the head assembly to the front side of the machine.
③ Attach the grease gun to the grease nipple as shown in the above picture.
④ Inject the grease into the ball screw.
Grease Nipple
Grease Slot
Ball Screw
・
The grease will be injected from the grease slot through the grease nipple.
・
The beam unit has been moved to the grease nipple side when injecting grease.
Grease Gun and Grease Nipple

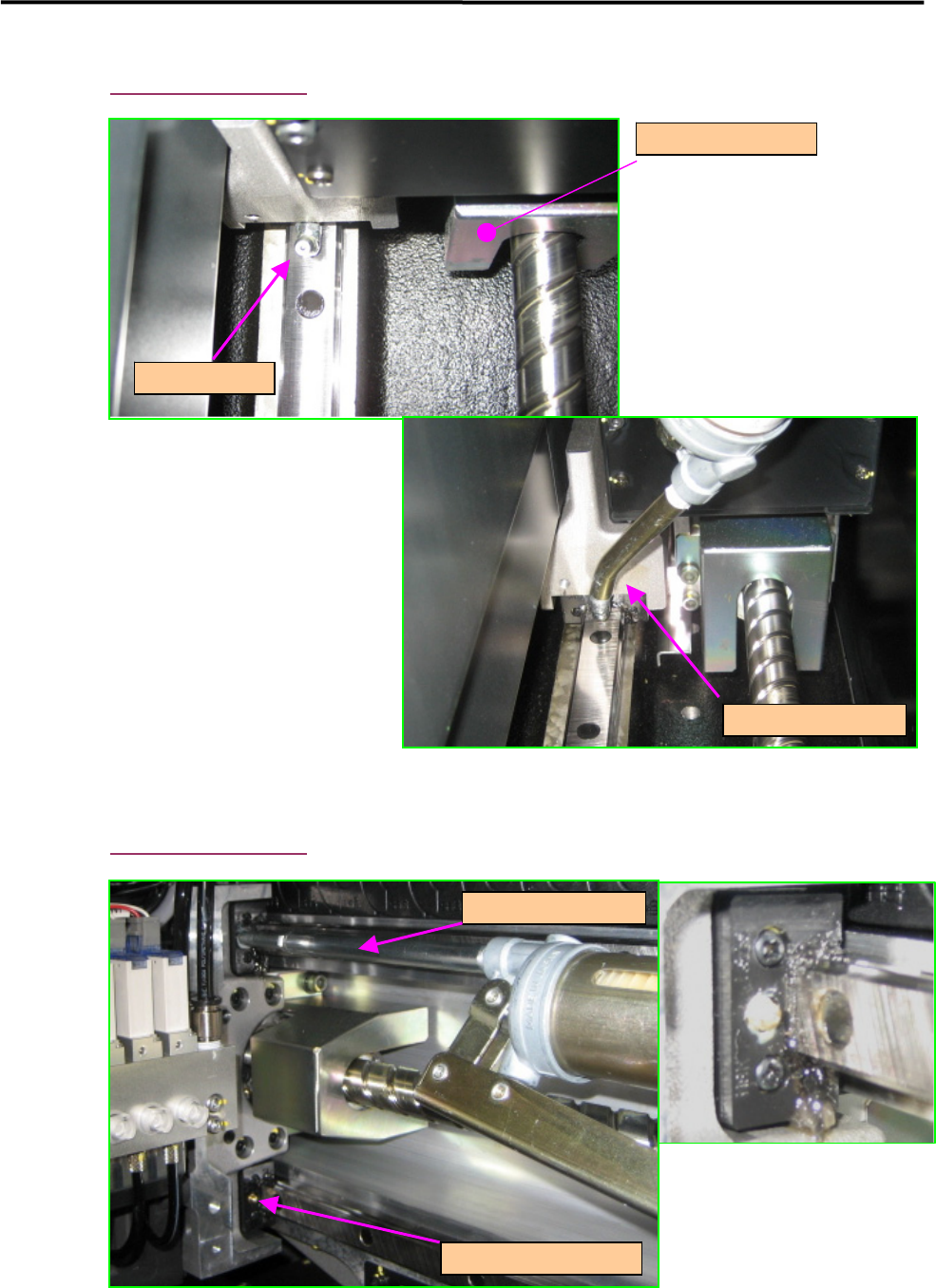

3 Mechanical Section
3-24
X Axis Liner Guide
Y Axis Liner Guide
Grease Nipple
Ball Screw Cove
r
Grease Gun & Nozzle
Grease Ni
pp
le
(
Lower
)
Grease Gun & Nozzle

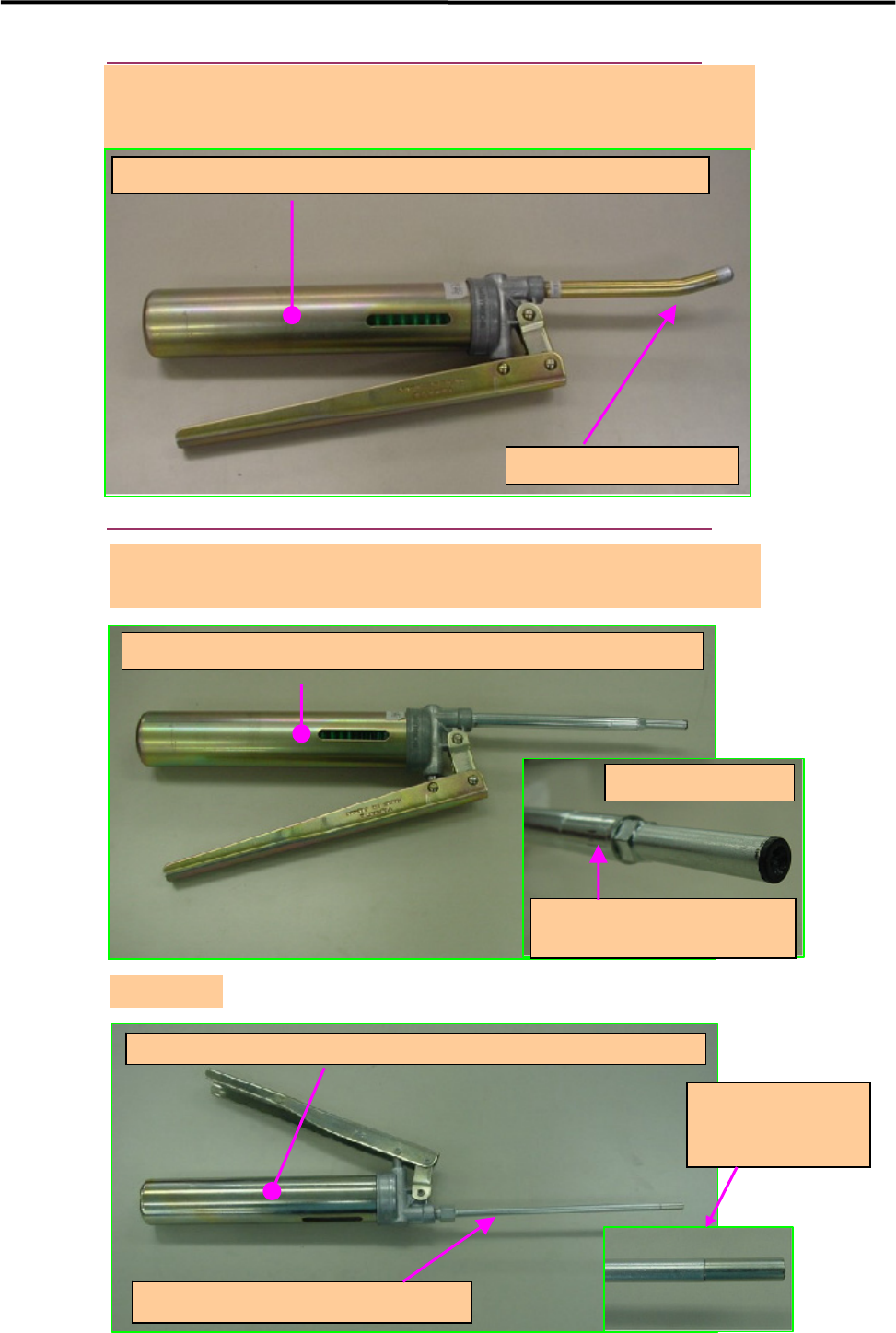

3 Mechanical Section
3-25
X&Y Axis Ball Screw ; Recommended Grease Gun and Grease
HH
X&Y Axis Liner Guide; Recommended Grease Gun and Grease
Grease Gun Set MG70
(
with the nozzle
)
: THK
(
LG0-M86A1-00X
)
Recommended Nozzle
：
NSK HGP NZ3
（
LC8-M86A1-00X
）
φ
10-
φ
7 High Strength
Recommended Grease ; NSK Grease LR3 80g (K48-M3856-00X)
Recommended Nozzle ; NZ5 X Axis (LE4-M86A1-00X)
NSK HGP NZ５ Y Axis (LC8-M86A1-00X)
Grease Gun Set MG70 (with the nozzle) : THK (LG0-M86A1-00X)
Recommended Nozzle; H form
Recommended Grease： NSK Grease LR3 80g （K48-M3856-00X）
Recommended Nozzle : NSK HGP NZ3 (LC8-M86A1-00X)
Reference
Grease Gun Set MG70 (with nozzle)
：
THK LG0-M86A1-00X
Attached Special U Form Pipe and N Form Nozzle
φ6; Not recommended,
because of not enough
strength
