MIL-STD-883F METHOD 2017.8 18 June 2004 13 Class H Class K e. Bonds where t he tool i mpress ion lengt h is l ess t han 1.0 mil (see Fi gure 2017-6) FIGURE 2017-6. Beam Lead Area and Loc ation .

MIL-STD-883F

METHOD 2017.8

18 June 2004

Class H Class K

a. One bond used to secure two common wires. (see Figure 2017-5)

FIGURE 2017-5. One bond used to secure two common wires

b. More than one bond on top of original bond.

NOTE: When required by design and based on a justifiable technical need, and with the approval of the qualifying

or acquiring activity, additional compound bonds may be allowed in addition to the limitations of a and b

above. Demonstration of acceptable N+1 bond stacks (N = maximum number of compound bonds

allowable by the manufactures process) and establishment of necessary process controls shall be

required for approval.

c. Compound bond where the contact area of the second bond with the original bond is less than 75 percent of the

bottom bond.

d. Non-monometallic compound bond (i.e., between dissimilar metals, excluding the bond pad metallization).

3.1.5.5 Beam lead

. This inspection and criteria shall apply to the completed bond area made using direct tool contact.

No device shall be acceptable that exhibits:

a. Bonds which do not exhibit 100 percent bond/weld impression(s) across the width of the beam lead.

NOTE: Gaps between bonds/welds on the beam lead caused by the natural footprint of a bond/weld tip (i.e., split

tip, etc.), are acceptable provided the total of all gaps does not exceed 25 percent of the beam lead width.

b. Complete or partial beam separation from the die.

c. Bonds on the substrate where the tool impression is not visible on the beam.

d. Beam lead width increased by greater than 60 percent of the original beam width.

MIL-STD-883F

METHOD 2017.8

18 June 2004

Class H Class K

e. Bonds where the tool impression length is less than 1.0 mil (see Figure 2017-6)

FIGURE 2017-6. Beam Lead Area and Location

MIL-STD-883F

METHOD 2017.8

18 June 2004

Class H Class K

f. Bonding tool impression less than 1.0 mil from the die edge (see Figure 2017-6).

g. Effective bonded area less than 50 percent of that which would be possible for an exactly aligned beam (see

Figure 2017-6).

h. Any tears in the beam lead between the bond junction nearest the die body and the die or in the bonded area of

the beam lead within a distance equal to 50 percent the beam lead width (see Figure 2017-7).

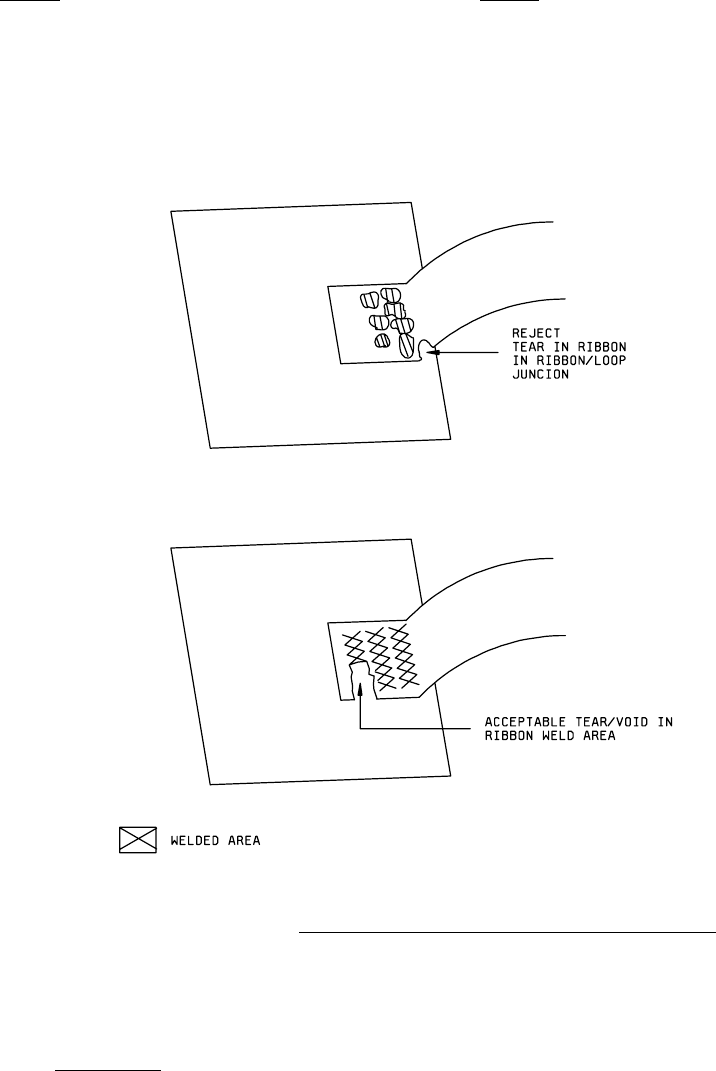

FIGURE 2017-7. Acceptable/rejectable tears or voids in ribbon weld area

i. An absence of visible separation between the bond and the edge of the passivation layer (see Figure 2017-6).

j. An absence of visible separation between a beam lead and non-electrically common metallization. This criteria applies

for both glassivated and unglassivated metallization.

3.1.5.6 Mesh bonding

. No device shall be acceptable that exhibits the following:

a. Less than 50 percent of the bond is on substrate metallization.
