Item 6 in Figure 2.1 - 1
showing the warning signs on the basic machine on the service sokket
(behind the safety doors in the power supply unit) 2
2
Item 7 in Figure 2.1 - 1
showing the warning signs on the basic machine - permanent magnets for
the y axes 2
2
Item 8 in Figure 2.1 - 1
showing the warning signs on the placement system - on the servo unit2
Warning!
When the main switch is switched off
under voltage
7
8
Attention
!
Wait at least 20 seconds before
removing the modules to allow
the capacitors to discharge fully
2 Operational Safety User Manual HS-50
2.1 Safety instructions Software Version SR.501.xx 12/99 Issue US
58
t IIt
2
Item 9 in Figure 2.1 - 1 showing the warning signs on the placement system - on the UPS and
station computer (beneath the PCB conveyor) 2
2
Item 10 in Figure 2.1 - 1 showing the warning labels on the safety screens of the machine 2
Item 11 in Figure 2.1 - 1
showing the warning labels on the cover plate of the placement system2
Warning!
When the main switch is switched off
under voltage
Nicht in die laufende
Maschine greifen
Do not put your hands
into working machine
User Manual HS-50 2 Operational Safety
Software Version SR.501.xx 12/99 Issue US 2.1 Safety instructions
59
t IIt
2.1.6 Safety instructions for closing the protective covers
To prevent all risk of injury when closing the protective covers on the machine, all personnel must
be required to follow the instructions below when closing the covers. 2
RISK OF CRUSHING HANDS IF THE PROTECTIVE COVERS ARE NOT CLOSED
CORRECTLY 2
2

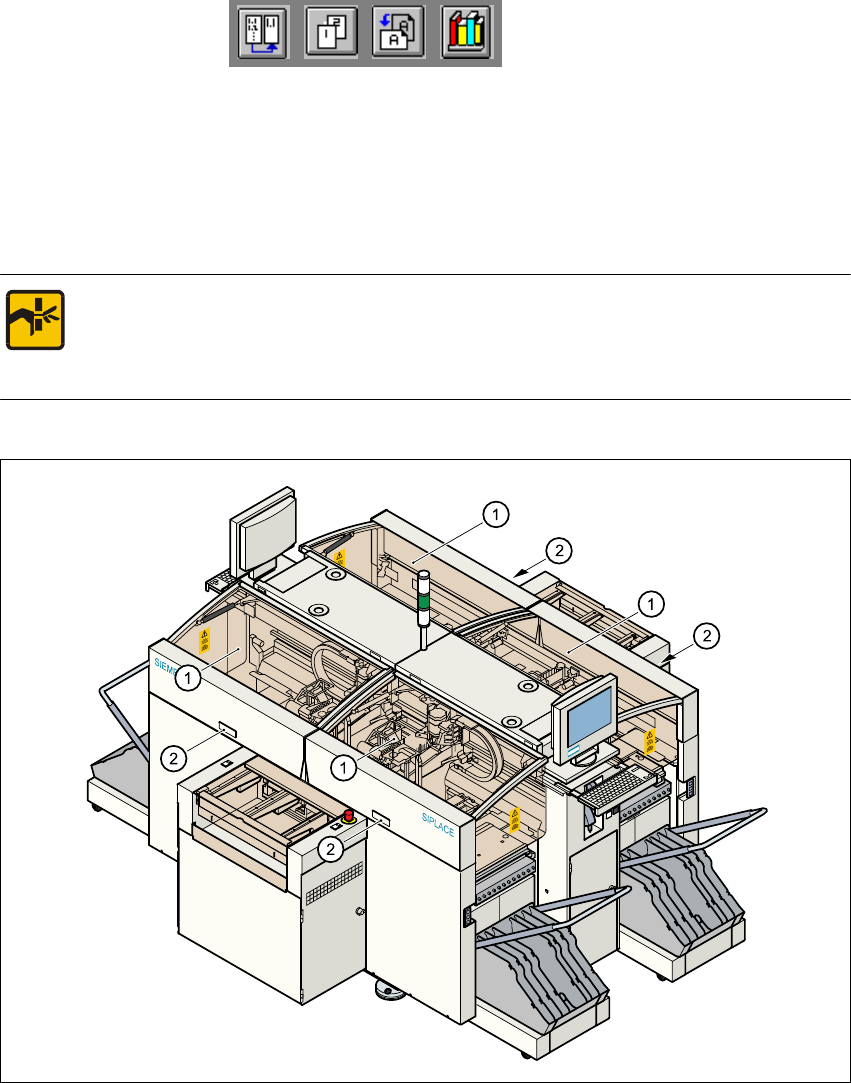

Fig. 2.1 - 2 Safety instructions for closing the protective covers
(1)Protective covers
(2)Recessed grips
2
Å When opening or closing the protective covers, always hold the covers by the recessed grips.
If the shock absorbing capacity of the protective covers reduces over time, for example, your
hands can easily be crushed if you do not close the covers using the recessed grips.
2
