OM-1606
6-4
6. Splicing
6.3. Indication of "Alarm for Splicing" on the Machine
Information Window
6.3.1 Characteristics of the Tape Feeders applicable to the Splicing
Operation
"Alarm for Splicing" Display FF4
Procedure
(1) Conrm the contents on the machine information window and press the [OK]
button.
(The "Machine Information" window will be closed.)
1009-002
OM-1606
6. Splicing
6-5
(2) Press the [Comp. Reld.] button in the AUTO. OPN. submenu window.
(The "Comp. Reload" window will appear.)

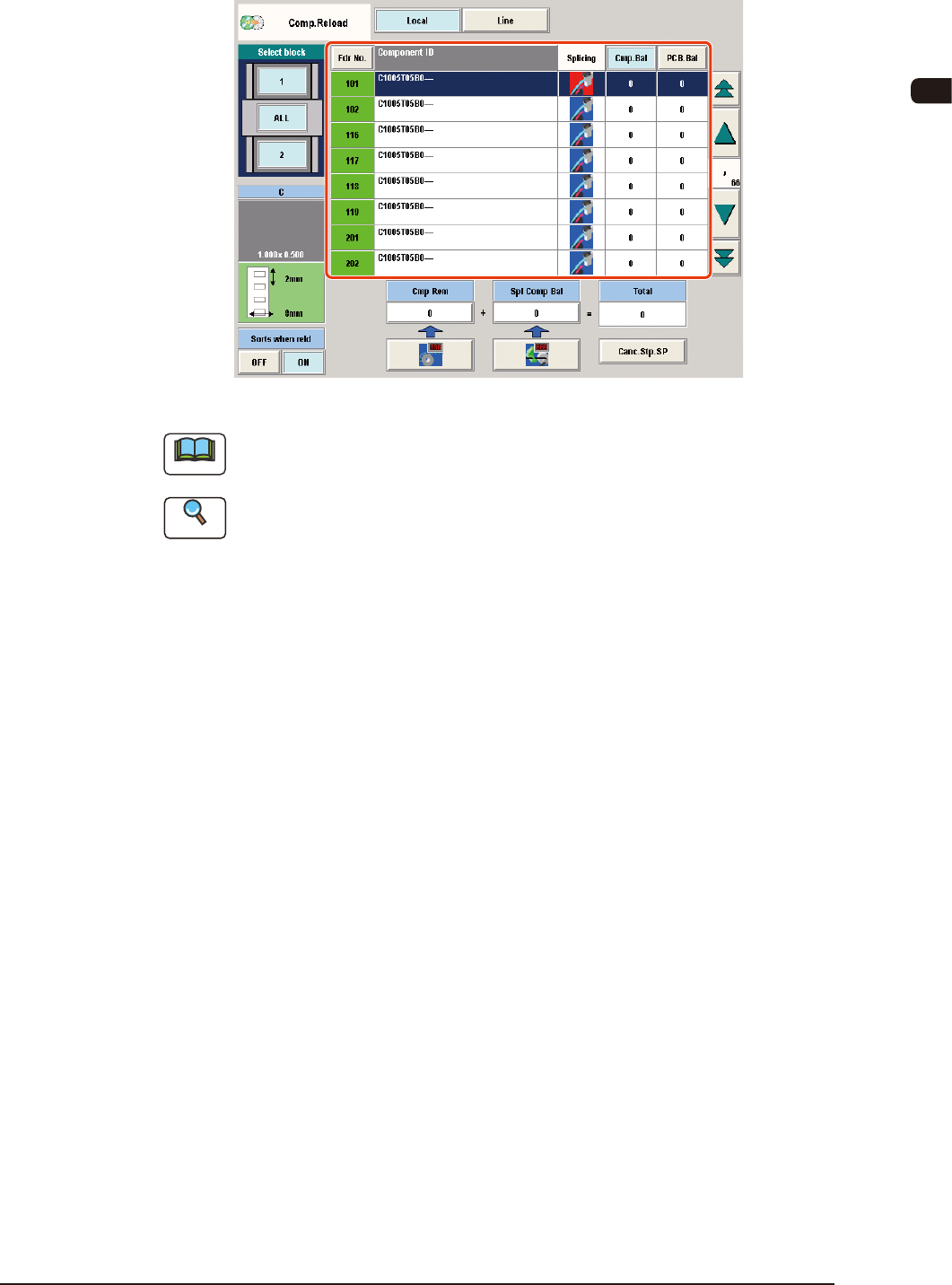

Example of "Comp. Reload" Window FF5
Note
The displayed contents will differ depending on selection of the options.
Reference
Refer to SIGMA-G4/G5 main machine instruction manual, "Volume 2, Chapter 1,
3. Comp. Reload" for details.
(3) Conrm the tape feeder where the splicing operation is required.
(3.1) Press each block button in the "Select block" section or the [ALL]
button.
(The feeder data items will be displayed in the Feeder List.)
(3.2) Press the appropriate Fdr. No. and conrm the contents in the [4]
Component type.
1009-003
OM-1606
6-6
6. Splicing
6.4 Splicing Operation
CAUTION
•
The cutter blade in the tape cutting jig is very sharp, take
the greatest care not to get injured.
Also, take care not to catch your nger in the spring
section.
•
When the tape is to be cut off by using the tape cutting
jig, set the tape on the pilot pins and hold it securely with
your thumb and the forenger; then cut off the tape slowly
and carefully so as not to cut your nger.
•
When the tape cutting jig is not to be used, lock it with the
lock lever while the cutter blade is closed, and keep it in a
specied place.
•
If, because of a chip on the cutter blade in the tape cutting jig,
the tape cannot be cut easily, unusually strong force is required
to cut off the tape, which may cause personal injury.
In such a case, purchase a new tape cutting jig.

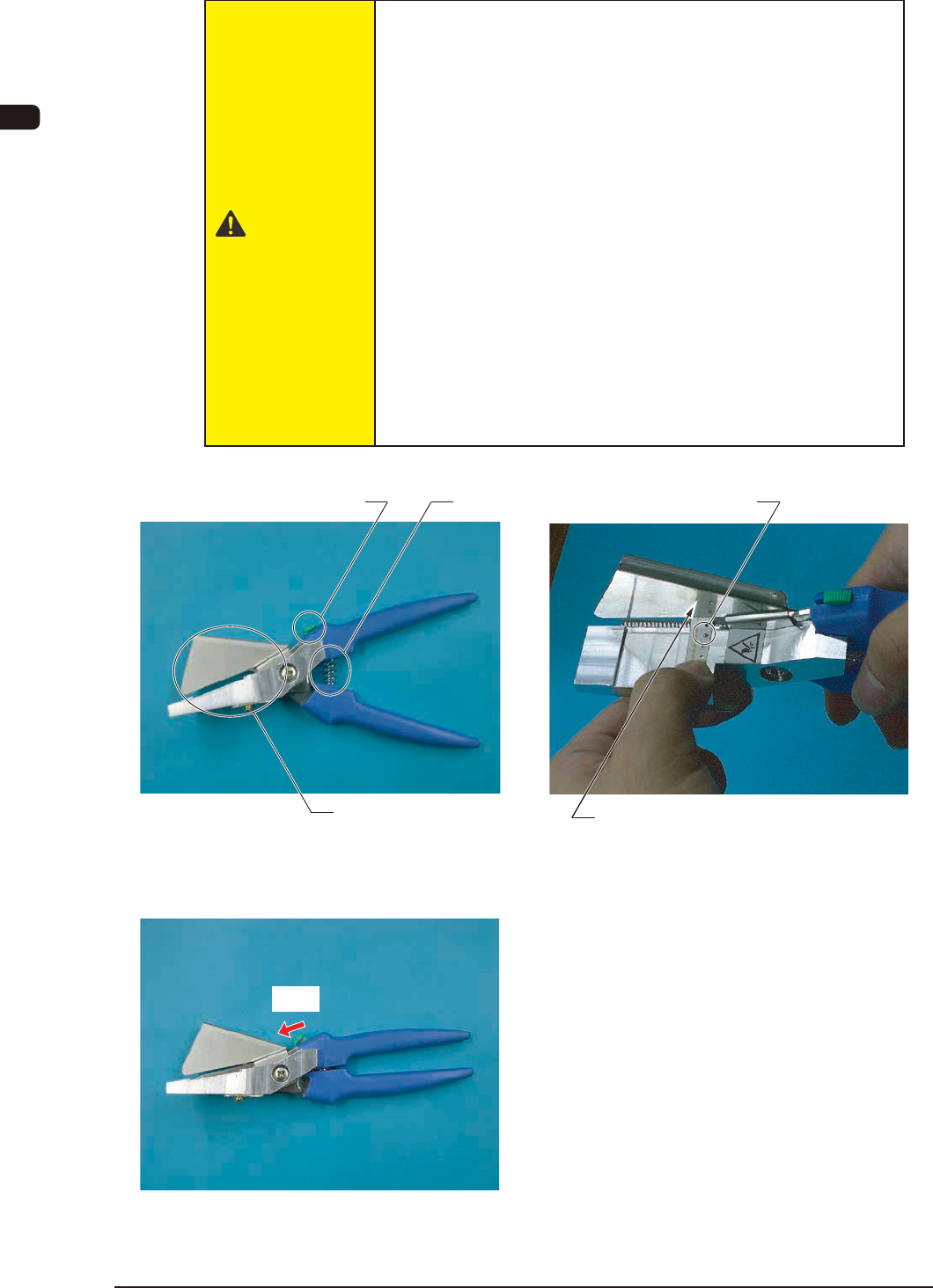

Cutter Blades are Opened. FF6 Cutting the Tape FF7
Pilot Pins
Mirror Surface
Lock Lever Spring Section
Cutter Blade
Lock
Cutter Blades are Closed. FF8
