OM-1606 6. Splicing 6-21 0908-001 6.7.2 Cutting T ape on Feeder Side (1) Prepare the tape on the feeder side. (2) Cut the tape on the feeder side. Set the tape on the pilot pins and cut it. • T ake care not to cut any co…

OM-1606

6-20

6. Splicing

0908-001

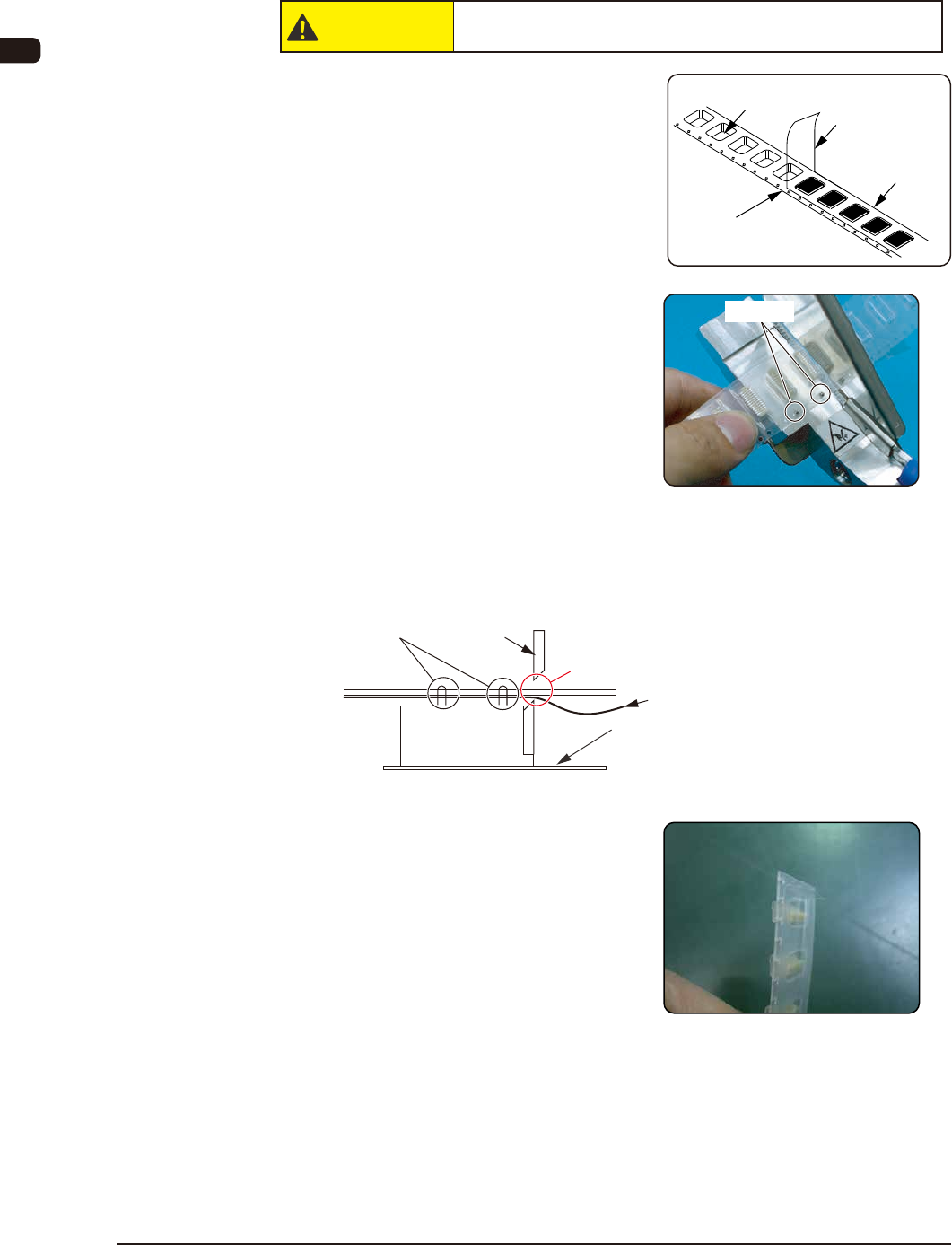

6.7 24 mm Width Tape Splicing Procedure

6.7.1 Cutting New Tape

CAUTION

Cut it off with the greatest care so as not to cut your nger.

(1) Prepare a new tape.

Peel off the cover tape up to the

splicing position.

(2) Cut the tape, using the tape cutting

jig.

Set the new tape on the pilot pins so

that the cover tape is turned down.

Then, cut the carrier tape together

with the cover tape.

•

Take care not to cut any component

in order to prevent damage to the

tape cutting jig.

•

In the case of 12 mm or 20 mm pitch,

the pilot pins are not used.

There should be no component here.

Mirror Surface

(Make sure that there is no component in

the component compartment hole on the

rear side of the carrier tape).

Pilot Pins

Scissors

Cover Tape

(3) The preparation of new tape has

been completed.

Pilot pins

Cover Tape

Splicing Position

(Cut Position)

Carrier Tape

Component Compartment

Hole

OM-1606

6. Splicing

6-210908-001

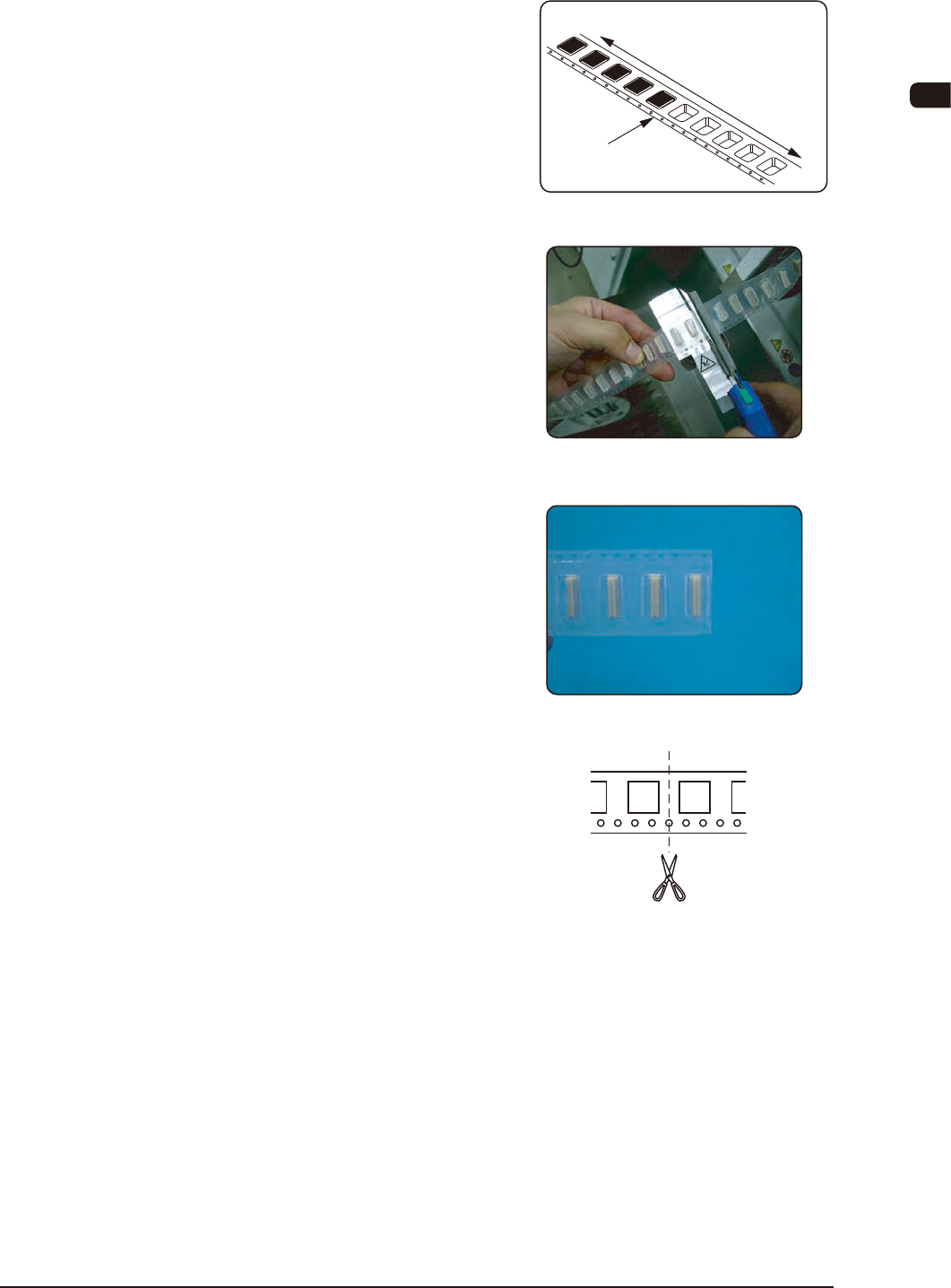

6.7.2 Cutting Tape on Feeder Side

(1) Prepare the tape on the feeder side.

(2) Cut the tape on the feeder side.

Set the tape on the pilot pins and cut

it.

•

Take care not to cut any component

in order to prevent damage to the

tape cutting jig.

•

In the case of 12 mm or 20 mm pitch,

the pilot pins are not used.

(3) The preparation of the tape on the

feeder side has been completed.

If it tends to bend, correct it.

•

In the case of 12 mm or 20 mm pitch,

do not use the pilot pins. Cut the tape

at the center position between the

two carrier pockets.

Cut the tape so that the carrier tapes

are not overlapped each other at the

joint section.

Feeder Side

Section where the

components are

not included

Section where the components

are included

Cut Position

OM-1606

6-22

6. Splicing

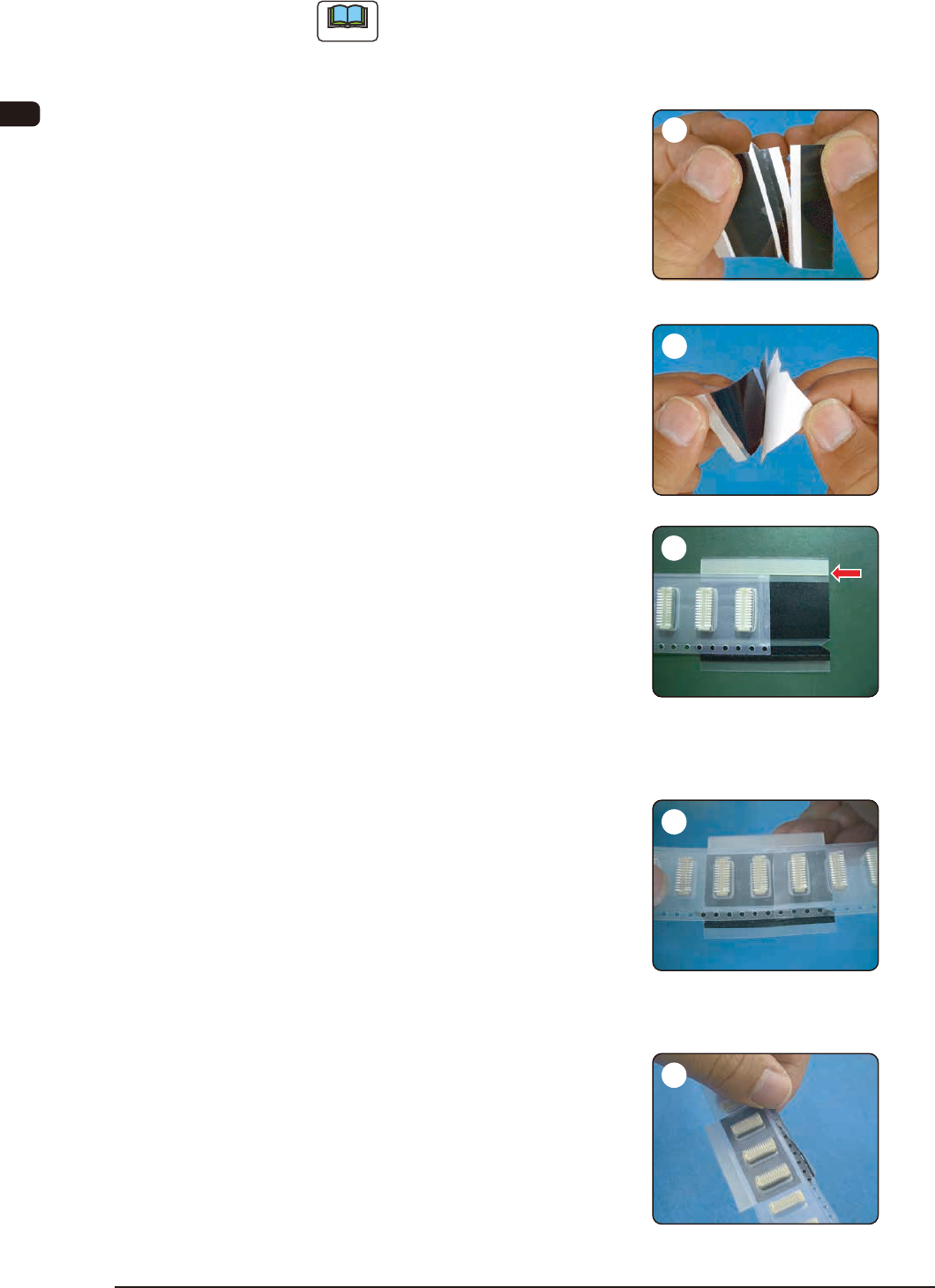

6.7.3 Tape Splicing Procedure (For 24 mm or more : FC24QE)

Note

When part of black tape is left on the peeling paper, return the peeling

paper and press the tape against the paper. Then, peel off the peeling paper

again.

Cut off the splicing tape along the

perforations.

Peel off the white peeling paper on

the splicing tape.

First, adhere the cover tape surface

of the new tape onto the splicing

tape.

Align the tape border on the opposite

side of the sprocket hole with the

reference guide, and so adhere it

that the joint position is located at the

center.

Adhere the cover tape surface on the

feeder.

Align the tape border on the opposite

side of the sprocket hole with the

reference guide, and so adhere it that

there is no gap on the joint position

with the new tape.

Bend the splicing tape along the

perforations and adhere it onto the

carrier tape on the sprocket hole

border side.

In order to adhere the splicing tape

securely, press and rub the surface

of the transparent tape entirely.

0908-001
