OM-1606
6. Splicing
6-35

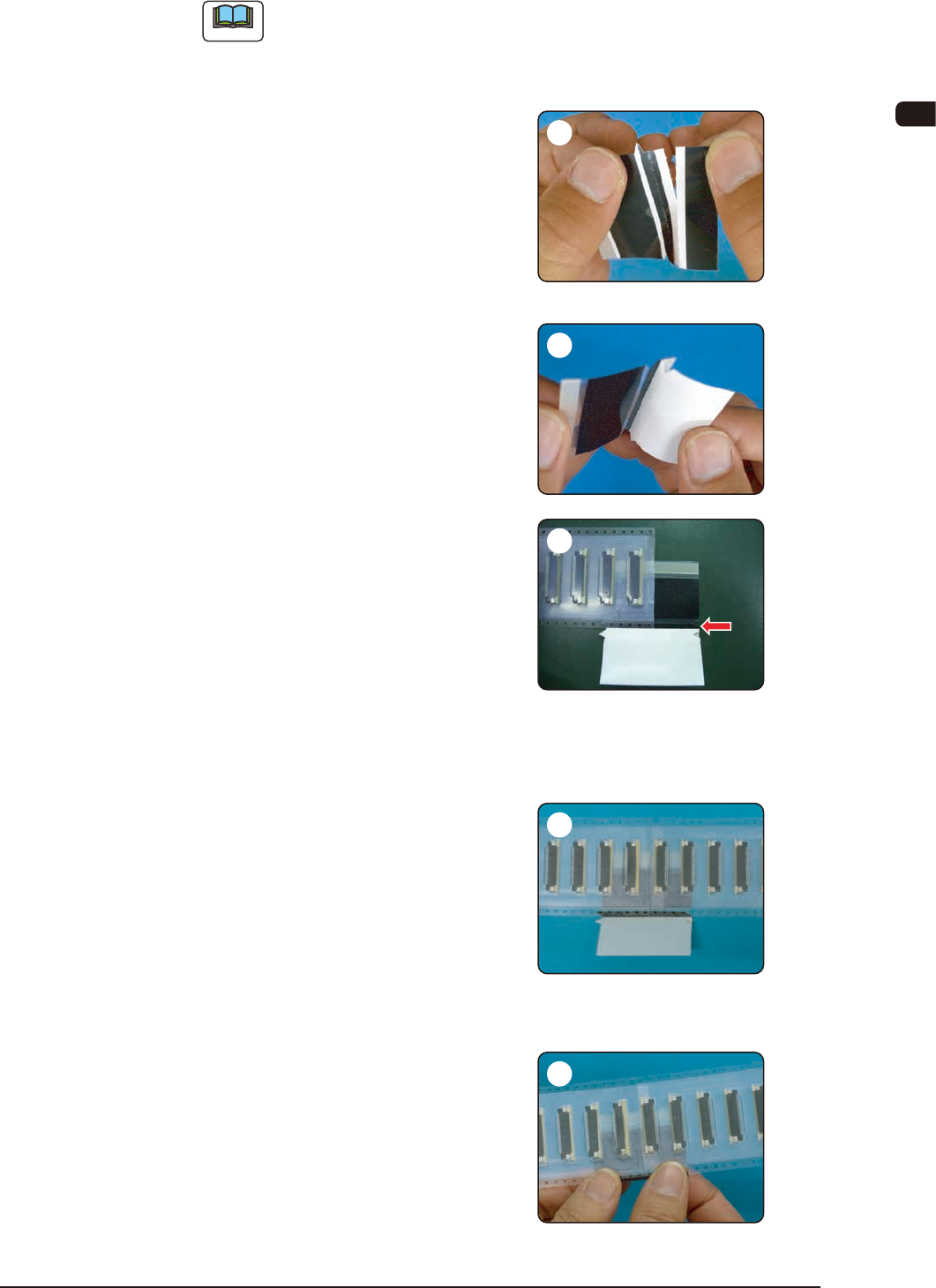

6.9.3 Tape Splicing Procedure (For 24 mm or more : FC24QE)
Note
When part of black tape is left on the peeling paper, return the peeling
paper and press the tape against the paper. Then, peel off the peeling paper
again.
Cut off the splicing tape along the
perforations.
Peel off the white peeling paper
on the splicing tape up to the
perforations and bend it.
First, adhere the cover tape surface
of the new tape onto the splicing
tape.
Align the folded perforations with the
tape border of the reference sprocket
hole side and so adhere it that the
joint position is located at the center.
Adhere the cover tape surface on the
feeder.
Align the folded perforations with the
tape border of the reference sprocket
hole side and so adhere it that there
should be no gap on the joint position
with the new tape.
Peel off the peeling paper, fold the
splicing tape along the perforations
and adhere it to the carrier tape on
the reference sprocket hole border
side.
In order to adhere the splicing tape
securely, press and rub the surface
of the transparent lm entirely.
0908-001
1
2
3
4
5
OM-1606
6-36
6. Splicing

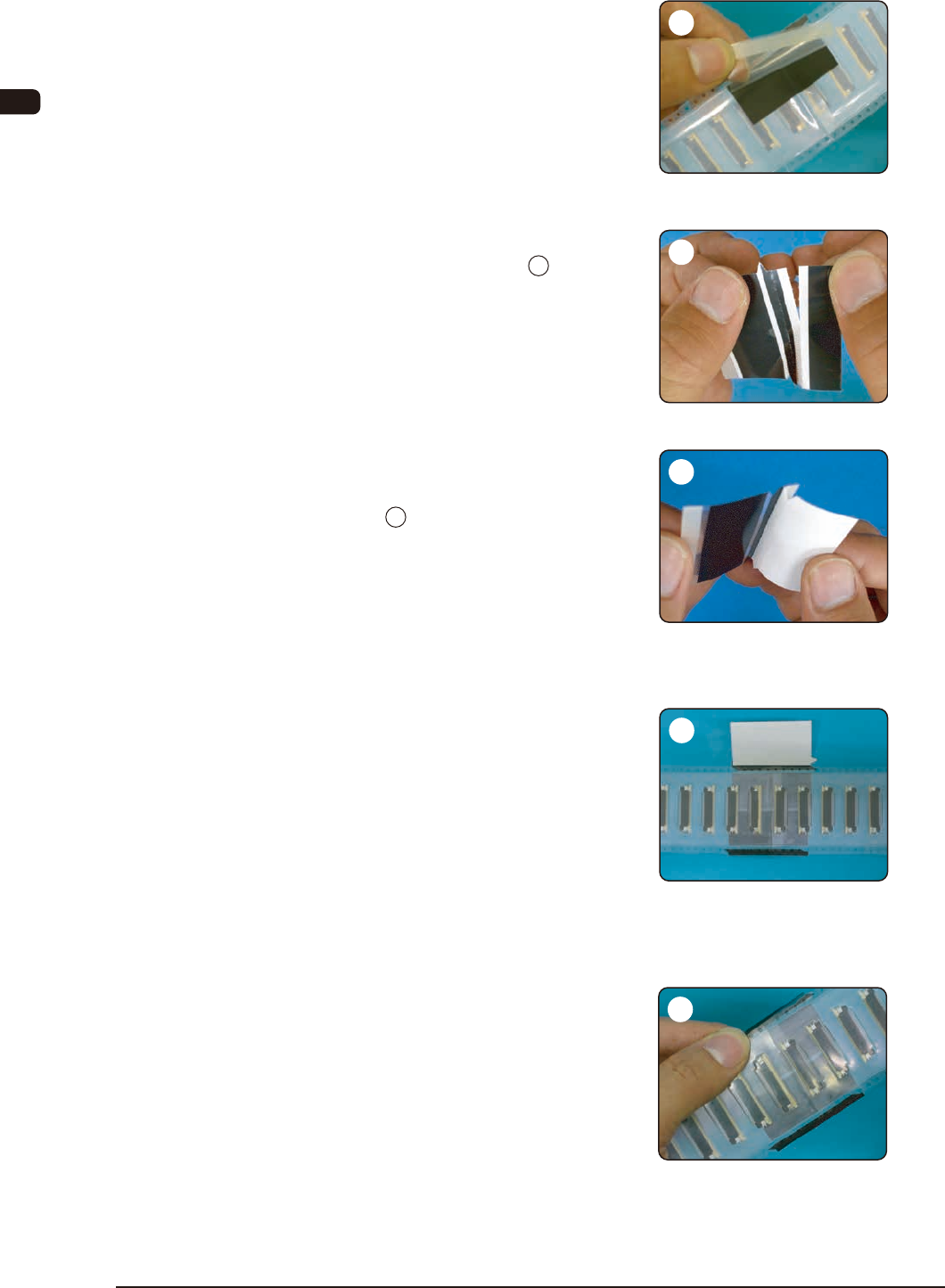

Peel off the transparent lm.
Cut off the other splicing tape the
same as shown in Step 1 .
Peel off the white peeling paper up to
the perforations and fold it as shown
in Step 2
Adhere the splicing tape also onto
the slave sprocket holes.
Align the folded perforations with the
tape border of the slave sprocket
holes and so adhere that there are
no gaps on the joint position with the
other tape.
Peel off the peeling paper, fold the
splicing tape along the perforations
and adhere it to the carrier tape on
the slave sprocket hole border side.
In order to adhere the splicing tape
securely, press and rub the entire
surface of the transparent lm.
0908-001
6
9
10
7
8
OM-1606
6. Splicing
6-370908-001

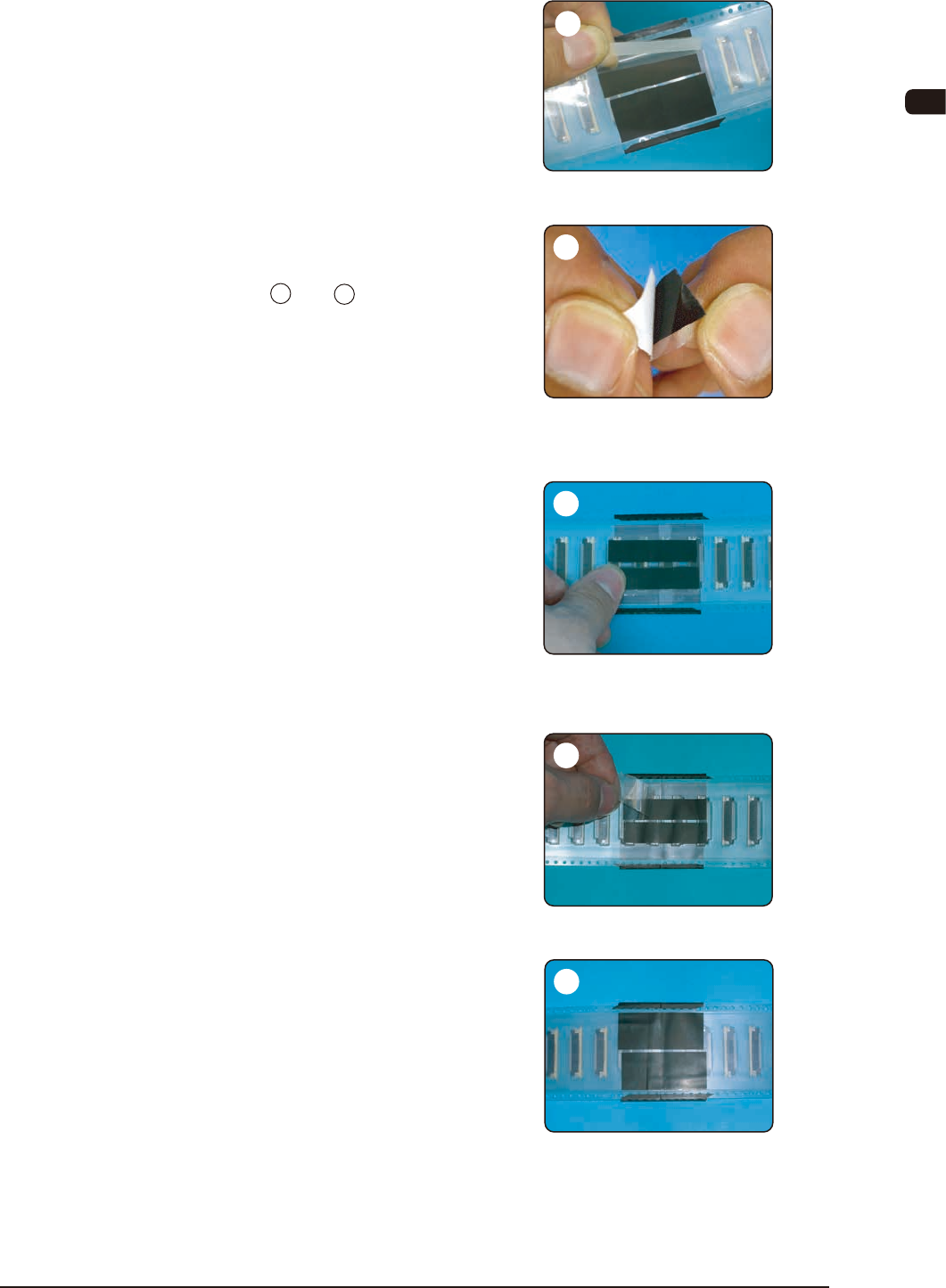

Peel off the transparent lm.
Peel off the white peeling paper on
the splicing tape which has been cut
in Step 1 and 7 .
Adhere two tapes to the rear side
(embossed bottom surface) of the
cover tape so that the joint position is
located at the center.
Peel off the transparent lm.
Conrm that the splicing tape has
been adhered securely to the cover
tape and the carrier tape surfaces.
When the tape has been spliced
securely, the procedure is completed.
13
14
15
11
12
