OM-1606
7-8
7. Maintenance
7.4.3 Cover Tape Take-up Section
Tape Guide Roller
Every week Cleaning
Clean it with a rag soaked in alcohol.
FG7
0908-001
OM-1606
7-9
7. Maintenance
7.4.4 Component Discharging Section
Air Blow
Discharging Outlet
Every week Cleaning
Blow the air in the direction of
the discharging outlet.
(The components are discharged
from the opening opposite to this
outlet).
When any component is
removed using air-blow,
the components might
scatter around, so perform
this operation paying
attention to the surrounding
condition.
Note
FG8
0908-001
OM-1606
7-10
7. Maintenance

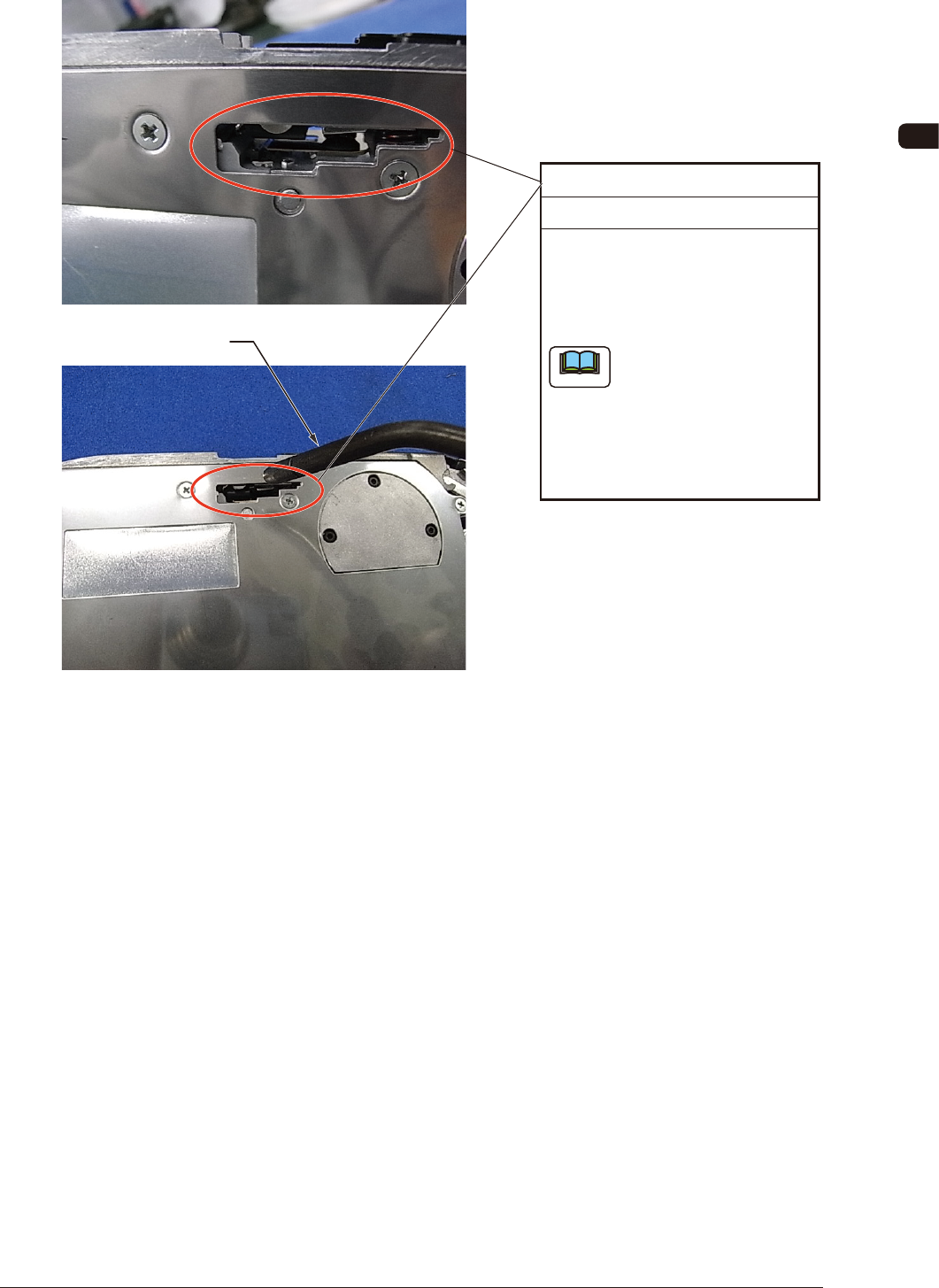

7.4.5 Joint Detection Unit
Tape Guide on the Joint Detection Unit
(Only for GD-28080, GD-28081, GD-28082,
GD-28083, GD-12162, GD-24322, GD-44562,
GD-72002 and GD-88002)
Every week Cleaning
• For GD-28080, GD-28081, GD-28082 or
GD-28083, lift the cover and remove any alien
substance using the applicator or bamboo probe.
•
If any foreign substance is attached
when the tape is passed through,
it might damage the joint detection
sensor or cause a tape feeding error.
In the case of GD-28080, GD-28081,
GD-28082 or GD-28083
Sensor Section
Refer to "7.5.2 8 mm Dual Feeder
Joint Detection Unit Sensor Section
Cleaning (For GD28080, D-28081,
GD-28082 or GD-28083) " for details.
For GD-12162, GD-24322, GD-44562, GD-72002
or GD-88002, remove any alien substance from
under the joint detection unit, using the applicator
or bamboo probe.
Reference
Notice
FG9
1011-002
