OM-1606 2-22 2. Attachment and Detachment of T ape (2) Loosen the set screw (countersunk head screw) to remove the tape guide and attach the support suppressor removed in step (1), onto the tape guide. Then, attach the s…
OM-1606
2. Attachment and Detachment of Tape
2-21

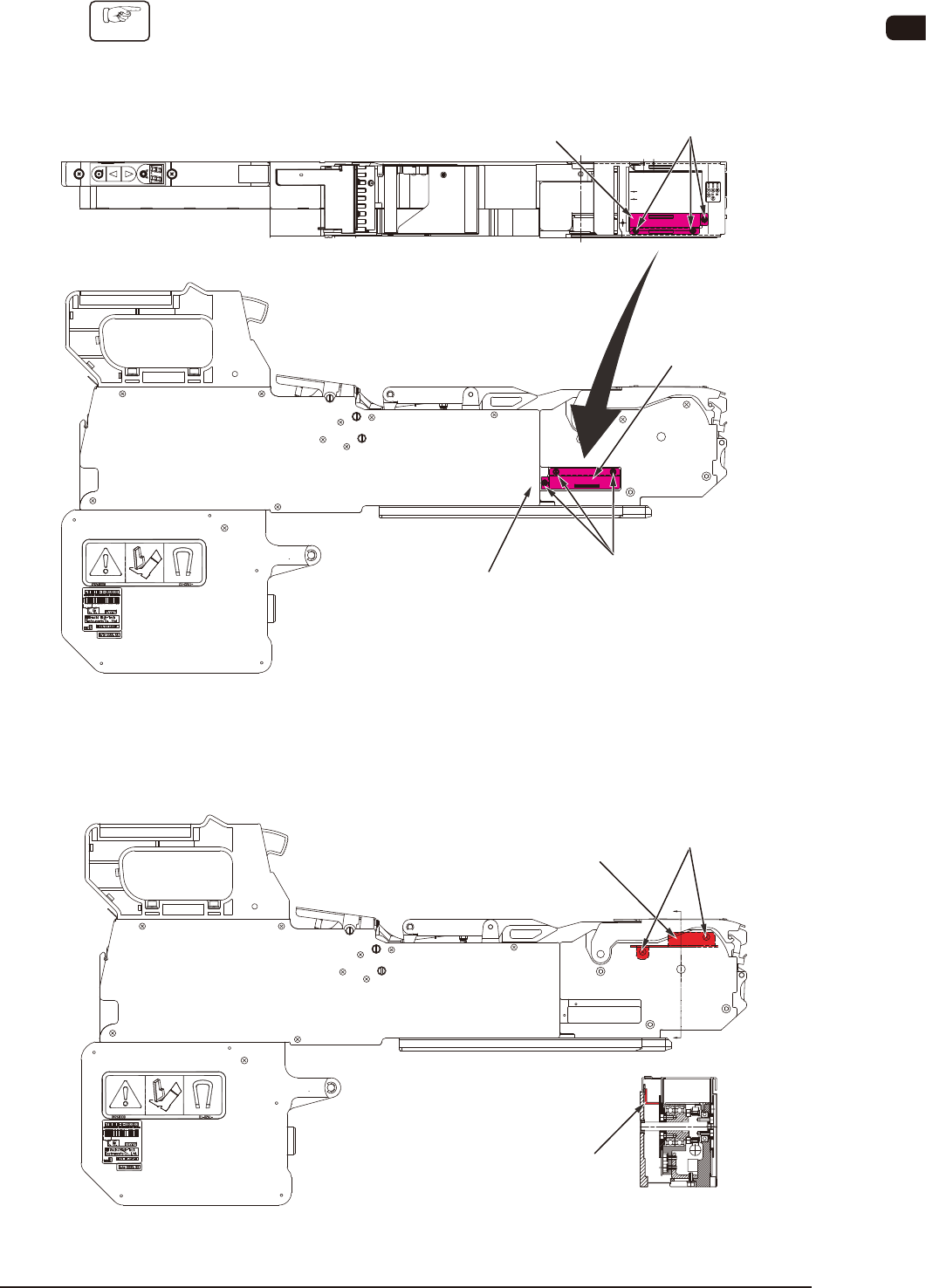

(2) Loosen the set screw (countersunk head screw) to remove the tape guide and
attach the tape guide onto the support suppressor housing section.
Set Screw
(Countersunk Head Screw)
Support Suppressor
housing section
Housing
Set Screw
(Countersunk Head Screw)
Tape Guide
FB24
•
For using tape with 32 mm width
Procedure
(1) Loosen the set screw (round head screw) with a precision screw driver to
remove the support suppressor.
Support Suppressor
Set Screw
(Round Head Screw)
FB25
0908-001
OM-1606
2-22
2. Attachment and Detachment of Tape

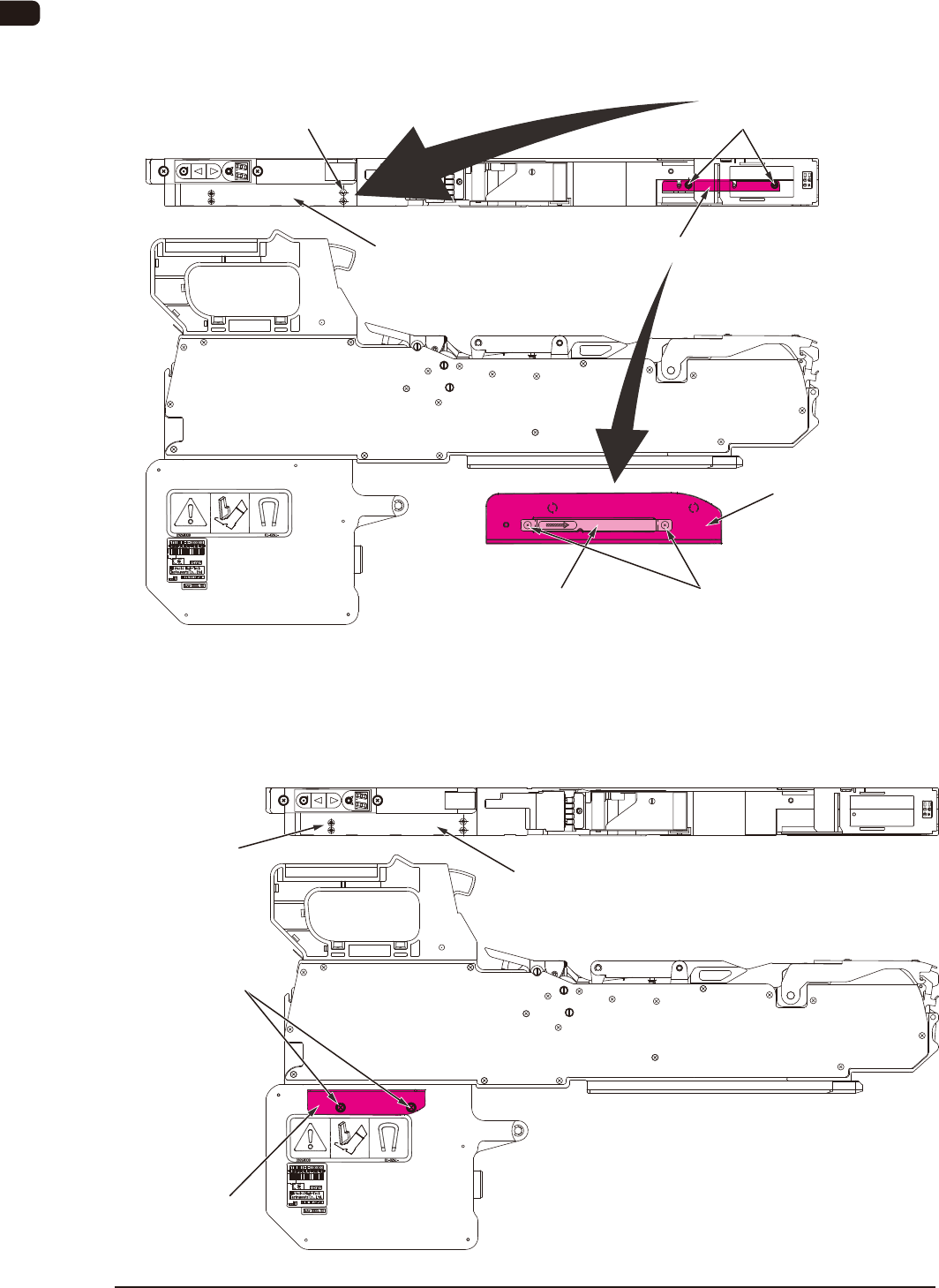

(2) Loosen the set screw (countersunk head screw) to remove the tape guide and
attach the support suppressor removed in step (1), onto the tape guide. Then,
attach the set screw (countersunk head screw) onto the set screw housing
section.
Set Screw
(Countersunk Head Screw)
Set Screw housing section
Housing
Tape Guide
Set Screw
(Countersunk Head Screw)
Support Suppressor
Tape Guide
Set Screw
(Round Head Screw)
FB26
(5) Remove the set screw (round head screw) from the set screw housing section
and attach the tape guide where the support suppressor has been already
attached, onto the tape guide housing section.
Tape Guide
Set Screw housing section
Set Screw
(Round Head Screw)
Set Screw
(Round Head Screw)
FB27
0908-001
OM-1606
2. Attachment and Detachment of Tape
2-23
•
For using tape with 56 mm width
Procedure
(1) Loosen the set screw (round head screw) with a precision screw driver to
remove the support suppressor and attach it onto the support suppressor
housing section.
Set Screw
(Round Head Screw)
Set Screw
(Round Head Screw)
Housing
Support Suppressor
Support Suppressor
Support Suppressor
housing section
FB28
(2) Loosen the set screw (round head screw) to remove the component drop
preventive cover.
SECT A-A
A
A
Set Screw
(Round Head Screw)
Component Drop
Preventive Cover
Component Drop
Preventive Cover
FB29
0908-001
